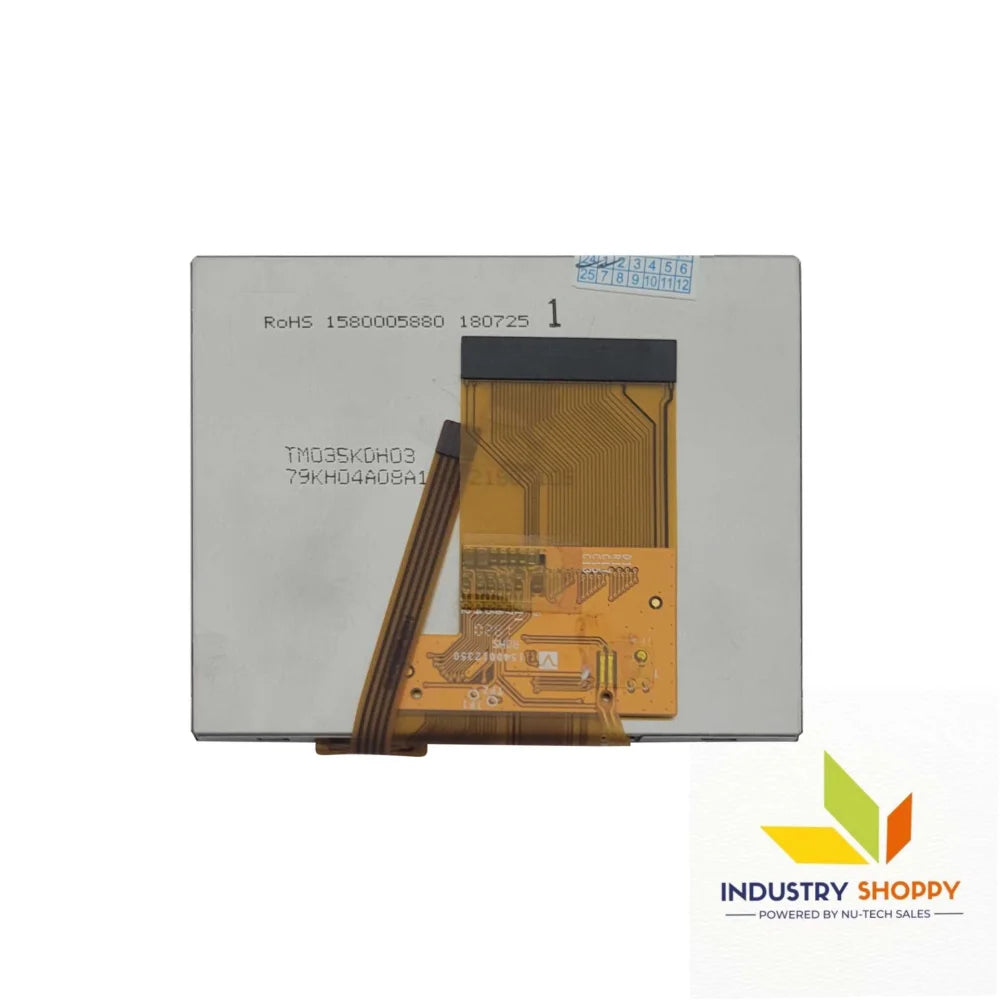

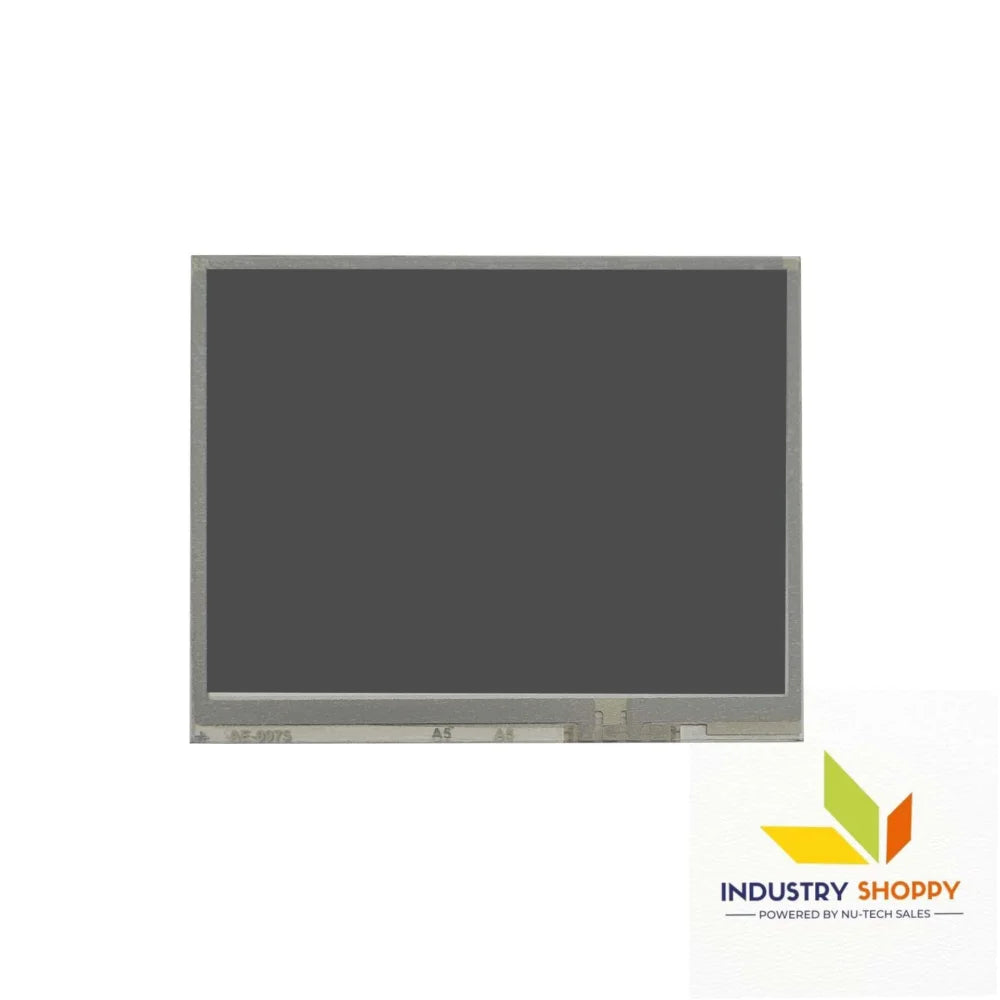

Tianma TM035KDH03 With Touch LCD Module

Tianma TM035KDH03 With Touch LCD Module:

The Tianma TM035KDH03 is a 3.5-inch a-Si TFT-LCD module with an integrated touchscreen, designed for a variety of consumer and industrial applications. Featuring a compact size, this module provides excellent display quality with QVGA resolution (320x240), making it ideal for compact devices where space is limited but high visual performance is required. The resistive touch screen ensures precise and reliable user input, making it well-suited for embedded systems, handheld devices, and other interactive applications.

The Tianma TM035KDH03 module offers low power consumption, high brightness, and good contrast, ensuring clear visibility in different lighting conditions. The integrated touchscreen adds convenience for applications requiring user interaction, while the LED backlight ensures long-lasting and energy-efficient illumination.

Key Features:

• Brand: Tianma

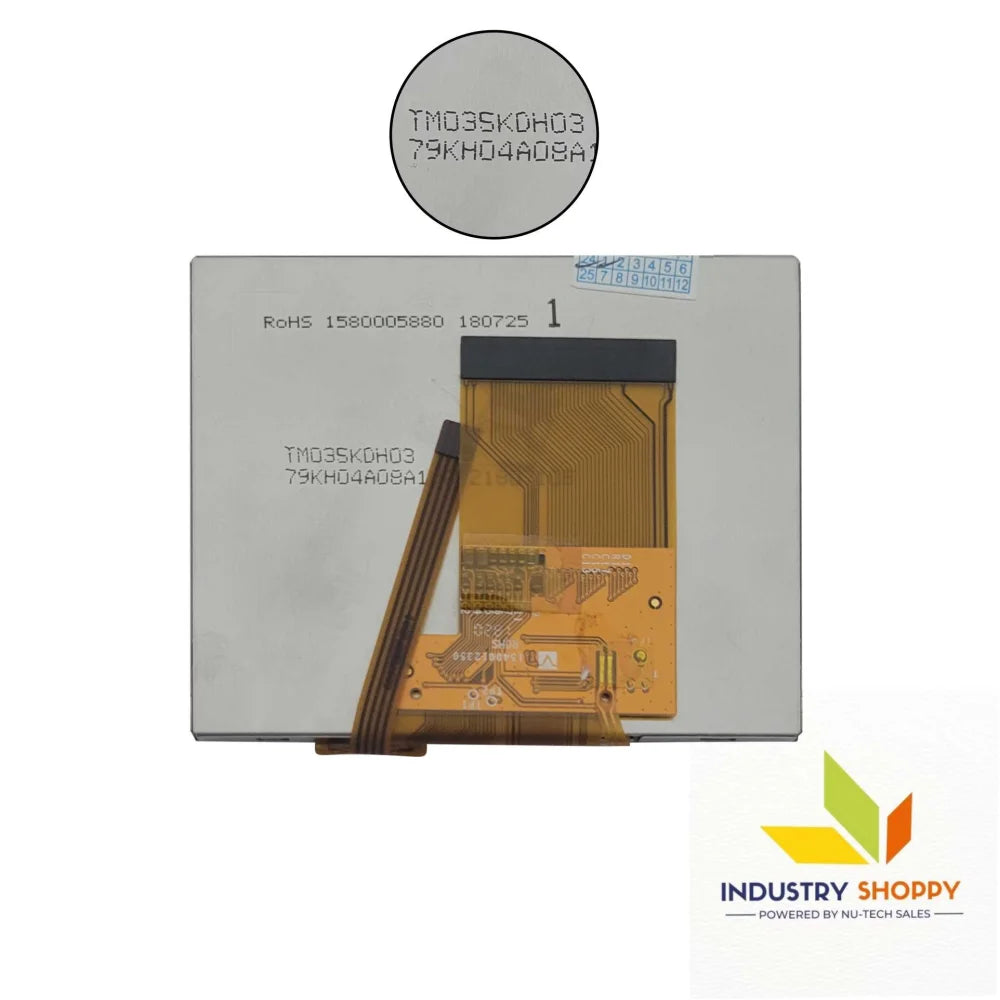

• Model: TM035KDH03
• Diagonal Size: 3.5 inches
• Resolution: 320×240 (QVGA), 100 PPI for sharp visuals
• Pixel Format: RGB Vertical Stripe for clear and accurate color rendering
• Active Area: 70.08(W) × 52.56(H) mm
• Bezel Opening: 73.0(W) × 56.0(H) mm
• Outline Dimensions: 79.0(W) × 63.5(H) × 4.2(D) mm
• Surface Treatment: Antiglare for better readability in various lighting conditions
• Brightness: 300 cd/m² (Typical), providing good visibility in indoor environments
• Contrast Ratio: 500:1 (Typical), delivering a balanced contrast for clear images
• Viewing Angle: 50°/50°/40°/60° (L/R/U/D), providing visibility from various angles
• Display Mode: Normally White, Transmissive, ensuring good brightness and clarity
• Response Time: 10/15 ms (Typical), reducing motion blur for smooth visuals
• Touch Type: Resistive Touch, offering precise input in various environments
• Backlight Type: LED, providing long life and low power consumption

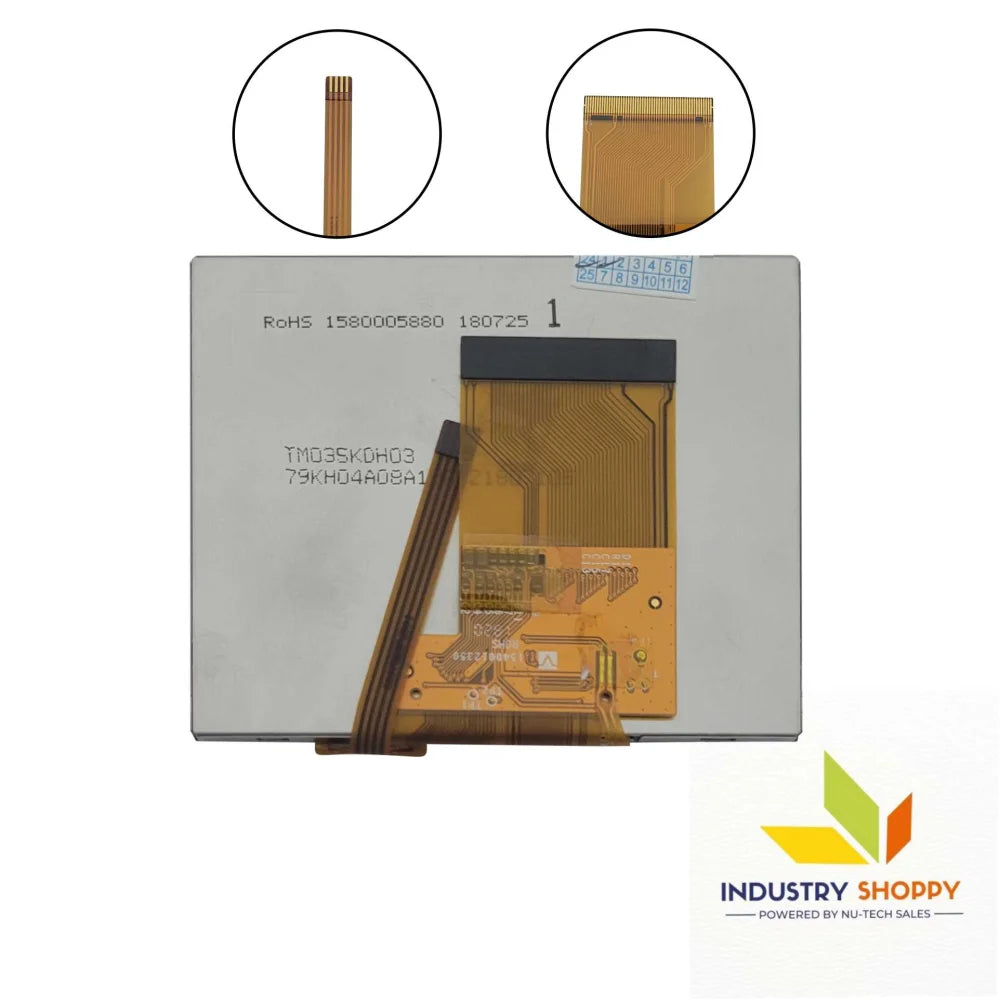

• Signal Interface: Parallel RGB, 18-bit, 24-pin FPC connector
• Input Voltage: 3.3V (Typical)
• Operating Temperature: -20°C to 70°C, suitable for a variety of indoor and outdoor applications
• Storage Temperature: -30°C to 80°C, ensuring safe long-term storage

Applications:

• Embedded Systems: Ideal for compact systems such as handheld devices and small portable electronics
• Point-of-Sale (POS) Terminals: Perfect for customer-facing systems that require touchscreen interaction
• Industrial Control Panels: Suitable for use in industrial environments for HMI (Human-Machine Interface) systems
• Consumer Electronics: Ideal for gadgets requiring a compact display with touchscreen functionality

Technical Precautions:

• Handling: Handle carefully, particularly the touchscreen, to avoid damage to the display surface and internal components
• ESD Protection: Always follow electrostatic discharge precautions during installation to protect sensitive components
• Temperature Caution: Operate within the recommended temperature range (-20°C to 70°C) to maintain optimal performance
• Connection Guidelines: Power down the display before connecting or disconnecting cables to avoid electrical damage
• Mounting Recommendations: Use appropriate fixtures for secure mounting in intended applications, ensuring protection for the touchscreen
