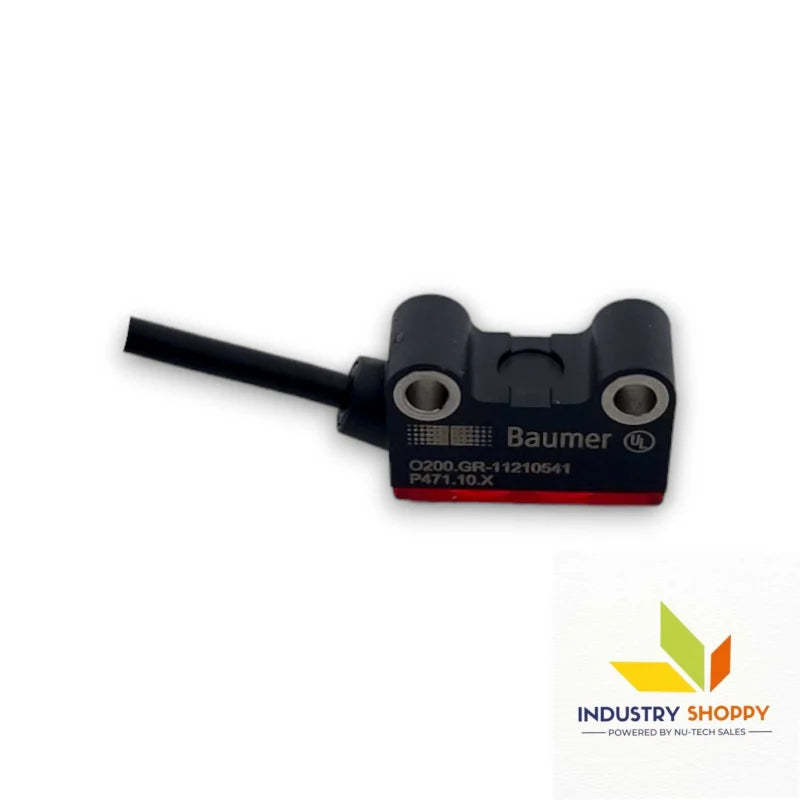

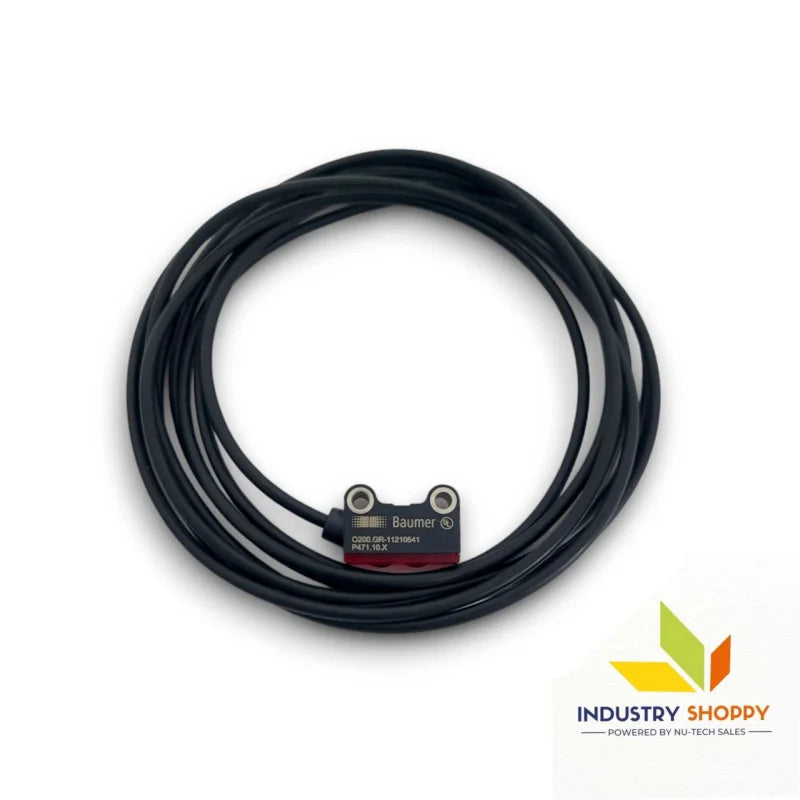

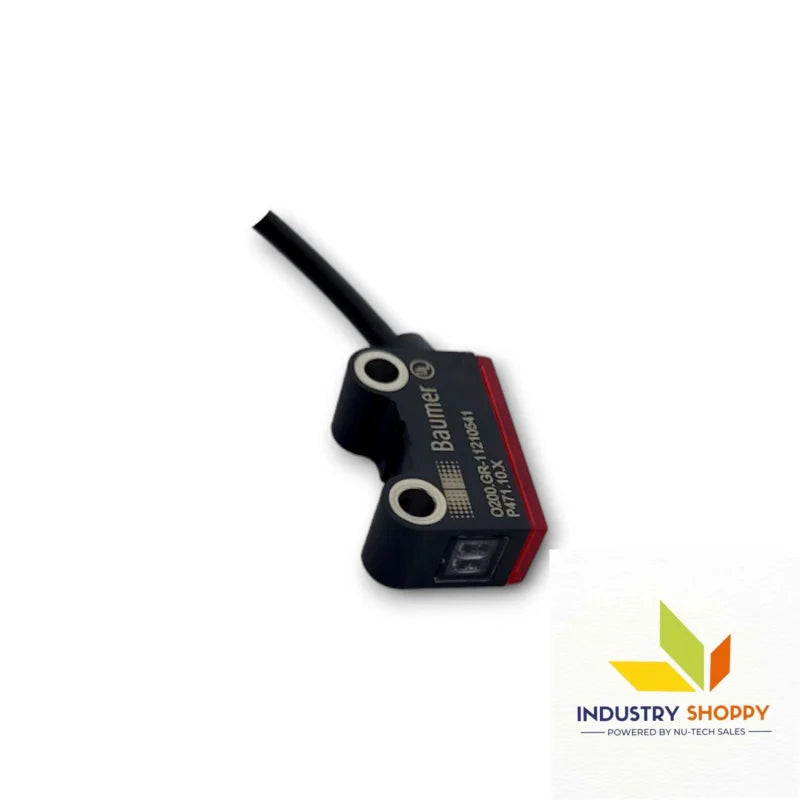

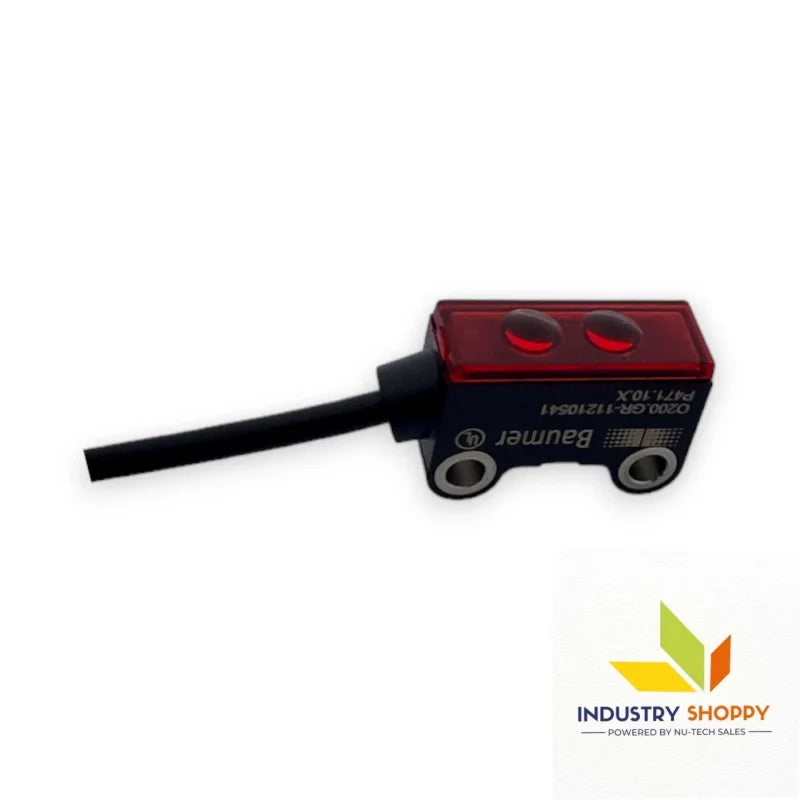

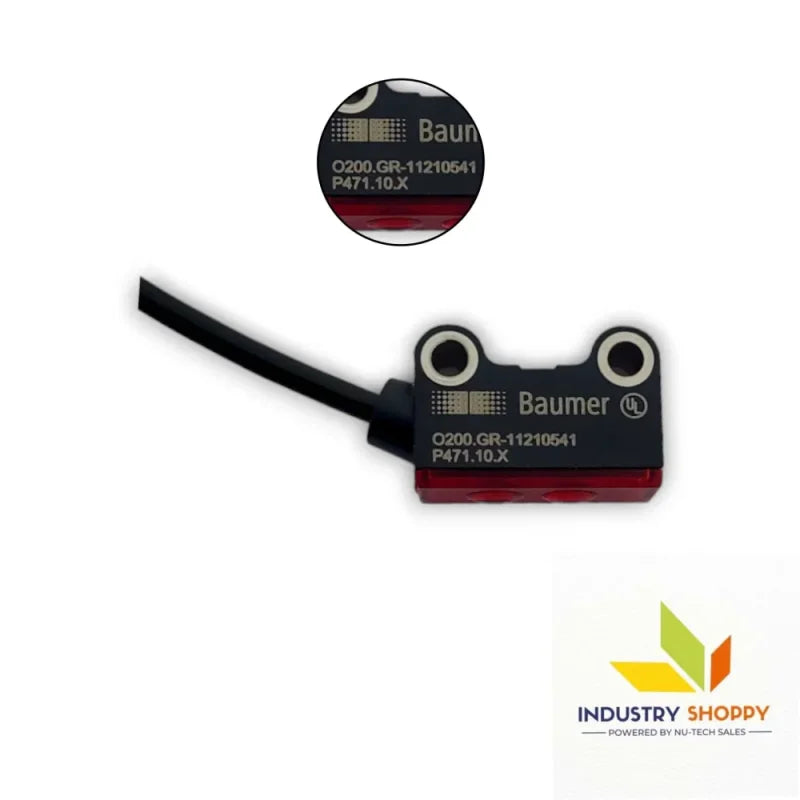

Baumer O200.GR-11210541 Diffuse Sensor
The Baumer O200.GR-11210541 Diffuse Sensor is a high-precision background suppression sensor designed for industrial applications. This sensor features a sensing distance (Tw) of 50 mm and a sensing range (Tb) from 7 to 50 mm, utilizing a pulsed red LED light source for accurate detection.
Key Features:
General Data:
- Part Number: 11210541
- Model Number: O200.GR-PV1Z.72CV/BX50
-
Type: Background suppression
- Sensing Distance (Tw): 50 mm
- Sensing Range (Tb): 7 to 50 mm
- Smallest Object Recognizable (Typ.): 0.25 mm at 30 mm
- Power On Indication: LED green
- Alignment / Soiled Lens Indicator: Flashing output indicator
- Output Indicator: LED yellow
- Sensing Distance Adjustment: No
- Suppression of Reciprocal Influence: Yes
- Alignment Optical Axis: < 1.5°
Light Source:
- Type: Pulsed red LED
- Wave Length: 644 nm
Electrical Data:
- Response Time / Release Time: < 1 ms
- Voltage Supply Range (+Vs): 10 to 30 VDC
- Current Consumption (Max, No Load): 20 mA (@ 30 VDC)
- Current Consumption (Typ): 16 mA (@ 24 VDC)
- Voltage Drop (Vd): < 2 VDC
- Output Function: Light / dark operate
- Output Circuit: PNP complementary
- Output Current: 50 mA
- Short Circuit Protection: Yes
- Reverse Polarity Protection: Yes
Mechanical Data:
- Width / Diameter: 8 mm
- Height / Length: 25.1 mm
- Depth: 14.1 mm
- Design: Rectangular
- Mechanical Mounting: Sleeve smooth (stainless steel)
- Housing Material: Plastic (ASA, PMMA)
- Front (Optics): PMMA
- Connection Types: Cable 4 pin, 2 m
- Cable Characteristics: PVC / PVC 4 x 0.08 mm²
Ambient Conditions:
-
- Protection Class: IP67
- Operating Temperature: -25 to +50 °C
Design and Durability: The Baumer O200.GR-11210541 sensor features a robust plastic housing (ASA, PMMA) with a sleek rectangular design, ensuring durability and reliability in various industrial environments. Its compact dimensions facilitate easy installation.
Applications: Ideal for applications requiring precise background suppression and reliable object detection, this sensor excels in automation, quality control, and assembly line monitoring.
Technical Precautions:
- Ensure proper installation and secure connection to avoid any operational issues.
- Always handle the sensor carefully to prevent damage to the cable and sensor body.
- Regularly check the sensor for any signs of wear and tear, especially in demanding environments.
- Maintain the sensor within the specified operating temperature range for optimal performance.
- Ensure the sensor's IP67 rating is maintained by keeping it clean and free from contaminants.
Note : All tax and custom duty should be pay by buyer only.
Note: All trademarks and trade names used are the property of their respective owners.
Note : All tax and custom duty should be pay by buyer only.
Note: All trademarks and trade names used are the property of their respective owners.
Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
