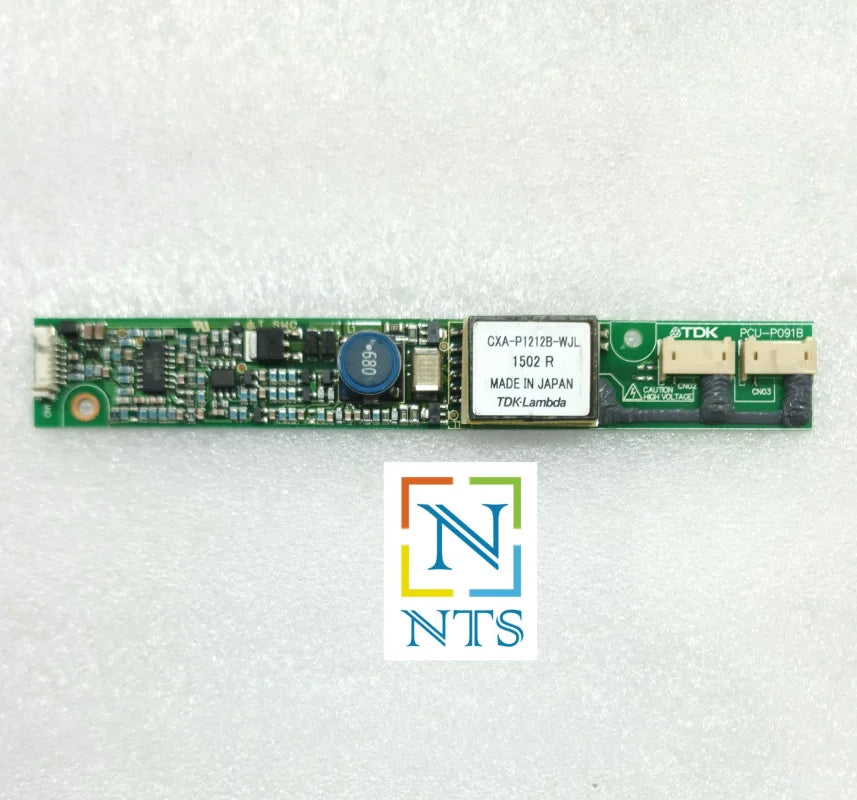

TDK CXA-P1212B-WJL CCFL Inverter

TDK CXA-P1212B-WJL CCFL Inverter

The TDK CXA-P1212B-WJL CCFL Inverter is a high-quality, compact solution for powering CCFL lamps used in LCD panels and backlit display systems. Known for its stable output voltage and reliable ignition, this inverter enhances backlight uniformity and extends lamp life.

It supports input voltage of 12V DC and generates the required high-voltage output for cold cathode fluorescent lamps, ensuring smooth and bright backlighting in a wide range of applications. The inverter is designed with built-in safety features including open lamp detection, overcurrent protection, and thermal shutdown, enhancing both safety and longevity.

Thanks to its compact and lightweight PCB-mount design, the CXA-P1212B-WJL is easy to integrate into industrial panels, kiosks, and embedded systems where space is limited. Its durability and robust performance make it suitable for continuous-use display environments.

Whether you’re upgrading legacy systems or designing new equipment, this TDK inverter offers reliable and efficient CCFL operation for consistent backlight performance under demanding conditions.

Key features :-

Applications

• LCD Backlighting: Provides optimal lighting for LCD screens in consumer electronics, medical devices, and industrial displays.
• Signage and Display Lighting: Enhances visibility and appeal for commercial signs and advertising displays.
• Automotive Lighting: Utilized in vehicle dashboards and other applications requiring dependable backlighting.
• Architectural Lighting: Suitable for enhancing ambient lighting in architectural designs and interior spaces.

Technical Precautions

• Correct Installation: Follow TDK’s installation instructions to ensure proper operation and prevent damage.
• Voltage Compatibility: Verify input and output voltage compatibility to avoid electrical issues.
• Temperature Control: Ensure adequate ventilation to prevent overheating and ensure longevity.
• Regular Maintenance: Conduct routine inspections to maintain peak performance and extend lifespan.
• Handle with Care: Protect the inverter from physical shocks and drops to avoid damage.
