Weidmuller PRO ECO 960W 24V 40A 1PH Power Supply
Weidmuller PRO ECO 960W 24V 40A 1PH Power Supply
Weidmuller PRO ECO 960W 24V 40A 1PH Power Supply
Weidmuller PRO ECO 960W 24V 40A 1PH Power Supply
Weidmuller PRO ECO 960W 24V 40A 1PH Power Supply
Weidmuller PRO ECO 960W 24V 40A 1PH Power Supply
Weidmuller PRO ECO 960W 24V 40A 1PH Power Supply
Weidmuller PRO ECO 960W 24V 40A 1PH Power Supply
Weidmuller PRO ECO 960W 24V 40A 1PH Power Supply
Weidmuller PRO ECO 960W 24V 40A 1PH Power Supply
Weidmuller

Weidmuller PRO ECO 960W 24V 40A 1PH Power Supply

Product SKU: NTSSMPS00027
Available:
Only 2 items in stock
2 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Weidmuller
  • Condition
:  New
  • Part Number
:  1469520000
  • DC Input Voltage Range
: 80...370 V DC (Derating @ 120 V DC)
  • Output Power
:  960 W
  • Power Loss, Nominal Load
:  85 W


Note : All tax and custom duty should be pay by buyer only.

$325.00
$475.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Declaration

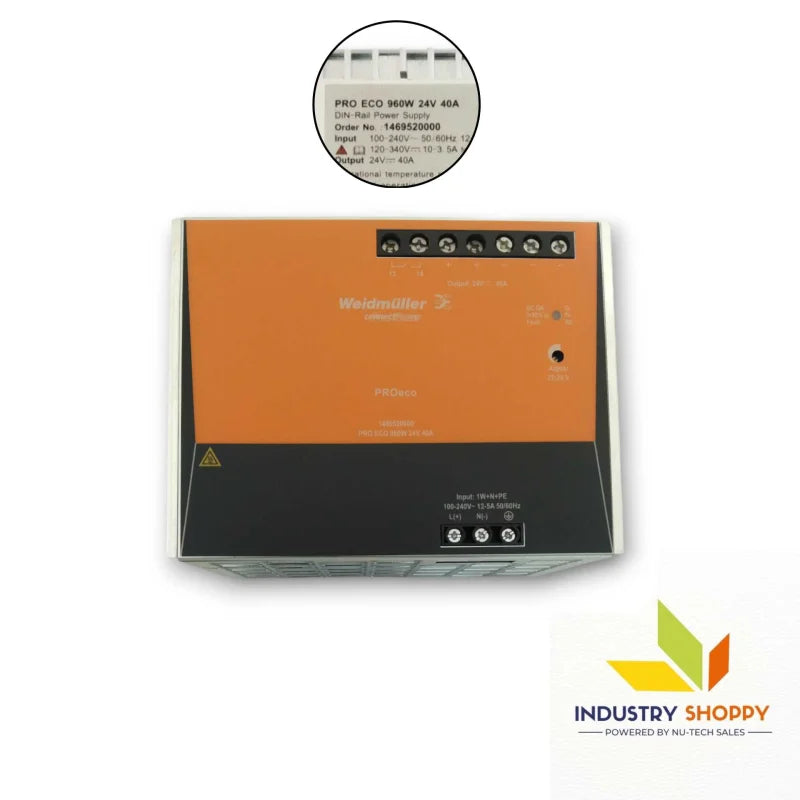

Weidmüller PRO ECO 960W 24V 40A 1PH Power Supply

The Weidmüller PRO ECO 960W 24V 40A 1PH Power Supply (1469520000) is a robust and energy-efficient solution designed for demanding industrial automation and control applications. Delivering 24 V DC output with up to 40 A current and 960 W power, this unit ensures stable and reliable power for multiple industrial devices.

It operates within a wide AC input range of 85–264 V AC and supports DC input up to 370 V DC, offering flexibility in various electrical systems. Built with a corrosion-resistant metal housing and IP20 protection, the power supply ensures durability and safe operation.

The device features 93% efficiency, adjustable output voltage (22–28 V), and advanced overload, short-circuit, and overheating protection for enhanced reliability. LED indicators provide clear status monitoring, making it ideal for continuous industrial use and critical power distribution systems.


Applications

• Industrial automation and control panels

• PLC systems and industrial electronics

• Process control and manufacturing equipment

• Machine building and automation systems


Technical Precautions

• Ensure proper input voltage (85–264 V AC) before installation

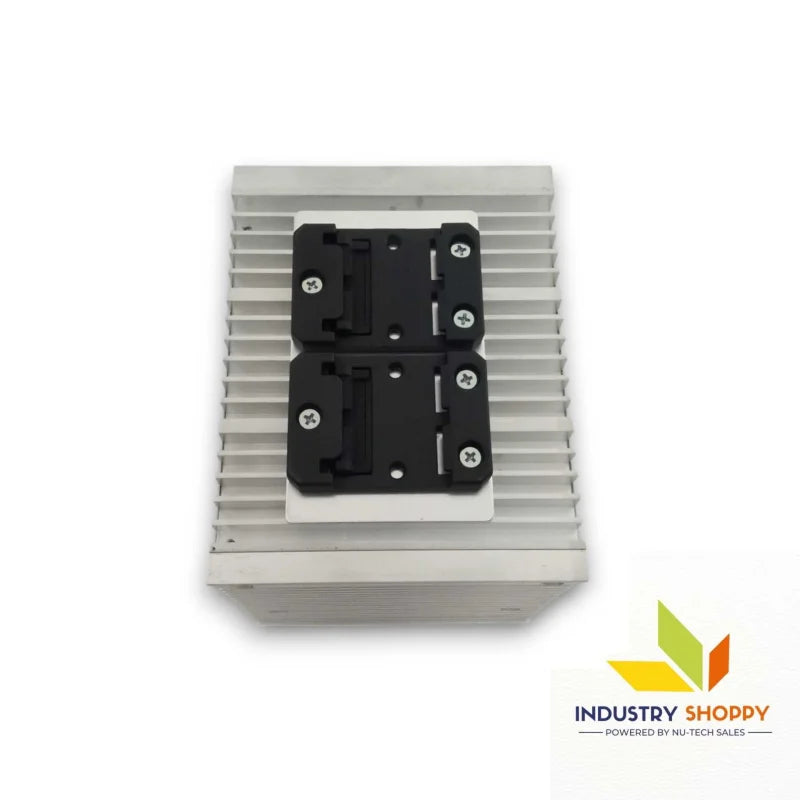

• Install on TS-35 DIN rail with adequate ventilation

• Avoid overloading beyond rated 40 A output current

• Maintain operating temperature within −25 °C to +70 °C


While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.


Facebook, YouTube,


Product NamePRO ECO 960W 24V 40A 1PH
BrandWeidmuller
Order No.1469520000
VersionPower supply, switch-mode power supply unit, 24 V
Depth120 mm
Height125 mm
Width160 mm
Net Weight3,190 g
Storage Temperature-40 °C...85 °C
Operating Temperature-25 °C...70 °C
RoHS Compliance StatusCompliant with exemption
RoHS Exemption (if applicable/known)7a, 7cI
REACH SVHCLead 7439-92-1
SCIP6d8cdf22-8230-4af8-86c8-3558c716666d
AC Current Consumption4.6 A @ 230 V AC / 9.9 A @ 110 V AC
AC Input Voltage Range85...264 V AC (derating at 100 V AC)
Connection SystemScrew connection
DC Current Consumption2.9 A @ 370 V DC / 9 A @ 120 V DC
DC Input Voltage Range80...370 V DC (Derating @ 120 V DC)
Frequency Range AC47...63 Hz
Input Frequency47...63 Hz
Input Fuse (Internal)Yes
Inrush CurrentMax. 5 A
Nominal Power Consumption1,032.3 VA
Rated Input Voltage100...240 V AC
Recommended Back-up Fuse16 A / DI, safety fuse; 20 A, Char. B, circuit breaker; 16 A, Char. C, circuit breaker
Surge ProtectionVaristor
Capacitive LoadUnrestricted
Continuous Output Current @ UNominal40 A @ 50 °C; 24 A @ 70 °C
Nominal Output Current for Unom40 A @ 50 °C
Output Power960 W
Output Voltage, Max.28 V
Output Voltage, Min.22 V
Output Voltage, NoteAdjustable via potentiometer
Overload ProtectionYes
Parallel Connection OptionYes, max. 3
Protection Against Inverse VoltageYes
Ramp-up Time≤ 100 ms
Rated Output Voltage24 V DC ± 1 %
Residual Ripple, Breaking Spikes<50 mVPP @ 24 V DC, IN
AC Failure Bridging Time @ Inom> 20 ms @ 230 V AC / > 20 ms @ 115 V AC
Degree of Efficiency93%
Earth Leakage Current, Max.3.5 mA

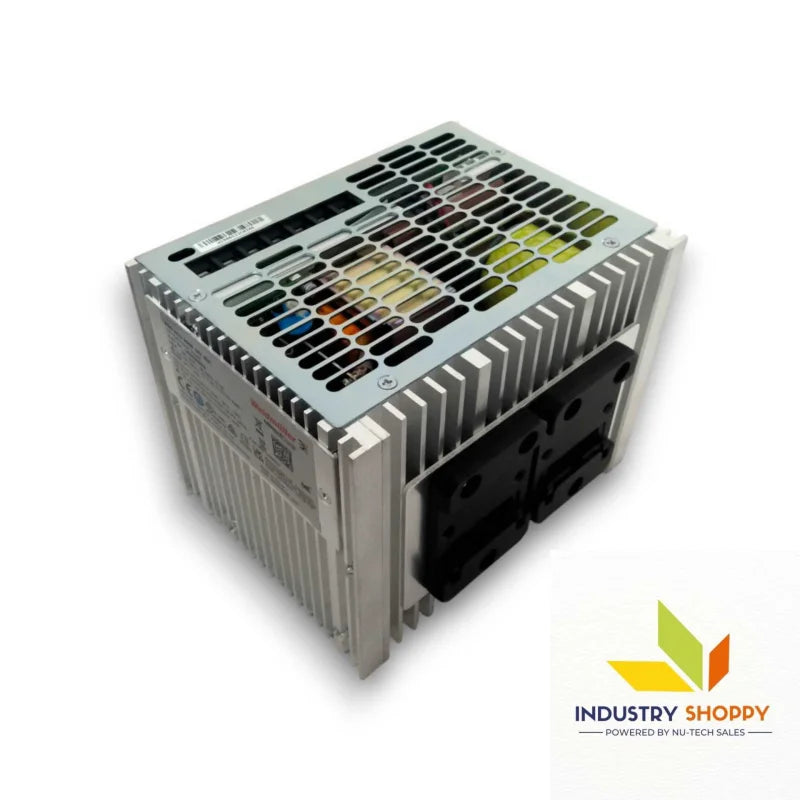

Housing VersionMetal, corrosion resistant
IndicationGreen LED (Uoutput > 21.6 V DC); Yellow LED (Ioutput > 90% IRated typ.); Red LED (overload, overtemperature, short-circuit, Uoutput < 20.4 V DC)
Max. Perm. Air Humidity (Operational)5%–95% RH
Mounting Position / Installation NoticeOn terminal rail TS 35
Power Factor (Approx.)> 0.98 @ 230 V AC / > 0.98 @ 115 V AC
Power Loss, Idling8 W
Power Loss, Nominal Load85 W
Protection Against Over-heatingYes
Protection Against Reverse Voltages from the Load30–35 V DC
Protection DegreeIP20
Short-circuit ProtectionYes
Surge Voltage CategoryII
Country of OriginChina

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
