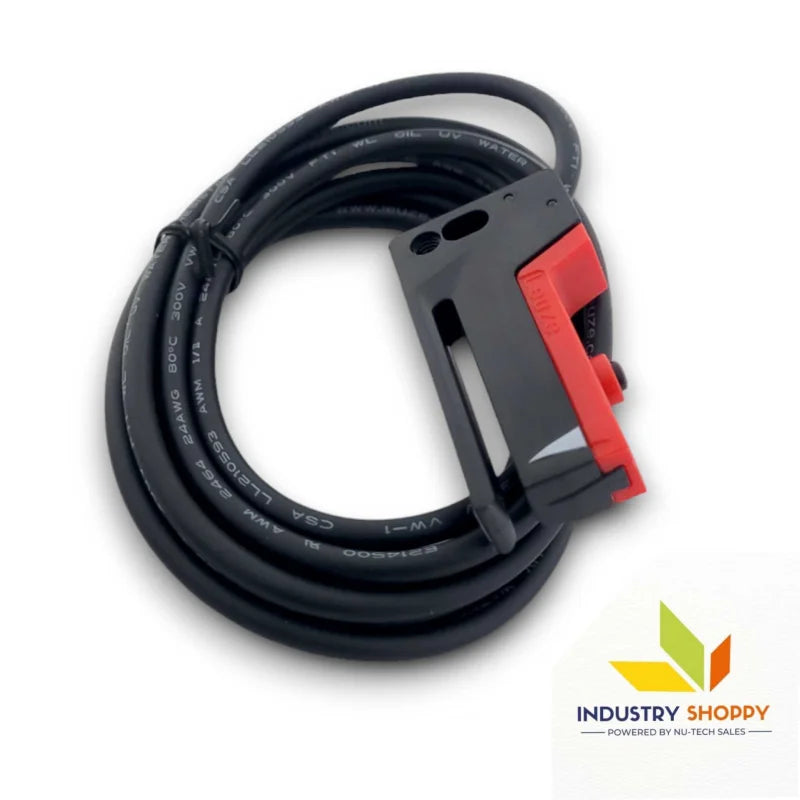

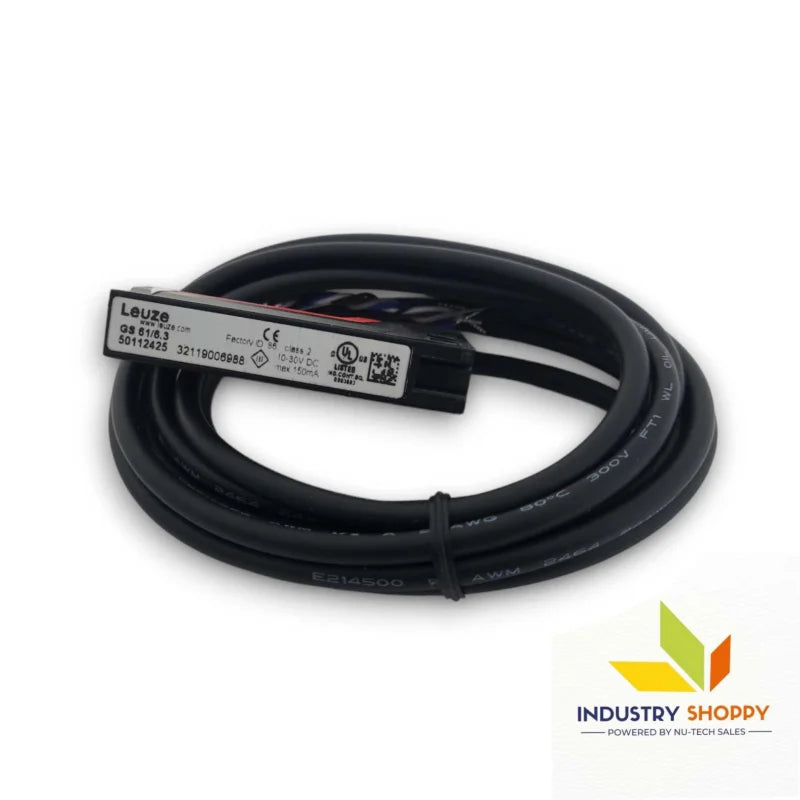

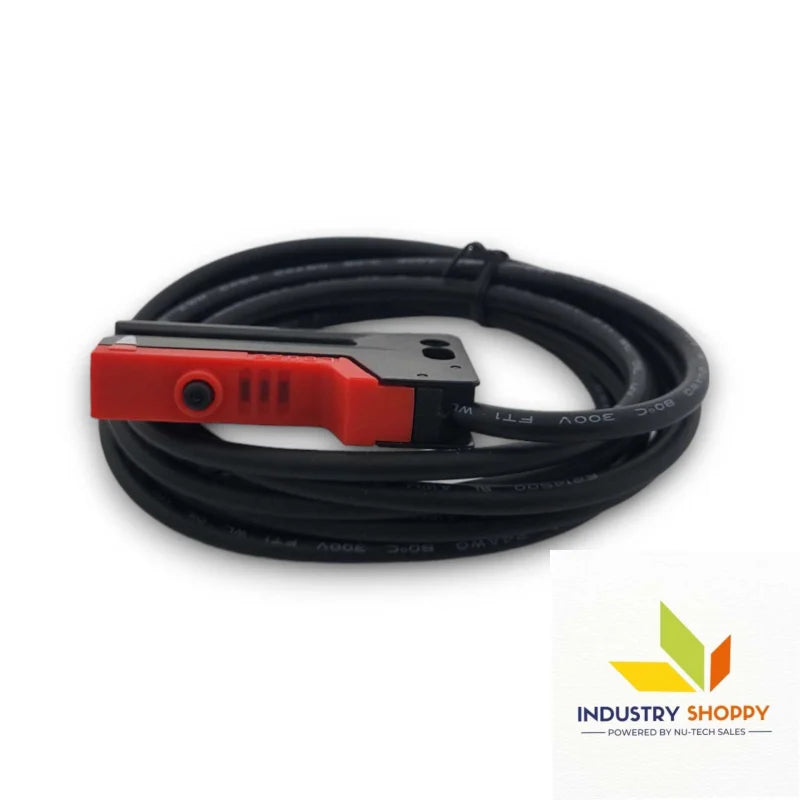

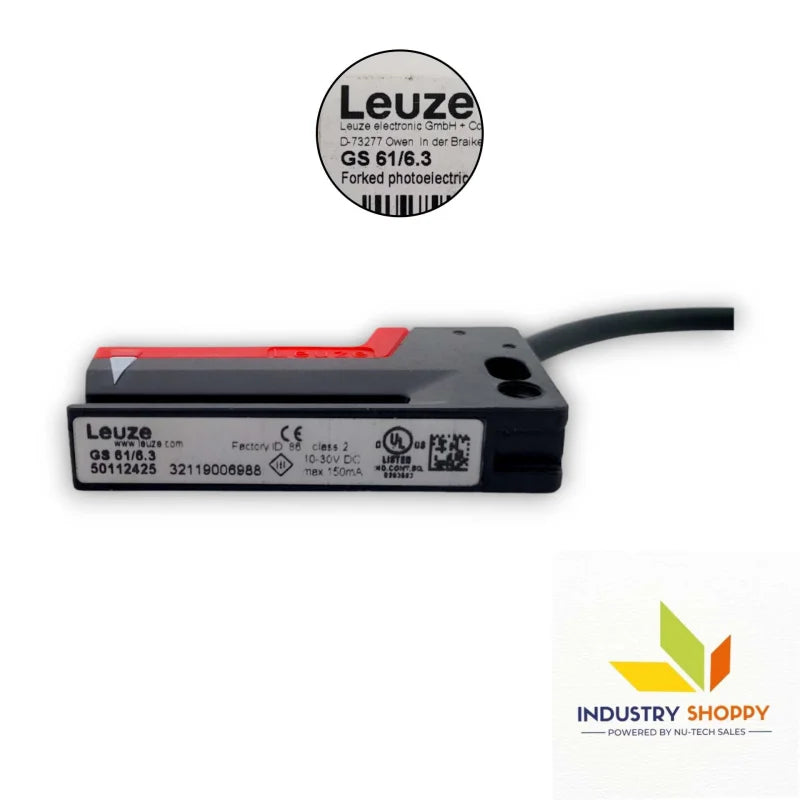

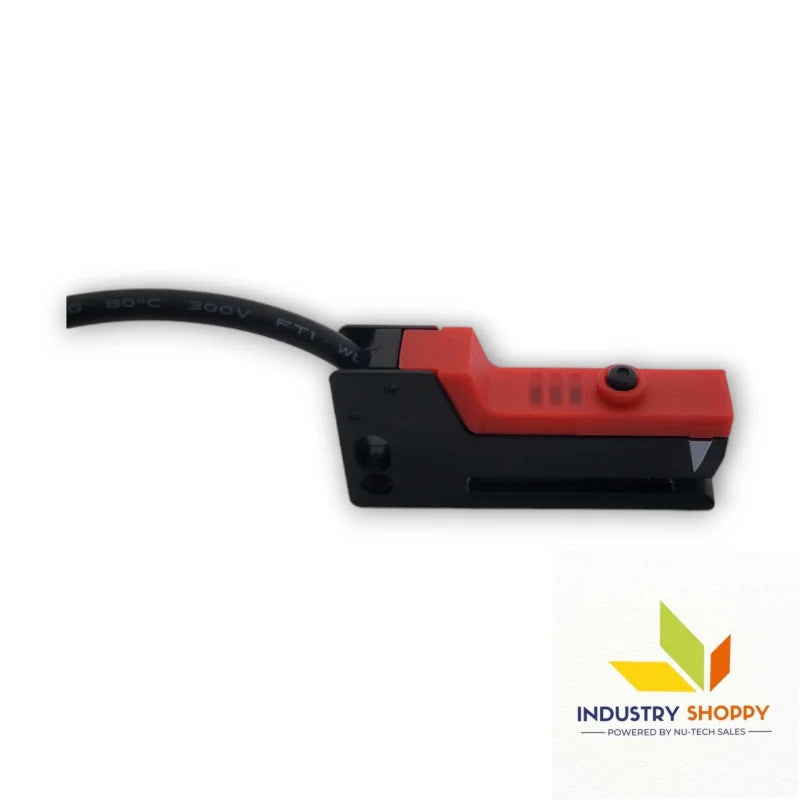

Leuze GS61/6.3 Fork Photoelectric Sensor

Leuze GS 61/6.3 Fork Photoelectric Sensor

The Leuze GS61/6.3 is an advanced fork photoelectric sensor designed specifically for the detection of non-transparent labels in industrial environments. Utilizing an infrared LED light source with a wavelength of 940 nm, this sensor ensures reliable and precise detection capabilities, even for labels with a minimum width and gap of 2 mm. It features a special version with a teach input for enhanced functionality and ease of setup.

Key Features:

• Part Number: 50112425
• Model Number: GS61/6.3
• Series: 61
• Principle of Physics: Optical
• Light Source: Infrared LED, 940 nm
• Special Version: Teach input for simplified setup
• Supply Voltage: 10-30 V DC
• Protective Circuit: Polarity reversal protection, short circuit protected
• Number of Teach Inputs: 1
• Type of Teach Input: DC voltage type, switching voltage high ≥8V, low ≤ 2V
• Number of Digital Switching Outputs: 1
• Type of Digital Switching Output: DC voltage type, switching current max. 100 mA, switching voltage high ≥(UB-2V), low ≤ 2V
• Switching Element: Transistor, Push-pull
• Switching Principle: Switching signal in label gap
• Switching Frequency: 10,000 Hz
• Response Time: 0.05 ms
• Readiness Delay: 300 ms
• Max. Conveyor Speed during Teach-in: 20 m/min
• Number of Connections: 1
• Functions: Signal IN, Signal OUT, Voltage supply
• Type of Connection: Cable, 2,000 mm length, 5-wire
• Design: Fork type with a mouth width of 3 mm and depth of 41 mm
• Dimensions: 11 mm (W) x 30 mm (H) x 60 mm (L)
• Housing Material: Plastic (PC)
• Lens Cover Material: Plastic/PC
• Net Weight: 70 g
• Housing Color: Black (RAL 9005), Red (RAL 3000)
• Type of Fastening: Mounting thread, through-hole mounting, via optional mounting device
• Type of Display: LED, 3 pieces
• Operational Controls: Teach button
• Ambient Temperature, Operation: -20 ... 60 °C
• Ambient Temperature, Storage: -30 ... 70 °C
• Degree of Protection: IP 65
• Protection Class: III
• Certifications: c UL US
• Standards Applied: IEC 60947-5-2

Application: Ideal for applications requiring accurate detection of non-transparent labels, the GS 61/6.3 sensor is particularly suited for industrial processes where label detection is crucial for operational efficiency.

Technical Precautions:

1. Proper Installation: Ensure precise alignment and secure mounting to optimize detection accuracy.
2. Teach Function: Use the teach button for accurate setup according to operational requirements.
3. Environmental Conditions: Operate within specified temperature ranges (-20 to 60 °C for operation, -30 to 70 °C for storage) to maintain sensor performance.
4. Maintenance: Regularly inspect and clean the lens cover to prevent dust or debris accumulation that could affect sensor functionality.
5. Electrical Safety: Adhere to electrical safety guidelines during installation and maintenance to prevent hazards.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Our engineers carefully entered all the details of this module based on the datasheet. However, mistakes can happen even with our best efforts. Please double-check all specifications before use.
