Sick YF8U13-050VA1XLEAX Sensor Cables

Sick YF8U13-050VA1XLEAX Sensor cables

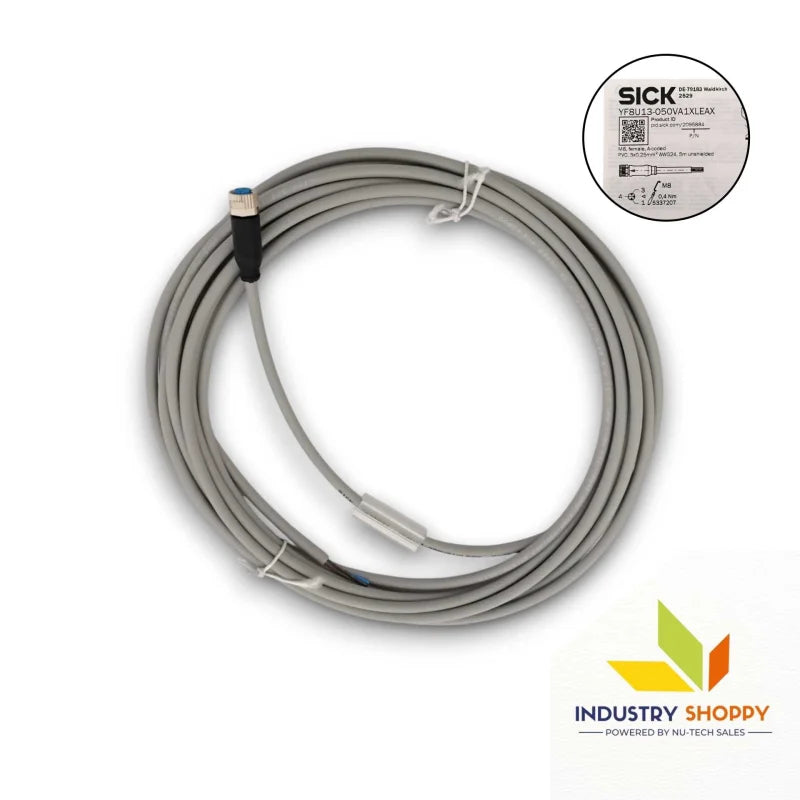

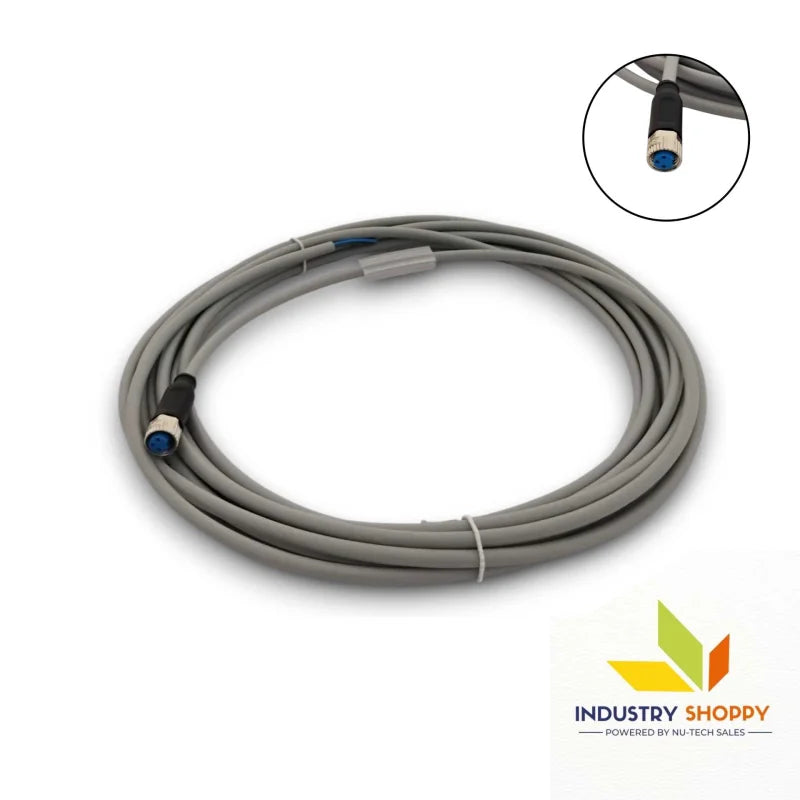

The Sick YF8U13-050VA1XLEAX Sensor cables (Part No. 2095884) is a robust industrial sensor/actuator cable designed for reliable connectivity in demanding automation environments. It features a female M8, 3-pin, straight A-coded connector on Head A and flying leads on Head B, allowing flexible installation across a wide range of control systems. The connector housing is made of durable TPU, paired with a nickel-plated zinc die-cast locking nut, ensuring mechanical strength and long-term stability.

For environmental resilience, the cable uses a gray PVC jacket, offering strong protection against chemicals, abrasion, and industrial contaminants—ideal for zones with chemicals and clean environments. Its 5 m cable length, 4.5 mm diameter, and 0.25 mm² conductor cross-section support efficient signal transmission. With a nominal voltage rating of 300 V AC, test voltage of 2,000 V AC, and IP65 / IP66K / IP67 protection, the cable ensures dependable operation even in harsh conditions.

Certified with UL (File No. E335179) and meeting UL 1581 VW1 / CSA FT1 flame-retardant standards, it offers high reliability. Its wide temperature ranges for both flexible and stationary use make it suitable for long-term industrial applications.

---

Applications

• Industrial sensors and actuators

• Factory automation and machine wiring

• Packaging and material handling systems

• Robotics and assembly lines

• Control panels and distributed I/O systems

---

Technical Precautions

• Ensure proper connector mating to avoid signal loss or damage.

• Do not bend the cable below the recommended bending radius.

• Keep away from sharp edges or moving mechanical parts.

• Install in accordance with voltage and environmental ratings.

• Avoid excessive pulling or twisting during installation.
