Leuze GS63B/66.3-S8 Fork Photoelectric Sensor

Leuze GS 63B/66.3-S8 Fork Photoelectric Sensor

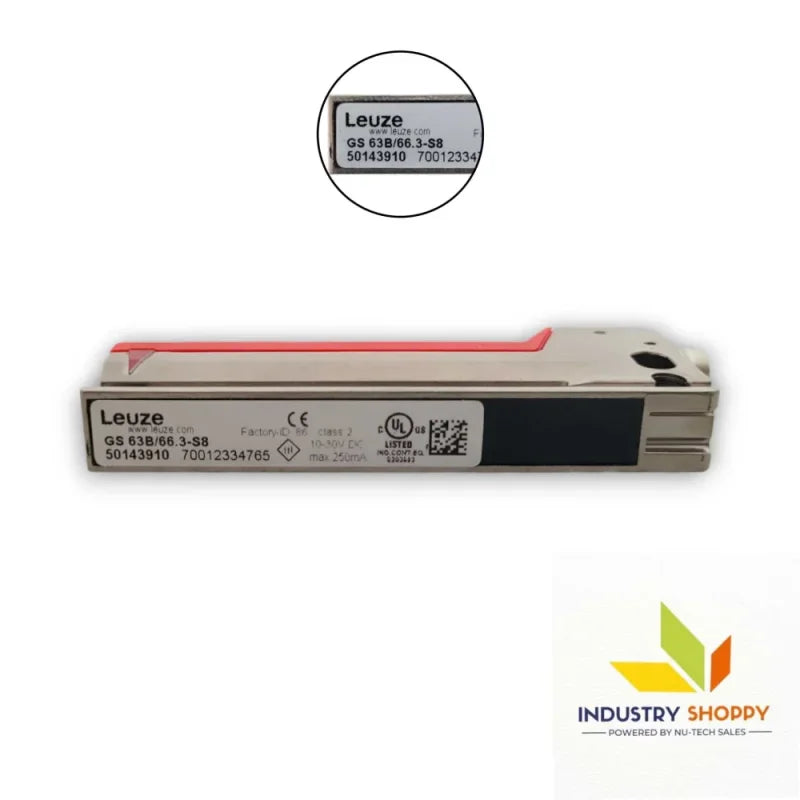

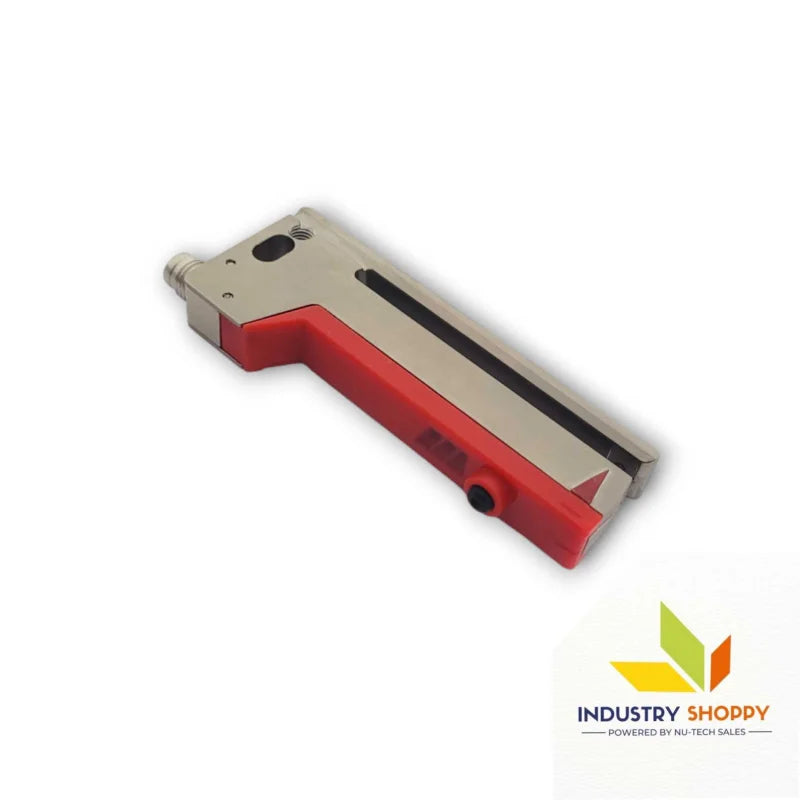

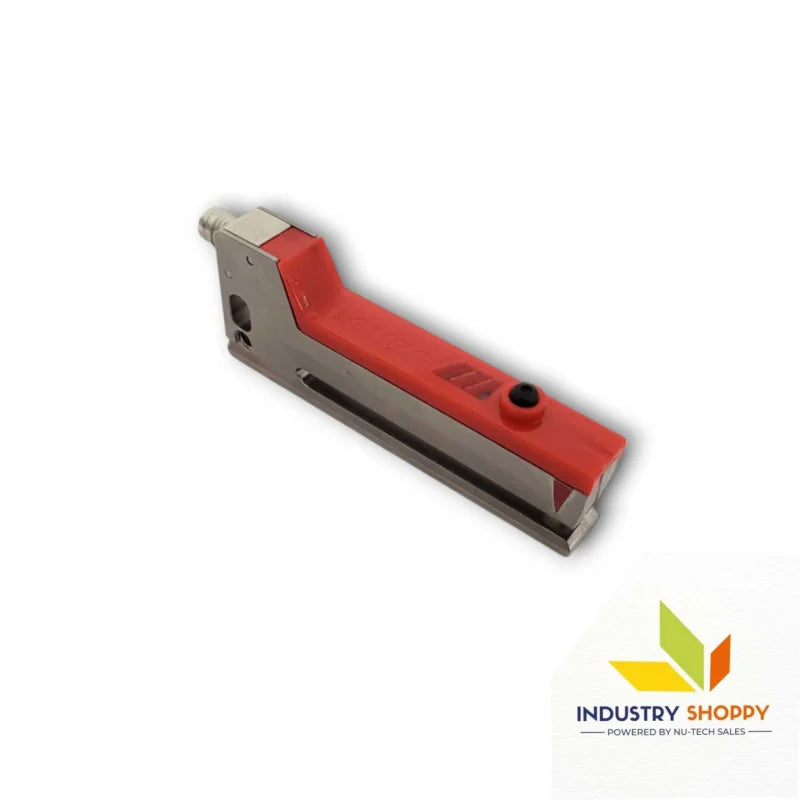

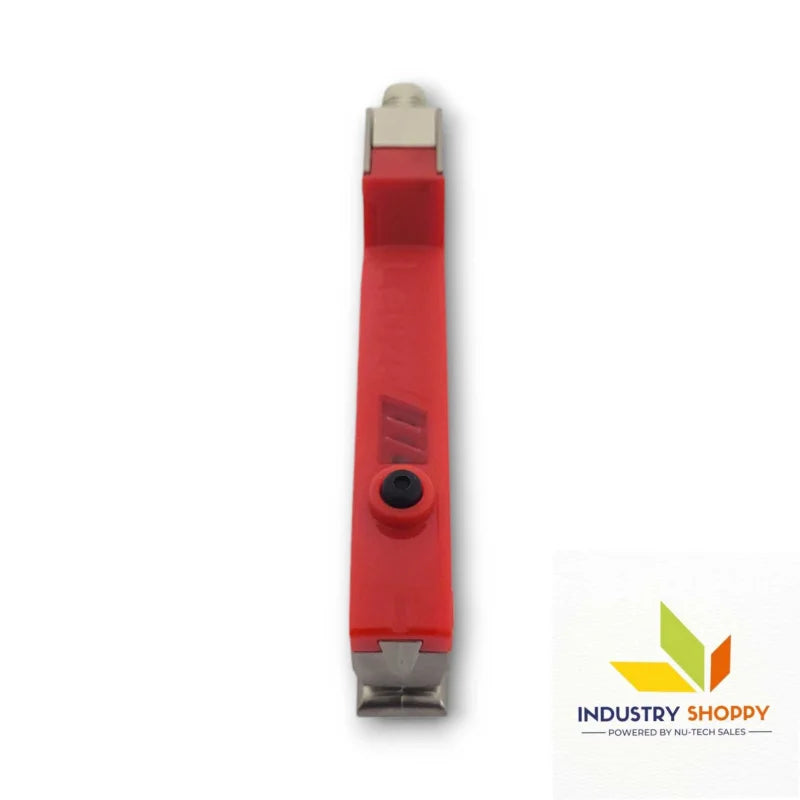

The Leuze GS 63B/66.3-S8 Photoelectric Sensor is a fork type photoelectric sensor designed for the precise detection of non-transparent labels. Featuring an infrared LED light source, this sensor ensures reliable label detection with a minimum label width and gap of 2 mm.

Key Features:

• Part Number: 50143910
• Model Number: GS63B/66.3-S8
• Series: 63
• Principle of Physics: Optical
• Application: Detection of non-transparent labels
• Label Width, Min.: 2 mm
• Label Gap, Min.: 2 mm
• Medium: Not transparent
• Special Version: Teach input
• Light Source: LED, Infrared
• Wavelength: 940 nm
• Transmitted-signal Shape: Pulsed
• Protective Circuit: Polarity reversal protection, Short circuit protected
• Supply Voltage UB: 10 ... 30 V, DC
• Residual Ripple: 0 ... 15 % (from UB)
• Open-circuit Current: 0 ... 30 mA
• Number of Digital Switching Outputs: 2 Piece(s)
• Type: Digital switching output
• Voltage Type: DC
• Switching Current, Max.: 100 mA
• Switching Voltage: High: ≥(UB-2V), Low: ≤ 2 V
• Switching Element: Transistor, Push-pull
• Switching Principle: Switching signal in label gap/on label
• Switching Frequency: 10,000 Hz
• Response Time: 0.05 ms
• Readiness Delay: 300 ms
• Max. Conveyor Speed During Teach-in: 20 m/min
• Number of Connections: 1 Piece(s)
• Function: Signal OUT

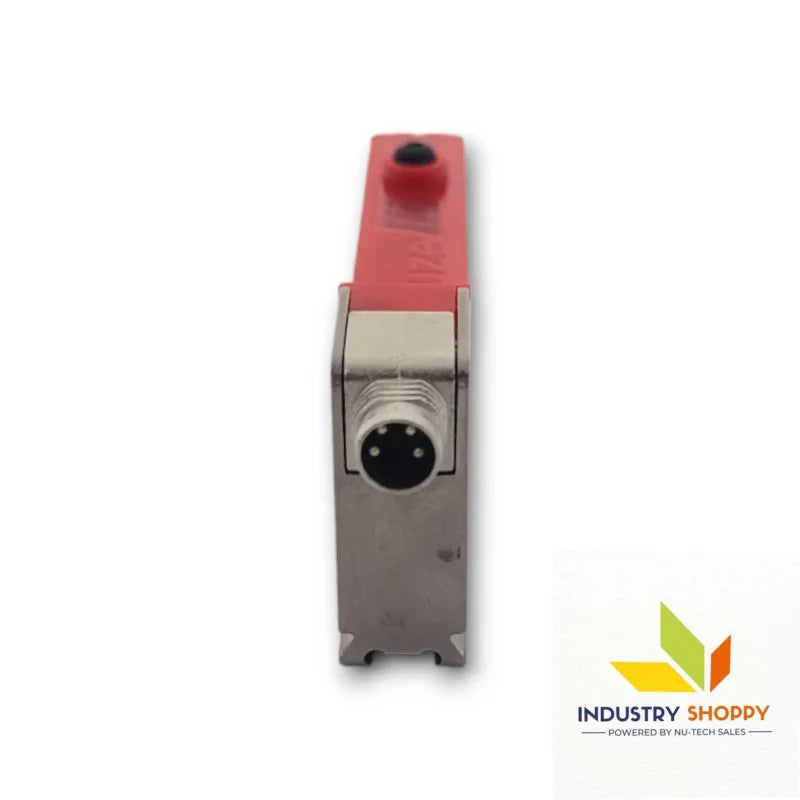

• Type of Connection: Connector
• Thread Size: M8
• Type: Male
• Material: Metal
• No. of Pins: 4 -pin
• Plug Outlet: Horizontal (parallel to belt movement)
• Design: Fork
• Mouth Width: 3 mm
• Mouth Depth: 61 mm
• Dimension (W x H x L): 11 mm x 30 mm x 80 mm
• Housing Material: Metal/Plastic
• Metal Housing: Diecast zinc, chemically nickel-plated
• Plastic Housing: PC
• Lens Cover Material: Plastic/PC
• Net Weight: 55 g
• Housing Color: Red/Silver
• Type of Fastening: Through-hole mounting, Via optional mounting device
• Type of Display: LED
• Number of LEDs: 2 Piece(s)
• Operational Controls: Teach button
• Ambient Temperature, Operation: -20 ... 60 °C
• Ambient Temperature, Storage: -30 ... 70 °C
• Degree of Protection: IP 67
• Protection Class: III
• Certifications: c UL US
• Standards Applied: IEC 60947-5-2

Application:

This sensor is ideal for detecting non-transparent labels in various industrial applications, ensuring precise and efficient operations.

Technical Precautions:

• Ensure correct polarity to avoid damage.
• Handle with care to avoid short circuits.
• Maintain ambient operational conditions to ensure optimal performance.
• Properly secure the sensor using the mounting thread or optional mounting device.
• Regularly check the sensor and clean the lens cover to maintain detection accuracy.
