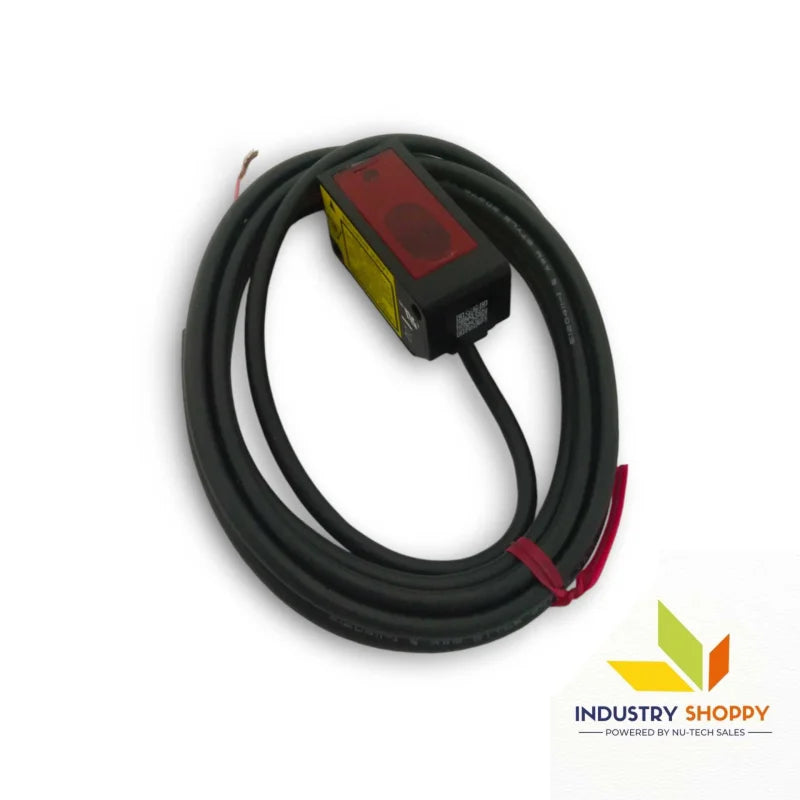

Panasonic HG-C1050-P Laser Distance Sensor

Panasonic HG-C1050-P Laser Distance Sensor

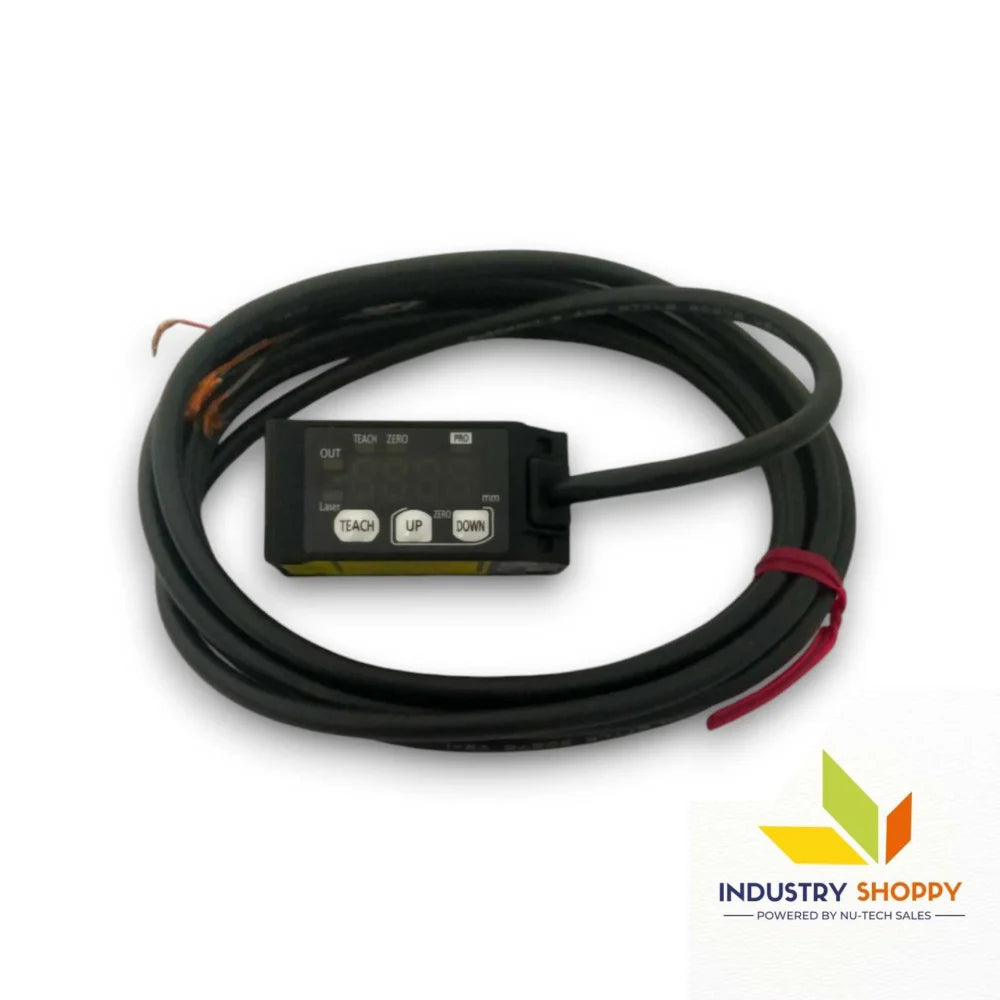

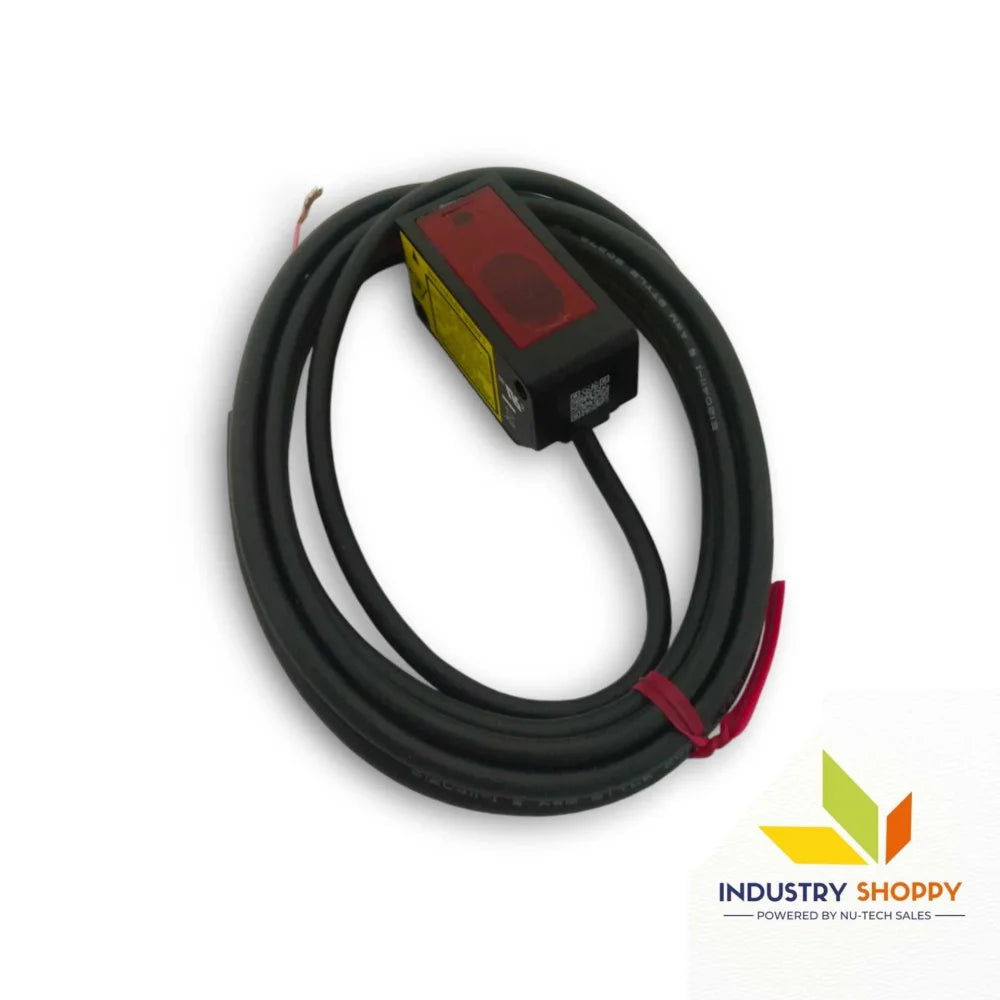

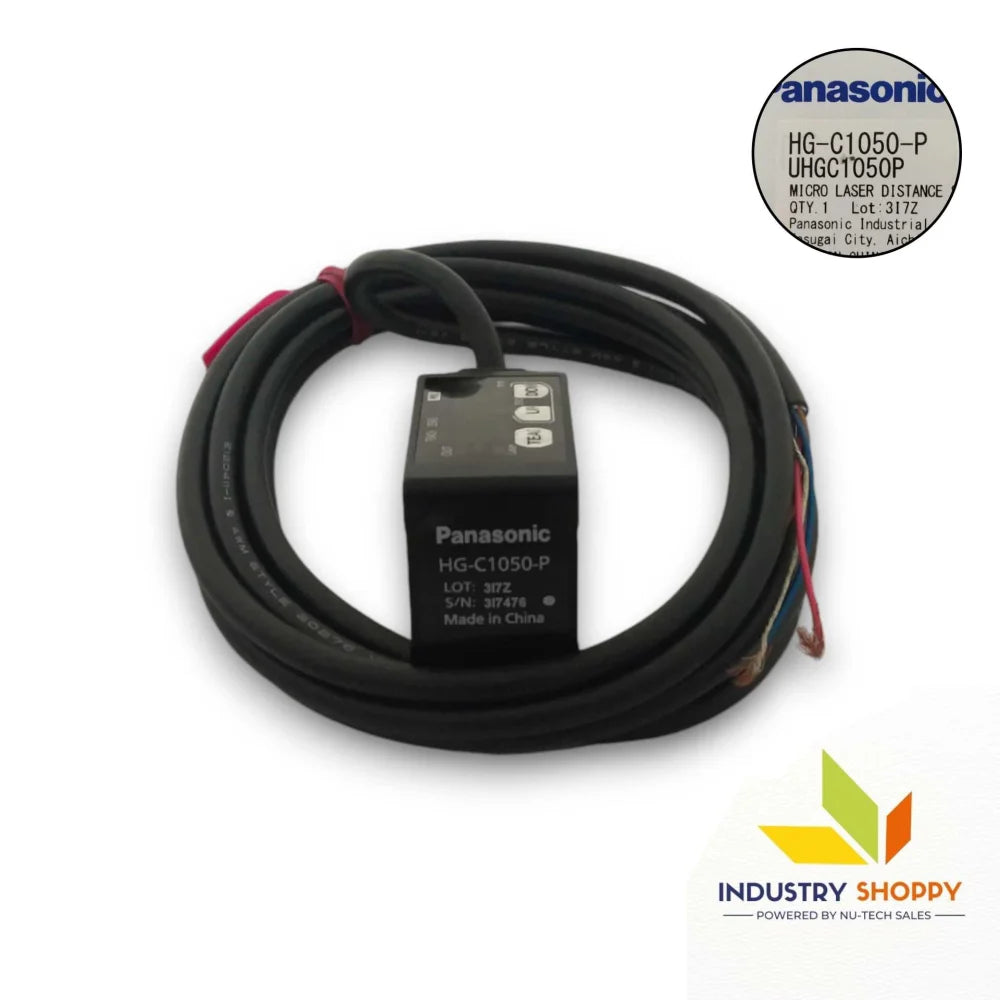

The Panasonic HG-C1050-P Laser Distance Sensor is a compact, high-precision CMOS-type micro laser distance sensor designed for reliable measurement in industrial environments. Featuring a measurement center of 50mm and a ±15mm measuring range, this sensor offers excellent performance for applications requiring both accuracy and consistency.

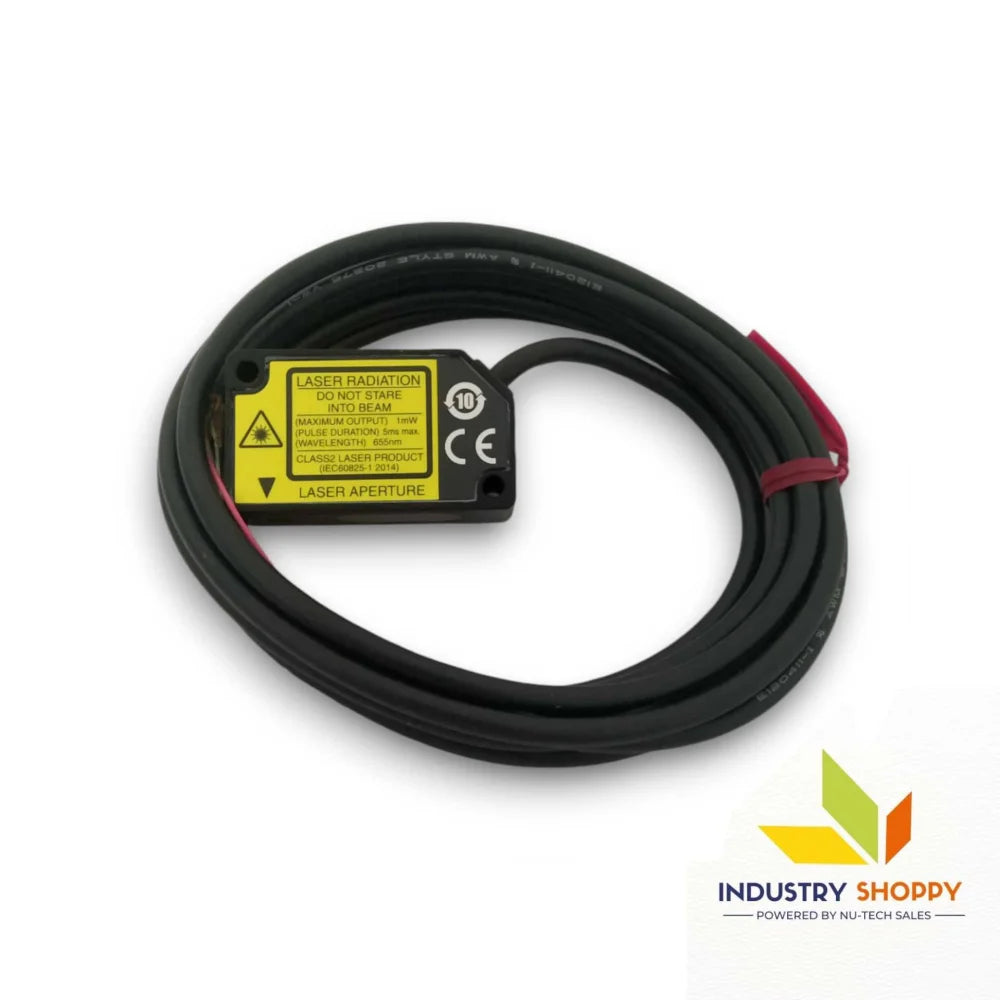

Equipped with a red semiconductor laser and a beam diameter of approx. 70 μm, the HG-C1050-P delivers repeatability of 30 μm and ±0.1% F.S. linearity, ensuring outstanding measurement reliability. The sensor’s analog and digital outputs — including 0-5V voltage and 4-20mA current — allow seamless integration with control systems.

Its robust aluminum die-cast housing and IP67-rated protection make it ideal for use in harsh industrial conditions. The HG-C1050-P offers flexible response time settings of 1.5ms, 5ms, or 10ms to suit various process speeds.

The device features PNP output with short-circuit protection and is certified under CE, UKCA, UL, and FDA regulations for global compatibility. With its wide temperature tolerance, resistance to vibration and shock, and easy cable extension up to 10m, this laser sensor is built for stability and versatility.

Key features :-

Applications :-

• Position Detection: Precisely measure object position on assembly and production lines.
• Height Measurement: Monitor product height for inspection and quality control.
• Robotic Guidance: Enable accurate distance feedback for robotic arms.
• Part Presence Confirmation: Detect parts during placement or packaging.
• Machine Control Feedback: Supply real-time measurements to control systems for automated adjustments.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
