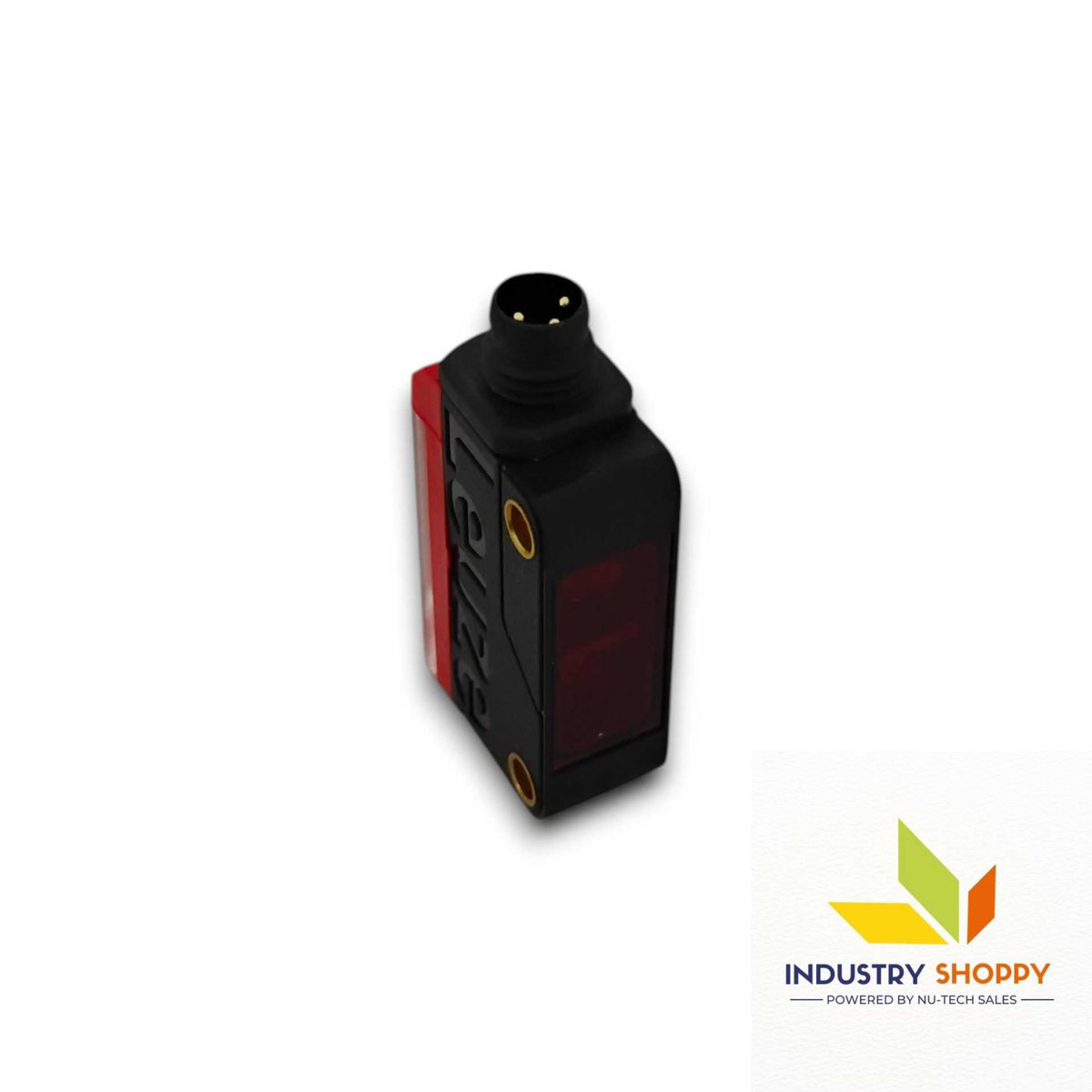

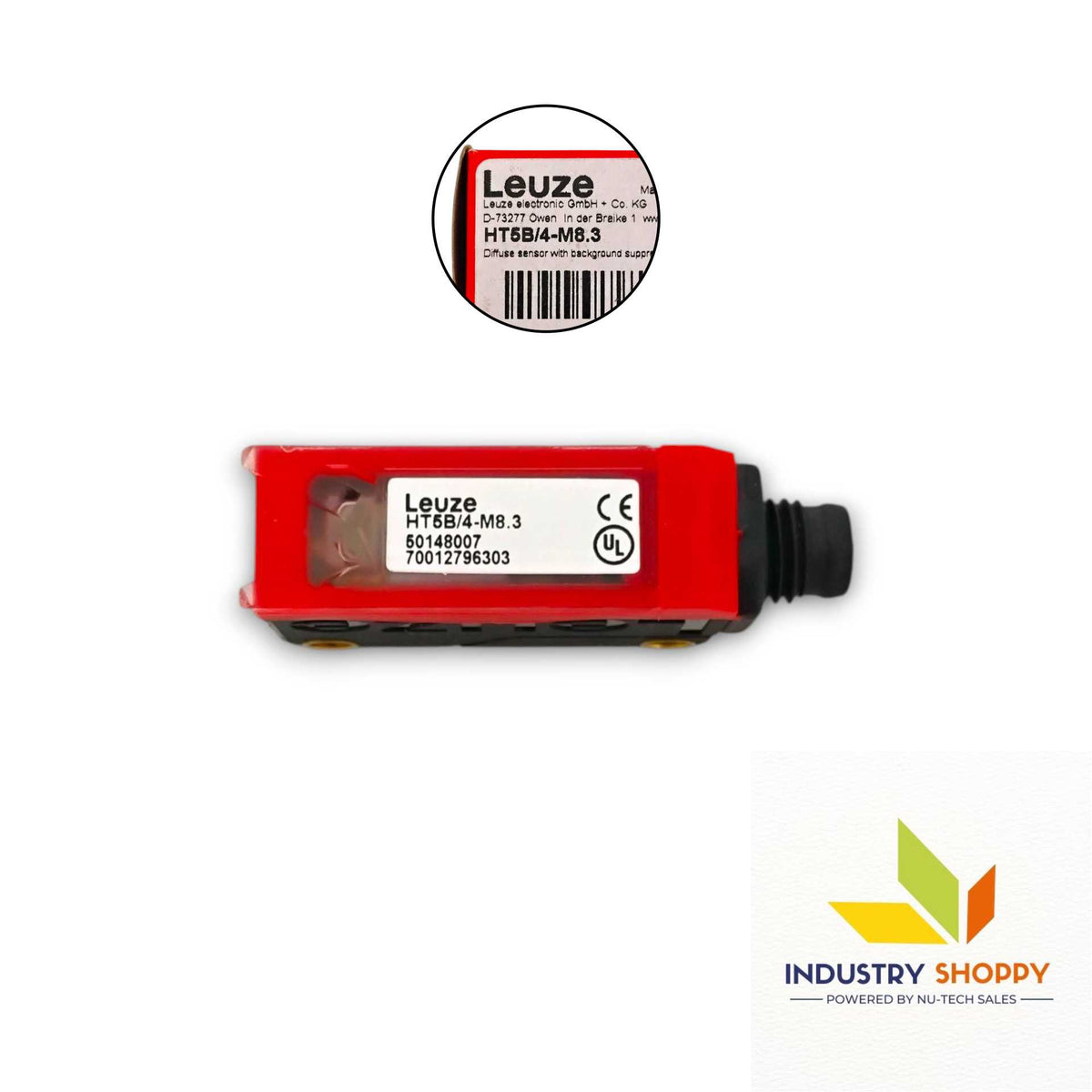

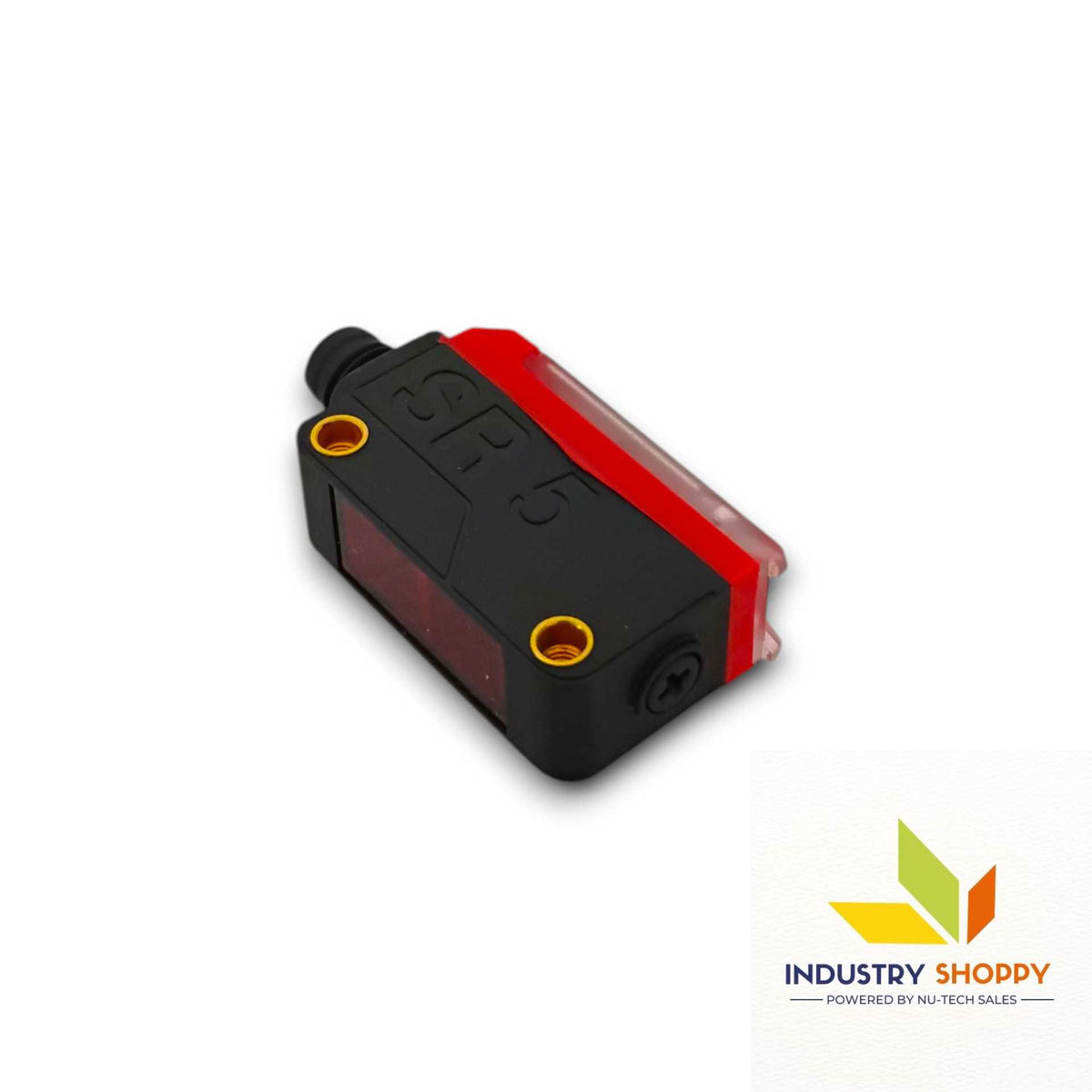

Leuze HT5B/4-M8.3 Diffuse Sensor

Product SKU: NTSSEN00847

Available:

Only 5 items in stock

5 items in stock

In stock

Pre-order

Out of stock

Brand: Leuze
Part No.: 50148007
Operating Principle: Diffuse reflection principle with background suppression
Supply Voltage (UB): 10 ... 30 V, DC, Incl. residual ripple
Switching Element: Transistor, PNP
Connection Type: Connector

Note: All tax and custom duty should be pay by buyer only.

For Indian Buyers: IndustryShoppy.in

$99.00

~~$160.00~~

Want it delivered by

Description
Specifications
Declaration
Reviews

Leuze HT5B/4-M8.3 Diffuse Sensor

The Leuze HT5B/4-M8.3 Diffuse Sensor (50148007) is a compact and high-performance device based on the diffuse reflection principle with background suppression, ensuring precise detection regardless of object color.

Equipped with a focused red LED (645 nm) and fixed focal distance of 200 mm, it delivers stable detection across 2 mm to 400 mm range. The sensor minimizes detection errors with <15% black-white deviation, making it reliable for varied surfaces. Featuring a PNP output with fast 0.5 ms response time and 1000 Hz switching frequency, it is ideal for high-speed automation.

The M8 3-pin connector ensures easy integration, while the rugged PC-ABS housing with IP67 protection allows operation in harsh environments. With multiturn potentiometer adjustment, users can easily fine-tune detection range for optimal performance in industrial applications.

Applications

• Object detection on conveyor systems

• Packaging and assembly lines

• Detection of objects with varying colors

• Industrial automation and material handling

Technical Precautions

• Adjust sensing range properly using potentiometer

• Avoid reflective interference from background surfaces

• Maintain correct installation distance for accuracy

• Operate within specified voltage and temperature limits

While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Facebook, YouTube,

Brand	LEUZE
Product Number	HT5B/4-M8.3
Part Number	50148007
Series	5B
Operating principle	Diffuse reflection principle with background suppression
Black-white error	< 15% up to 200 mm
Operating range	Guaranteed operating range
Operating range, white 90%	0.002 ... 0.4 m
Operating range, gray 18%	0.005 ... 0.3 m
Operating range, black 6%	0.01 ... 0.2 m
Operating range limit	0.002 ... 0.4 m (typical operating range)
Adjustment range	20 ... 400 mm
Beam path	Focused
Light source	LED, Red
Wavelength	645 nm
Transmitted-signal shape	Pulsed
LED group	Exempt group (in acc. with EN 62471)
Type of light spot geometry	Round
Focus	Fixed
Focal distance	200 mm
Supply voltage UB	10 ... 30 V, DC, Incl. residual ripple
Residual ripple	0 ... 15 %, From UB
Open-circuit current	0 ... 15 mA
Number of digital switching outputs	1 Piece(s)
Type	Digital switching output
Switching element	Transistor, PNP
Switching principle	Light switching
Switching frequency	1,000 Hz
Response time	0.5 ms
Readiness delay	300 ms
Number of connections	1 Piece(s)
Function	Signal OUT, Voltage supply
Type of connection	Connector
Thread size	M8
Type	Male
Material	Plastic
No. of pins	3 -pin
Dimension (W x H x L)	11 mm x 32.4 mm x 20 mm
Housing material	Plastic
Plastic housing	PC-ABS
Lens cover material	Plastic / PMMA
Housing color	Black, Red
Type of fastening	Two M3 threaded sleeves, Via optional mounting device
Recommended tightening torque for M3 fastening	0.9 N·m
Compatibility of materials	ECOLAB
Type of display	LED
Number of LEDs	2 Piece(s)
Operational controls	Multiturn potentiometer
Function of the operational control	Range adjustment
Ambient temperature, operation	-40 ... 60 °C
Ambient temperature, storage	-40 ... 70 °C
Degree of protection	IP 67
Protection class	III
Country of origin	Malaysia
