52%

Leuze

Leuze HT5.1/P Diffuse Sensor

Product SKU: NTSSEN00833

Available:

Only 13 items in stock

13 items in stock

In stock

Pre-order

Out of stock

Brand: Leuze
Part No.: 50129402
Operating Principle: Diffuse reflection with background suppression
Supply Voltage (UB): 10 ... 30 V, DC, Incl. residual ripple
Switching Element: Transistor, PNP
Connection Type: Cable

Note: All tax and custom duty should be pay by buyer only.

For Indian Buyers: IndustryShoppy.in

$120.00

~~$250.00~~

Want it delivered by

Description
Specifications
Declaration
Reviews

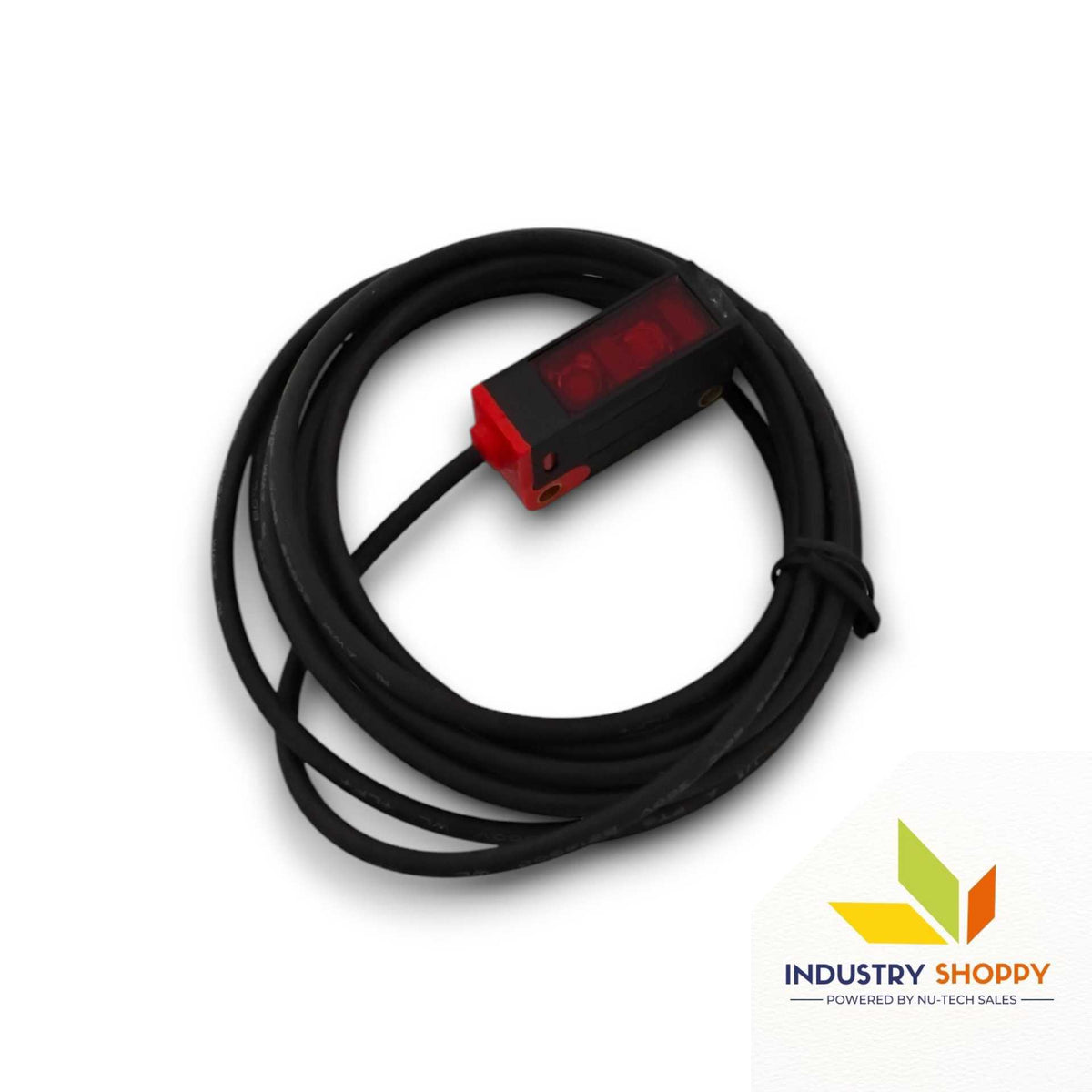

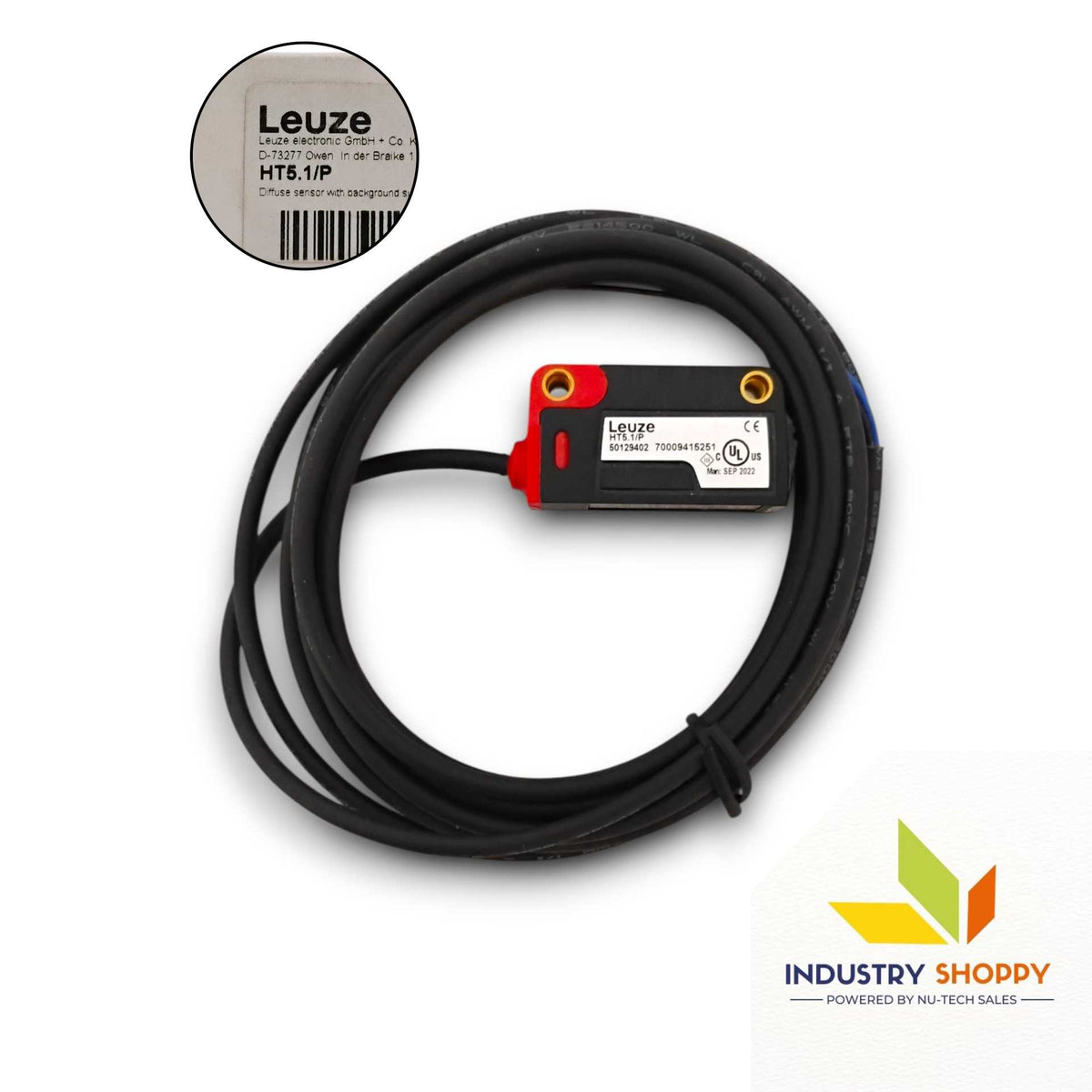

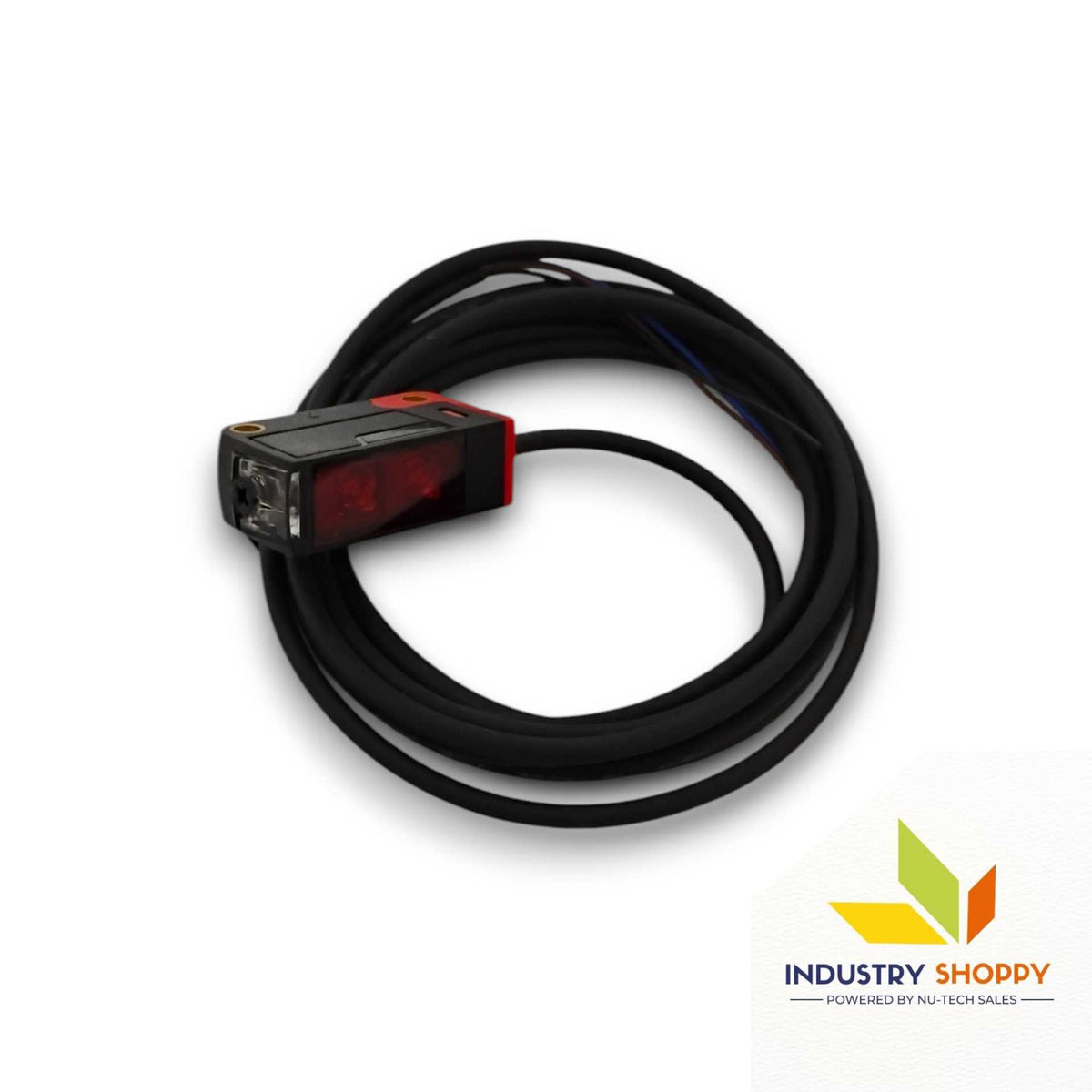

Leuze HT5.1/P Diffuse Sensor

The Leuze HT5.1/P Diffuse Sensor (Part No. 50129402) is a compact diffuse reflection photoelectric sensor with background suppression, designed for precise and stable object detection in industrial environments.

It offers a detection range up to 400 mm with excellent performance across white, gray, and black objects, ensuring minimal black-white error (<15%). Equipped with a red LED light source (645 nm) and focused beam, it delivers accurate sensing even for small targets.

The sensor features a PNP output with dark switching, fast response time of 0.5 ms, and switching frequency of 1000 Hz, making it suitable for high-speed applications. Its rugged PC-ABS housing, IP67 protection, and wide operating temperature (-40°C to +60°C) ensure durability. With a 2-meter PUR cable and multiturn potentiometer, installation and adjustment are easy and reliable.

Applications

Conveyor belt object detection
Packaging and labeling machines
Small component detection
Material handling systems

Technical Precautions

Ensure proper alignment for accurate detection
Avoid direct exposure to strong ambient light
Maintain recommended sensing distance
Use stable 10–30 V DC power supply

While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Facebook, YouTube,

Brand	LEUZE
Product Number	HT5.1/P
Part Number	50129402
Series	5
Operating principle	Diffuse reflection principle with background suppression
Black-white error	< 15% up to 200 mm
Operating range	Guaranteed operating range
Operating range, white 90%	0.005 ... 0.4 m
Operating range, gray 18%	0.01 ... 0.3 m
Operating range, black 6%	0.015 ... 0.2 m
Operating range limit	0.005 ... 0.4 m (typical operating range)
Adjustment range	15 ... 400 mm
Beam path	Focused
Light source	LED, Red
Wavelength	645 nm
Transmitted-signal shape	Pulsed
LED group	Exempt group (in acc. with EN 62471)
Type of light spot geometry	Round
Focus	Fixed
Focal distance	200 mm
Supply voltage UB	10 ... 30 V, DC, Incl. residual ripple
Residual ripple	0 ... 15 %, From UB
Open-circuit current	0 ... 15 mA
Number of digital switching outputs	1 Piece(s)
Type	Digital switching output
Switching element	Transistor, PNP
Switching principle	Dark switching
Switching frequency	1,000 Hz
Response time	0.5 ms
Readiness delay	300 ms
Number of connections	1 Piece(s)
Function	Signal OUT Voltage supply
Type of connection	Cable
Cable length	2,000 mm
Sheathing material	PUR
Cable color	Black
Number of conductors	3 -wire
Wire cross section	0.2 mm²
Dimension (W x H x L)	11.4 mm x 32.1 mm x 17.8 mm
Housing material	Plastic
Plastic housing	PC-ABS
Lens cover material	Plastic / PMMA
Housing color	Black Red
Type of fastening	Two M3 threaded sleeves Via optional mounting device
Recommended tightening torque for M3 fastening	0.9 N·m
Type of display	LED
Number of LEDs	2 Piece(s)
Operational controls	Multiturn potentiometer
Function of the operational control	Range adjustment
Ambient temperature, operation	-40 ... 60 °C
Ambient temperature, storage	-40 ... 70 °C
Degree of protection	IP 67
Protection class	III
Approvals	c UL US
Standards applied	IEC 60947-5-2
Country of origin	China
