Leuze FT318B.3/4P-M12 Diffuse Sensor

Leuze FT318B.3/4P-M12 Diffuse Sensor

Part No. 50122554

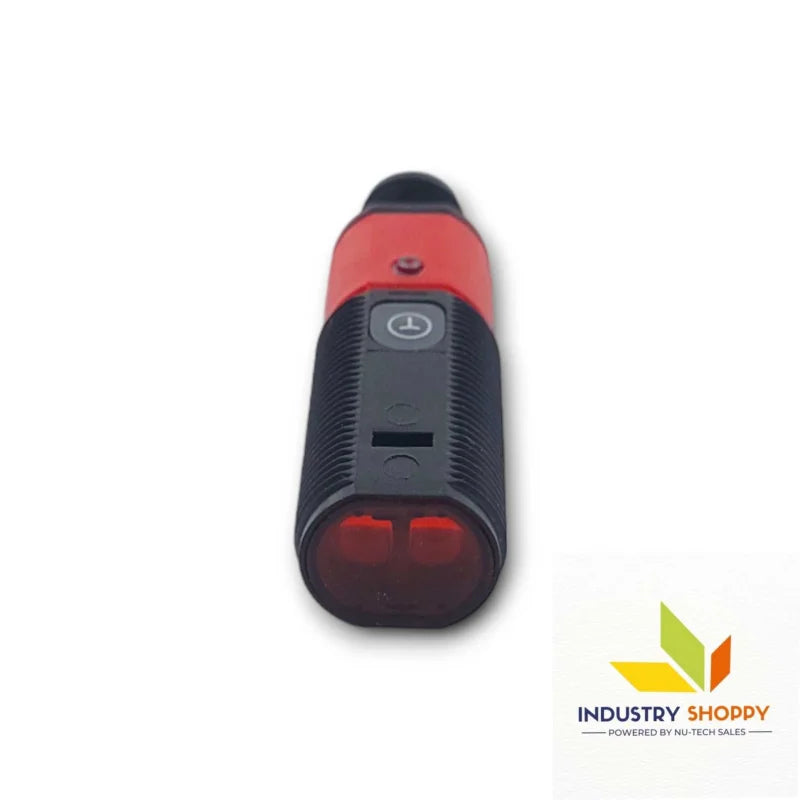

The Leuze FT318B.3/4P-M12 is a compact and high-performing red-light diffuse sensor designed for precise object detection at short ranges. Employing the diffuse reflection principle, this sensor offers a dependable detection range of up to 215 mm for high-reflectivity surfaces and 125 mm for dark objects (6% reflectivity). It’s equipped with a 620 nm red LED and supports both light and dark switching through a PNP transistor output, offering flexible detection logic for various automation setups.

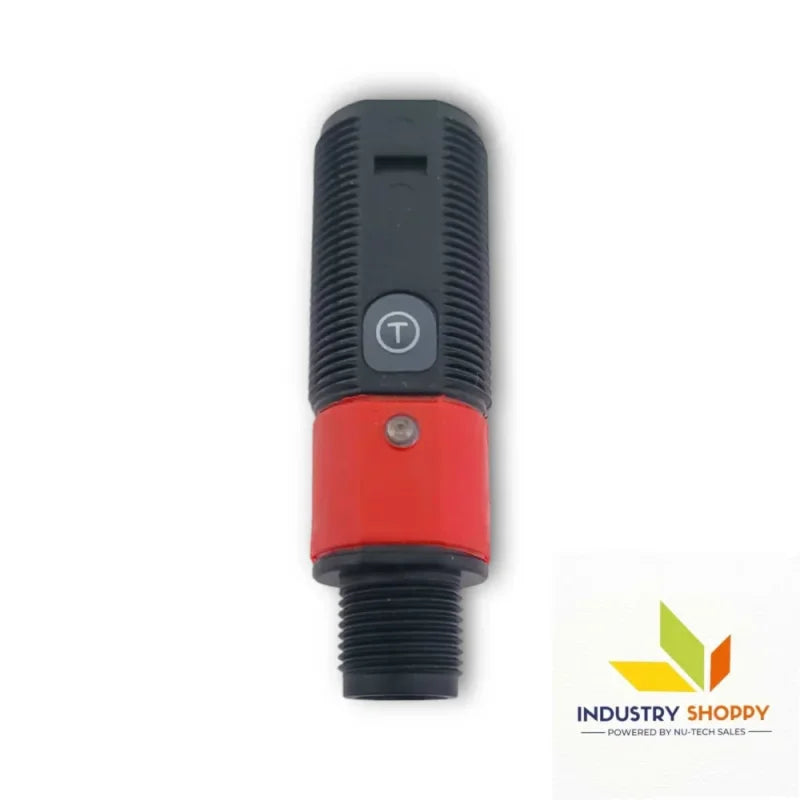

The sensor features a robust M18 cylindrical housing made from durable ABS plastic and integrates a 4-pin M12 male connector, enabling easy and secure connections in industrial environments. With a switching frequency of 500 Hz and a response time of 1 ms, it performs efficiently even in fast-paced processes.

Its IP67-rated construction ensures protection against dust and water, while the integrated Teach button simplifies setup and sensitivity tuning. Lightweight and rugged, the FT318B.3/4P-M12 is ideal for precision object detection in packaging, logistics, and assembly applications, especially when space-saving and reliable operation are key requirements.

Key features :-

Applications :-

• Short-Range Object Detection
  Reliably detects reflective and dark objects on conveyor belts or assembly lines.
• Packaging & Material Handling
  Compact build and fast switching make it ideal for use on high-speed machines.
• Flexible Sensor Integration
  PNP output with light/dark switching adapts to a variety of control systems.
• Quick Configuration
  Onboard Teach button allows intuitive sensitivity adjustment for different targets.
• Rugged Industrial Use
  IP67 rating and wide temperature tolerance support use in demanding environments.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
