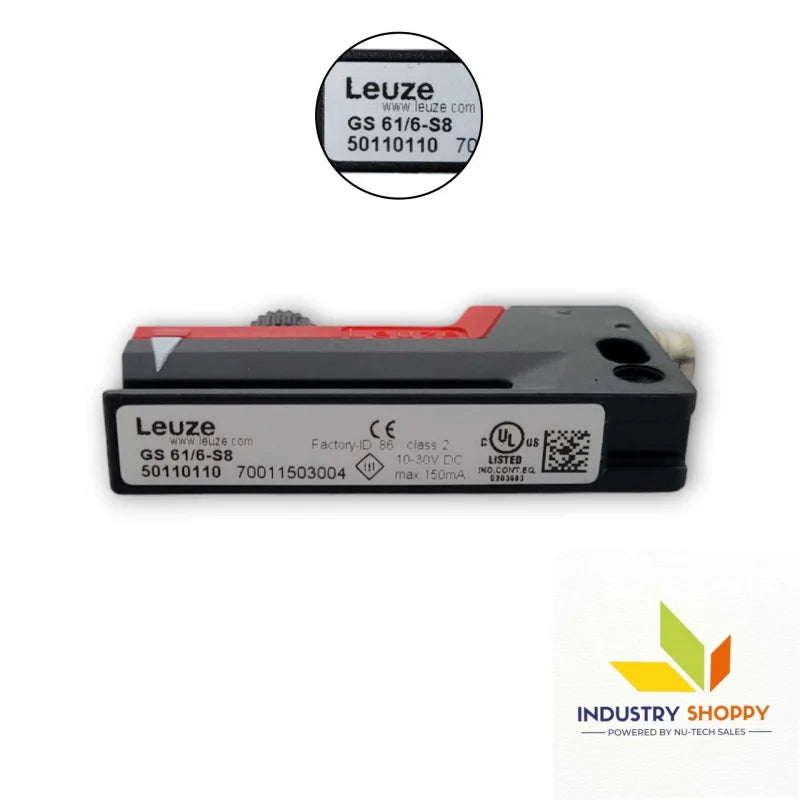

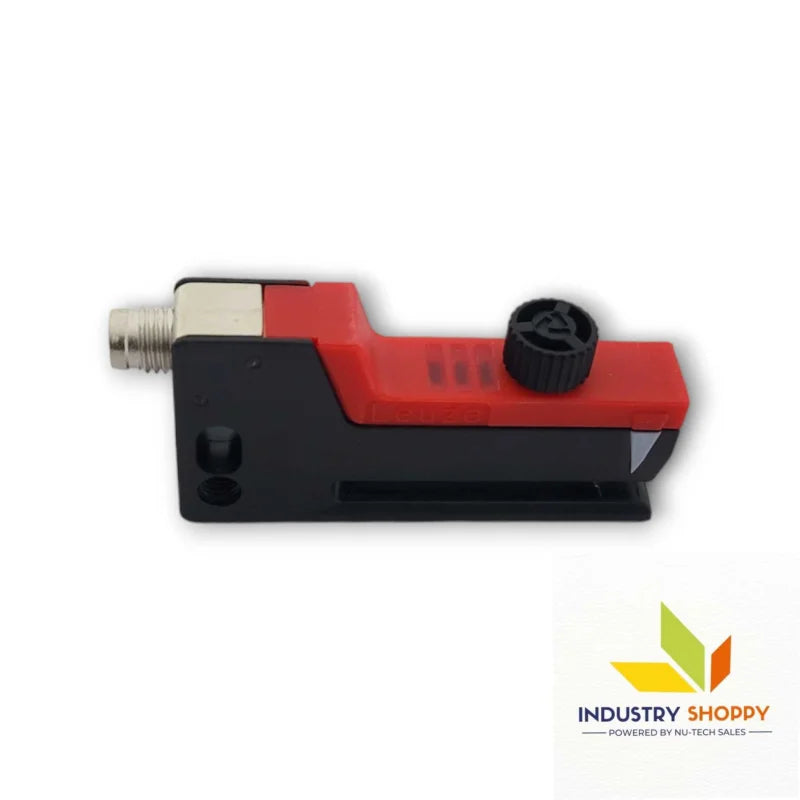

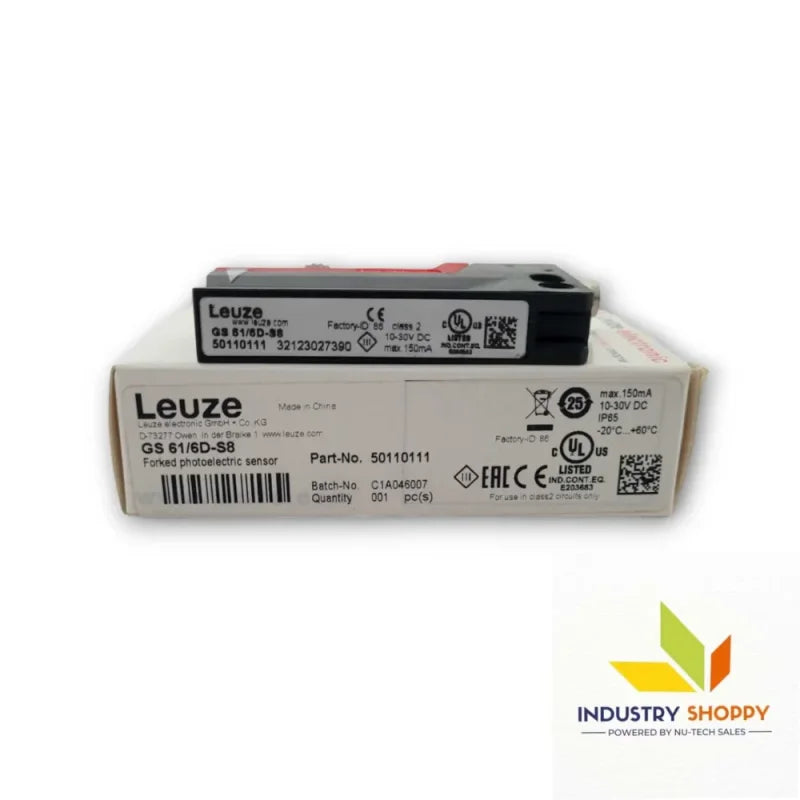

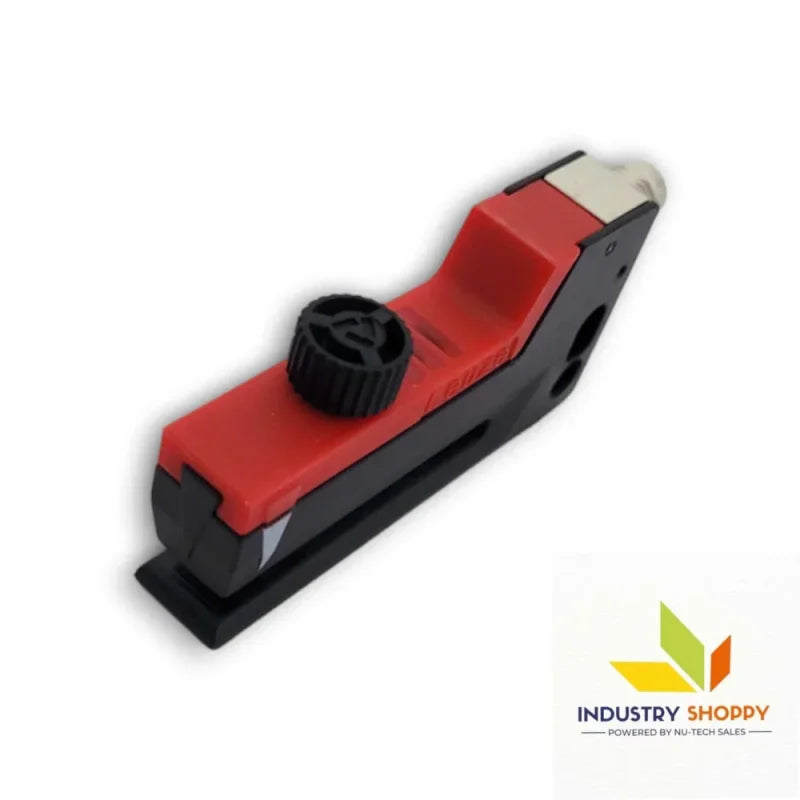

Leuze GS61/6-S8 Fork Photoelectric Sensor

Leuze GS 61/6-S8 Fork Photoelectric Sensor

The Leuze GS61/6-S8 is a high-performance fork photoelectric sensor designed for the detection of non-transparent labels in industrial environments. With its infrared LED light source emitting at 940 nm wavelength, the sensor ensures reliable detection even in challenging conditions where labels are not transparent. It features robust construction with a plastic (PC) housing and a protective lens cover made from plastic/PC, offering durability and protection.

Key Features:

• Part Number: 50110110
• Model Number: GS61/6-S8
• Series: 61
• Principle of Physics: Optical
• Light Source: Infrared LED, 940 nm
• Supply Voltage: 10-30 V DC
• Protective Circuit: Polarity reversal protection, short circuit protected
• Switching Element: Transistor, Push-pull
• Switching Frequency: 10,000 Hz
• Response Time: 0.05 ms
• Readiness Delay: 300 ms
• Max. Conveyor Speed during Teach-in: 20 m/min
• Number of Digital Switching Outputs: 1
• Type of Connection: M8 Connector, Male, 4-pin, A-coded
• Design: Fork type with a mouth width of 3 mm and depth of 41 mm
• Dimensions: 11 mm (W) x 30 mm (H) x 60 mm (L)
• Net Weight: 20 g
• Housing Color: Black (RAL 9005), Red (RAL 3000)
• Degree of Protection: IP 65
• Protection Class: III
• Certifications: c UL US
• Standards Applied: IEC 60947-5-2, DIN EN ISO 13849-1:2015 appendix C, D

Application: Ideal for applications requiring precise detection of non-transparent labels, the GS 61/6-S8 sensor is specifically designed to detect labels with a minimum width and gap of 2 mm. It provides accurate and consistent performance, making it suitable for use in various industrial settings where label detection is critical to operational efficiency.

Technical Precautions:

• Ensure correct alignment and mounting of the sensor to optimize detection performance.
• Handle the sensor delicately to avoid damage to the housing and lens cover.
• Operate within the specified temperature range (-20 to 60 °C) to maintain optimal sensor functionality.
• Regularly clean the lens cover to prevent dust or debris accumulation that could affect sensor performance.
• Adhere to electrical safety standards and guidelines during installation and maintenance to prevent electrical hazards.
