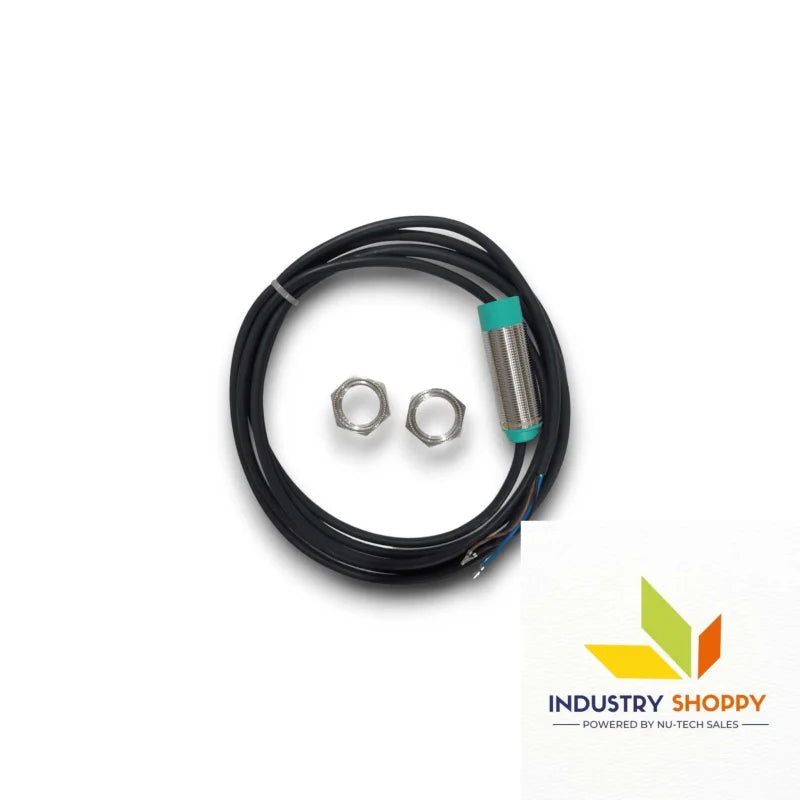

Pepperl + Fuchs NBN8-18GM50-E2 Proximity Sensor
Pepperl + Fuchs NBN8-18GM50-E2 Proximity Sensor
Pepperl + Fuchs NBN8-18GM50-E2 Proximity Sensor
Pepperl + Fuchs NBN8-18GM50-E2 Proximity Sensor
Pepperl+Fuchs

Pepperl+Fuchs NBN8-18GM50-E2 Proximity Sensor

Product SKU: NTSSEN00017
Available:
Only 20 items in stock
20 items in stock
In stock
Pre-order
Out of stock
$45.00
$65.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Declaration

Pepperl+Fuchs NBN8-18GM50-E2 Proximity Sensor :

The Pepperl+Fuchs NBN8-18GM50-E2 Proximity Sensor is a high-performance inductive sensor designed for precise and reliable detection of metallic objects in industrial applications. With a sensing range of 8 mm, it provides accurate and consistent metal detection in automated processes. This sensor features a flush-mount design, making it ideal for integration into tight spaces and areas where space constraints are a concern.

Built with an IP67-rated housing, the NBN8-18GM50-E2 ensures protection against dust, dirt, and moisture, making it durable and suitable for harsh industrial environments. It operates with a 3-wire DC output, offering flexible integration into automation systems. Additionally, the sensor includes short-circuit protection and reverse polarity protection, ensuring reliable operation and preventing potential damage during installation.

The Pepperl+Fuchs NBN8-18GM50-E2 sensor is equipped with a M8 connector, allowing for straightforward installation and reliable electrical connection, making it an ideal choice for industrial automation, material handling, and machine safety applications.

Key features :-

Product Number NBN8-18GM50-E2
Part Number 326161-0121
Switching function Normally open (NO)
Output type PNP
Rated operating distance 8 mm
Installation non-flush
Output polarity DC
Assured operating distance 0 ... 6.48 mm
Actuating element mild steel, e. g. 1.0037, SR235JR (formerly St37-2)
24 mm x 24 mm x 1 mm
Reduction factor rAl 0.44
Reduction factor rCu 0.42
Reduction factor r304 0.76
Reduction factor rBrass 0.52
Output type 3-wire
Operating voltage 5 ... 36 V
Switching frequency 0 ... 1650 Hz
Hysteresis typ. 5 %
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop ≤ 1 V
Operating current 0 ... 200 mA
Off-state current max. 20 µA
No-load supply current ≤ 10 mA
Time delay before availability ≤ 10 ms
Switching state indicator LED, yellow
Operating voltage 5 ... 36 V
Switching frequency 0 ... 1650 Hz
Hysteresis typ. 5 %
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop ≤ 1 V
Operating current 0 ... 200 mA
Off-state current max. 20 µA
No-load supply current ≤ 10 mA
Time delay before availability ≤ 10 ms
Switching state indicator LED, yellow
Operating voltage 5 ... 36 V
Switching frequency 0 ... 1650 Hz
Hysteresis typ. 5 %
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop ≤ 1 V
Operating current 0 ... 200 mA
Off-state current max. 20 µA
No-load supply current ≤ 10 mA
Time delay before availability ≤ 10 ms
Switching state indicator LED, yellow
MTTFd 1708 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Standards EN 60947-5-2:2007
EN 60947-5-2/A1:2012
IEC 60947-5-2:2007
IEC 60947-5-2 AMD 1:2012
Protection class II
Rated insulation voltage 36 V
Rated impulse withstand voltage 500 V
UL approval cULus Listed, General Purpose, Class 2 Power Source
CCC approval CCC approval / marking not required for products rated ≤36 V
Marine approval DNVGL TAA00003AK
Ambient temperature -40 ... 85 °C (-40 ... 185 °F)
Storage temperature -40 ... 85 °C (-40 ... 185 °F)
Connection type cable
Housing material brass , white bronze coated
Sensing face PBT , green
Degree of protection IP65 / IP66 / IP67 / IP68
Wire end ferrules yes
Cable diameter 4.3 mm ± 0.15 mm
Bending radius > 10 x cable diameter
Material PVC
Color black
Number of cores 3



Applications :-

  • Industrial Automation: Ideal for detecting metal objects in automated production lines, ensuring precise positioning and sorting.
  • Material Handling: Used for metal detection and object positioning in conveyor systems and material handling applications.
  • Machine Safety: Ensures safety by detecting metallic objects and preventing accidents in automated machinery.
  • Quality Control: Provides reliable detection of metallic components during quality inspection processes.
  • Packaging Industry: Ensures accurate metal detection and part positioning in high-speed packaging operations.

Precautions:

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
