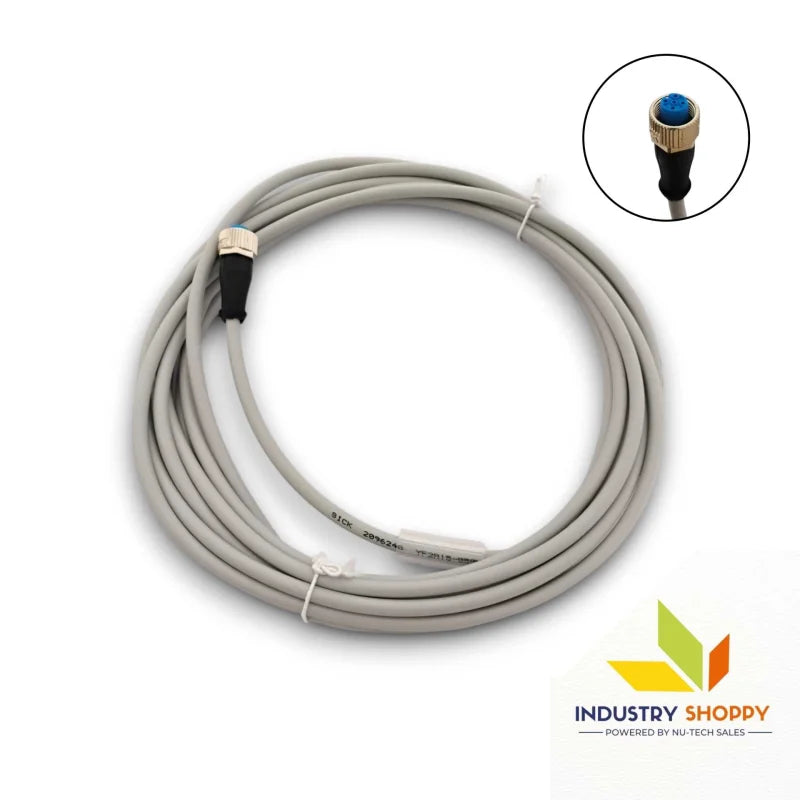

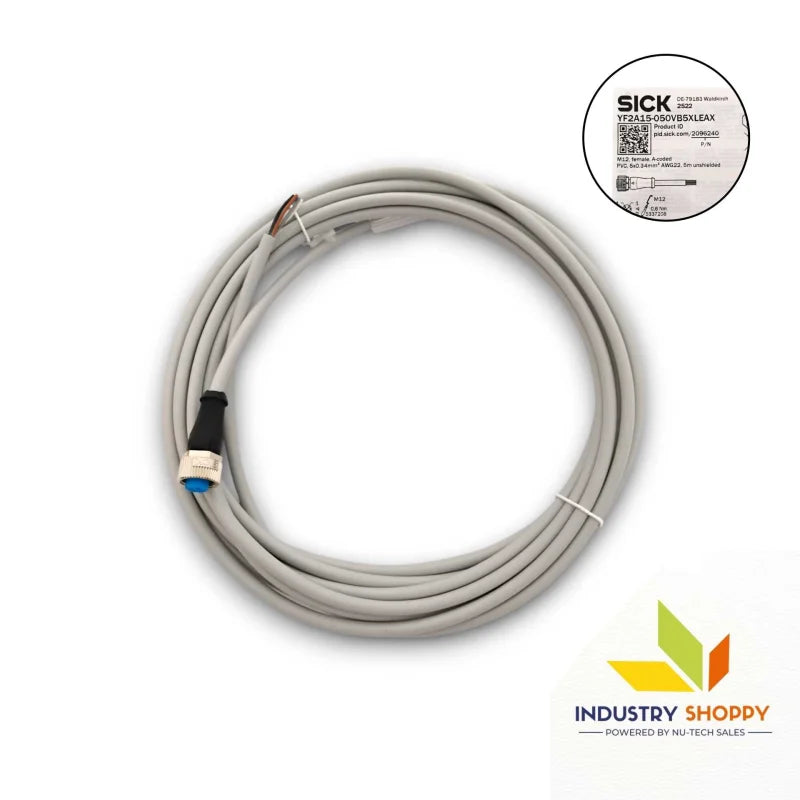

Sick YF2A15-050VB5XLEAX Sensor Cables

Sick YF2A15-050VB5XLEAX Sensor cables

The Sick YF2A15-050VB5XLEAX Sensor cables (Part No. 2096240) is a a high-quality sensor/actuator cable designed for reliable signal transmission in industrial automation environments. It features a female M12, 5-pin, straight A-coded connector on Head A, paired with flying leads on Head B, ensuring flexibility for custom wiring and integration. Built with a durable TPU connector housing and a nickel-plated zinc die-cast locking nut, the cable provides excellent mechanical stability and secure connections in demanding applications.

With a 5-meter length, 5-wire configuration, and 0.34 mm² conductor cross-section, it supports efficient and stable electrical performance. The PVC gray jacket ensures resistance against chemicals, abrasion, and environmental exposure—suitable for zones with chemicals and uncontaminated environments. The cable delivers strong electrical safety with a 300 V AC nominal voltage, 2,000 V AC test voltage, and 1.5 kV impulse resistance.

Designed for harsh industrial conditions, it carries an IP65 / IP66K / IP67 enclosure rating, offering superior dust and water protection. Certified with CE and UL (File No. E335179) and compliant with flame and insulation standards, it ensures long-term operational reliability. Its broad temperature ranges for flexible and stationary use make it ideal for tough and continuous industrial applications.

---

Applications

• Industrial sensors and actuators

• Factory automation and machine wiring

• Packaging and material handling systems

• Robotics and assembly lines

• Control panels and distributed I/O systems

---

Technical Precautions

• Ensure proper connector mating to avoid signal loss or damage.

• Do not bend the cable below the recommended bending radius.

• Keep away from sharp edges or moving mechanical parts.

• Install in accordance with voltage and environmental ratings.

• Avoid excessive pulling or twisting during installation.
