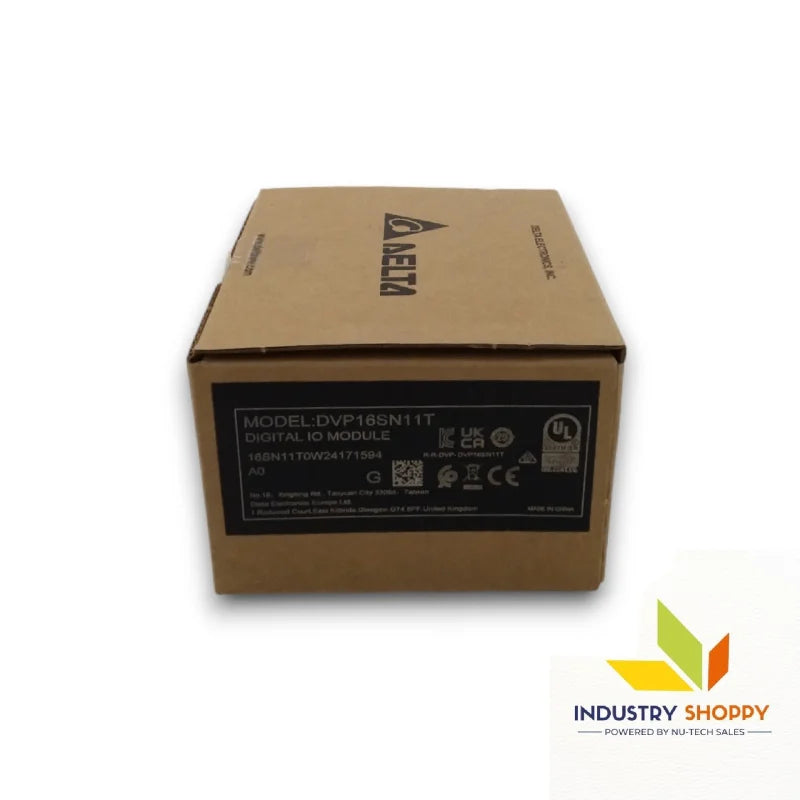

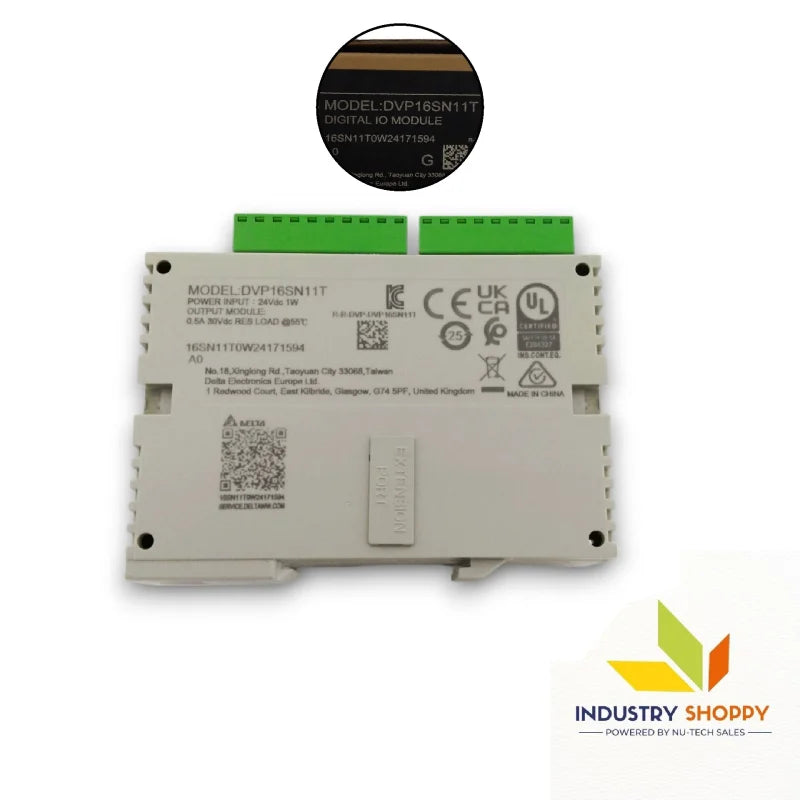

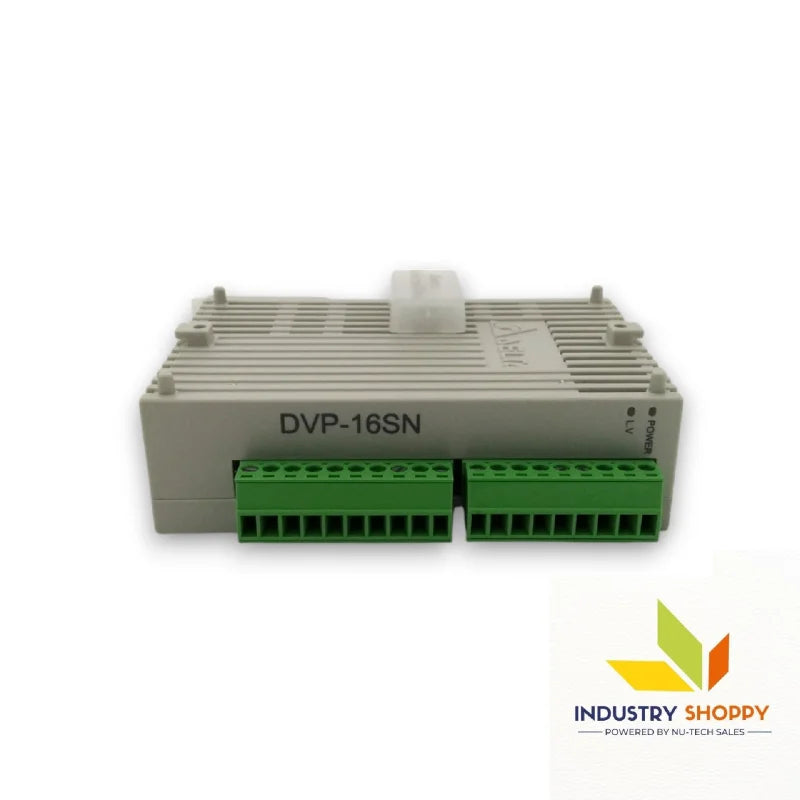

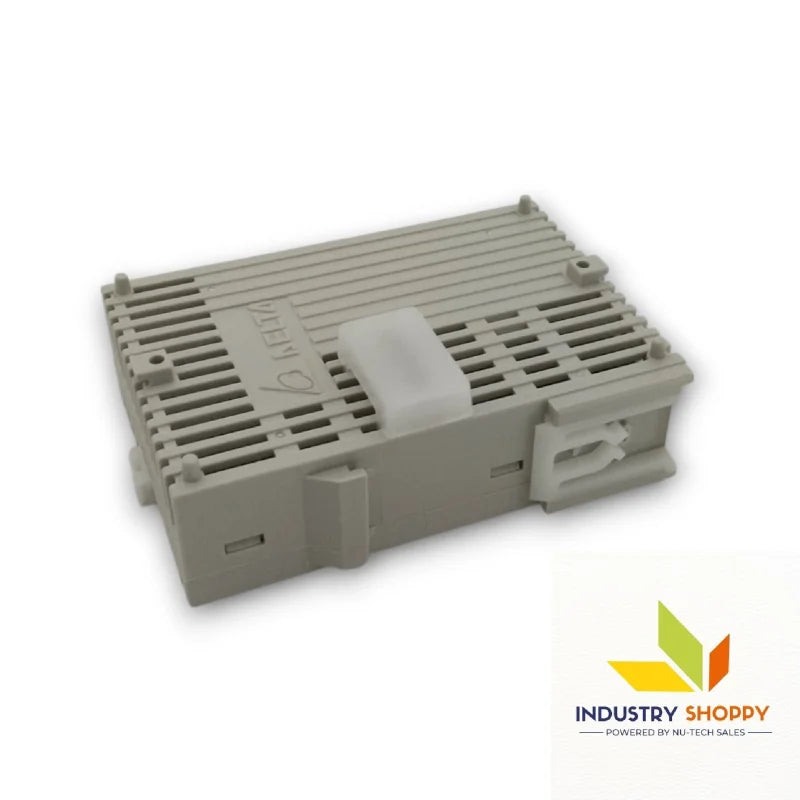

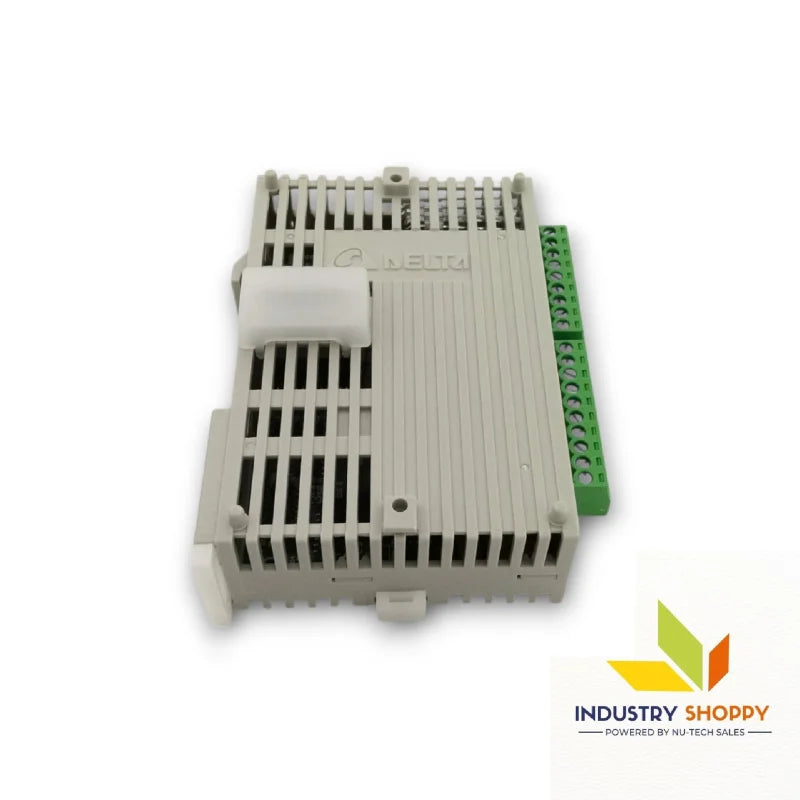

Delta DVP16SN11T PLC Module

Delta DVP16SN11T PLC Module

The Delta DVP16SN11T PLC Module is a high-performance CPU-type controller, designed to meet the dynamic needs of modern industrial automation. Featuring 12 NPN transistor outputs, this module enables fast and reliable control over a wide range of digital devices, ensuring precise output management in complex systems.

With a 24VDC power supply and a program capacity of 16k steps, the DVP16SN11T supports advanced logic operations and real-time control, making it ideal for machine automation, production lines, and process management. It’s built to endure harsh environments, offering excellent noise immunity, robust spike voltage durability, and strong insulation impedance.

The module also boasts a swift response time of 20μs (OFF→ON) and 50μs (ON→OFF), ensuring rapid execution in time-sensitive applications. Its compliance with IEC vibration and shock resistance standards further enhances durability for industrial use. Compact, efficient, and reliable, the DVP16SN11T is the perfect fit for control systems that demand high-speed digital output and seamless performance.

Key features :-

• Brand: Delta
• Series: DVP-SN
• Model No.: DVP16SN11T
• Type: CPU
• Output Type: Transistor NPN
• Power Supply: 24VDC (-15%~20%)
• Fuse Capacity: 2A/250VAC; SV: 2.5A/30VDC
• Number of Outputs and Type: 12 – Transistor
• Input Signal Voltage: 24VDC ±10% (5mA)
• Max. Input Frequency: 10kHz
• Program Capacity: 16k Steps
• Spike Voltage Durability: 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE)
• Insulation Impedance: >5 MΩ (all I/O points to ground: 500VDC)
• Noise Immunity: ESD: 8kV Air Discharge; EFT: Power Line 2kV; Digital I/O 1kV; Analog & Communication I/O compliant
• Earth: Grounding wire must not be thinner than power supply cable
• Storage / Operation Temperature: Storage: -25ºC ~ 70ºC; Operation: 0ºC ~ 55ºC
• Storage / Operation Humidity: 5%~95% (Pollution degree 2)
• Response Time: OFF→ON: 20μs; ON→OFF: 50μs
• Vibration / Shock Resistance: IEC1131-2, IEC 68-2-6 (TEST Fc) / IEC1131-2 & IEC 68-2-27 (TEST Ea)
• Power Consumption: 4W

Technical Precautions :-

• Ensure all connections are secure, especially for RS-232 and RS-485 communication ports, to maintain reliable data transmission.
• Maintain a stable 24V DC power supply to optimize module performance and prevent malfunctions.
• Avoid installation in high-vibration or extremely humid environments to protect the hardware.
• Always follow the proper wiring diagram when connecting additional modules to avoid overloading the system.
• Proper grounding is essential to avoid damage due to electromagnetic interference (EMI).
