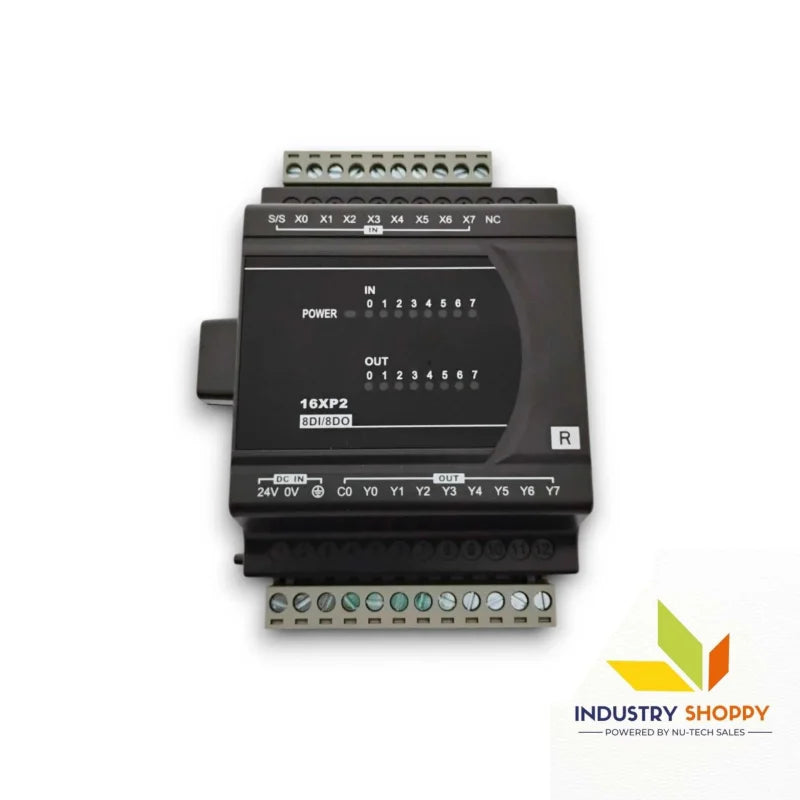

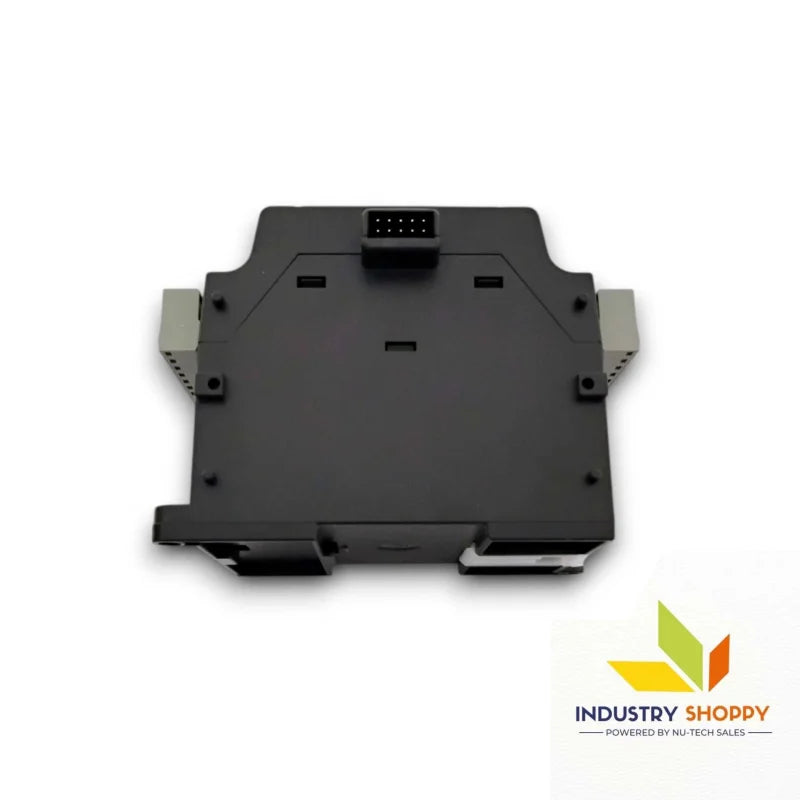

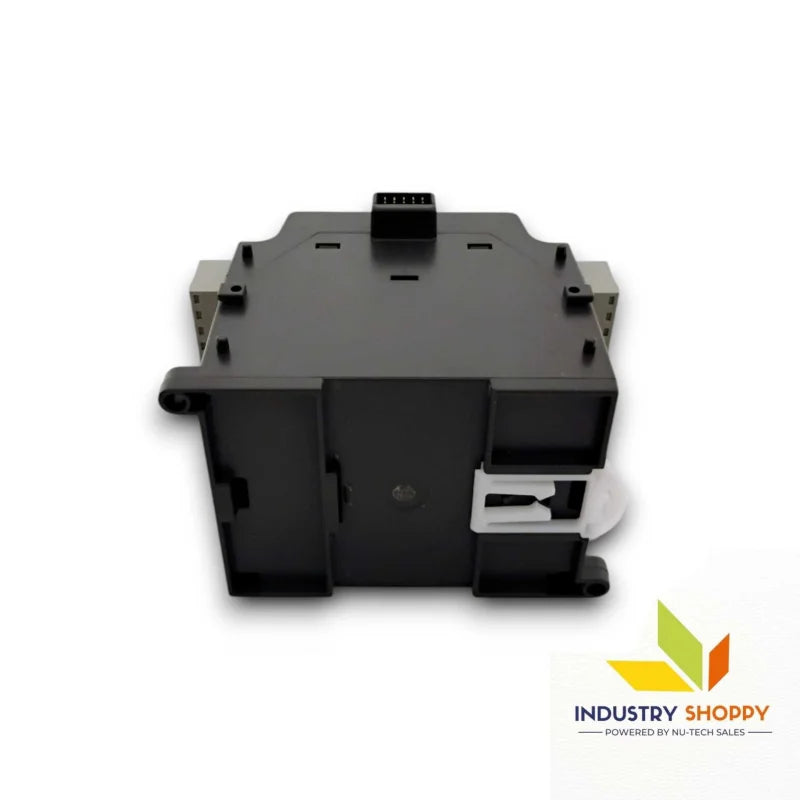

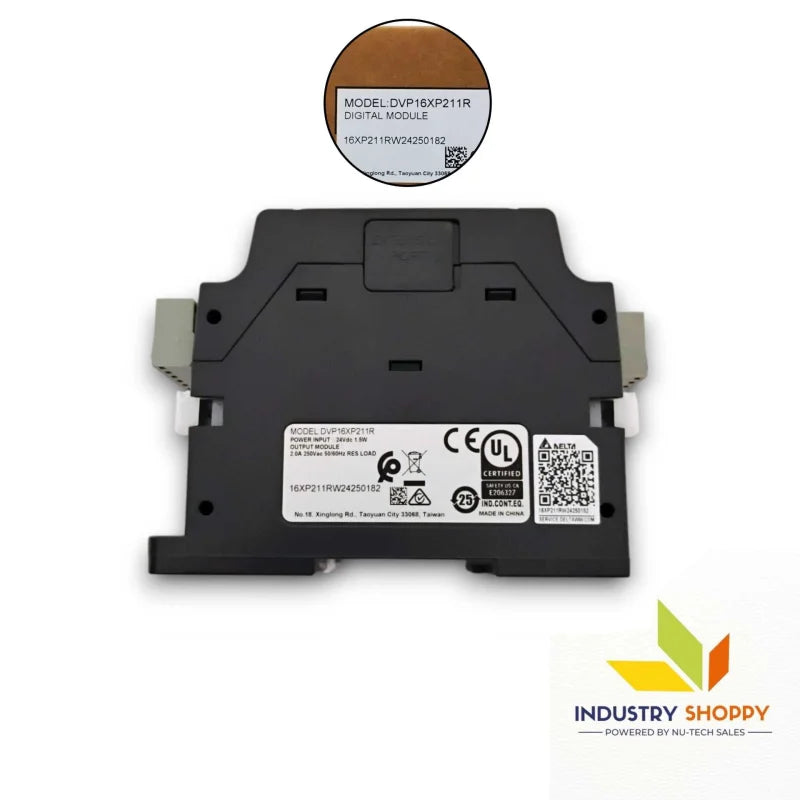

Delta DVP16XP211R PLC Module

Delta DVP16XP211R PLC Module

The Delta DVP16XP211R PLC Module is a high-performance and versatile controller designed to handle automation tasks with efficiency and stability. This compact module offers 8 digital inputs and 8 relay outputs, delivering flexible connectivity for diverse system architectures.

Built to meet stringent industrial standards, it features high noise immunity, excellent insulation resistance above 5 MΩ, and spike voltage durability to ensure reliable operation even in electrically noisy environments. The program capacity of 16k steps supports complex logic and advanced control sequences, enhancing your system’s intelligence.

With a response time of just 10ms, this module ensures fast and reliable signal execution. The 24VDC power supply and DIN rail or chassis mounting options make integration easy in both new and existing setups. Its rugged design supports stable performance under temperatures from 0°C to 55°C and withstands industrial vibration and shock conditions, making it an ideal solution for modern automation systems.

Key features :-

• Brand: Delta
• Series: DVP
• Model No.: DVP16XP211R
• Output Method: Relay
• Power Supply: 24VDC (-15%~20%)
• Number of Inputs and Type: Digital - 8
• Number of Outputs and Type: 8 - Relay
• Fuse Capacity: ES: 2A/250VAC; SV: 2.5A/30VDC
• Input Signal Voltage: 24VDC ±10% (5 mA)
• Mounting: Chassis Mount, DIN Rail
• Power Consumption: 1.2W
• Program Capacity: 16k Steps
• Spike Voltage Durability: 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE)
• Insulation Impedance: >5 MΩ (all I/O point-to-ground: 500VDC)
• Noise Immunity: ESD: 8kV Air Discharge; EFT: Power Line 2kV; Digital I/O 1kV; Analog & Communication I/O 1kV; RS: 26 MHz~1GHz, 10V/m
• Earth: Ground wire diameter not shorter than power supply cable
• Storage Temperature: -25ºC ~70ºC
• Operation Temperature: 0ºC ~55ºC
• Storage Humidity: 5%~95% (humidity)
• Operation Humidity: 5%~95% (humidity); pollution degree 2
• Response Time: 10ms
• Vibration/Shock Resistance: IEC1131-2, IEC 68-2-6 (TEST Fc); IEC1131-2, IEC 68-2-27 (TEST Ea)

Technical Precautions :-

• Ensure all connections are secure, especially for RS-232 and RS-485 communication ports, to maintain reliable data transmission.
• Maintain a stable 24V DC power supply to optimize module performance and prevent malfunctions.
• Avoid installation in high-vibration or extremely humid environments to protect the hardware.
• Always follow the proper wiring diagram when connecting additional modules to avoid overloading the system.
• Proper grounding is essential to avoid damage due to electromagnetic interference (EMI).
