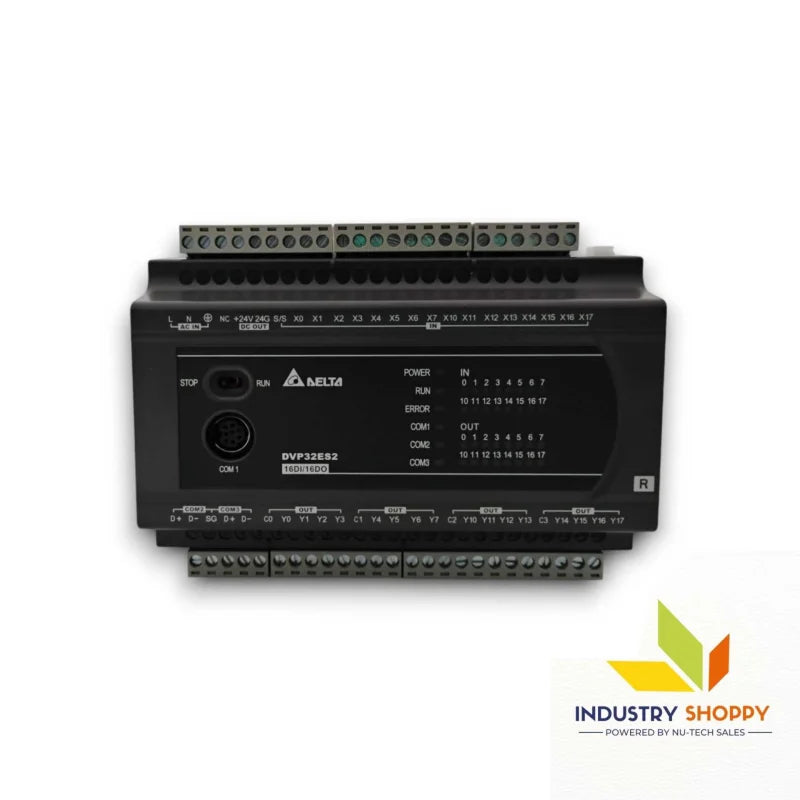

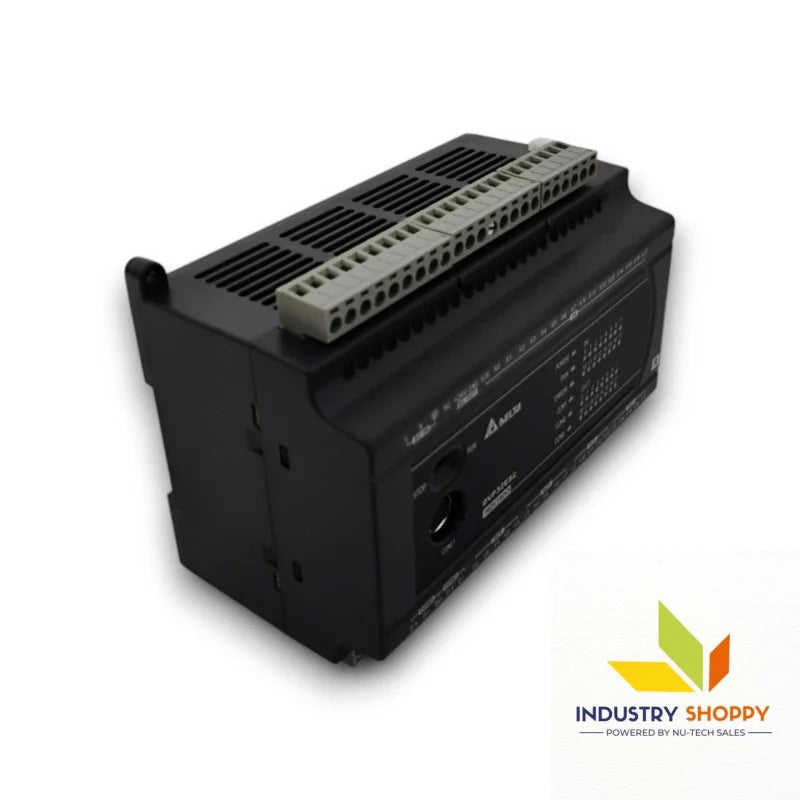

Delta DVP32ES200R PLC Module

Delta DVP32ES200R PLC Module

The Delta DVP32ES200R PLC Module is a versatile and dependable CPU unit designed to handle demanding automation processes with precision and efficiency. Featuring 16 digital inputs and 16 relay outputs, it ensures broad compatibility with industrial devices and sensors, simplifying control system expansion.

This module offers 16k steps of program capacity and 10k words of data register space, enabling the execution of complex control sequences and data handling with ease. With an operating voltage range of 100~240VAC, it provides flexibility for integration into various systems, and its DIN rail or chassis mounting options streamline installation.

Built to thrive in industrial environments, the unit withstands high levels of electrical noise with ESD, EFT, and surge protection. The response time of 10ms ensures fast, accurate input-to-output processing. Capable of handling a maximum input frequency of 100KHz, this PLC supports real-time, high-speed applications, making it ideal for factory automation, process control, and intelligent systems.

Key features :-

• Brand: Delta
• Series: DVP
• Model No.: DVP32ES200R
• Output Type: Relay
• Type: CPU

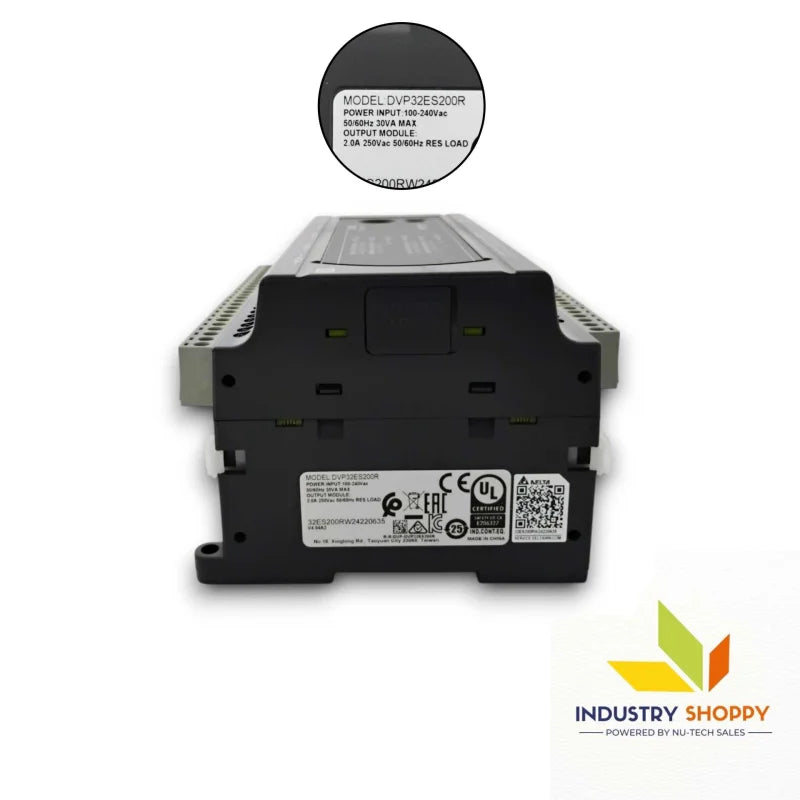

• Power Supply Voltage: 100~240VAC (-15%~10%), 50 / 60Hz ±5%

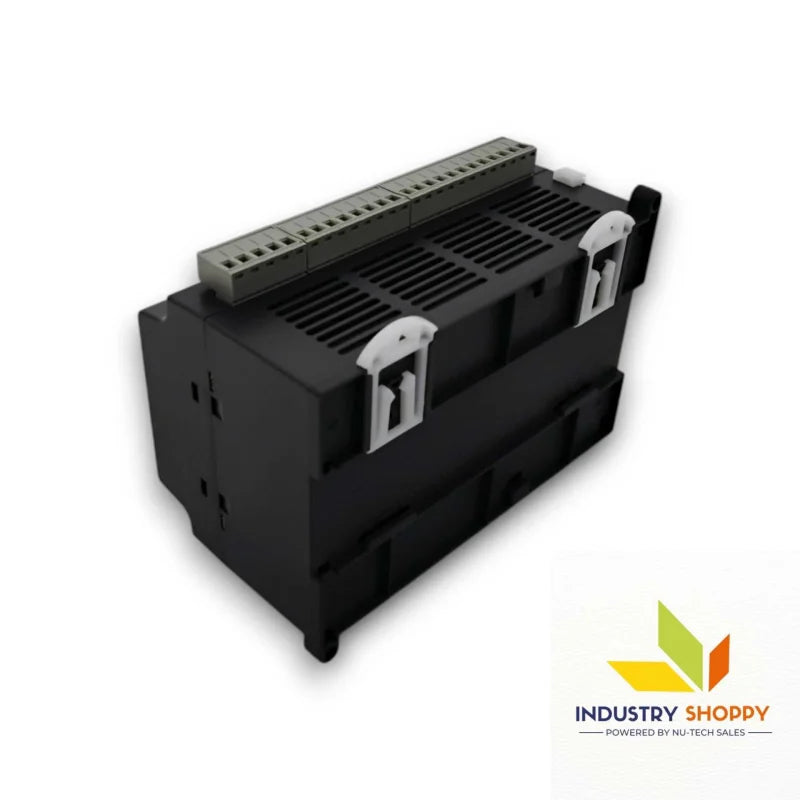

• Mounting Type: Chassis Mount, DIN Rail
• Fuse Capacity: 2A/250VAC
• Data Register: 10k words
• Program Capacity: 16k Steps
• Number of Inputs and Type: 16 – Digital
• Number of Outputs and Type: 16 – Relay
• Spike Voltage Durability: 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE)
• Insulation Impedance: >5 MΩ (all I/O point-to-ground: 500VDC)
• Noise Immunity: ESD: 8kV Air Discharge; EFT: Power Line 2kV; Digital I/O: 1kV; Analog & Communication I/O: 1kV; RS: 26 MHz~1GHz, 10V/m
• Earth: Ground wire diameter not shorter than power supply cable
• Storage Temperature: -25ºC ~70ºC
• Operation Temperature: 0ºC ~55ºC
• Storage Humidity: 5%~95% (humidity)
• Operation Humidity: 5%~95% (humidity); pollution degree 2
• Max. Input Frequency: 100KHz
• Input Signal Voltage: 24VDC ±10% (5 mA)
• Response Time: 10ms

Technical Precautions :-

• Ensure all connections are secure, especially for RS-232 and RS-485 communication ports, to maintain reliable data transmission.
• Maintain a stable 24V DC power supply to optimize module performance and prevent malfunctions.
• Avoid installation in high-vibration or extremely humid environments to protect the hardware.
• Always follow the proper wiring diagram when connecting additional modules to avoid overloading the system.
• Proper grounding is essential to avoid damage due to electromagnetic interference (EMI).
