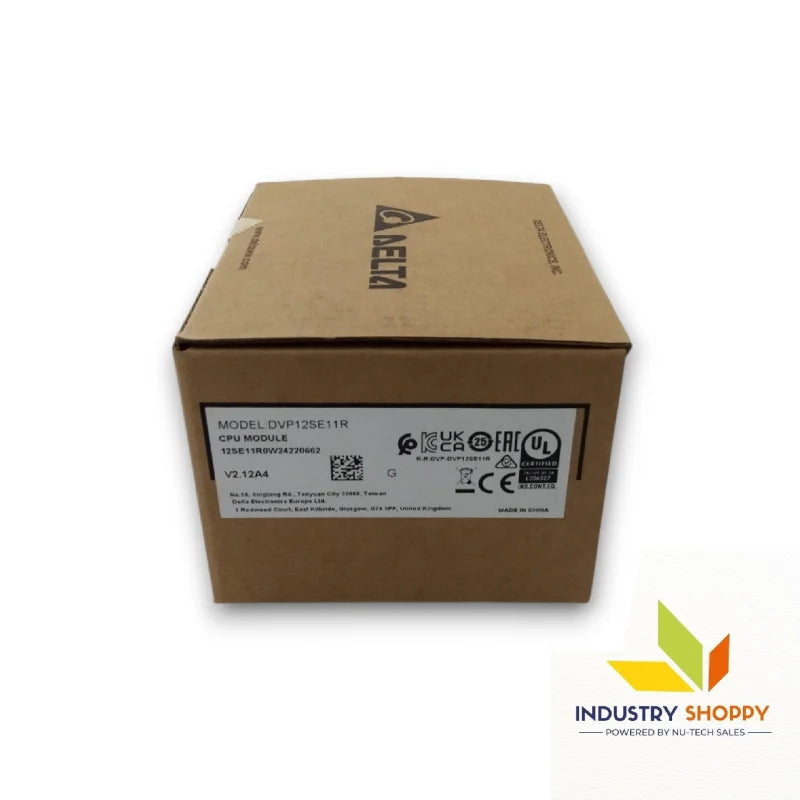

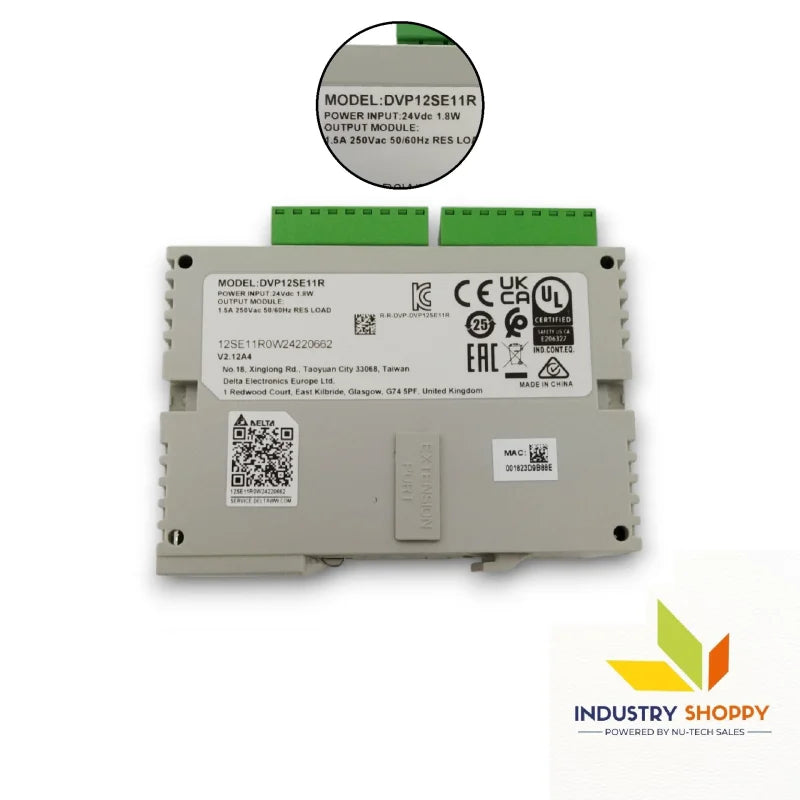

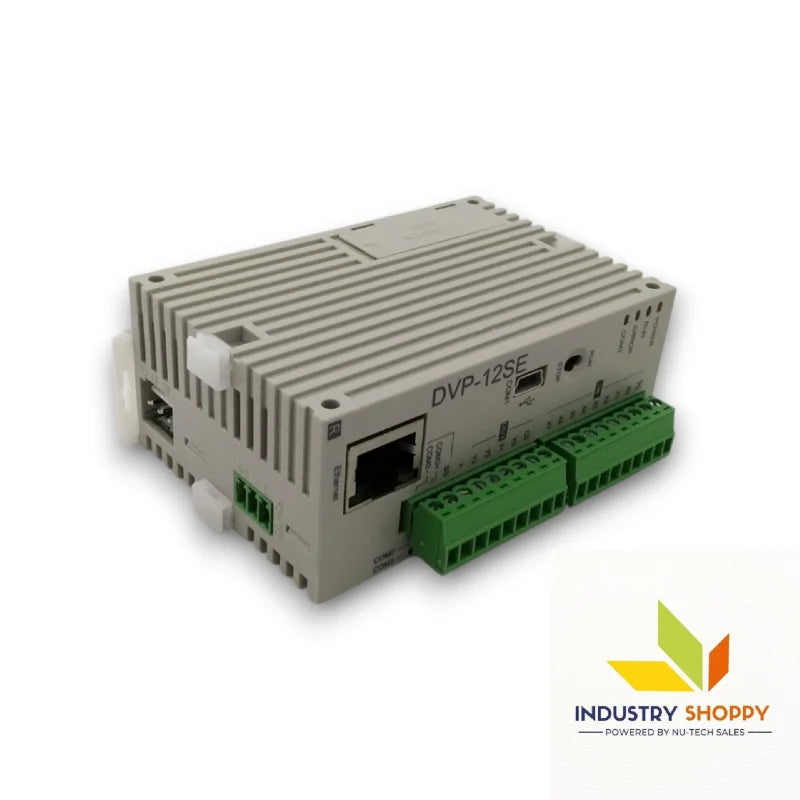

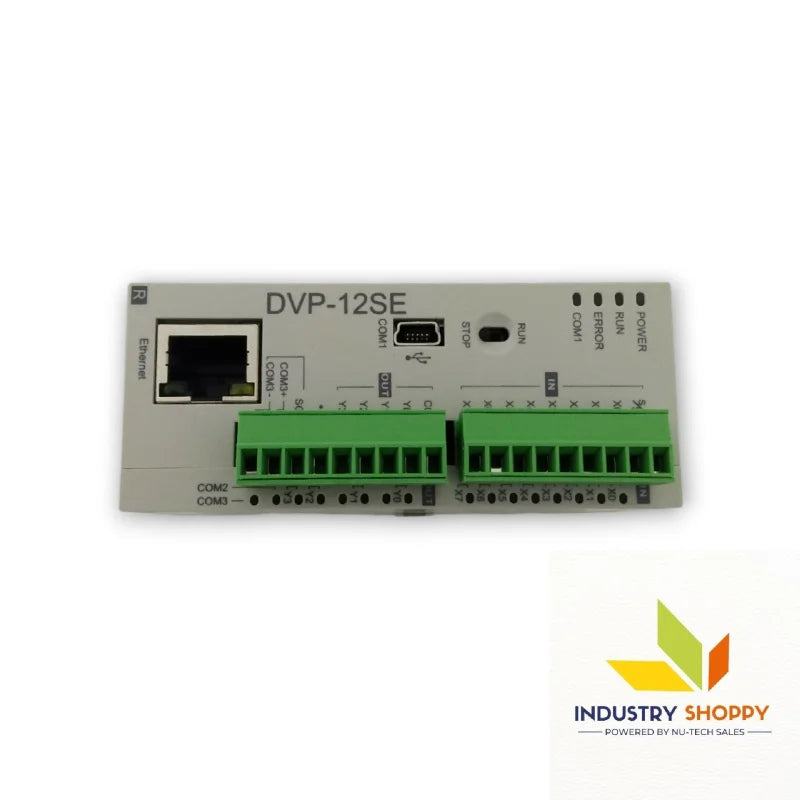

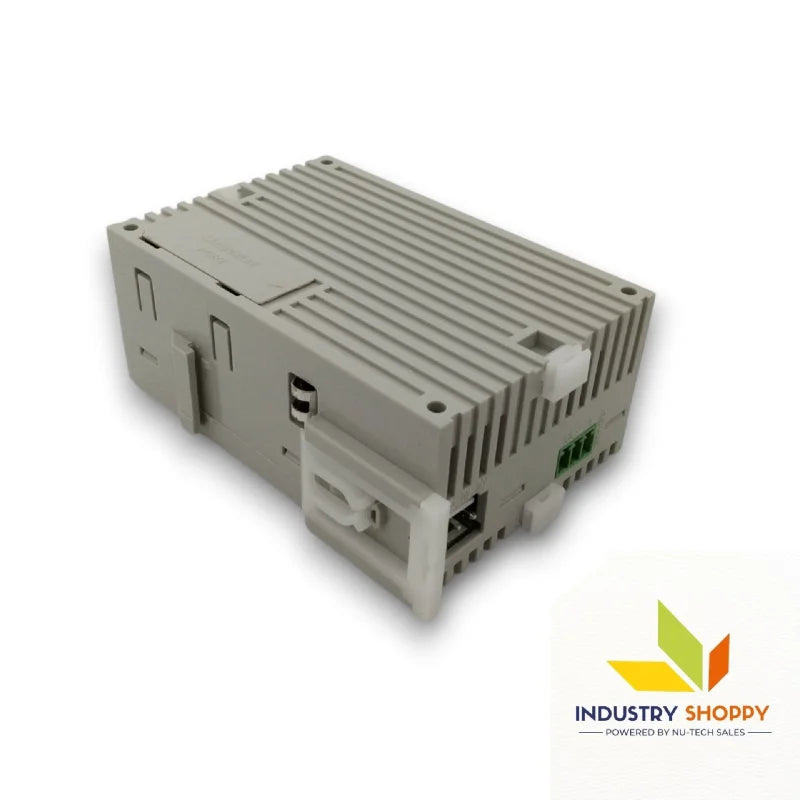

Delta DVP12SE11R PLC Module

Delta DVP12SE11R PLC Module

The Delta DVP12SE11R PLC Module is a compact and efficient automation solution designed to handle a wide range of control tasks with precision and reliability. Equipped with 8 digital inputs and 4 relay outputs, this module integrates seamlessly into industrial environments, offering stable performance and dependable switching capability.

Operating on a 24VDC power supply, the DVP12SE11R includes protective features such as reverse polarity safeguards and rugged spike voltage durability for enhanced safety. Its design adheres to international standards, ensuring outstanding insulation impedance and noise immunity against electrostatic discharge, power line transients, and electromagnetic interference.

With a maximum input frequency of 100kHz and an approximate response time of 10ms, it can easily handle both high-speed inputs and reliable relay actuation for your automation systems. Lightweight at just 82.5 grams, this module is easy to mount on standard DIN rails, making it ideal for space-constrained setups.

The Delta DVP12SE11R is engineered to deliver consistent, high-quality control performance across diverse applications.

Key features :-

• Brand: Delta
• Series: DVP-SE
• Model No.: DVP12SE11R
• Output Type: Relay
• Power Supply: 24VDC (-15%~20%)
• Inrush Current: Max. 7.5A @ 24VDC
• Number of Inputs and Type: 8 – Digital
• Number of Outputs and Type: 4 – Relay
• Input Signal Voltage: DIN Rail
• Spike Voltage Durability: 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE)
• Insulation Impedance: >5 MΩ (all I/O points to ground: 500VDC)
• Noise Immunity: ESD: 8kV Air; EFT: Power Line 2kV; Digital I/O 1kV; Analog & Communication I/O compliant
• Earth: Grounding wire must not be thinner than power supply cable
• Storage / Operation Temperature: Storage: -25ºC ~ 70ºC; Operation: 0ºC ~ 55ºC
• Storage / Operation Humidity: 5%~95% (Pollution degree 2)
• Response Time: Approx. 10ms
• Max. Output Frequency: 1Hz
• Max. Input Frequency: 100kHz
• Input Impedance: 4.7kΩ
• Power Consumption: 1.8W

Applications :-

• Factory Automation: Controls sensors and relays in assembly and production lines.
• Building Automation: Manages alarms, HVAC relays, and lighting circuits.
• Machine Automation: Facilitates precise control of actuators and motors.
• Process Control: Handles reliable input reading and output switching.
• Energy Management: Integrates with load control systems for energy savings.

Technical Precautions :-

• Ensure all connections are secure, especially for RS-232 and RS-485 communication ports, to maintain reliable data transmission.
• Maintain a stable 24V DC power supply to optimize module performance and prevent malfunctions.
• Avoid installation in high-vibration or extremely humid environments to protect the hardware.
• Always follow the proper wiring diagram when connecting additional modules to avoid overloading the system.
• Proper grounding is essential to avoid damage due to electromagnetic interference (EMI).
