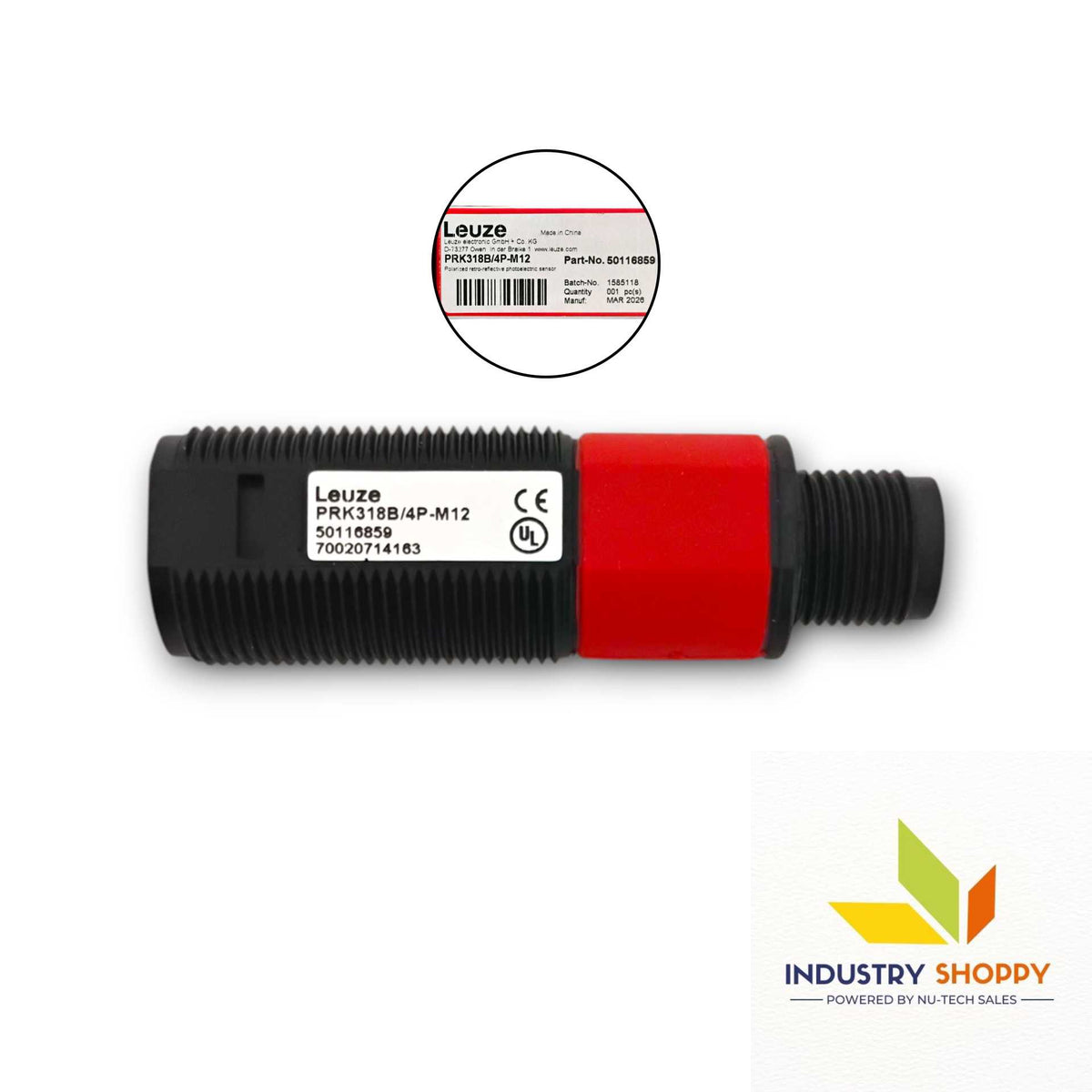

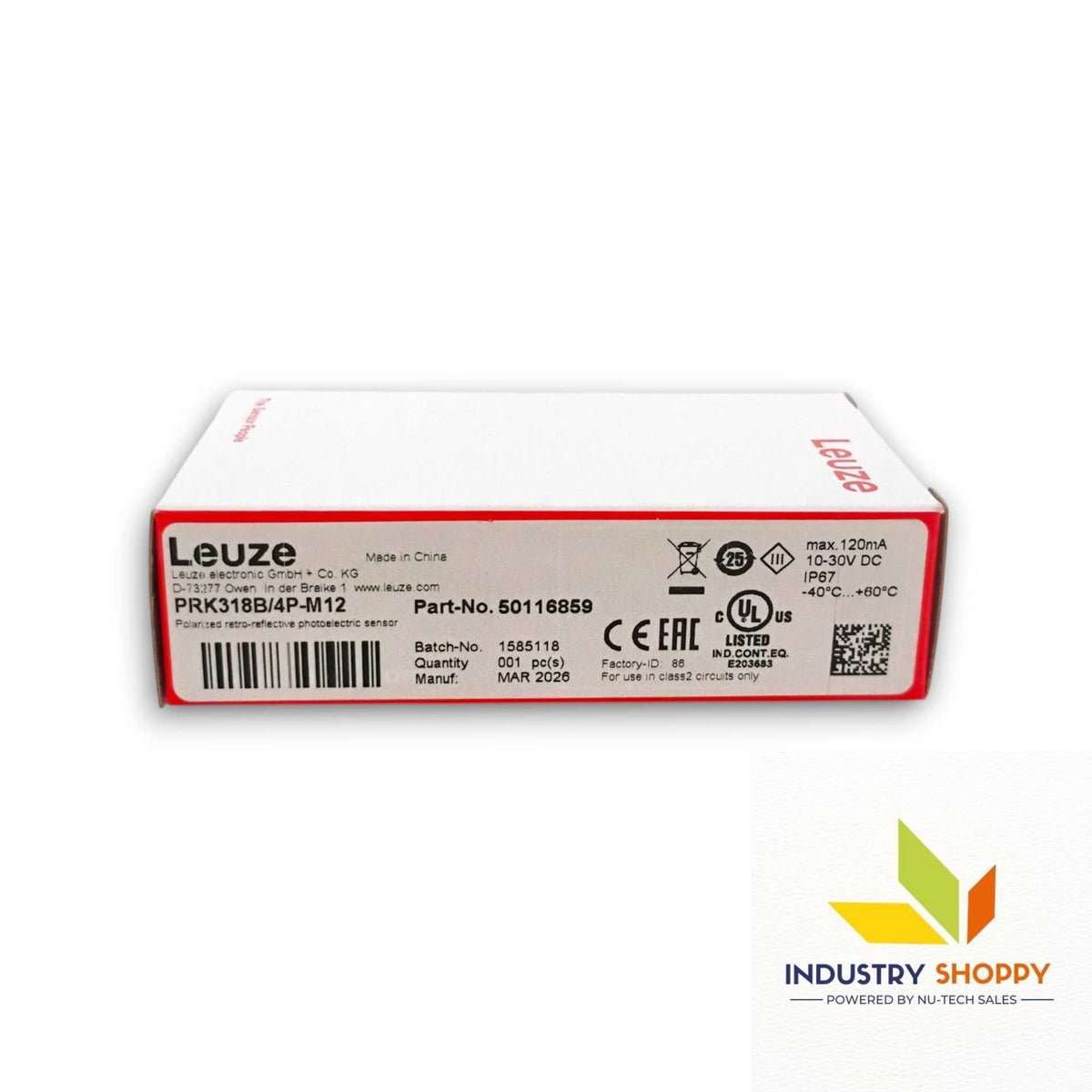

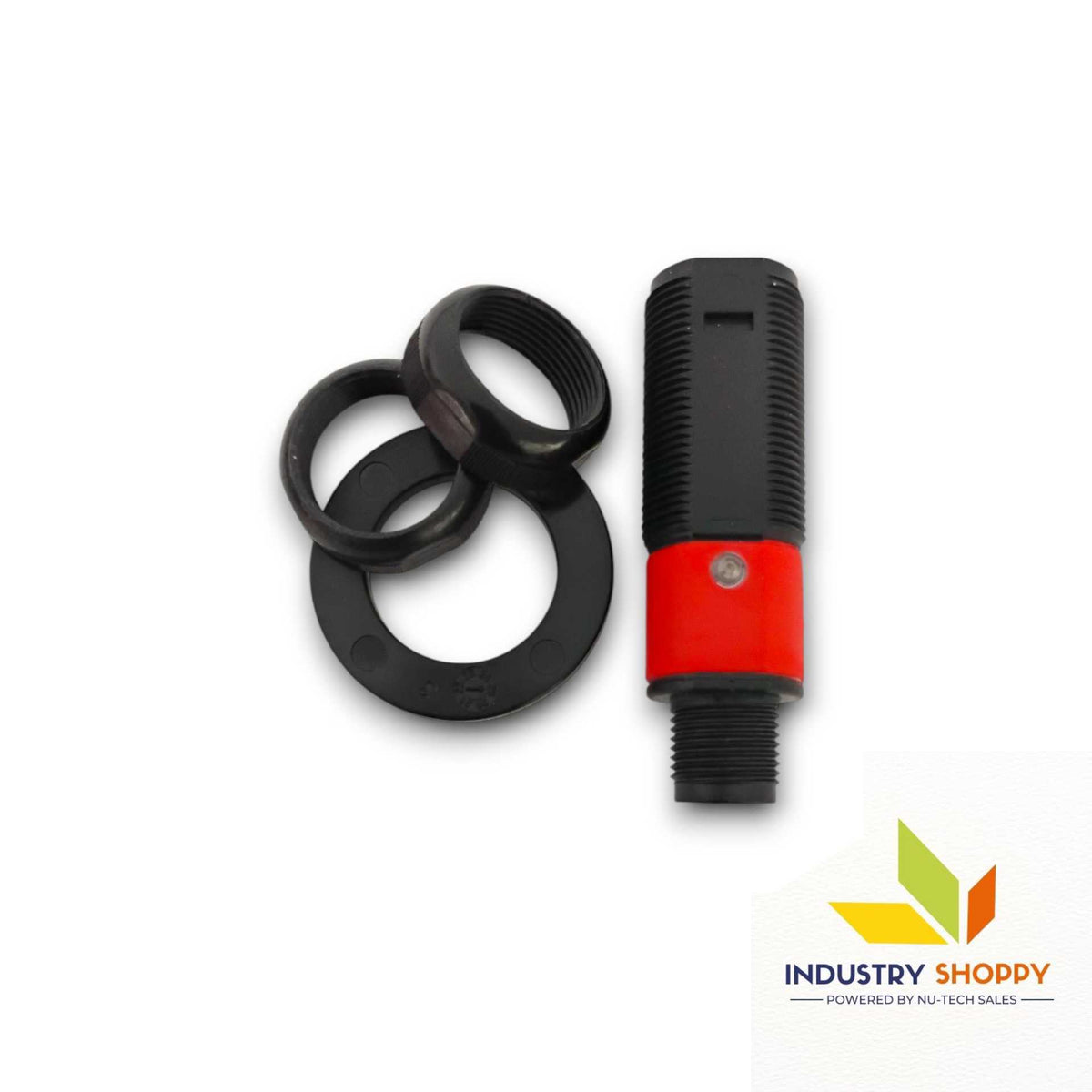

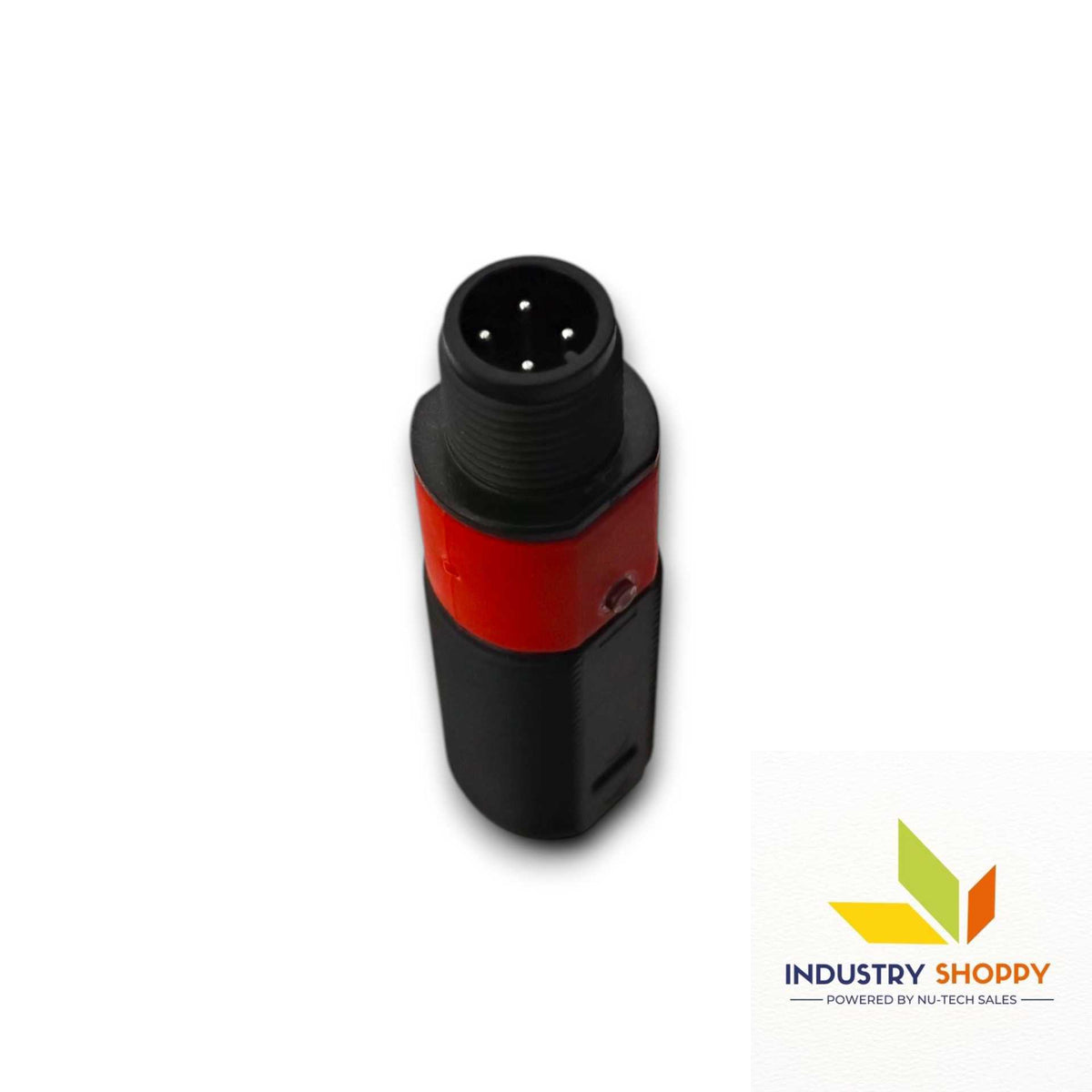

Leuze PRK318B/4P-M12 Photoelectric Sensor
Leuze PRK318B/4P-M12 Photoelectric Sensor
Leuze PRK318B/4P-M12 Photoelectric Sensor
Leuze PRK318B/4P-M12 Photoelectric Sensor
Leuze PRK318B/4P-M12 Photoelectric Sensor
Leuze PRK318B/4P-M12 Photoelectric Sensor
Leuze PRK318B/4P-M12 Photoelectric Sensor
Leuze PRK318B/4P-M12 Photoelectric Sensor
Leuze

Leuze PRK318B/4P-M12 Photoelectric Sensor

Product SKU: NTSSEN00885
Available:
Only 20 items in stock
20 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Leuze
  • Supply Voltage (UB)
:  10 ... 30 V, DC, Incl. residual ripple
  • Part Number
:  50116859
  • Type
:  Photoelectric Sensor
  • Open-circuit current
:  0 ... 15 mA
  • Switching element
:  Transistor, PNP


Note :- Custom duty and local tax should be pay by buyer only.

$88.00
$235.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Declaration

Leuze PRK318B/4P-M12 Photoelectric Sensor

The Leuze PRK318B/4P-M12 Photoelectric Sensor (50116859) from Leuze electronic is a compact M18 retroreflective photoelectric sensor designed for accurate long-range object detection in industrial automation and material handling systems. Operating on the reflection principle, it provides a guaranteed sensing range of 0.02 to 4.5 meters when used with a LEUZE TK(S) 100×100 reflector, while offering a typical operating range of up to 6 meters.

The sensor utilizes a 620 nm pulsed red LED to ensure reliable detection with excellent resistance to ambient light interference. It features dual PNP transistor outputs supporting both Light Switching (Light-ON) and Dark Switching (Dark-ON) modes, providing flexible integration with PLCs and industrial control systems. Operating on a 10–30 VDC power supply, the sensor delivers a 500 Hz switching frequency, 1 ms response time, and a 300 ms readiness delay for dependable high-speed performance.

Its durable ABS plastic housing, M18 threaded body, and M12 A-coded 4-pin connector enable quick installation and secure electrical connections. The integrated LED status indicator simplifies alignment and operational monitoring. With an IP67 protection rating, the sensor is resistant to dust and water, ensuring reliable operation in demanding industrial environments. Manufactured in China, the PRK318B/4P-M12 is a dependable solution for precise and long-lasting photoelectric sensing applications.


Applications

  • Conveyor systems for reliable object detection over long distances.

  • Packaging and assembly lines requiring retroreflective sensing.

  • Warehouse and material handling equipment for product positioning.

  • Industrial automation machinery using reflector-based detection systems.


Technical Precautions

  • Operate only within the 10–30 VDC specified supply voltage range.

  • Use a compatible LEUZE TK(S) 100×100 reflector to achieve the rated sensing distance.

  • Keep the sensor lens and reflector clean to maintain reliable detection performance.

  • Secure the M12 A-coded connector properly and protect the sensor from mechanical impacts to preserve the IP67 protection rating.

While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.


Facebook, YouTube,


BrandLEUZE
Product NumberPRK318B/4P-M12
Part Number50116859

Series

318B
Operating principleReflection principle

Operating range

0.02 ... 4.5 m (guaranteed operating range), With reflector TK(S) 100x100
Operating range limit0.02 ... 6 m (typical operating range), With reflector TK(S) 100x100
Light sourceLED, Red
Wavelength620 nm
Transmitted-signal shapePulsed
LED groupExempt group (in acc. with EN 62471)

Supply voltage UB

10 ... 30 V, DC, Incl. residual ripple
Residual ripple0 ... 15 %, From UB
Open-circuit current0 ... 15 mA

Number of digital switching outputs

2 Piece(s)

Type

Digital switching output

Switching element

Transistor, PNP
Switching principleLight switching

Switching element

Transistor, PNP
Switching principleDark switching

Switching frequency

500 Hz
Response time1 ms
Readiness delay300 ms

Number of connections

1 Piece(s)

Function

Signal OUT Voltage supply
Type of connectionConnector
Thread sizeM12
TypeMale
MaterialPlastic
No. of pins4 -pin
EncodingA-coded

Dimension (Ø x L)

18 mm x 46 mm
Thread sizeM18 x 1 mm
Housing materialPlastic
Plastic housingABS
Lens cover materialPlastic
Housing colorBlack

Red

Type of display

LED
Number of LEDs1 Piece(s)

Ambient temperature, operation

-40 ... 60 °C
Ambient temperature, storage-40 ... 70 °C

Degree of protection

IP 67
Country of originChina
