Datalogic SG4-30-030-OO-X Safety Light Curtain

DataLogic

Datalogic SG4-30-030-OO-X Safety Light Curtain

Product SKU: NTSSEN00163

Available:

Only 6 items in stock

6 items in stock

In stock

Pre-order

Out of stock

Brand: Datalogic
Resolution: 30mm
Type: Type 4 safety light curtain (A)
Response time: 12,7 ms
Connections: M12- 4 poles (emitter) M12-5 poles (receiver)

Note : All tax and custom duty should be pay by buyer only.

For Indian Buyers: IndustryShoppy.in

$399.00

~~$850.00~~

Want it delivered by

Description
Specifications
Declaration
Reviews

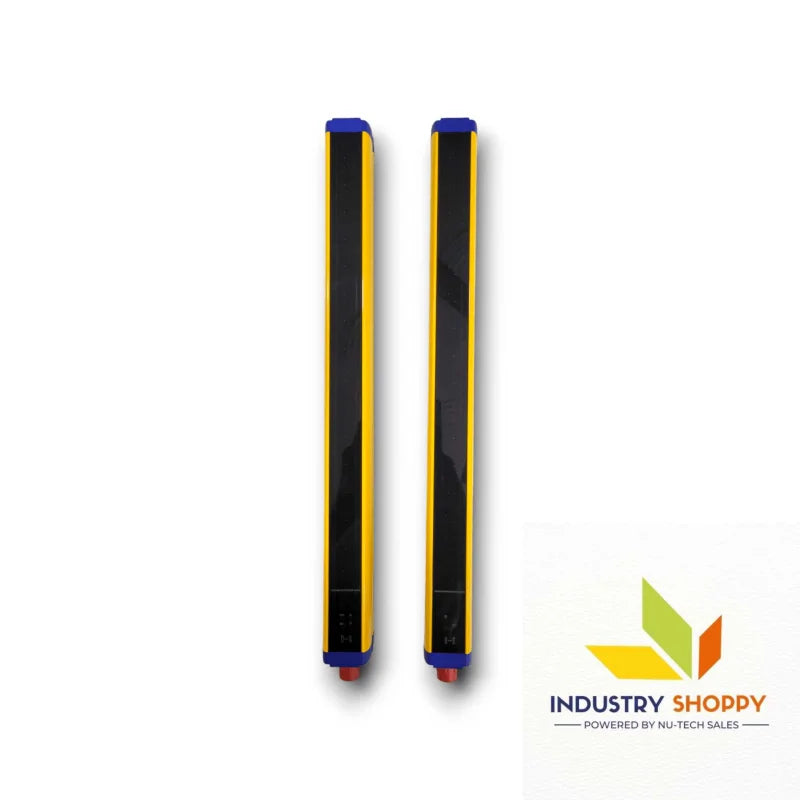

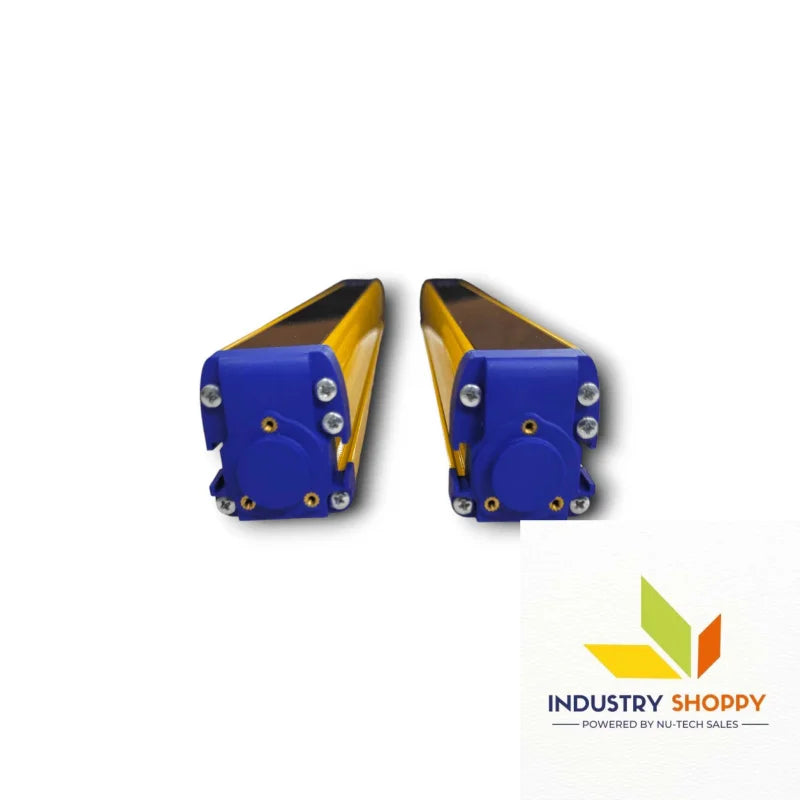

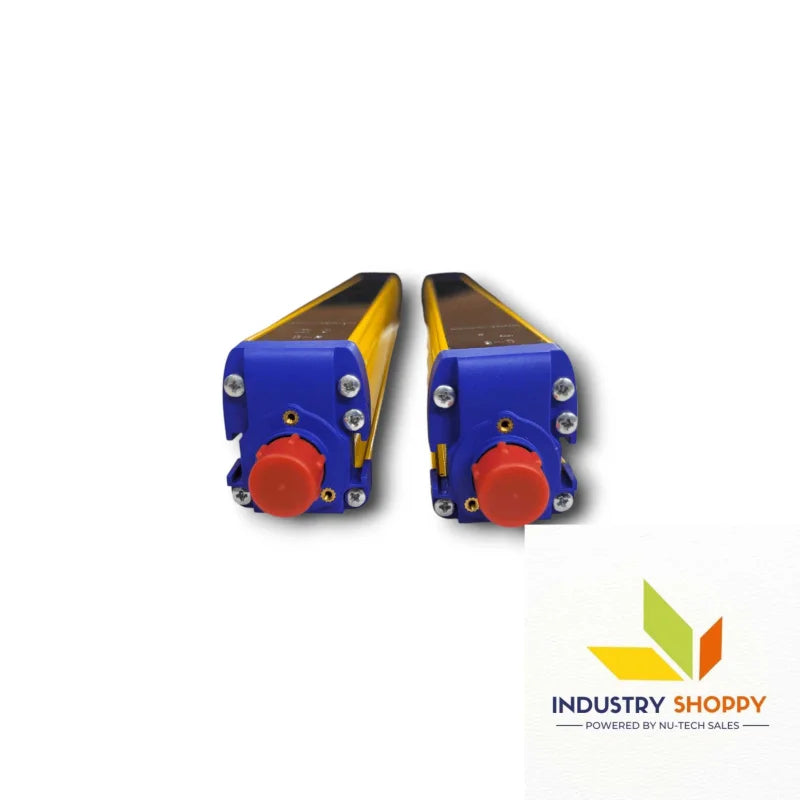

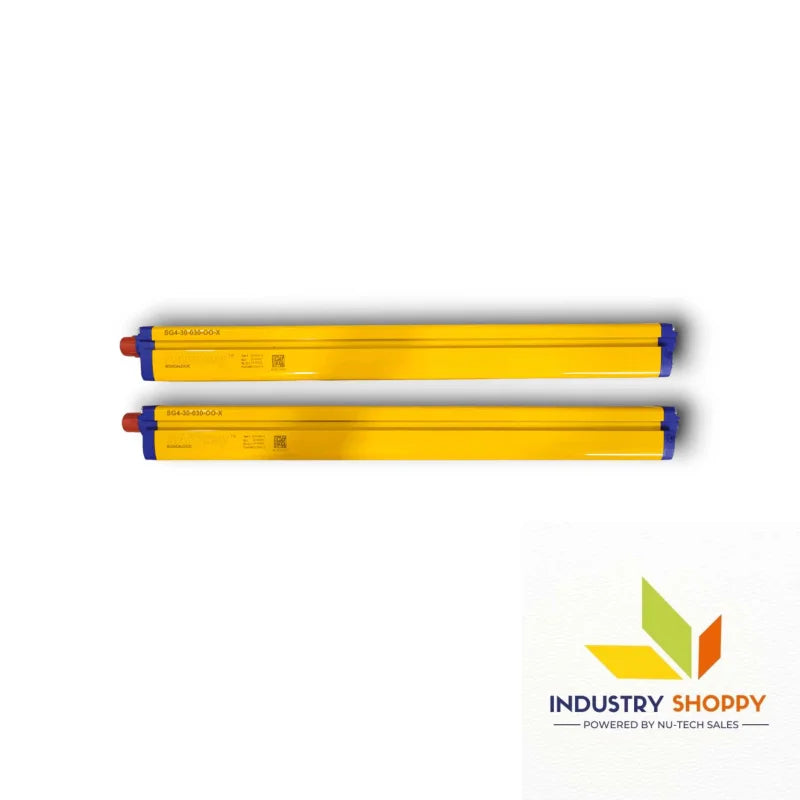

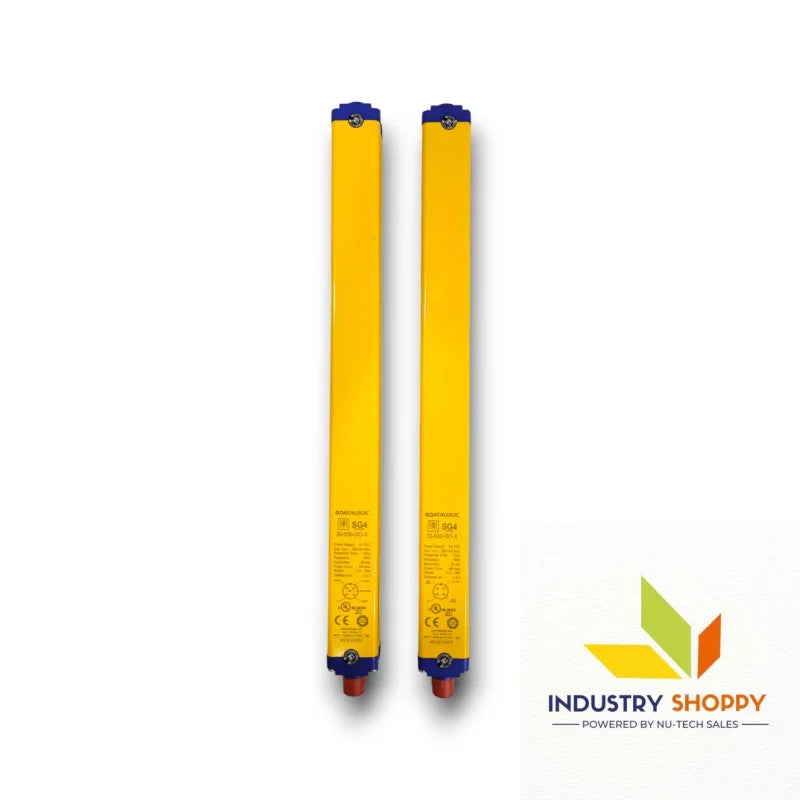

Datalogic SG4-30-030-OO-X Safety Light Curtain

The Datalogic SG4-30-030-OO-X Safety Light Curtain is a Type 4 safety light curtain designed for advanced hand protection applications in industrial machinery. With a 30 mm resolution and 300 mm-controlled height, it provides reliable operator safety across a sensing range of 0.2 to 19 meters.

Built with Emitter + Receiver technology, it delivers high functional safety performance rated SIL 3 / PL e. The system features 2 × PNP-NO OSSD safety outputs, fast 12.7 ms response time, and operates at 24 VDC ±20%. Its rugged aluminum housing with IP65 protection ensures durability in demanding environments.

Infrared emission (850 nm) and compliance with IEC 61496-2 guarantee dependable interference resistance and precise detection performance.

Applications

• Hand protection for press machines

• Safety guarding in robotic cells

• Operator protection on assembly lines

• Access control in automated production zones

Technical Precautions

• Ensure proper alignment of Emitter and Receiver units

• Use stable 24 VDC ±20% regulated power supply

• Do not exceed 500 mA load current per OSSD output

• Maintain clean optical surfaces to avoid signal interference

While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Facebook, YouTube,

Brand	Datalogic
Product Number	SG4-30-030-OO-X
Part No.	957901580
Nominal Sensing Distance	0.2 … 19 m
Resolution	30 mm
Controlled Height	300 mm
Number of Rays	8
Sensitivity Adjustment	n/a
Effective Aperture Angle	≤ ±2.5°
Function Principle	Emitter + Receiver
Available Functions	Automatic Restart
Description	Compact standard
Functions	Hand protection, 30 mm resolution
Type	Type 4 safety light curtain (A)
SIL	3
SILCL	3
PL	e
PFHd	2.64E-09
Dcavg	98.80%
MTTFd	444 years
SFF	99.30%
Output Type	2 × PNP-NO (OSSD safety outputs)
Response Time	12.7 ms
Operating Voltage	24 VDC ±20%
Load Current	≤ 500 mA per output
Emission	Infrared LED (850 nm)
Interference Resistance	According to IEC 61496-2
Power Consumption (Receiver)	≤ 3.5 W (no load)
Power Consumption (Emitter)	≤ 2.5 W
Cable Length (Power/Output)	≤ 50 m
Dimensions	33 × 37 × 383 mm (first entry)
Connections	M12–4 pin (Emitter), M12–5 pin (Receiver)
Storage Temperature	-25 … +70 °C
Material	Painted aluminum / PMMA / PC Makrolon
Vibration Resistance	0.35 mm amplitude, 10–55 Hz, 20 sweeps per axis (EN 60068-2-6)
Shock Resistance	16 ms (10 G), 1000 shocks per axis (EN 60068-2-29)
Dimensions (Additional)	32.3 × 36.9 × 233.3 mm
Operating Temperature	-10 … +55 °C
Humidity	15 … 95% (no condensation)
Mechanical Protection	IP65
Country of Origin	Hungary
