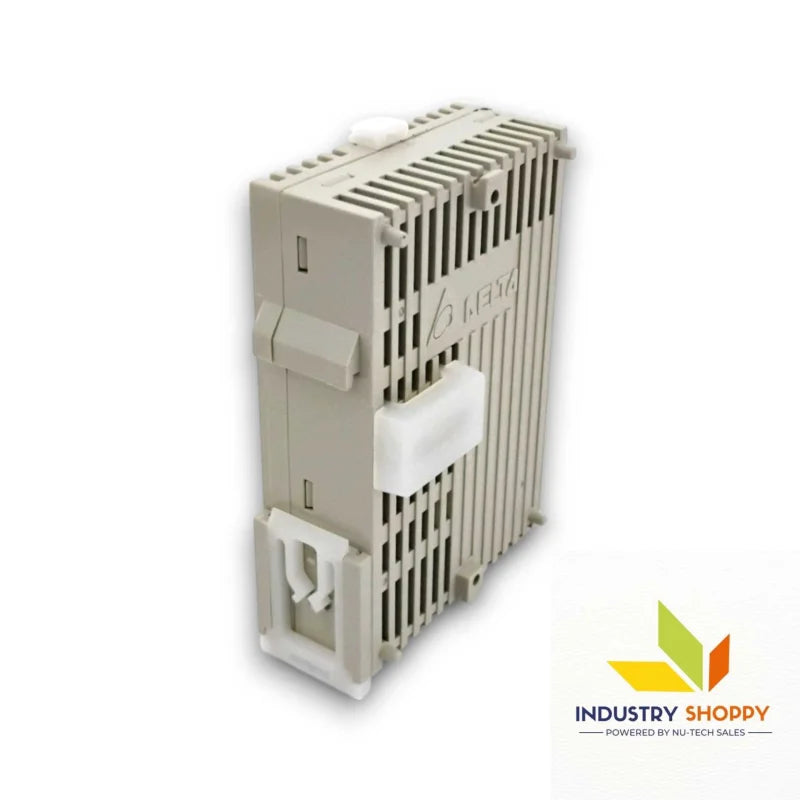

Delta DVP16SM11N PLC Module

Delta DVP16SM11N PLC Module

The Delta DVP16SM11N PLC Module is a highly dependable digital input unit, tailored for versatile and demanding automation tasks. Equipped with 16 digital inputs, this module enhances input capacity for a wide variety of industrial systems, allowing for precise signal handling and smooth integration.

Operating on a 24VDC power supply, the DVP16SM11N is built to handle tough environments with excellent spike voltage durability, superior insulation impedance, and resistance to electromagnetic interference. These safeguards ensure uninterrupted, accurate operation even in electrically noisy industrial settings.

Its design complies with international vibration and shock resistance standards, ensuring mechanical durability under dynamic conditions. With a program capacity of 8k steps and a response time of 10ms, the module ensures real-time signal acquisition and fast system interaction.

Whether you're expanding I/O points on your production line or integrating into an existing automation framework, the DVP16SM11N delivers reliable, consistent input performance with robust protection and system stability.

Key features :-

• Brand: Delta
• Series: DVP
• Model No.: DVP16SM11N
• Output Method: -
• Power Supply: 24VDC (-15%~20%)
• Number of Inputs and Type: Digital - 16
• Number of Outputs and Type: -
• Fuse Capacity: ES: 2A/250VAC; SV: 2.5A/30VDC
• Input Signal Voltage: 24VDC ±10% (5mA)
• Power Consumption: 2W
• Program Capacity: 8k Steps
• Spike Voltage Durability: 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE)
• Insulation Impedance: >5 MΩ (all I/O points to ground: 500VDC)
• Noise Immunity: ESD: 8kV Air Discharge; EFT: Power Line 2kV; Digital I/O 1kV; Analog & Communication I/O compliant; RS: 26MHz~1GHz, 10V/m
• Earth: Grounding wire must not be thinner than power supply cable
• Storage / Operation Temperature: Storage: -25ºC ~ 70ºC; Operation: 0ºC ~ 55ºC
• Storage / Operation Humidity: 5%~95% (Pollution degree 2)
• Response Time: 10ms
• Vibration / Shock Resistance: IEC1131-2, IEC 68-2-6 (TEST Fc) / IEC1131-2 & IEC 68-2-27 (TEST Ea)

Applications :-

• Factory Automation: Collects signals from sensors and switches for control systems.
• Building Automation: Handles input status monitoring for lighting and HVAC systems.
• Machine Automation: Reads digital signals from actuators and safety interlocks.
• Process Control: Ensures accurate input monitoring in real-time operations.
• Energy Management: Captures feedback from energy meters and load sensors.

Technical Precautions :-

• Ensure all connections are secure, especially for RS-232 and RS-485 communication ports, to maintain reliable data transmission.
• Maintain a stable 24V DC power supply to optimize module performance and prevent malfunctions.
• Avoid installation in high-vibration or extremely humid environments to protect the hardware.
• Always follow the proper wiring diagram when connecting additional modules to avoid overloading the system.
• Proper grounding is essential to avoid damage due to electromagnetic interference (EMI).
