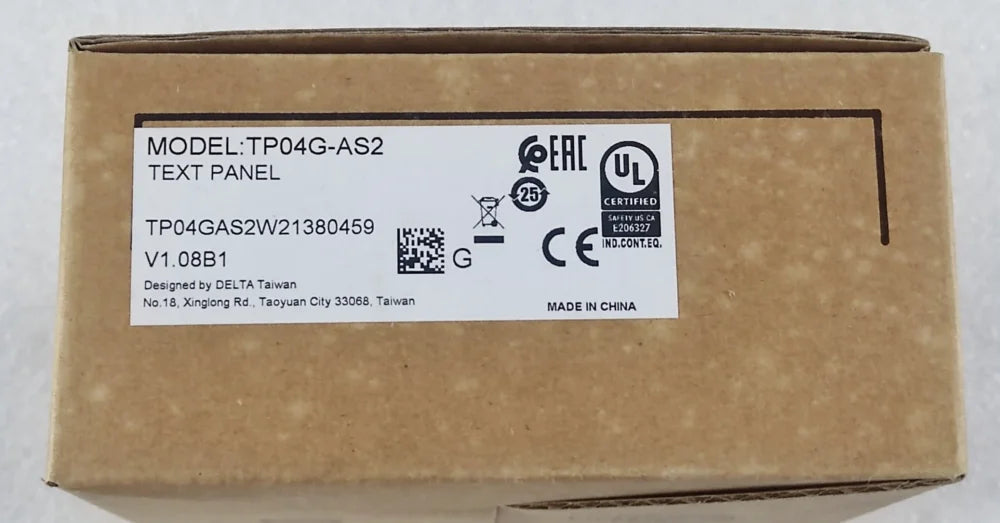

Delta TP04G-AS2 HMI Panel

Delta TP04G-AS2 HMI Panel

The Delta TP04G-AS2 HMI Panel is a compact and efficient text-based operator interface designed for real-time control and data monitoring. Featuring a 3″ monochromatic display with a clear 128 x 64 resolution, the panel ensures crisp visibility even in tight spaces.

The intuitive interface includes function keys (F0~F4), ESC, SHIFT, ENTER, and ARROW keys to simplify user interactions and parameter adjustments. Supporting both RS232 and RS485/RS422 communication protocols, this HMI ensures seamless connectivity with Delta and other automation devices.

The 256K memory and 32K RAM provide sufficient storage and operational flexibility, even in complex industrial applications. Its IP65 / NEMA4-rated front panel safeguards against dust and water splash, extending the panel’s life in challenging environments.

With natural air cooling and strict compliance with industrial vibration and shock standards, the TP04G-AS2 ensures durable, low-maintenance performance. It’s an excellent choice for machine builders seeking a balance of simplicity and reliability.

Key features :-

Applications :-

• Data Display: Clearly shows machine parameters and real-time values.
• System Monitoring: Provides alarm alerts and event tracking for operators.
• User Input: Supports operational commands via intuitive function keys.
• Communication Bridge: Links PLCs and external systems via RS232/RS485.
• Compact Control: Fits perfectly into space-limited control cabinets.

Precautions:

• Power Supply: Use a stable 24VDC source with proper grounding to prevent damage.
• Installation Environment: Avoid exposure to direct sunlight, excessive dust, or corrosive gases.
• Temperature & Humidity: Operate only within the specified 0°C–45°C temperature and 5%–90% humidity range.
• Wiring: Ensure all communication and power cables are properly shielded to avoid interference.
• Maintenance: Disconnect power before cleaning or performing any hardware adjustments.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.
