MCGS TPC7022EX HMI Panel

MCGS TPC7022EX HMI Panel

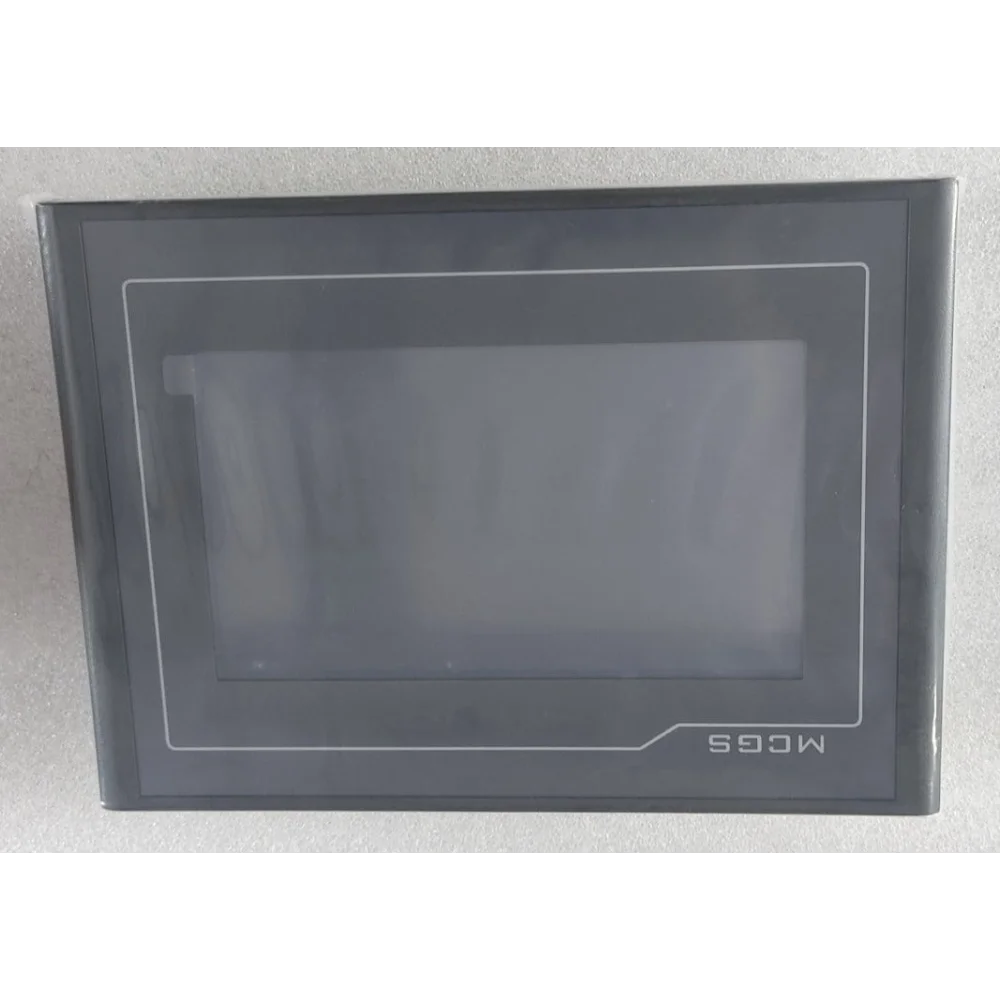

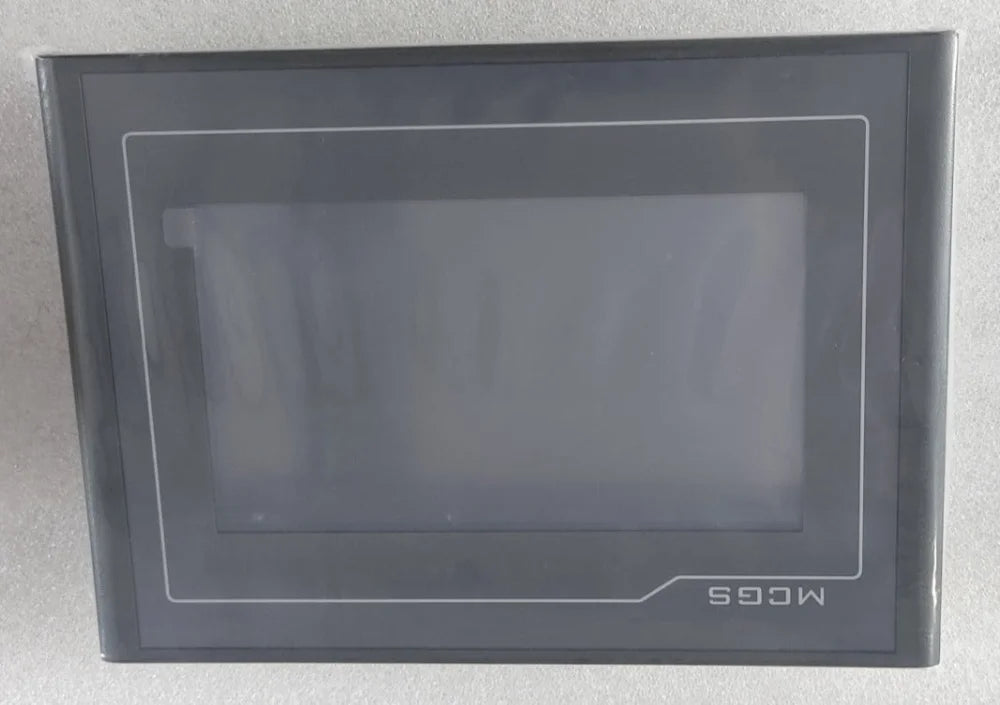

The MCGS TPC7022EX HMI Panel is a sleek and efficient solution designed for precise control and streamlined data visualization in industrial applications. It features a 7-inch TFT LCD with a sharp 800 x 480 resolution and 262K true color display, ensuring crisp graphics and smooth touch interaction through its resistive touchscreen.

Driven by an 800MHz Cortex-A7 CPU with 128MB memory, this HMI provides stable performance, supporting MCGS Embedded configuration software for intuitive project deployment and system integration. Built from industrial-grade plastic, the TPC7022EX balances durability and lightweight design, finished in a clean industrial gray.

Connectivity is comprehensive with RS232, RS485, Ethernet, and USB (host & client), offering flexible communication with controllers and peripherals. Designed for real-world conditions, it withstands operating temperatures from 0°C to 45°C and humidity levels up to 90%. The TPC7022EX is CE and FCC certified, making it a dependable interface for modern automation.

Key features :-

Applications :-

• Industrial Automation: Real-time monitoring with sharp 7” true color graphics.
• Data Acquisition: Smooth communication via Ethernet, RS232, and RS485.
• User Interaction: Responsive resistive touchscreen for precise control.
• System Integration: Compatible with MCGS Embedded software.
• Harsh Environments: Stable operation in wide humidity and temperature ranges.

Precautions:

• Power Supply: Use a stable 24VDC source with proper grounding to prevent damage.
• Installation Environment: Avoid exposure to direct sunlight, excessive dust, or corrosive gases.
• Temperature & Humidity: Operate only within the specified 0°C–45°C temperature and 5%–90% humidity range.
• Wiring: Ensure all communication and power cables are properly shielded to avoid interference.
• Maintenance: Disconnect power before cleaning or performing any hardware adjustments.
