Delta DVP32ES200T PLC Module

Delta DVP32ES200T PLC Module

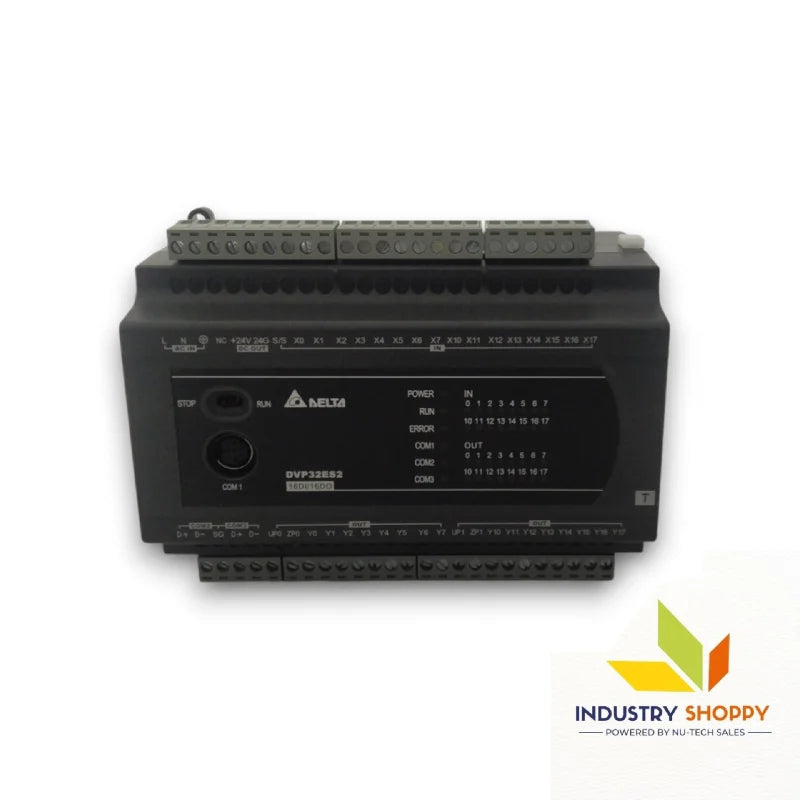

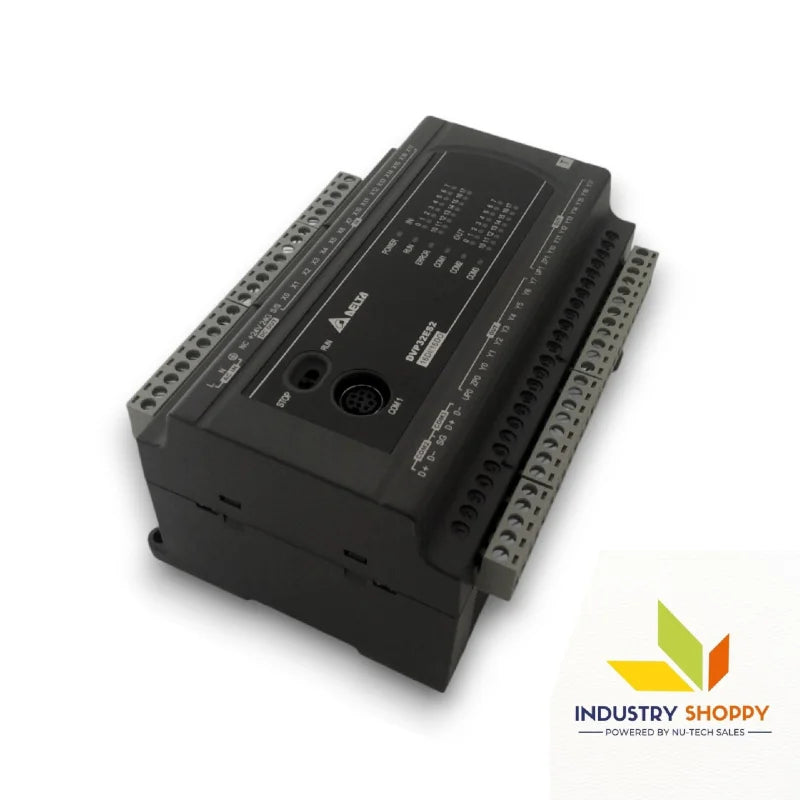

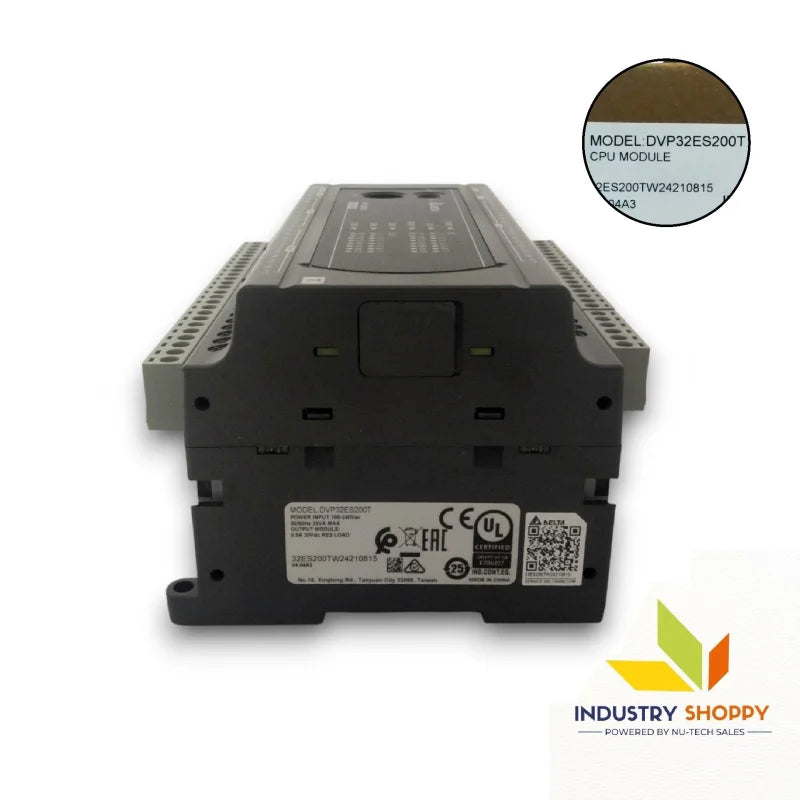

The Delta DVP32ES200T PLC Module is designed for precision control and fast response in modern automation systems. Offering 16 digital inputs and 16 NPN transistor outputs, it’s a perfect fit for applications that demand rapid switching and real-time performance.

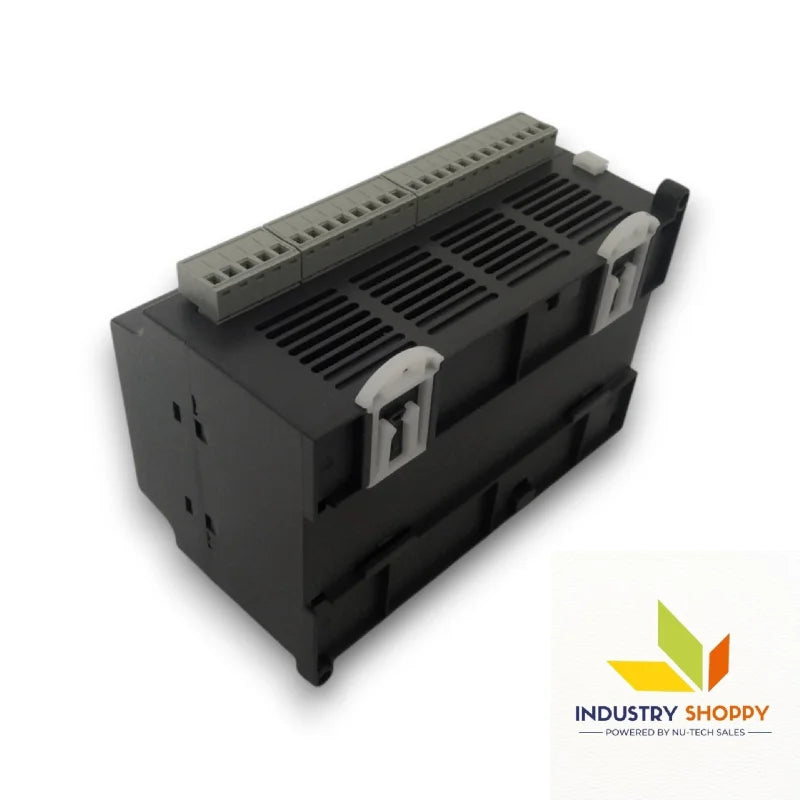

With a generous 16k steps program capacity and 10k words of data register space, this PLC handles advanced logic routines and extensive data storage, making it suitable for both simple and complex automation tasks. Powered by a 100~240VAC supply, the unit easily integrates into diverse electrical environments and supports DIN rail or chassis mounting for easy setup.

Built for industrial resilience, it meets rigorous international standards with excellent spike voltage durability and noise immunity. Its maximum input frequency of 100KHz and ultra-fast response times (2.5μs ON, 5μs OFF) ensure precise control over high-speed processes. The DVP32ES200T is an ideal solution for production automation, packaging lines, motion control, and intelligent manufacturing systems.

Key features :-

• Brand: Delta
• Series: DVP
• Model No.: DVP32ES200T
• Output Type: Transistor NPN
• Type: CPU
• Power Supply Voltage: 100~240VAC (-15%~10%), 50 / 60Hz ±5%
• Fuse Capacity: 2A/250VAC
• Data Register: 10k words
• Program Capacity: 16k Steps
• Number of Inputs and Type: 16 – Digital
• Number of Outputs and Type: 16 – Transistor
• Spike Voltage Durability: 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE)
• Insulation Impedance: >5 MΩ (all I/O point-to-ground: 500VDC)
• Noise Immunity: ESD: 8kV Air Discharge; EFT: Power Line 2kV; Digital I/O: 1kV; Analog & Communication I/O: 1kV; RS: 26 MHz~1GHz, 10V/m
• Earth: Ground wire diameter not shorter than power supply cable
• Storage Temperature: -25ºC ~70ºC
• Operation Temperature: 0ºC ~55ºC
• Storage Humidity: 5%~95% (humidity)
• Operation Humidity: 5%~95% (humidity); pollution degree 2
• Max. Input Frequency: 100KHz
• Input Signal Voltage: 24VDC ±10% (5 mA)
• Response Time: OFF→ON: 2.5μs / ON→OFF: 5μs

Technical Precautions :-

• Ensure all connections are secure, especially for RS-232 and RS-485 communication ports, to maintain reliable data transmission.
• Maintain a stable 24V DC power supply to optimize module performance and prevent malfunctions.
• Avoid installation in high-vibration or extremely humid environments to protect the hardware.
• Always follow the proper wiring diagram when connecting additional modules to avoid overloading the system.
• Proper grounding is essential to avoid damage due to electromagnetic interference (EMI).
