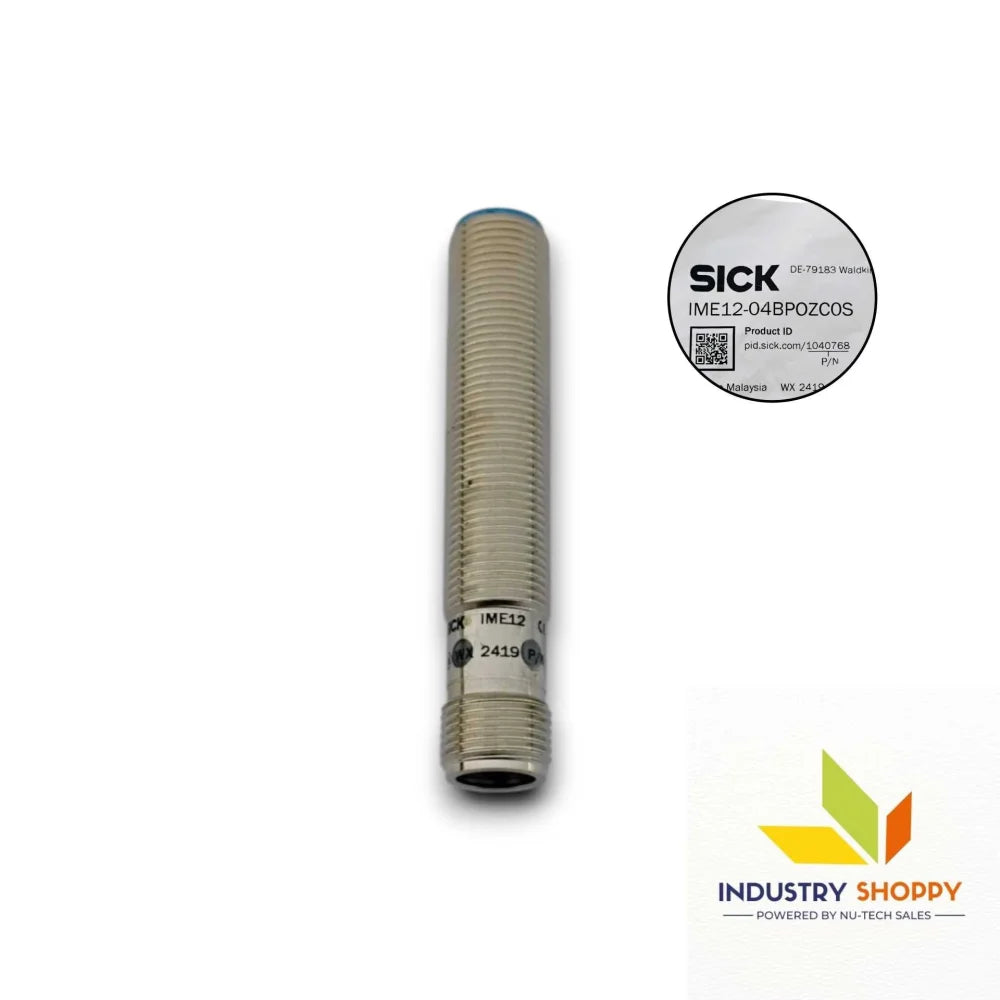

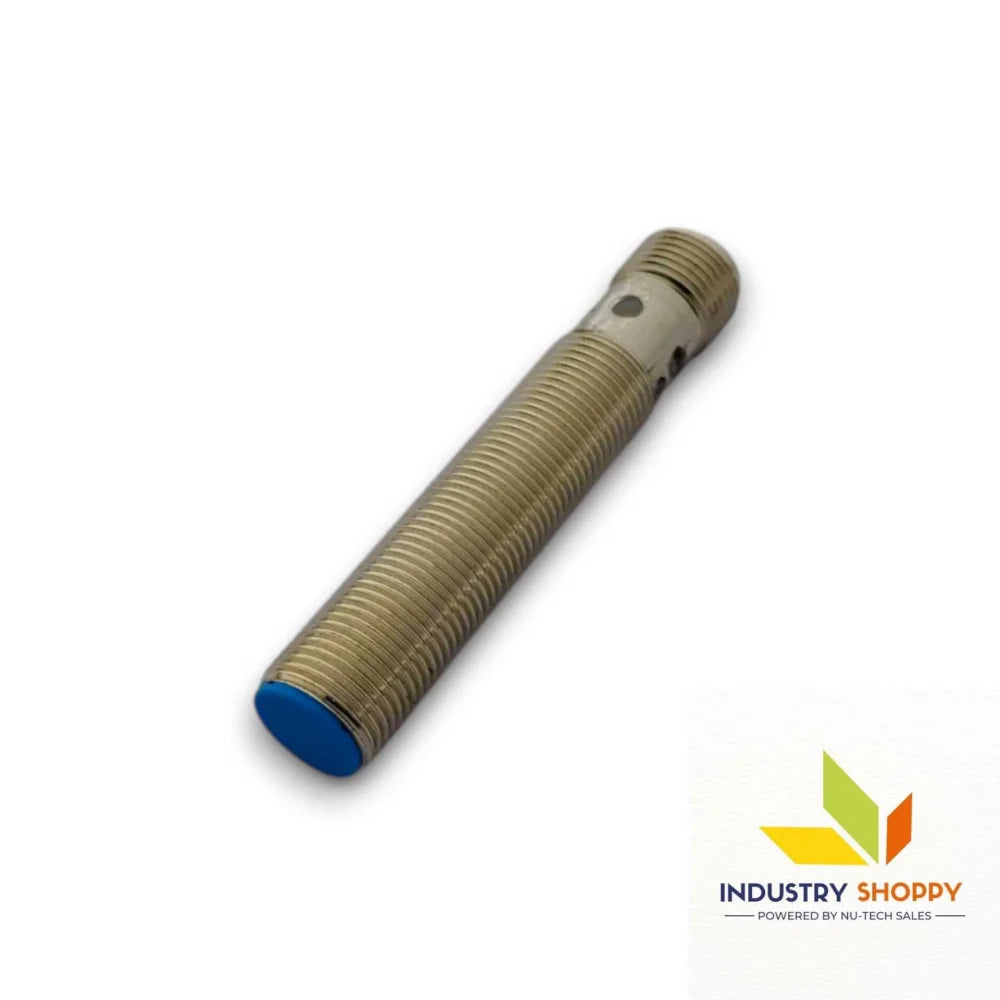

Sick IME12-04BPOZC0S Proximity Sensor

Sick IME12-04BPOZC0S Proximity Sensor

Part No. 1040768

The Sick IME12-04BPOZC0S Proximity Sensor is a compact and highly reliable sensing solution ideal for industrial automation systems. With a flush-mounted M12 x 1 housing and standard 4 mm sensing range, it ensures precise object detection in tight spaces. It features PNP output with normally closed (NC) logic and operates on a DC 3-wire system.

Its robust construction, including a nickel-plated brass housing and PA 66 plastic sensing face, is designed for harsh environments, withstanding shocks, vibrations, and temperatures from –25 °C to +75 °C. Rated IP67, it resists dust and water ingress, providing long-term durability.

The sensor offers fast response with a switching frequency of 2,000 Hz and includes short-circuit and power-up pulse protection. A 4-pin M12 connector ensures straightforward integration into existing systems, and it comes with nickel-plated brass mounting nuts for added convenience.

Key features :-

Product Number	IME12-04BPOZC0S
Brand	Sick
Functional principle	Proximity Sensor
Housing	Metric
Housing	Standard design
Thread size	M12 x 1
Diameter	Ø 12 mm
Sensing range Sn	4 mm
Safe sensing range Sa	3.24 mm
Installation type	Flush
Switching frequency	2,000 Hz

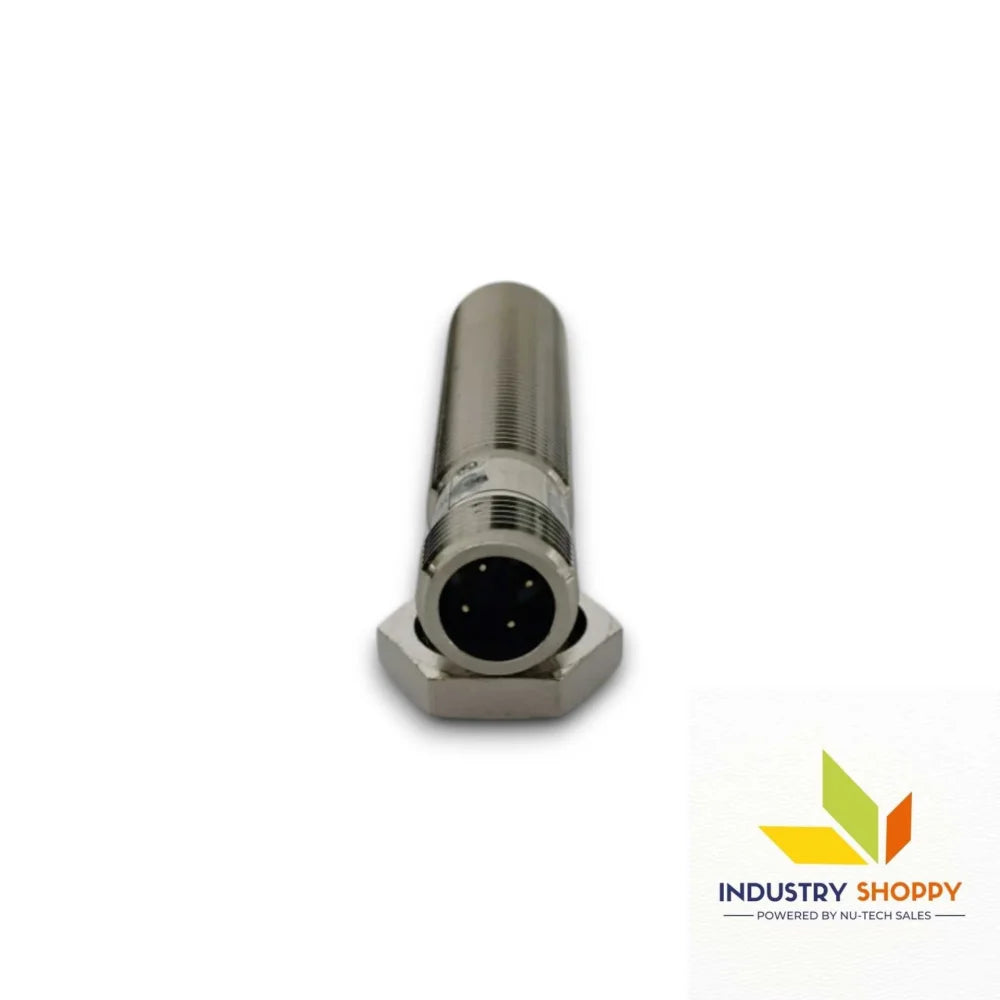

Connection type	Male connector M12, 4-pin
Switching output	PNP
Output function	NC
Electrical wiring	DC 3-wire
Enclosure rating	IP67

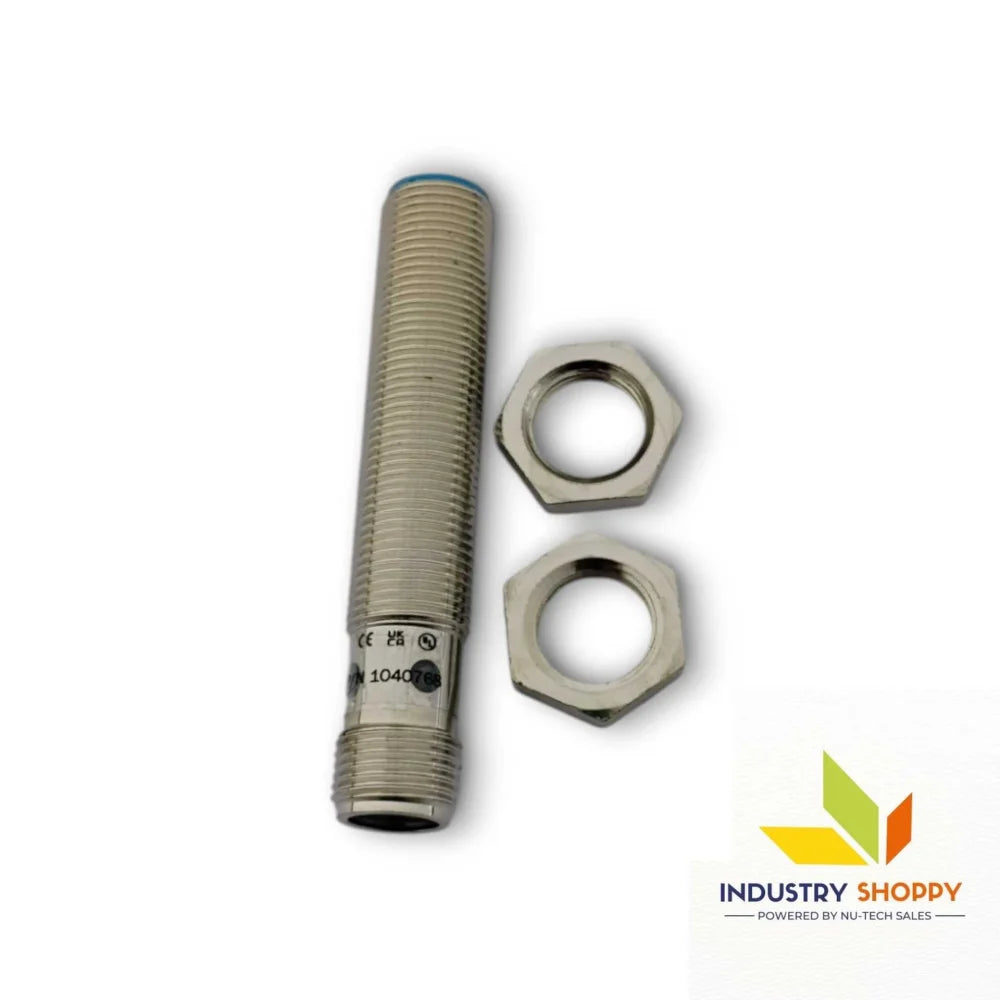

Items supplied	Mounting nut, brass, nickel-plated (2x)
Supply voltage	10 V DC ... 30 V DC
Ripple	≤ 10 %
Voltage drop	≤ 2 V
Time delay before availability	≤ 100 ms
Hysteresis	5 % ... 15 %
Reproducibility	≤ 2 %
Temperature drift (of Sr)	± 10 %
Continuous current Ia	≤ 200 mA
No load current	≤ 10 mA
Short-circuit protection
Power-up pulse protection
Shock and vibration resistance	30 g, 11 ms/10 Hz ... 55 Hz, 1 mm
Ambient operating temperature	–25 °C ... +75 °C
Housing material	Brass, nickel-plated
Sensing face material	Plastic, PA 66
Housing length	65 mm
Thread length	48 mm
Tightening torque, max.	≤ 12 Nm

Applications :-

• Automated production lines – for detecting object presence or position in high-speed manufacturing environments.
• Packaging machinery – ensures components are correctly aligned before sealing or labeling operations.
• Conveyor systems – monitors material flow and object detection to trigger sorting or counting functions.
• Assembly automation – verifies part positioning and presence in robotic or semi-automated processes.
• Material handling equipment – supports safe operation by sensing items in motion or confirming load placement.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
