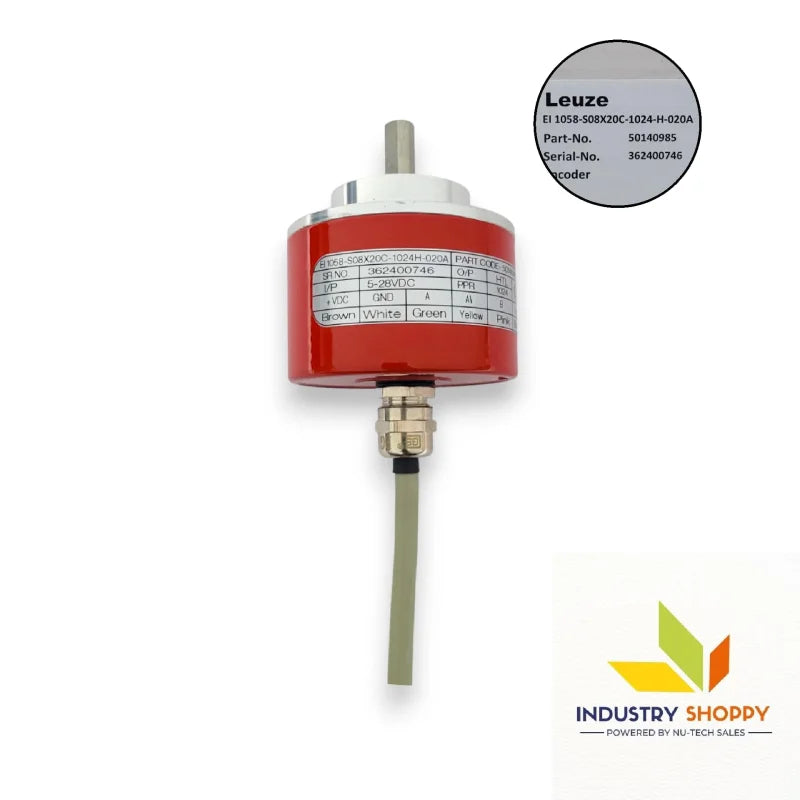

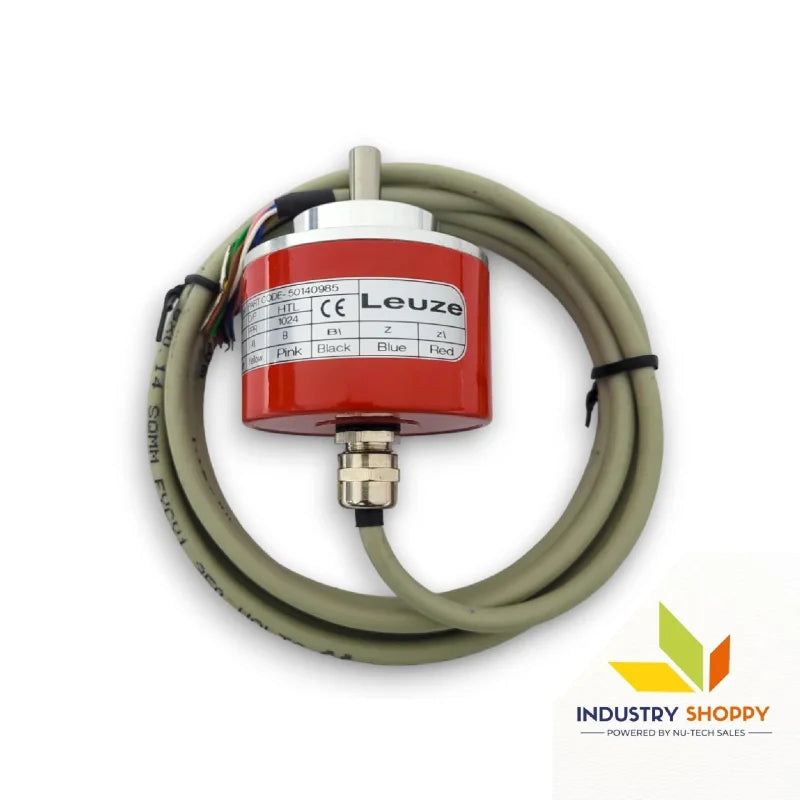

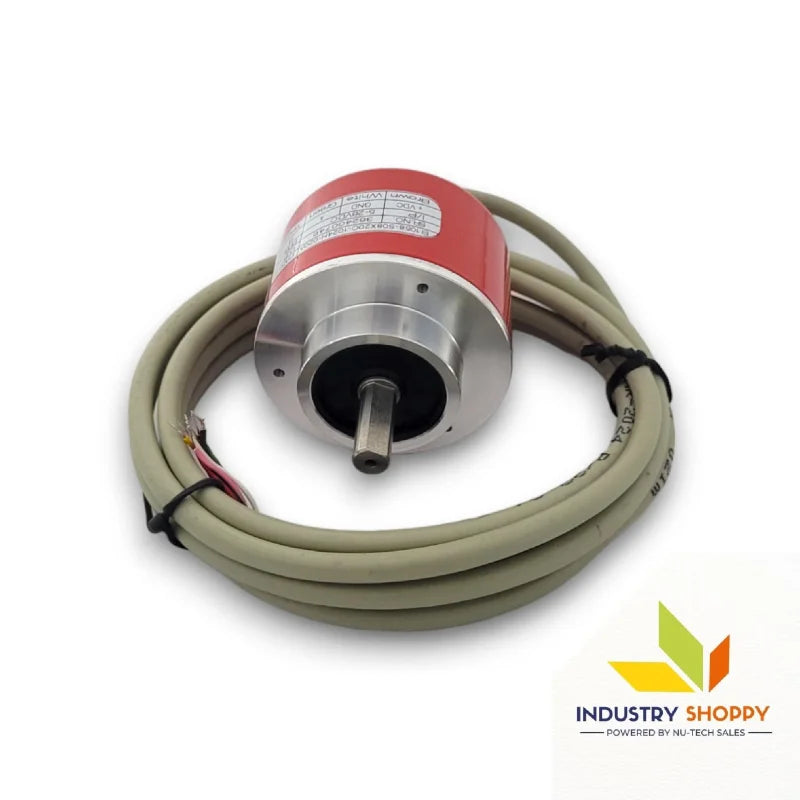

Leuze EI1058-S08X20C-1024H-020A Rotary Encoder
Leuze EI1058-S08X20C-1024H-020A Rotary Encoder
Leuze EI1058-S08X20C-1024H-020A Rotary Encoder
Leuze EI1058-S08X20C-1024H-020A Rotary Encoder
Leuze EI1058-S08X20C-1024H-020A Rotary Encoder
Leuze EI1058-S08X20C-1024H-020A Rotary Encoder
Leuze EI1058-S08X20C-1024H-020A Rotary Encoder
Leuze EI1058-S08X20C-1024H-020A Rotary Encoder
Leuze EI1058-S08X20C-1024H-020A Rotary Encoder
Leuze EI1058-S08X20C-1024H-020A Rotary Encoder
Leuze

Leuze EI1058-S08X20C-1024H-020A Rotary Encoder

Product SKU: NTSRE00001
Available:
Only 8 items in stock
8 items in stock
In stock
Pre-order
Out of stock
  • Brand: Leuze
  • Part No.: 50140985
  • Max. Operating Speed: 6,000 r/min
  • Supply Voltage UB: 5 ... 28 V DC
  • Switching Frequency: 300,000 Hz
  • Type of Connection: Cable

Note : All tax and custom duty should be pay by buyer only.

For Indian Buyers: IndustryShoppy.in

$180.00
$375.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Declaration

Leuze EI1058-S08X20C-1024H-020A Rotary Encoder

The Leuze EI1058-S08X20C-1024H-020A Rotary Encoder (50140985) is a robust and high-precision motion feedback solution designed for demanding industrial automation tasks. With a resolution of 1,024 pulses per revolution and HTL output, it delivers accurate, noise-resistant signals for reliable speed and position monitoring.

The encoder supports a maximum operating speed of 6,000 rpm and a high switching frequency of 300 kHz, ensuring stable performance in high-speed applications. Built with a durable aluminum metal housing and IP65 protection, it offers excellent resistance to dust, vibration, and harsh environments.

Operating on a wide 5–28 V DC supply range, it includes polarity reversal and short-circuit protection for added safety. The Ø8 mm shaft with clamping flange and 2-meter PVC shielded cable allow easy installation and long service life in continuous industrial operation.


Applications

  • Motor speed and position feedback systems

  • Conveyor and material handling equipment

  • Packaging, printing, and assembly machines

  • General factory and process automation


Technical Precautions

  • Ensure proper shaft alignment and secure clamping

  • Do not exceed maximum speed or load ratings

  • Use shielded cable with correct grounding

  • Operate within specified voltage and temperature limits


While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.


Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.


Facebook, YouTube,


Product NumberEI1058-S08X20C-1024-H-020A
BrandLeuze
CategoryRotary Encoder
SeriesEI1058
TypeIncremental Rotary Encoder
Max. Operating Speed6,000 r/min
Resolution1,024 p/r
Protective CircuitPolarity reversal protection, Short circuit protected
Supply Voltage UB5 ... 28 V DC
Open-circuit Current0 ... 150 mA
Switching Frequency300,000 Hz
Output TypeHTL
FunctionSignal OUT, Voltage supply
Type of ConnectionCable
Cable Length2,000 mm
ConnectorAxial
Sheathing MaterialPVC
Cable ColorGray
Number of Conductors8-wire
Wire Cross Section0.14 mm²
Housing MaterialMetal
Metal HousingAluminum
Flange TypeClamping flange
DesignShaft
Dimension (Ø × L)8 mm × 20 mm
Start-up Torque0.5 N·m
Shaft Load - Axial60 N
Shaft Load - Radial120 N
Ambient Temperature, Operation-40 … 70 °C
Ambient Temperature, Storage-40 … 70 °C
Degree of ProtectionIP65
Standards AppliedIEC 61000-6-2:2016, IEC 61000-6-4:2016 + A1
Test Procedure for Vibration10g IEC 68-2-6 (10…2000 Hz)
Country of Origin–

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
