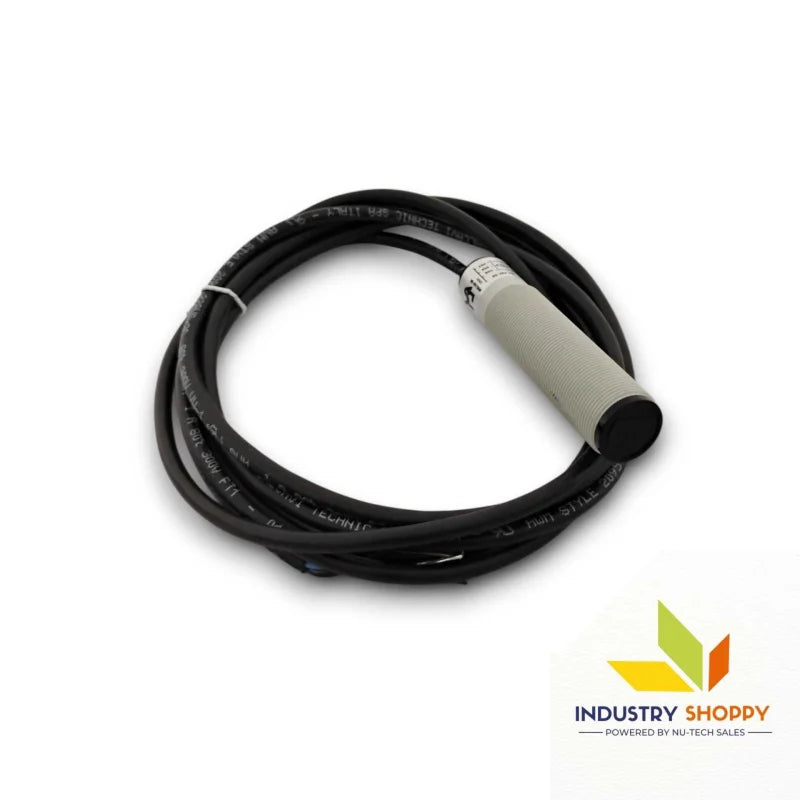

Datasensing MV6/A0-0A Photoelectric Sensor

Datasensing MV6/A0-0A Photoelectric Sensor

The Datasensing MV6/A0-0A is a high-performance M18 diffuse photoelectric sensor engineered for reliable detection up to 400mm. Ideal for medium-distance applications, this sensor operates on 20–253VAC and provides a normally open (NO) TRIAC output with a robust 2-meter PVC cable for easy installation. Designed with infrared LED emission (880nm) and axial optical positioning, it ensures dependable operation even in the presence of external light interference.

Built with a durable PBT/PC housing, PMMA active head, and IP67 protection, the MV6/A0-0A is suitable for use in demanding industrial environments. Certified to CE and cURus standards, and compliant with EN 60947-5-2, this sensor guarantees long-lasting performance and regulatory compliance.

Key Features :-

Applications:

• Conveyor systems – for object presence or position detection

• Packaging machines – to identify packages or materials

• Automated assembly lines – for product positioning and inspection

• Textile and printing machinery – for surface/object detection

• Material handling – detecting objects on moving belts or chutes

• OEM machines – wherever compact AC-powered sensing is required

Precautions:

• Avoid use in environments with excessive dust, steam, or oil, which can obstruct the lens and reduce detection performance.

• Ensure the sensor face is clean and free of contaminants for optimal operation.

• Do not exceed the tightening torque of 1 Nm during installation to avoid mechanical damage.

• Keep the sensor away from high-frequency equipment or direct sunlight which may affect stability.

• Ensure correct AC voltage is supplied (20–253 VAC); incorrect wiring may damage the sensor.

• This sensor is not suitable for high-speed counting applications due to its 20 ms response time.
