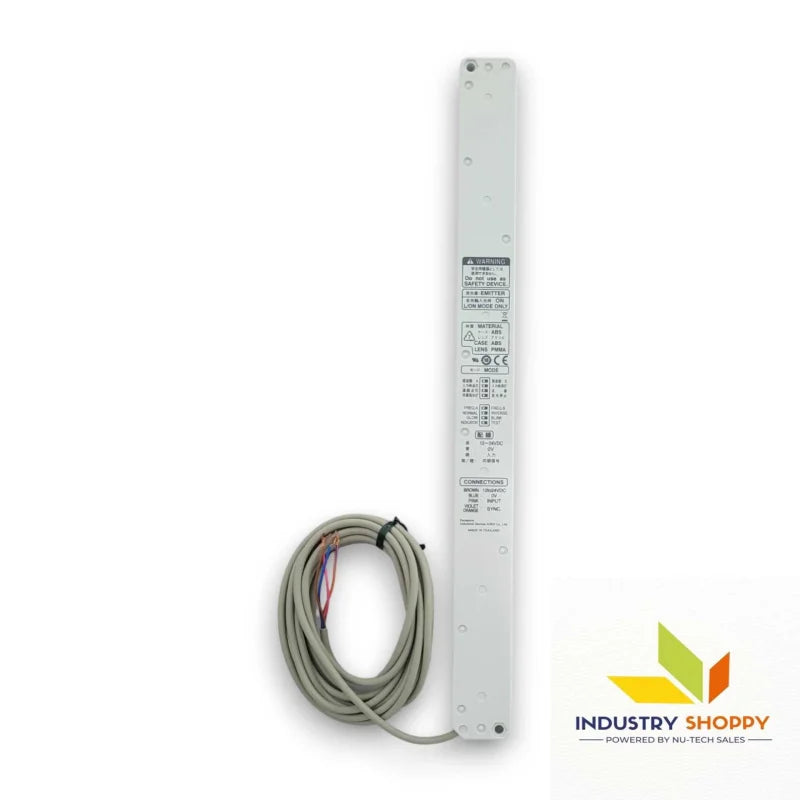

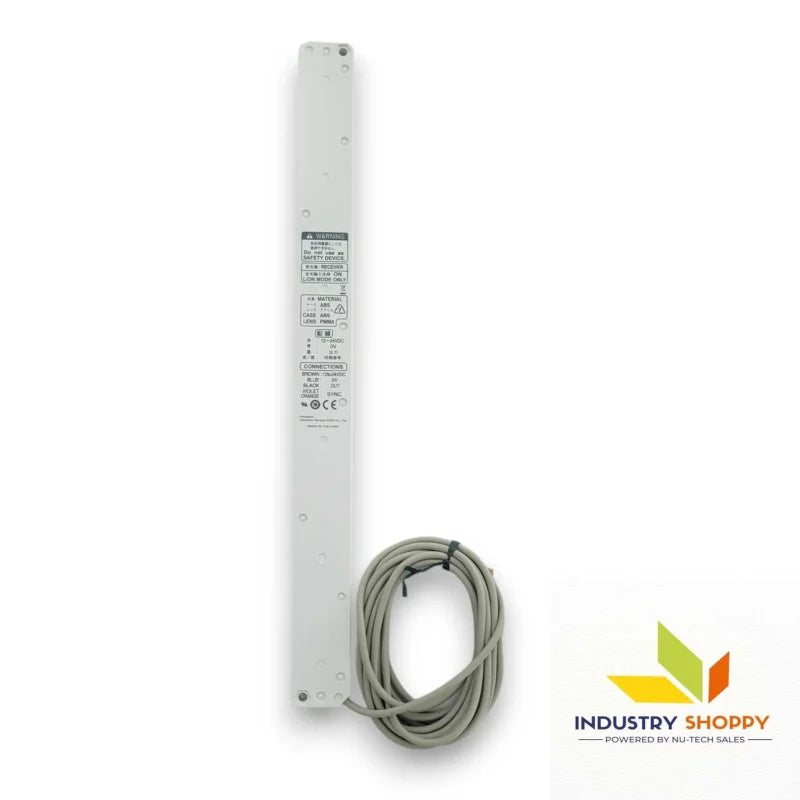

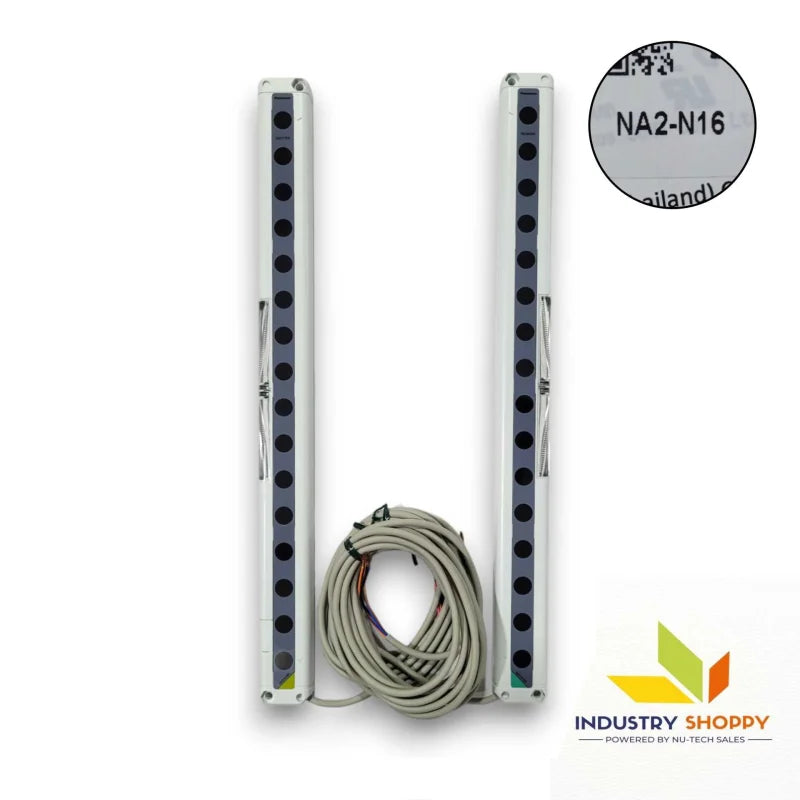

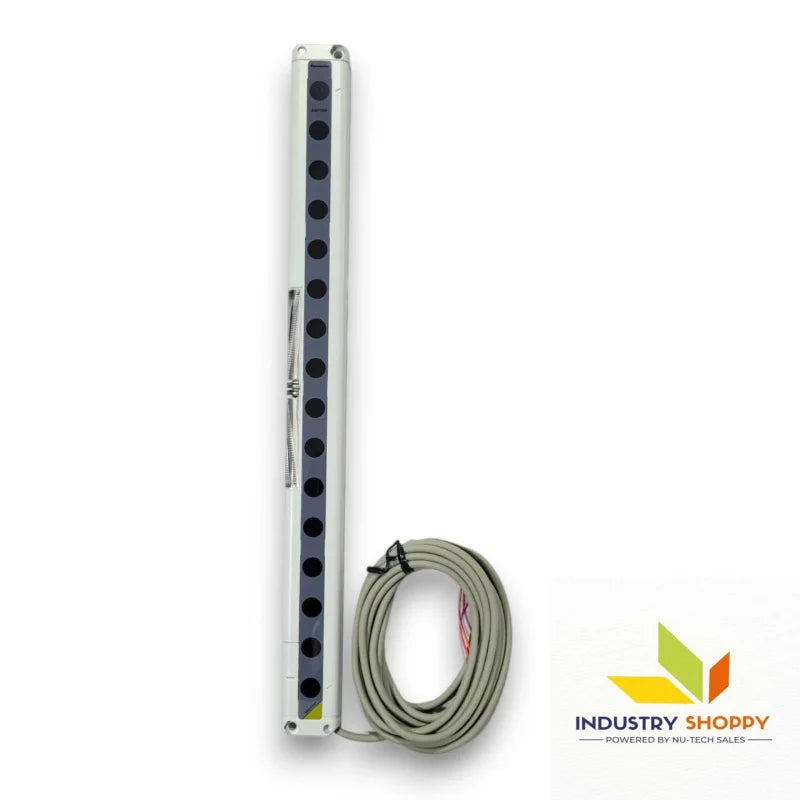

Panasonic NA2-N16 Area Sensor
Panasonic NA2-N16 Area Sensor
Panasonic NA2-N16 Area Sensor
Panasonic NA2-N16 Area Sensor
Panasonic NA2-N16 Area Sensor
Panasonic NA2-N16 Area Sensor
Panasonic NA2-N16 Area Sensor
Panasonic NA2-N16 Area Sensor
Panasonic NA2-N16 Area Sensor
Panasonic NA2-N16 Area Sensor
Panasonic

Panasonic NA2-N16 Area Sensor

Product SKU: NTSSEN00009
Available:
Only 7 items in stock
7 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Panasonic
  • Condition
:  New
  • Part Number
:  UNA2N16
  • Type
:  Area Sensor
  • Output Type
:  NPN
  • Operating Range
:  --


Note : All tax and custom duty should be pay by buyer only.

For Indian Buyers : IndustryShoppy.in


$195.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Declaration

Panasonic NA2-N16 Area Sensor

The Panasonic NA2-N16 is a high-performance area sensor designed for precise and reliable detection in a variety of industrial applications. With a sensing range of up to 16 meters, this sensor is ideal for medium to long-range detection tasks. It utilizes laser triangulation technology, which allows for highly accurate detection of objects, regardless of their size, shape, or material composition.

The NA2-N16 features an NPN output and offers fast response times, ensuring immediate feedback in high-speed environments. It operates within a 10-30 VDC voltage range and supports both light and dark operation, providing flexibility for various application needs. The sensor is housed in a rugged IP67-rated enclosure, ensuring protection against dust, water, and harsh environmental conditions. The M8 4-pin connector ensures easy and secure installation.

The Panasonic NA2-N16 is ideal for industries requiring reliable, long-range detection and high accuracy, making it a perfect choice for large-scale automated systems and complex industrial processes.

Key features :-

Product Number NA2-N16
Part Number UNA2N16
Item Performance characteristics
CE Marking Directive Compliance EMC Directive, RoHS Directive
Sensing Height 300 mm 11.811 in
Sensing Range 5 m 16.404 ft
Beam Pitch 20 mm 0.787 in
Sensing Object dia. 30 mm dia. 1.181 in or more opaque object (completely beam interrupted objects)
Supply Voltage 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Power Consumption: Emitter: Job Indicator On 0.9 W or less
Power Consumption: Emitter: Job Indicator Off 0.8 W or less
Power Consumption: Receiver: Job Indicator On 0.9 W or less
Power Consumption: Receiver: Job Indicator Off 0.8 W or less
Output NPN open-collector transistor
- Maximum sink current: 100 mA
- Applied voltage: 30 V DC or less (between output and 0 V)
- Residual voltage: 2 V or less (at 100 mA sink current), 1 V or less (at 16 mA sink current)
Output: Utilization Category DC-12 or DC-13
Output: Output Operation ON when all beam channels are received (OFF when one or more beam channels are interrupted)
Output: Short-Circuit Protection Incorporated
Response Time 10 ms or less (12 ms or less when the interference prevention function is used)
Indicators: Receiver Operation indicator: Red LED (lights up when one or more beam channels are interrupted)
Stable incident beam indicator: Green LED (lights up when all beam channels are stably received)
Job indicator: Red LED (lights up, blinks or lights off when the job indicator input is applied, selected by operation mode switch)
* When an excess current flows through the output, the stable incident beam indicator and the operation indicator on the receiver blink simultaneously due to operation of the short-circuit protection circuit.
Indicators: Emitter Emitting indicator: Green LED x 2 (light up during emission; one LED lights up for Frequency A setting, both LEDs light up for Frequency B setting)Job indicator: Red LED (lights up, blinks or lights off when the job indicator input is applied, selected by operation mode switch)
Interference Prevention Function Incorporated
Test Input (Emission Halt) Function Incorporated
Pollution Degree 3 (Industrial environment)
Protection IP40(IEC)
Ambient Temperature -10 to +55 degrees +14 to +131 degrees Fahrenheit (No dew condensation or icing allowed), Storage: -10 to +60 degrees +14 to +140 degrees Fahrenheit
Ambient Humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient Illuminance Incandescent light: 3,000 lx or less at the light-receiving face
Voltage Withstand ability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation Resistance 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration Resistance 10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude in X, Y and Z directions for two hours each
Shock Resistance 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting Element Infrared LED (Peak emission wavelength: 870 nm 0.034 mil, modulated) (Note: Peak emission wavelength has been changed from production in March, 2017.)
Material Enclosure: Heat-resistant ABS
Lens cover: Polyester
Indicator cover: Acrylic
Cable 0.2 mm2 4-core cabtyre cable, 3 m 9.843 ft long
Cable Extension Extension up to total 25 m 82.021 ft is possible for both emitter and receiver, with 0.2 mm2, or more, cable.



Applications :-

  • Industrial Automation:
    Ideal for detecting objects or monitoring large areas in automated production lines, improving sorting, positioning, and system control.
  • Material Handling:
    Perfect for detecting objects or monitoring conveyor systems, enhancing material handling, sorting, and tracking efficiency in high-speed operations.
  • Packaging Industry:
    Ensures reliable and accurate detection during packaging processes, improving operational speed, accuracy, and reducing downtime.
  • Quality Control:
    Used in quality inspection systems for precise object detection, ensuring consistent product quality in manufacturing and production lines.
  • Logistics and Warehouse:
    Enhances material sorting and handling in large warehouse systems, optimizing logistics, inventory management, and overall operational efficiency.

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
