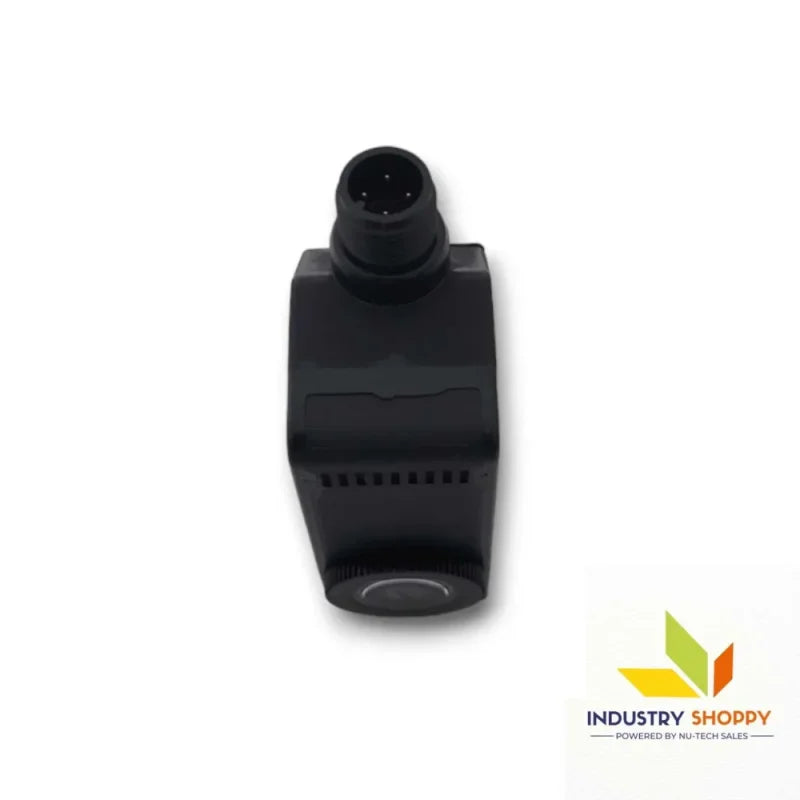

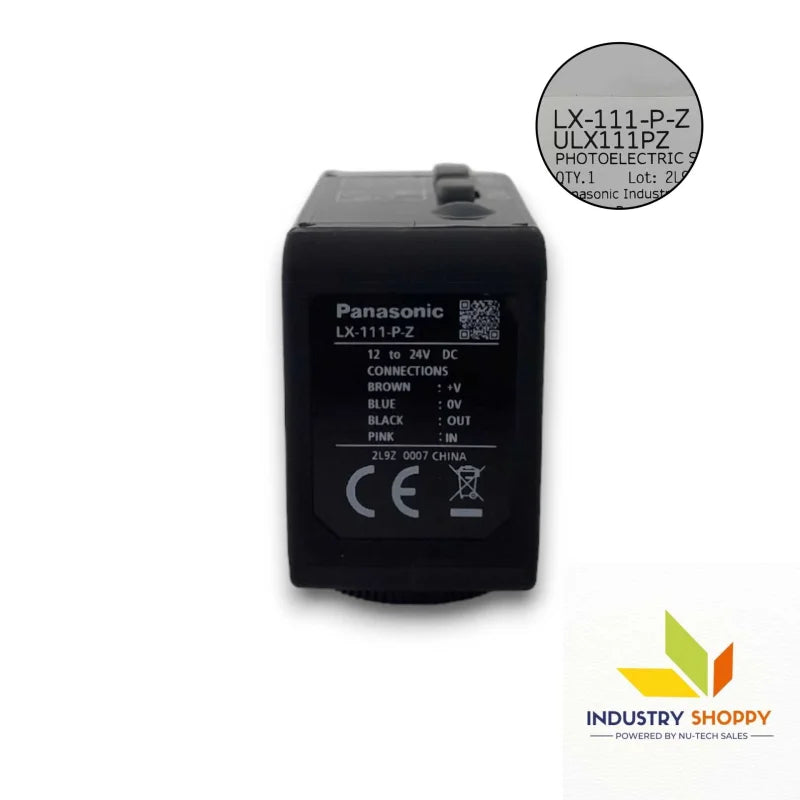

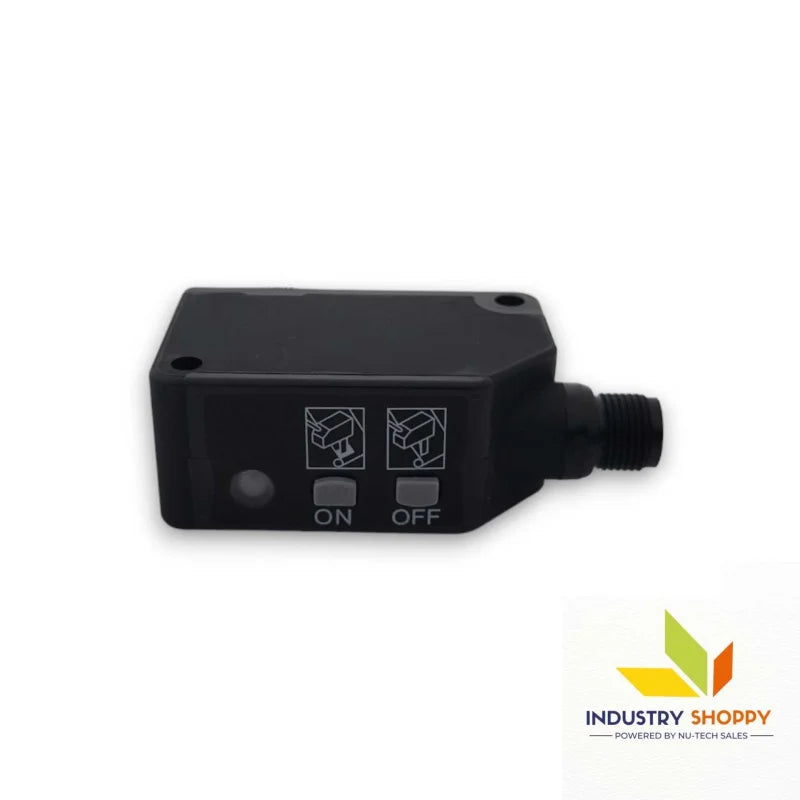

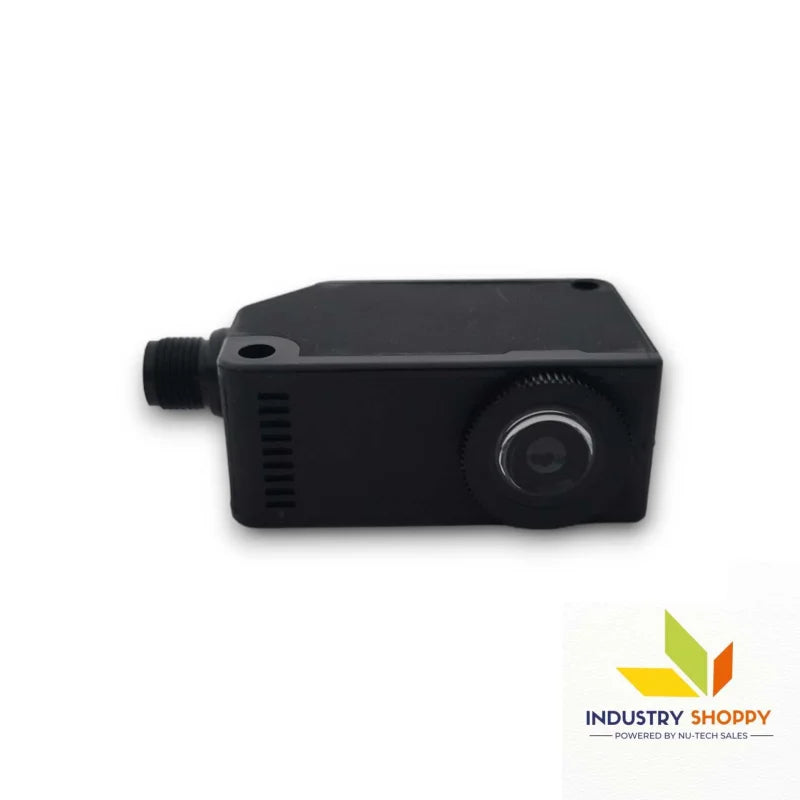

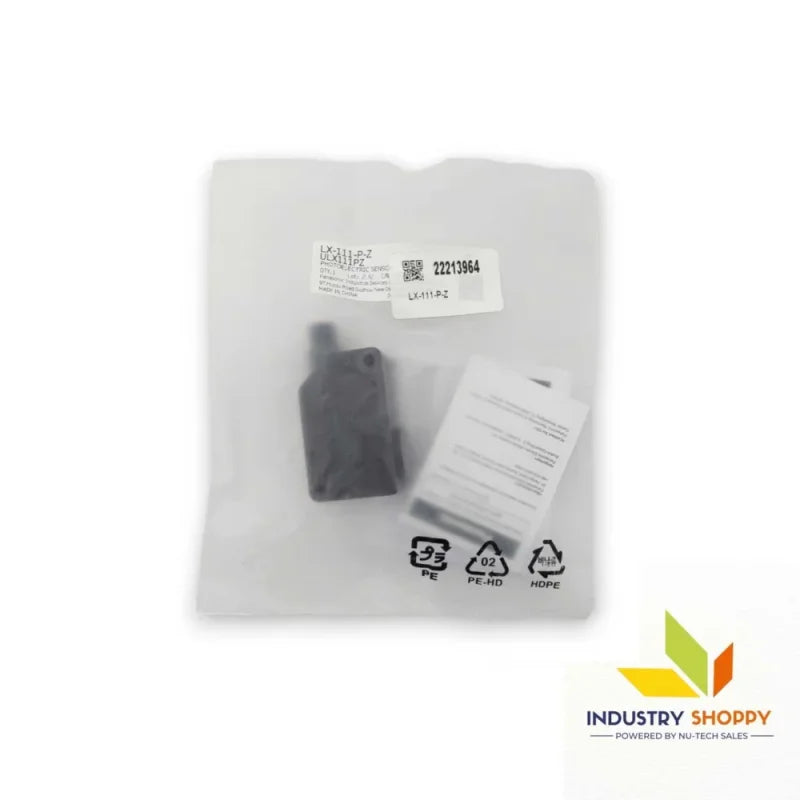

Panasonic LX-111-P-Z Color Mark Sensor

Panasonic LX-111-P-Z Color Mark Sensor

The Panasonic LX-111-P-Z Color Mark Sensor is a robust and efficient solution for detecting color marks in various industrial applications. With a sensing range of 10 ± 3 mm, it offers reliable detection of mark and color variations. The sensor operates within a 12 to 24 V DC supply voltage range, with a maximum power consumption of 850 mW. It also features PNP open-collector outputs, supporting a maximum sink current of 3 mA.

The response time is impressive, with 45 microseconds for mark mode and 150 microseconds for color mode, ensuring quick processing. The LX-111-P-Z includes short-circuit protection and an orange LED indicator that lights up when the output is on. Built to withstand harsh environments, it has an IP67 rating, providing protection against dust and water ingress.

Ideal for color detection in assembly lines, printing, and packaging industries, the Panasonic LX-111-P-Z uses RGB LEDs for precise color matching. The sensor is compatible with PNP non-contact mode switching input for versatile use.

Key features :-

Applications :-

• Packaging Industry:
  Used for detecting color marks on packaging materials, ensuring accurate label placement and reducing errors during the packaging process.
• Printing Industry:
  Ideal for detecting color registration marks, ensuring proper alignment and consistency in high-speed printing operations.
• Labeling Systems:
  Perfect for automated labeling systems, providing reliable color mark detection to ensure that color-coded labels are applied correctly.
• Quality Control:
  Used in quality control applications to detect color variations, ensuring that products meet color specifications and maintaining high product standards.
• Automated Sorting:
  The sensor is employed in sorting systems to detect color-coded objects, improving sorting accuracy and efficiency in production lines and assembly processes.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
