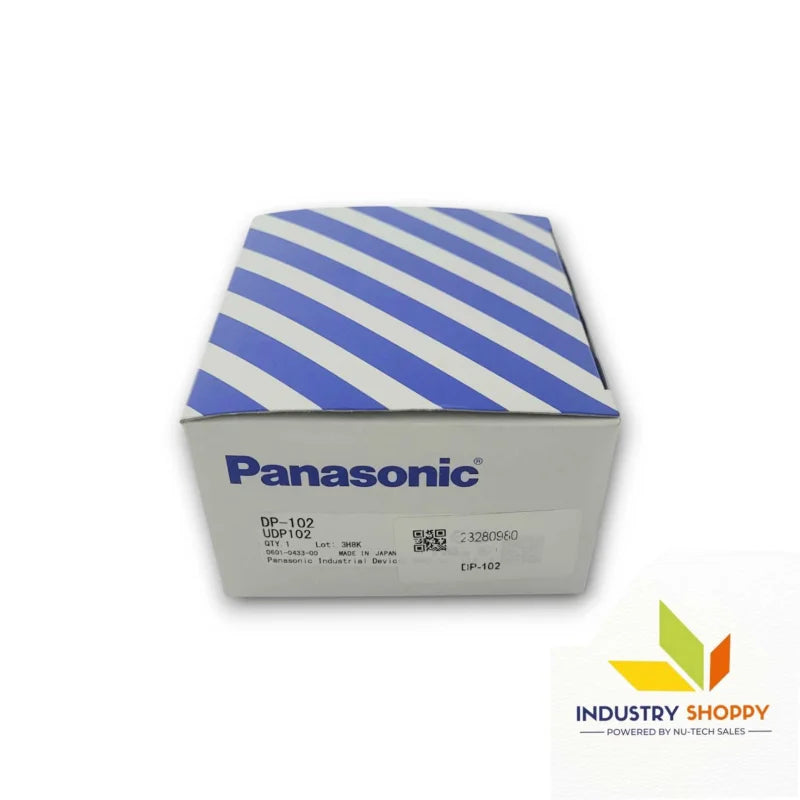

Panasonic DP-102 Digital Pressure Sensor

Panasonic DP-102 Digital Pressure Sensor

The Panasonic DP-101A Digital Pressure Sensor is a gauge pressure sensor designed to provide accurate and reliable pressure measurements for non-corrosive gases. With a pressure range of -100.0 to +100.0 kPa, this sensor is capable of handling precise measurements in applications that require fine pressure control. The set pressure range extends from -101.0 to +101.0 kPa, making it suitable for a wide variety of industrial uses.

The Panasonic DP-101A Digital Pressure Sensor features analog outputs, including voltage (1 to 5 V) and current (4 to 20 mA), offering flexibility to integrate with different systems. It also comes with comparative output for additional pressure control and monitoring, with selectable output modes like NO/NC, EASY mode, Hysteresis mode, and Window comparator mode.

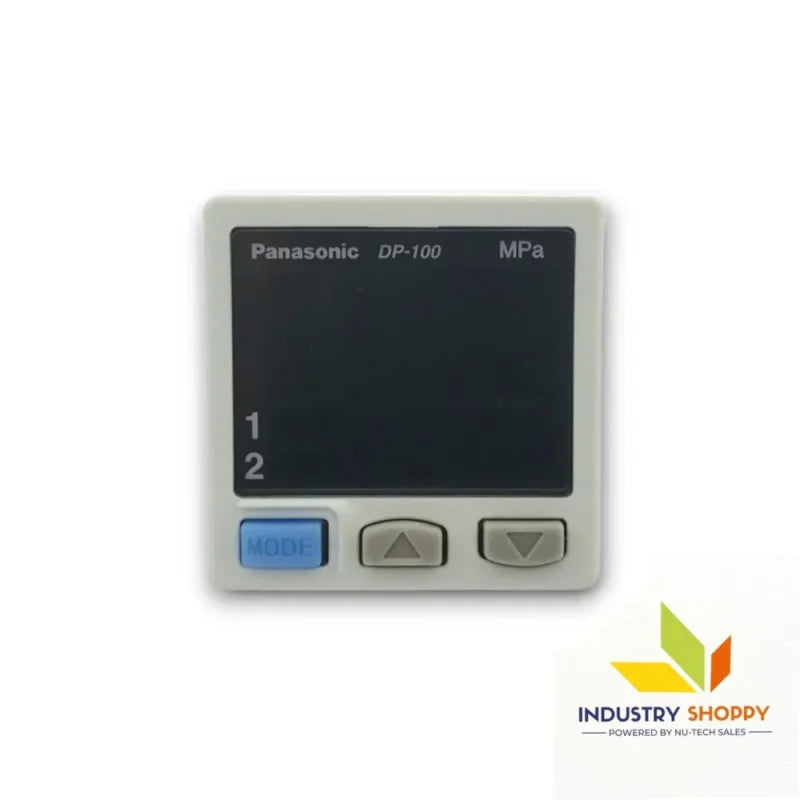

The 4-digit LCD display with a 3-color indicator provides clear, real-time monitoring of pressure values, with a selectable refresh rate of 250 ms, 500 ms, or 1,000 ms. It offers excellent repeatability of ±0.1 % F.S. and response times ranging from 2.5 ms to 5,000 ms.

The Panasonic DP-101A Digital Pressure Sensor is built for durability, offering protection with an IP40 rating, resistance to vibration (10 to 500 Hz), and shock resistance up to 100 m/s² in all directions. It is designed for optimal performance in demanding industrial environments, offering reliable pressure measurement in a wide range of applications, including pneumatic systems, HVAC, and industrial automation.

Key features :-

Applications :-

• Industrial Automation: Ideal for precise pressure measurement in automated manufacturing systems.
• Non-Corrosive Gas Systems: Suitable for pressure monitoring in non-corrosive gas-based systems.
• HVAC Systems: Used for accurate pressure measurements in HVAC and ventilation systems.
• Pneumatic Systems: Perfect for monitoring pressure in pneumatic control systems and equipment.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
