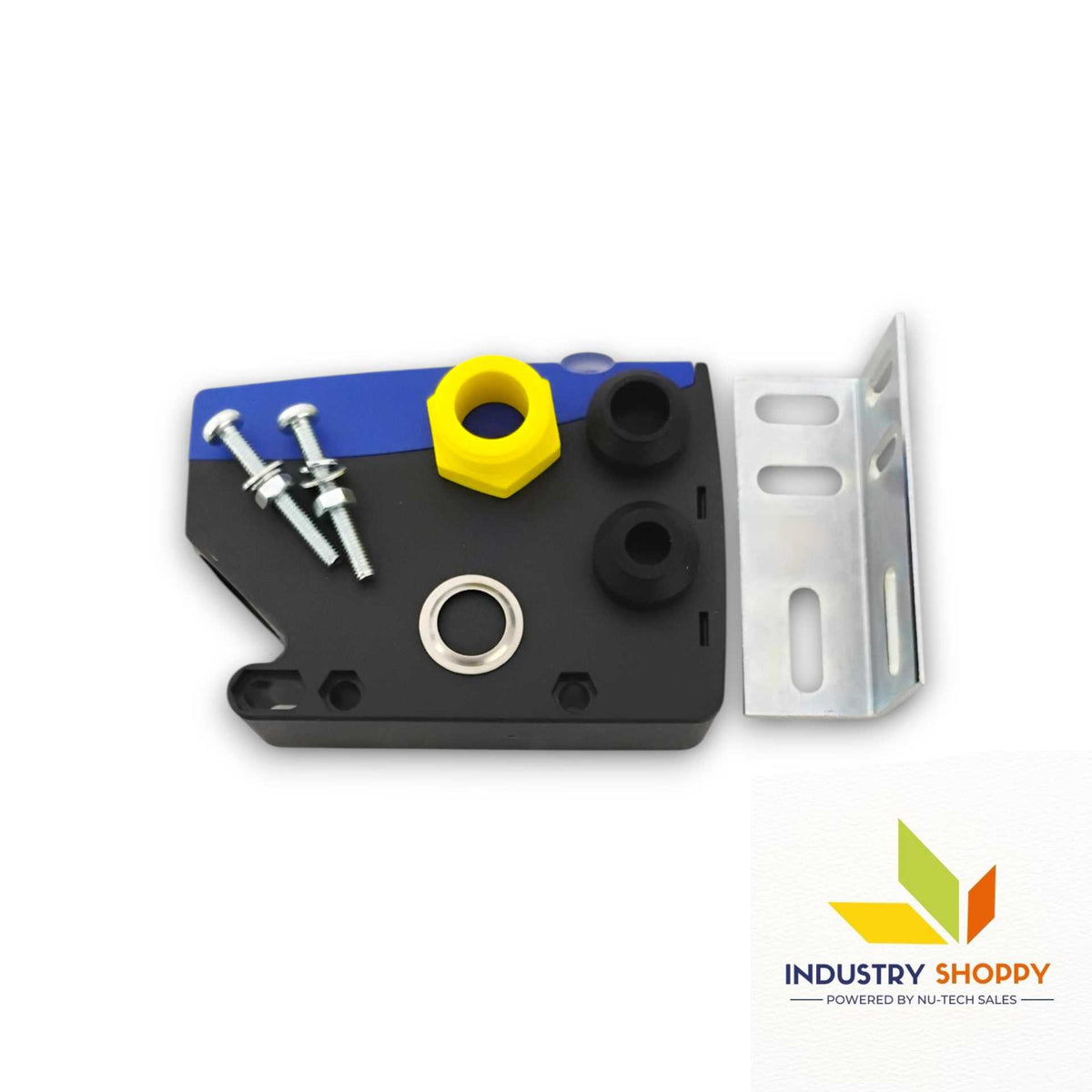

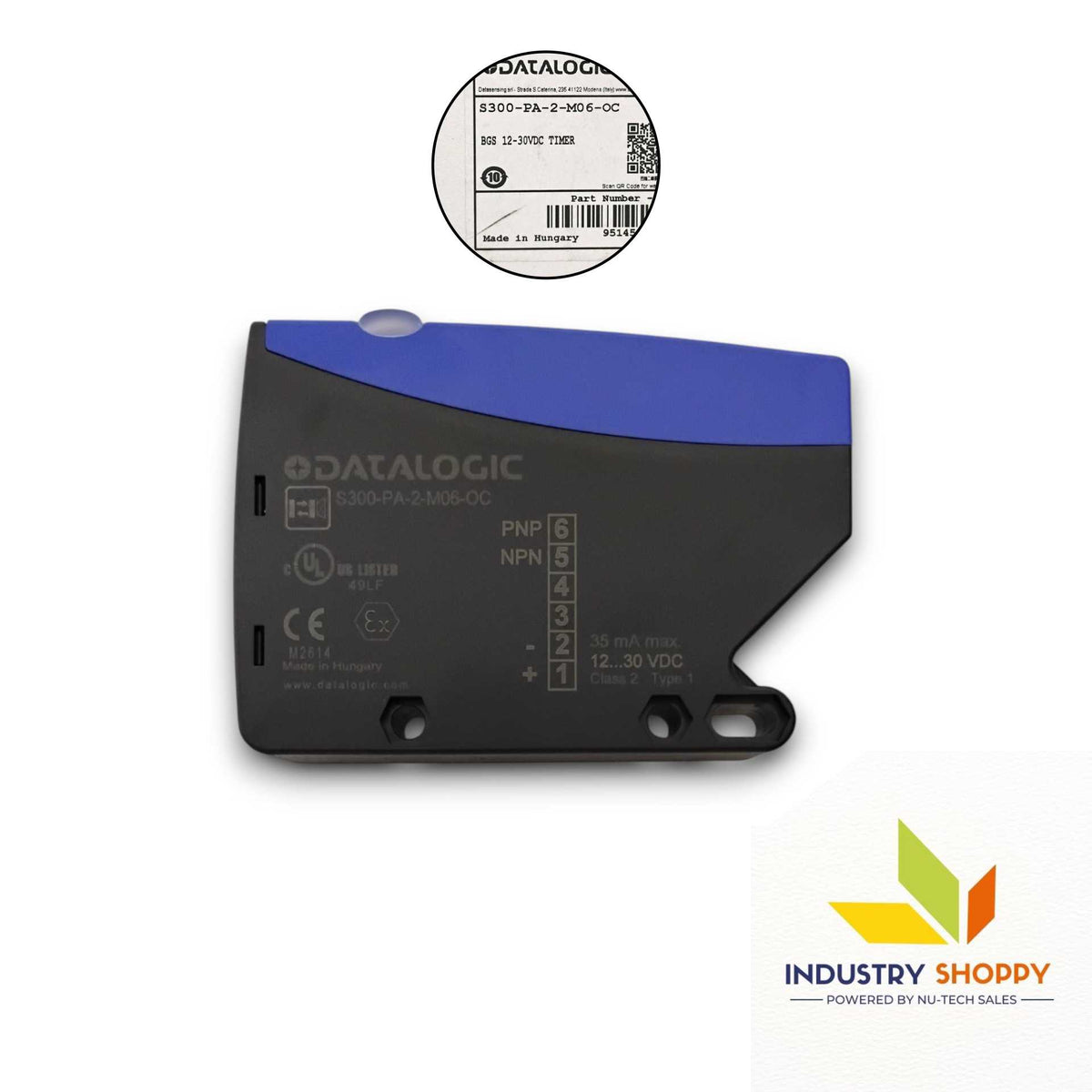

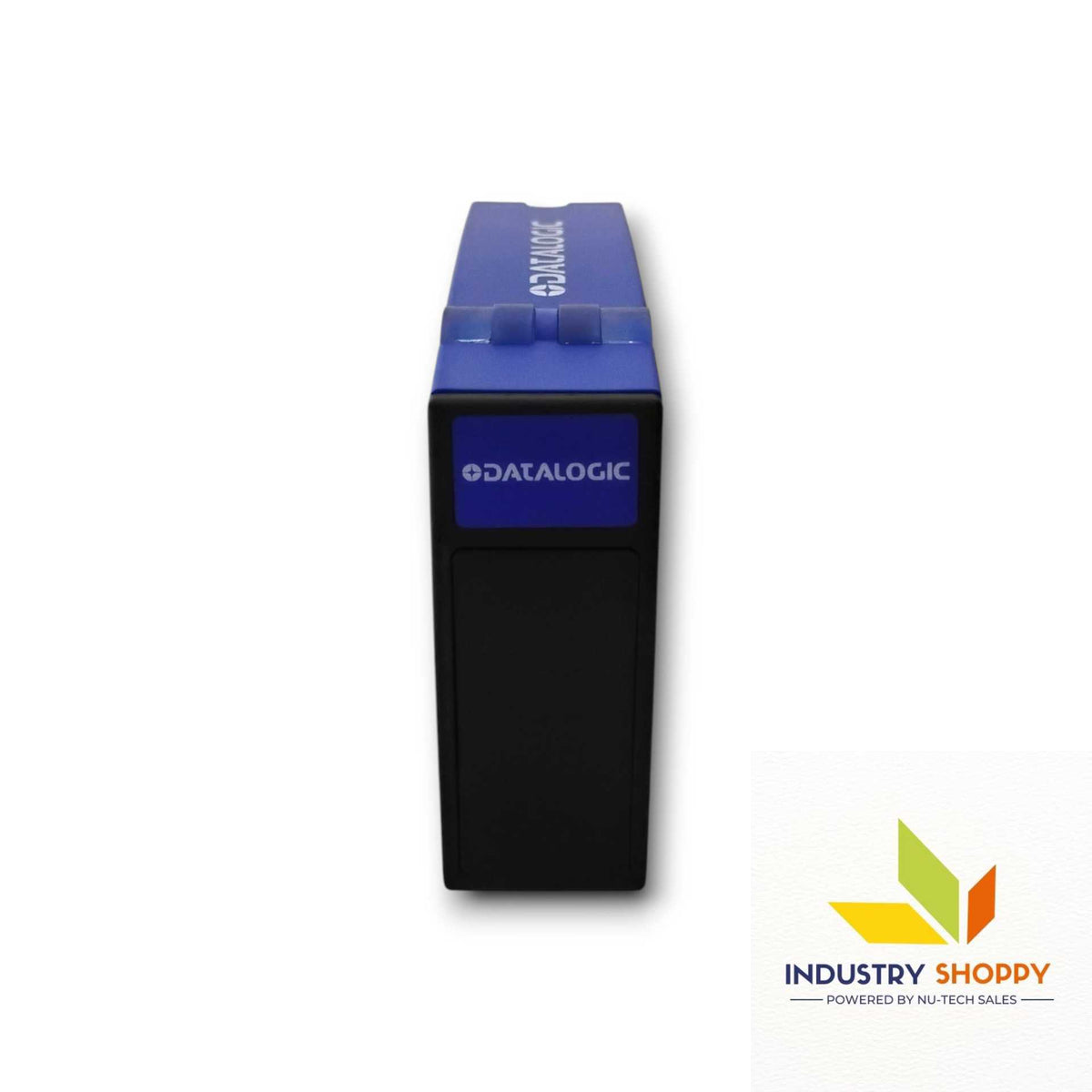

Datalogic S300-PA-2-M06-OC Photoelectric Sensor

Datalogic S300-PA-2-M06-OC Photoelectric Sensor

The Datalogic S300-PA-2-M06-OC Photoelectric Sensor (951451470) is an advanced background suppression photoelectric sensor designed for precise object detection in demanding industrial environments. With a 2-meter sensing range, it accurately detects targets while ignoring unwanted background reflections, improving reliability in automated systems.

The sensor features selectable NPN/PNP outputs with Dark/Light operating modes, offering flexibility for various control applications. Its 500 Hz switching frequency and 1 ms response time ensure fast and dependable performance in high-speed processes. Constructed with a fiber glass reinforced PBT housing and IP67 protection, it provides excellent durability against dust, moisture, and harsh industrial conditions.

Built-in short-circuit, reverse polarity, and overvoltage protection enhance operational safety. Infrared LED technology, trimmer-based sensitivity adjustment, and clear status indicators make installation, setup, and maintenance simple while ensuring consistent sensing performance in automation systems.

Applications:

• Conveyor and material handling systems


• Packaging and labeling machinery


• Automated assembly and production lines


• Object detection where background interference exists


Technical Precautions:

• Adjust sensitivity settings according to application requirements


• Install securely to maintain sensing accuracy


• Use within the specified 12–30 VDC operating voltage range


• Keep the optical surface clean and free from contaminants
