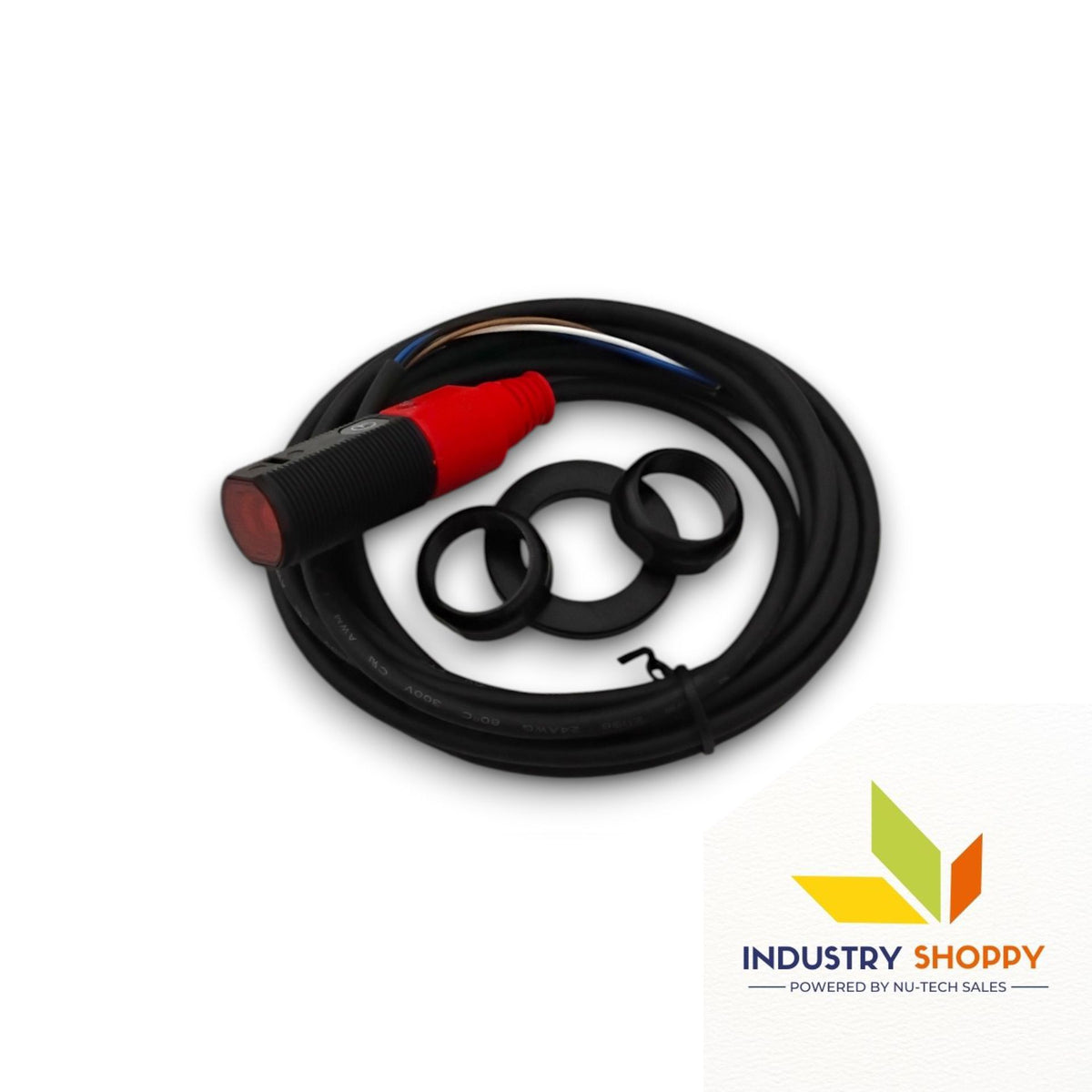

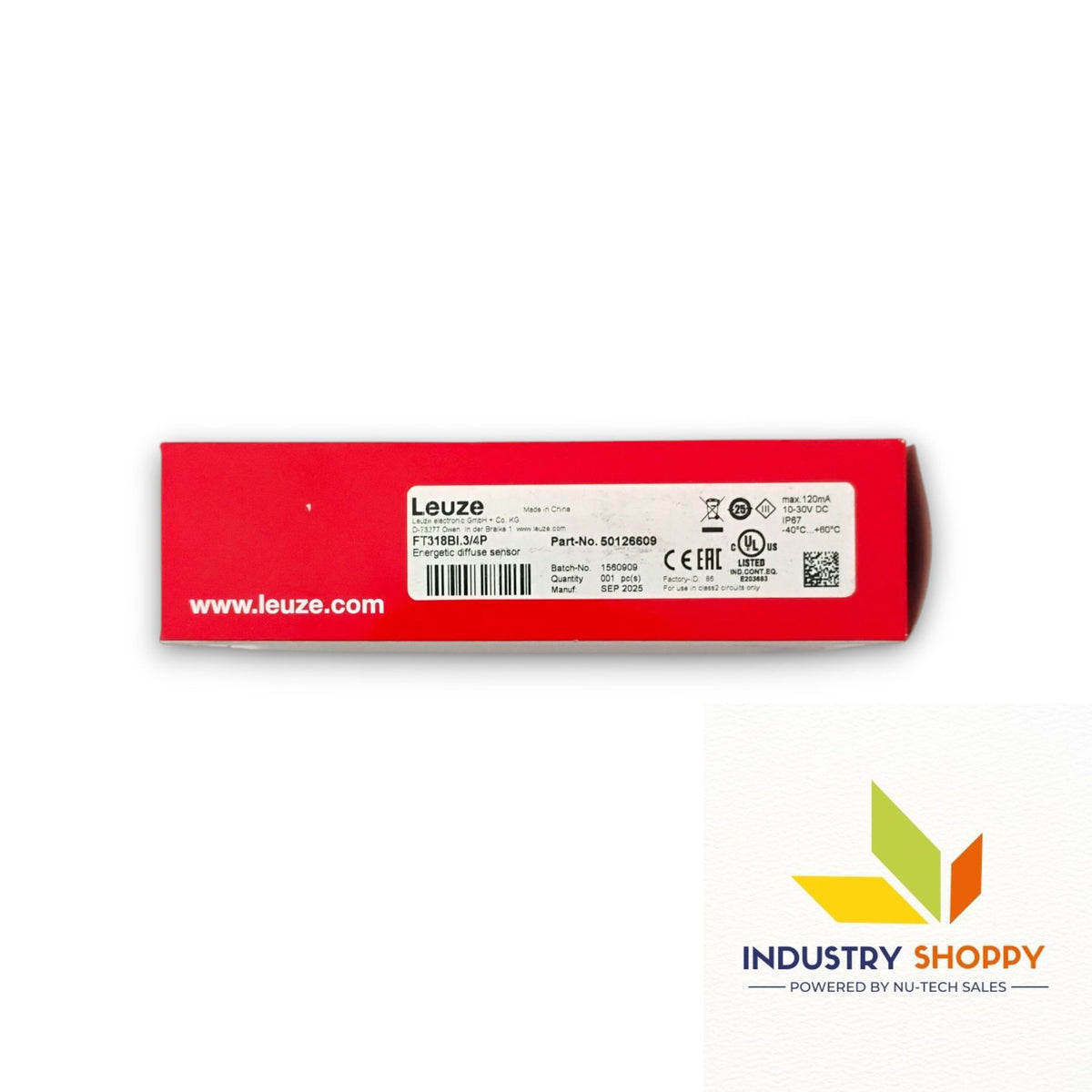

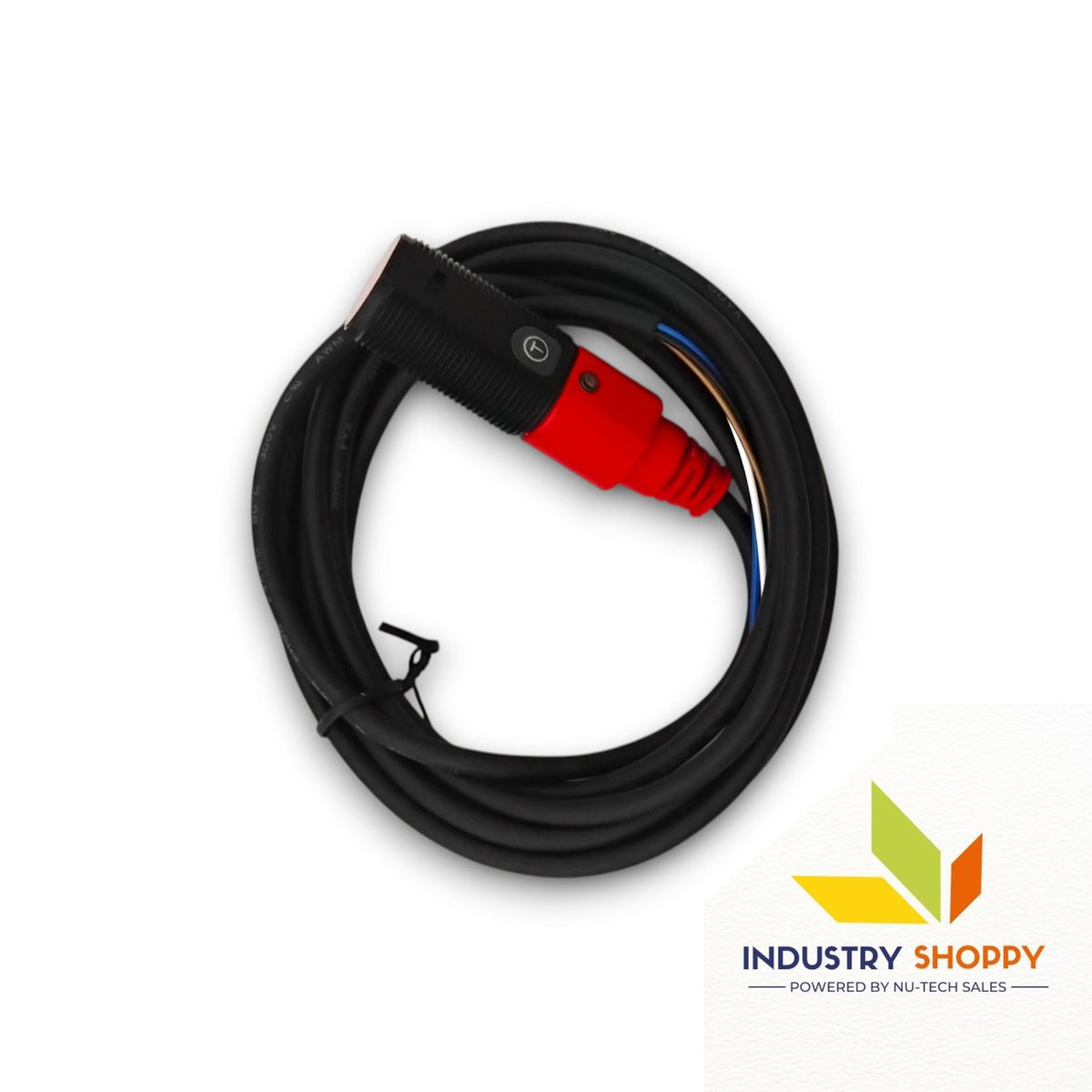

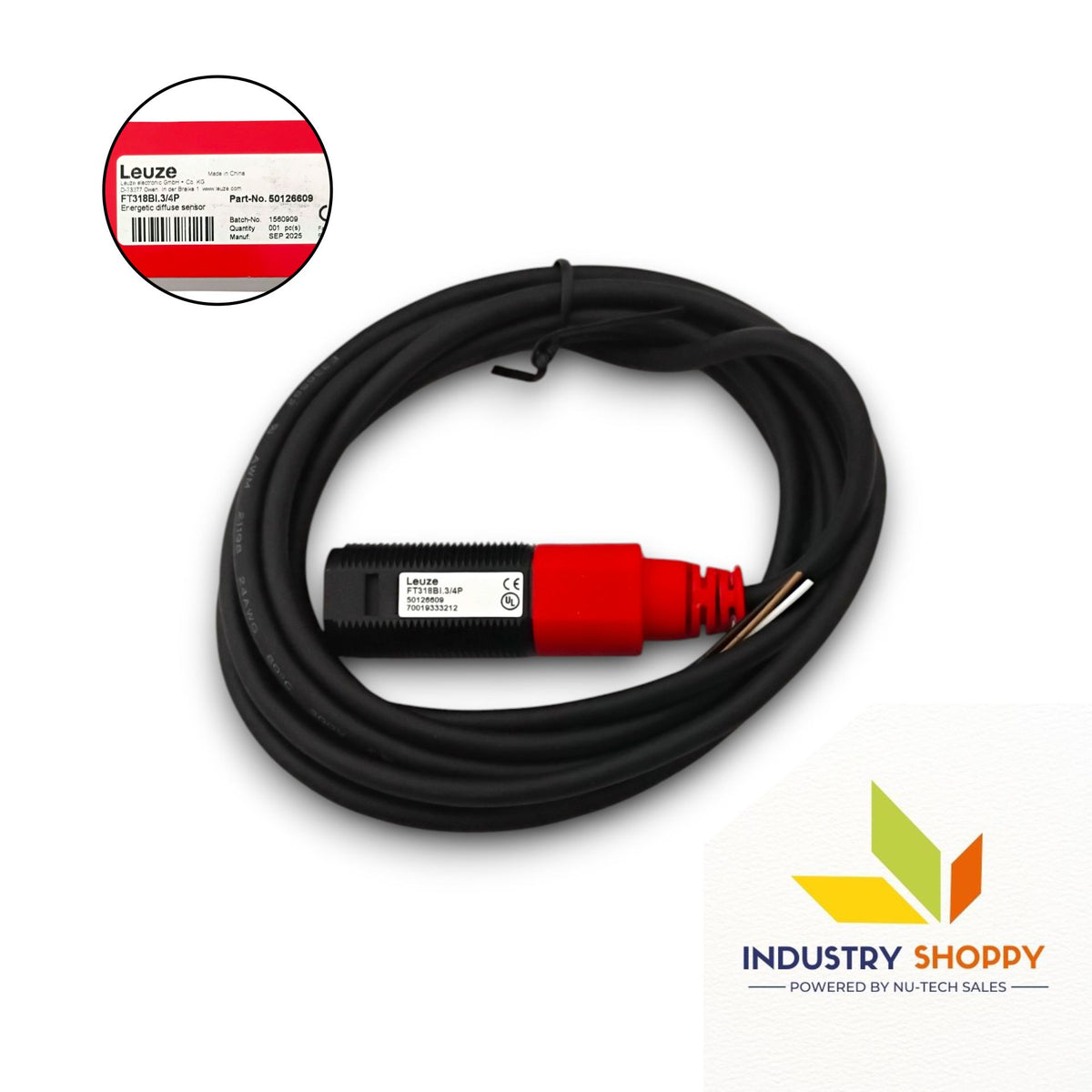

Leuze FT318BI.3/4P Diffuse Sensor
Leuze FT318BI.3/4P Diffuse Sensor
Leuze FT318BI.3/4P Diffuse Sensor
Leuze FT318BI.3/4P Diffuse Sensor
Leuze FT318BI.3/4P Diffuse Sensor
Leuze FT318BI.3/4P Diffuse Sensor
Leuze FT318BI.3/4P Diffuse Sensor
Leuze FT318BI.3/4P Diffuse Sensor
Leuze

Leuze FT318BI.3/4P Diffuse Sensor

Product SKU: NTSSEN00882
Available:
Only 10 items in stock
10 items in stock
In stock
Pre-order
Out of stock
  • Brand: Leuze
  • Part No.: 50126609
  • Operating Principle: Diffuse reflection principle
  • Supply Voltage (UB): 10 ... 30 V, DC, Incl. residual ripple
  • Switching Element: Transistor, PNP
  • Connection Type: Cable

Note: All tax and custom duty should be pay by buyer only.

For Indian Buyers: IndustryShoppy.in

$85.00
$170.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Declaration

Leuze FT318BI.3/4P Diffuse Sensor

The Leuze FT318BI.3/4P Diffuse Sensor (50126609) is a compact M18 diffuse photoelectric sensor designed for accurate object detection in industrial automation, packaging, and material handling applications. Operating on the diffuse reflection principle, it offers a guaranteed sensing range up to 215 mm on a 90% white target, with reliable detection across gray and black surfaces.

Equipped with an 850 nm pulsed infrared LED, the sensor provides stable detection while minimizing interference from ambient light. The integrated Teach button enables quick sensitivity adjustment, simplifying installation and ensuring optimal performance for different target materials. Operating on a 10–30 VDC power supply, the sensor features two PNP transistor outputs, supporting both Light-ON and Dark-ON switching for flexible integration with PLCs and industrial control systems.

With a 500 Hz switching frequency and 1 ms response time, it delivers fast and dependable operation in dynamic production environments. The durable ABS plastic housing, PUR 2 m cable, and IP67 protection rating provide excellent resistance to dust, moisture, and industrial conditions. Additional features include reverse polarity protection, short-circuit protection, and a clear LED status indicator for easy diagnostics. Operating within a -40°C to +60°C temperature range, the FT318BI.3/4P offers reliable long-term performance in demanding industrial applications.


Applications

  • Conveyor systems for accurate object presence detection.

  • Packaging and assembly machines requiring reliable diffuse sensing.

  • Material handling and warehouse automation for product positioning.

  • Industrial production lines detecting components of varying surface colors.


Technical Precautions

  • Operate only within the 10–30 VDC specified supply voltage range.

  • Use the Teach button to optimize detection for different target materials.

  • Keep the sensor lens clean to maintain accurate and stable sensing performance.

  • Avoid mounting the sensor near highly reflective surfaces and ensure the IP67 housing and cable remain properly protected during operation.

While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.


Facebook, YouTube,


BrandLEUZE
Product NumberFT318BI.3/4P
Part Number50126609
Series318B
Operating principleDiffuse reflection principle

Operating range

Guaranteed operating range
Operating range, white 90%0.001 ... 0.215 m
Operating range, gray 50%0.001 ... 0.19 m
Operating range, gray 18%0.003 ... 0.15 m
Operating range, black 6%0.005 ... 0.125 m
Operating range limit, white 90%0.001 ... 0.28 m
Operating range limit, gray 50%0.001 ... 0.245 m
Operating range limit, gray 18%0.003 ... 0.19 m
Operating range limit, black 6%0.005 ... 0.16 m
Operating range limitTypical operating range
Light sourceLED, Infrared
Wavelength850 nm
Transmitted-signal shapePulsed
LED groupExempt group (in acc. with EN 62471)

Protective circuit

Polarity reversal protection Short circuit protected

Supply voltage UB

10 ... 30 V, DC, Incl. residual ripple
Residual ripple0 ... 15 %, From UB
Open-circuit current0 ... 20 mA

Number of digital switching outputs

2 Piece(s)

Type

Digital switching output

Switching element

Transistor, PNP
Switching principleLight switching

Switching element

Transistor, PNP
Switching principleDark switching

Switching frequency

500 Hz
Response time1 ms
Readiness delay300 ms

Number of connections

1 Piece(s)

Function

Signal OUT Voltage supply
Type of connectionCable
Cable length2,000 mm
Sheathing materialPUR
Cable colorBlack
Number of conductors4 -wire
Wire cross section0.2 mm²

Dimension (Ø x L)

18 mm x 46 mm
Thread sizeM18 x 1 mm
Housing materialPlastic
Plastic housingABS
Lens cover materialPlastic
Housing colorBlack Red

Type of display

LED
Number of LEDs1 Piece(s)
Operational controlsTeach button

Ambient temperature, operation

-40 ... 60 °C
Ambient temperature, storage-40 ... 70 °C

Degree of protection

IP 67
Country of originChina
