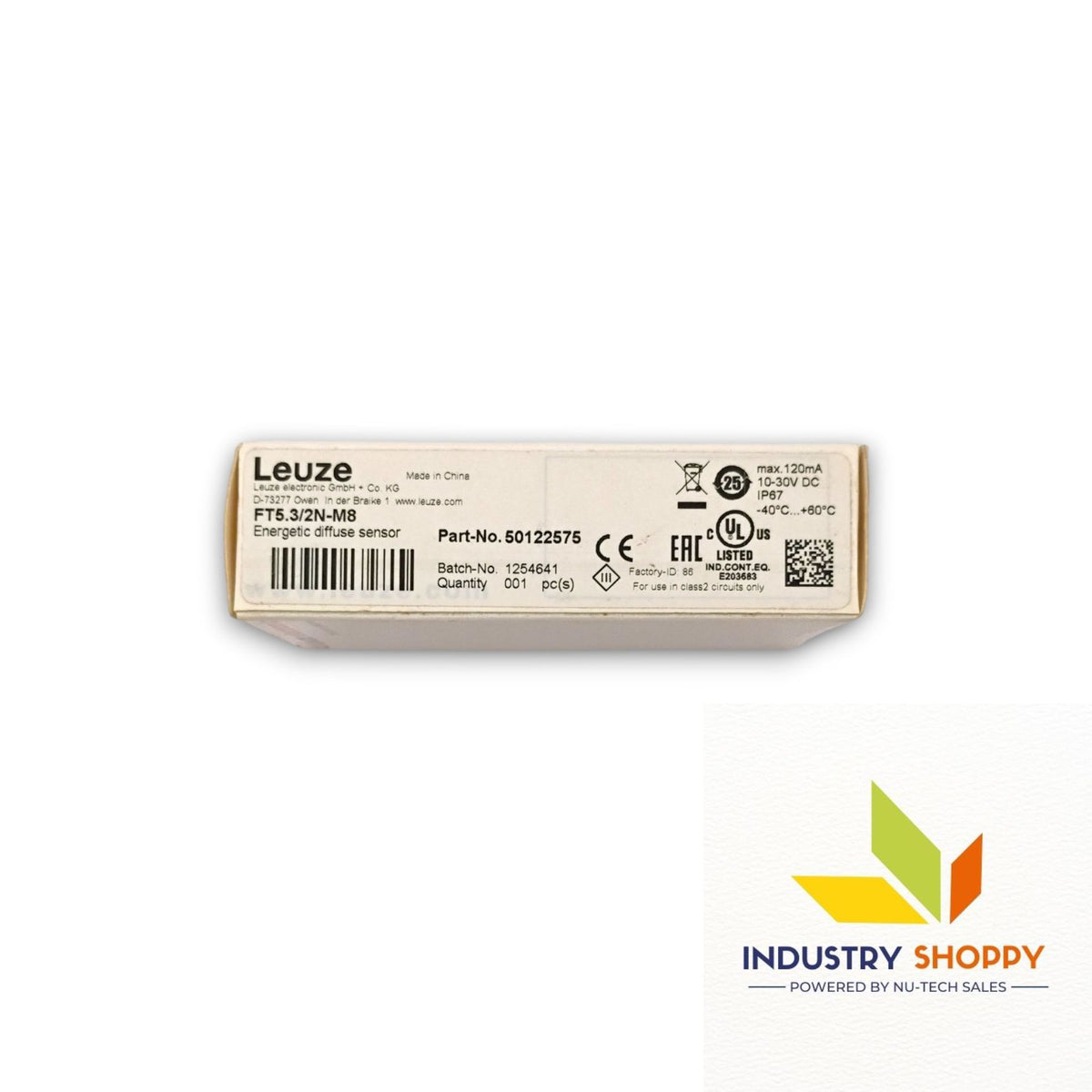

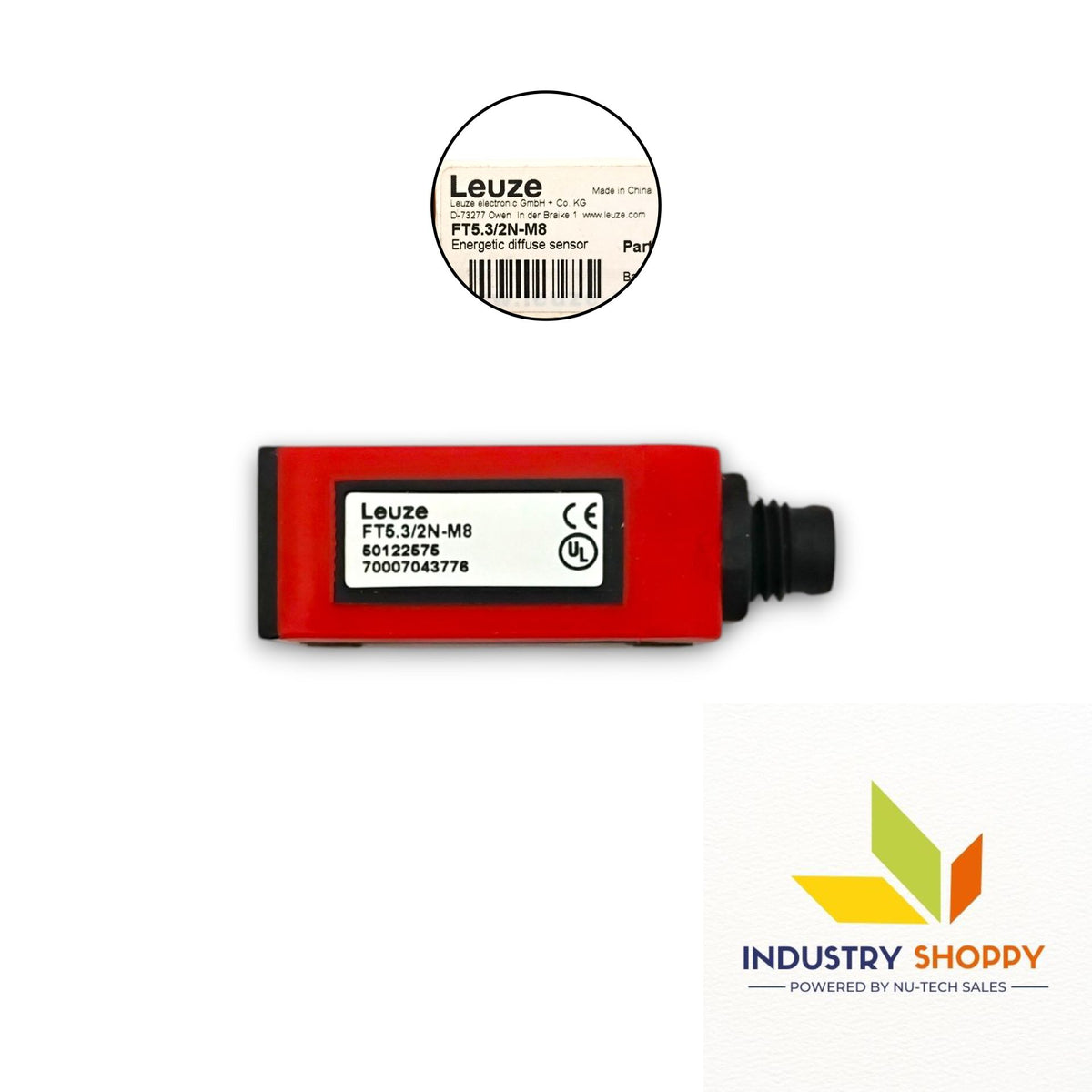

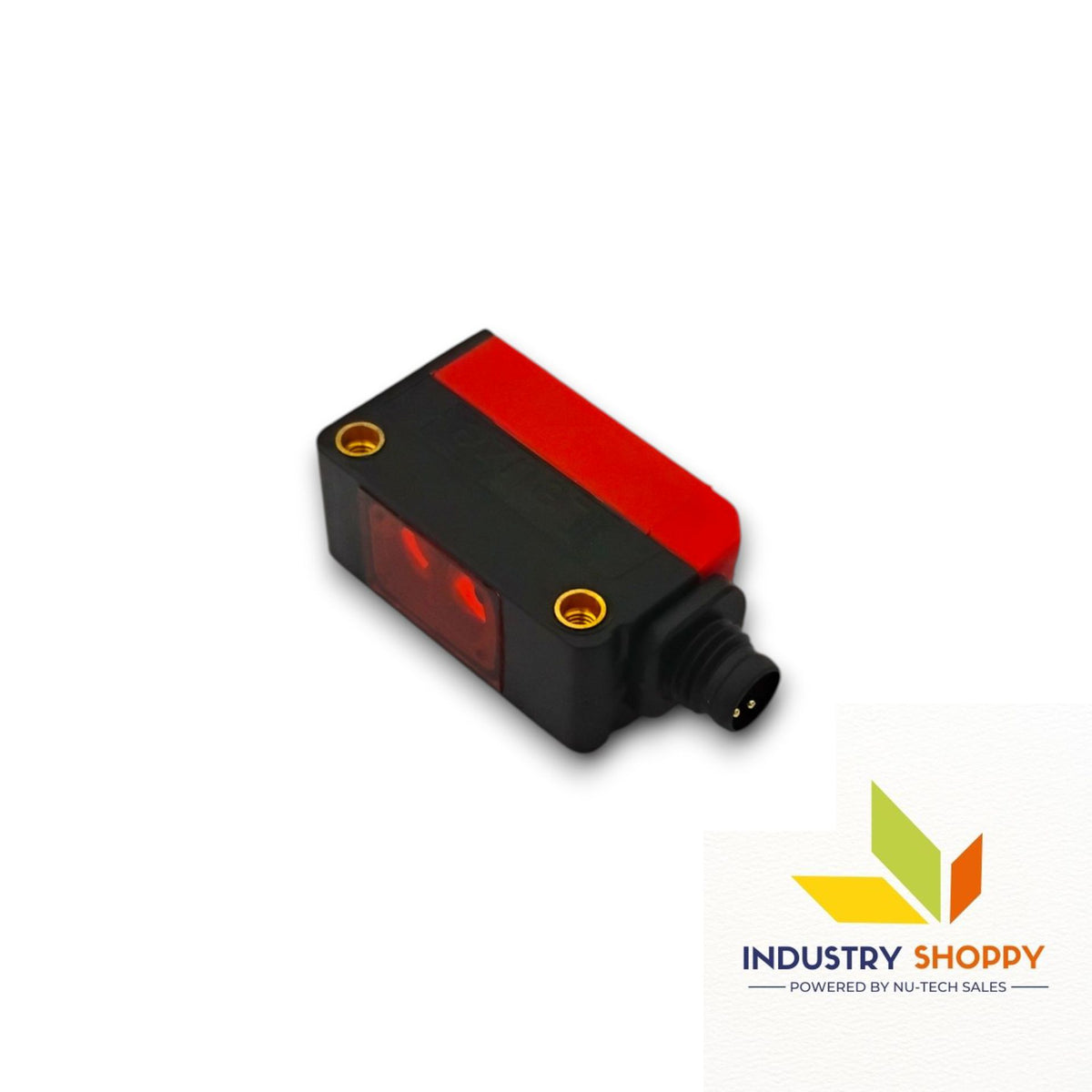

Leuze FT5.3/2N-M8 Diffuse Sensor

Product SKU: NTSSEN00848

Available:

Only 2 items in stock

2 items in stock

In stock

Pre-order

Out of stock

Brand: Leuze
Part No.: 50122575
Operating Principle: Diffuse reflection principle
Supply Voltage (UB): 10 ... 30 V, DC, Incl. residual ripple
Switching Element: Transistor, NPN
Connection Type: Connector

Note: All tax and custom duty should be pay by buyer only.

For Indian Buyers: IndustryShoppy.in

$175.00

~~$250.00~~

Want it delivered by

Description
Specifications
Declaration
Reviews

Leuze FT5.3/2N-M8 Diffuse Sensor

The Leuze FT5.3/2N-M8 Diffuse Sensor (50122575) is a compact and efficient device designed using the diffuse reflection principle for reliable object detection in industrial environments. Equipped with a red LED light source (620 nm), it offers accurate sensing across a range of up to 215 mm, depending on object reflectivity.

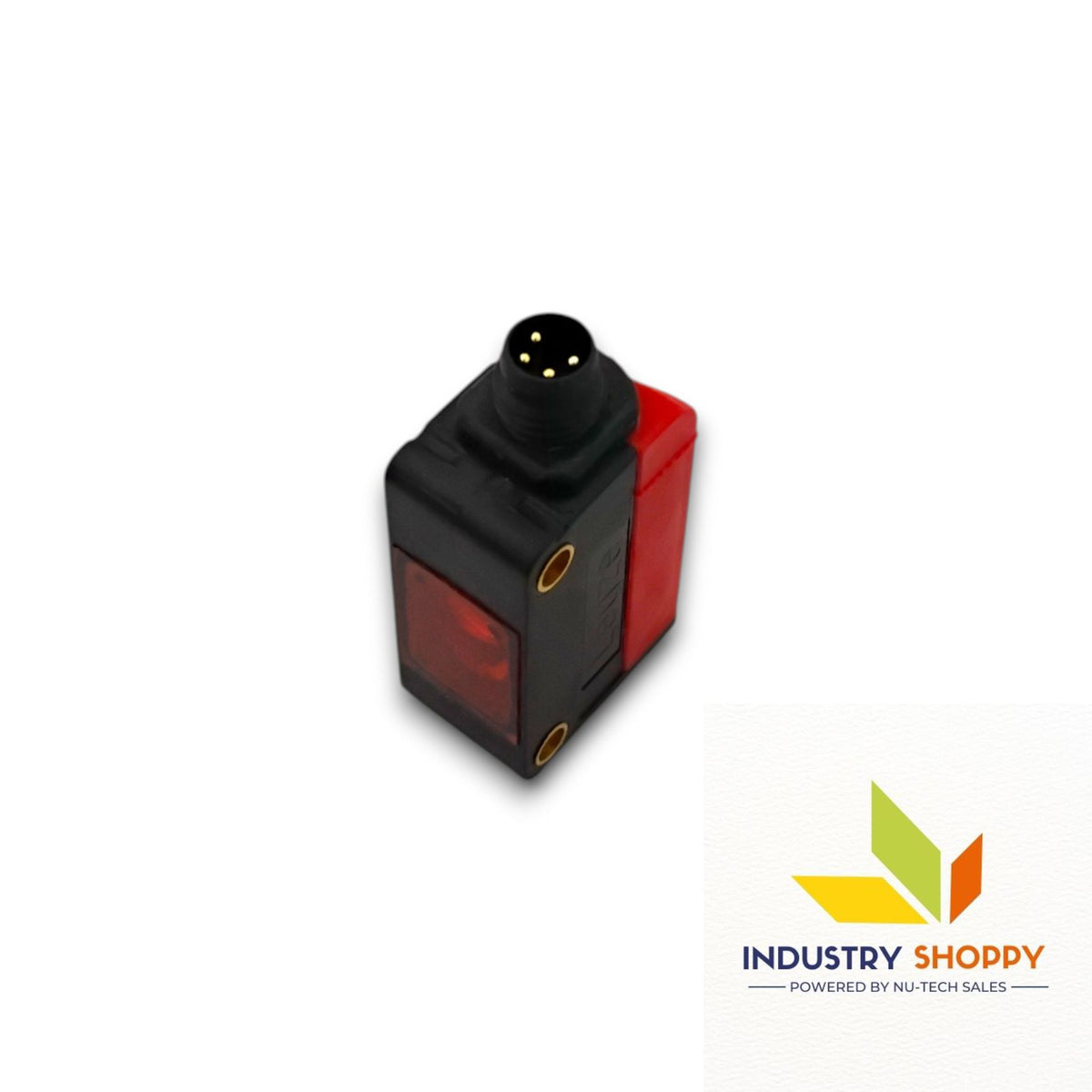

The sensor features dual NPN switching outputs supporting both light and dark switching modes, ensuring flexibility for various applications. With a fast 1 ms response time and 500 Hz switching frequency, it performs efficiently in high-speed automation systems. The M8 4-pin connector enables quick and secure installation.

Built with durable ABS housing and rated IP67, it ensures stable operation even in harsh conditions. The integrated teach button allows easy setup and adjustment for precise detection performance.

Applications

• Object detection in conveyor systems

• Packaging and sorting machines

• Presence detection in automation lines

• Small object sensing in industrial setups

Technical Precautions

• Ensure proper alignment for accurate sensing

• Adjust settings using teach button carefully

• Avoid highly reflective background interference

• Operate within recommended voltage and temperature limits

While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Facebook, YouTube,

Brand	LEUZE
Product Number	FT5.3/2N-M8
Part Number	50122575
Series	5
Operating principle	Diffuse reflection principle
Operating range	Guaranteed operating range
Operating range, white 90%	0.001 ... 0.215 m
Operating range, gray 50%	0.001 ... 0.19 m
Operating range, gray 18%	0.003 ... 0.15 m
Operating range, black 6%	0.003 ... 0.125 m
Operating range limit, white 90%	0 ... 0.28 m
Operating range limit, gray 50%	0.001 ... 0.245 m
Operating range limit, gray 18%	0.003 ... 0.19 m
Operating range limit, black 6%	0.001 ... 0.16 m
Operating range limit	Typical operating range
Light source	LED, Red
Wavelength	620 nm
Transmitted-signal shape	Pulsed
LED group	Exempt group (in acc. with EN 62471)
Supply voltage UB	10 ... 30 V, DC, Incl. residual ripple
Residual ripple	0 ... 15 %, From UB
Open-circuit current	0 ... 20 mA
Number of digital switching outputs	2 Piece(s)
Type	Digital switching output
Switching element	Transistor, NPN
Switching principle	Light switching
Switching element	Transistor, NPN
Switching principle	Dark switching
Switching frequency	500 Hz
Response time	1 ms
Readiness delay	300 ms
Number of connections	1 Piece(s)
Function	Signal OUT, Voltage supply
Type of connection	Connector
Thread size	M8
Type	Male
Material	Plastic
No. of pins	4 -pin
Dimension (W x H x L)	14 mm x 32.5 mm x 20.2 mm
Housing material	Plastic
Plastic housing	ABS
Lens cover material	Plastic
Housing color	Black, Red
Recommended tightening torque for M3 fastening	0.9 N·m
Type of display	LED
Number of LEDs	2 Piece(s)
Operational controls	Teach button
Ambient temperature, operation	-40 ... 60 °C
Ambient temperature, storage	-40 ... 70 °C
Degree of protection	IP 67
Protection class	III
Country of origin	China

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
