Leuze KRT18BM.H3/G6X-M12 Contrast Sensor

Leuze

Leuze KRT18BM.H3/G6X-M12 Contrast Sensor

Product SKU: NTSSEN00849

Available:

Only 2 items in stock

2 items in stock

In stock

Pre-order

Out of stock

Brand: Leuze
Part No.: 50131249
Open-circuit current: 0 ... 25 mA
Supply Voltage (UB): 12 ... 30 V, DC
Switching Element: Transistor, Push-pull
Connection Type: Connector

Note: All tax and custom duty should be pay by buyer only.

For Indian Buyers: IndustryShoppy.in

$320.00

~~$500.00~~

Want it delivered by

Description
Specifications
Declaration
Reviews

Leuze KRT18BM.H3/G6X-M12 Contrast Sensor

The Leuze KRT18BM.H3/G6X-M12 Contrast Sensor (50131249) is a high-speed contrast sensor designed for precise detection of marks and color differences in industrial applications. Featuring an advanced RGB LED light source, it ensures accurate detection even on challenging surfaces.

With a focused rectangular light spot (1 mm x 4 mm) and fixed focal distance of 13 mm, it delivers exceptional precision. The sensor offers dual push-pull outputs with light/dark switching capability, making it highly versatile.

Its ultra-fast 0.033 ms response time and 15,000 Hz switching frequency make it ideal for high-speed production lines. Built with a rugged diecast zinc housing and rated IP67/IP69K, it performs reliably in harsh environments. The teach button enables easy setup with dynamic and static teaching options, ensuring optimal sensitivity and performance.

Applications

• Print mark detection in packaging machines

• Label and color contrast detection

• High-speed conveyor and printing lines

• Quality control in industrial automation

Technical Precautions

• Ensure correct teach-in for accurate contrast detection

• Maintain proper sensor-to-object distance (13 mm)

• Avoid excessive vibration affecting alignment

• Use within specified voltage and temperature range

While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Facebook, YouTube,

Brand	LEUZE
Product Number	KRT18BM.H3/G6X-M12
Part Number	50131349
Series	18B
Operating range	13 mm ± 3 mm
Beam path	Focused
Light source	LED, RGB
Transmitted-signal shape	Pulsed
Light spot size [at sensor distance]	1 mm x 4 mm
Light spot orientation	Horizontal
Type of light spot geometry	Rectangular
Light beam exit	Front
Focus	Fixed
Focal distance	13 mm
Supply voltage UB	12 ... 30 V, DC
Residual ripple	0 ... 15 %, From UB
Open-circuit current	0 ... 25 mA
Number of digital switching outputs	2 Piece(s)
Voltage type	DC
Switching current, max.	100 mA
Switching voltage	high: ≥(UB-2V), low: ≤ 2 V
Switching element	Transistor, Push-pull
Switching principle	Light/dark switchable
Switching element	Transistor, Push-pull
Switching principle	Light/dark switchable
Switching frequency	15,000 Hz
Response time	0.033 ms
Readiness delay	300 ms
Max. conveyor speed during teach-in	0.1 m/min
Function	Signal OUT, Voltage supply
Type of connection	Connector
Thread size	M12
Type	Male
Material	Metal
No. of pins	5 -pin
Encoding	A-coded
Design	Cubic
Dimension (W x H x L)	15 mm x 47 mm x 32.5 mm
Housing material	Metal
Metal housing	Diecast zinc
Lens cover material	Plastic / PMMA
Housing color	Silver
Type of fastening	Front mounting with thread, Through-hole mounting, Via optional mounting device
Compatibility of materials	ECOLAB
Type of display	LED
Number of LEDs	2 Piece(s)

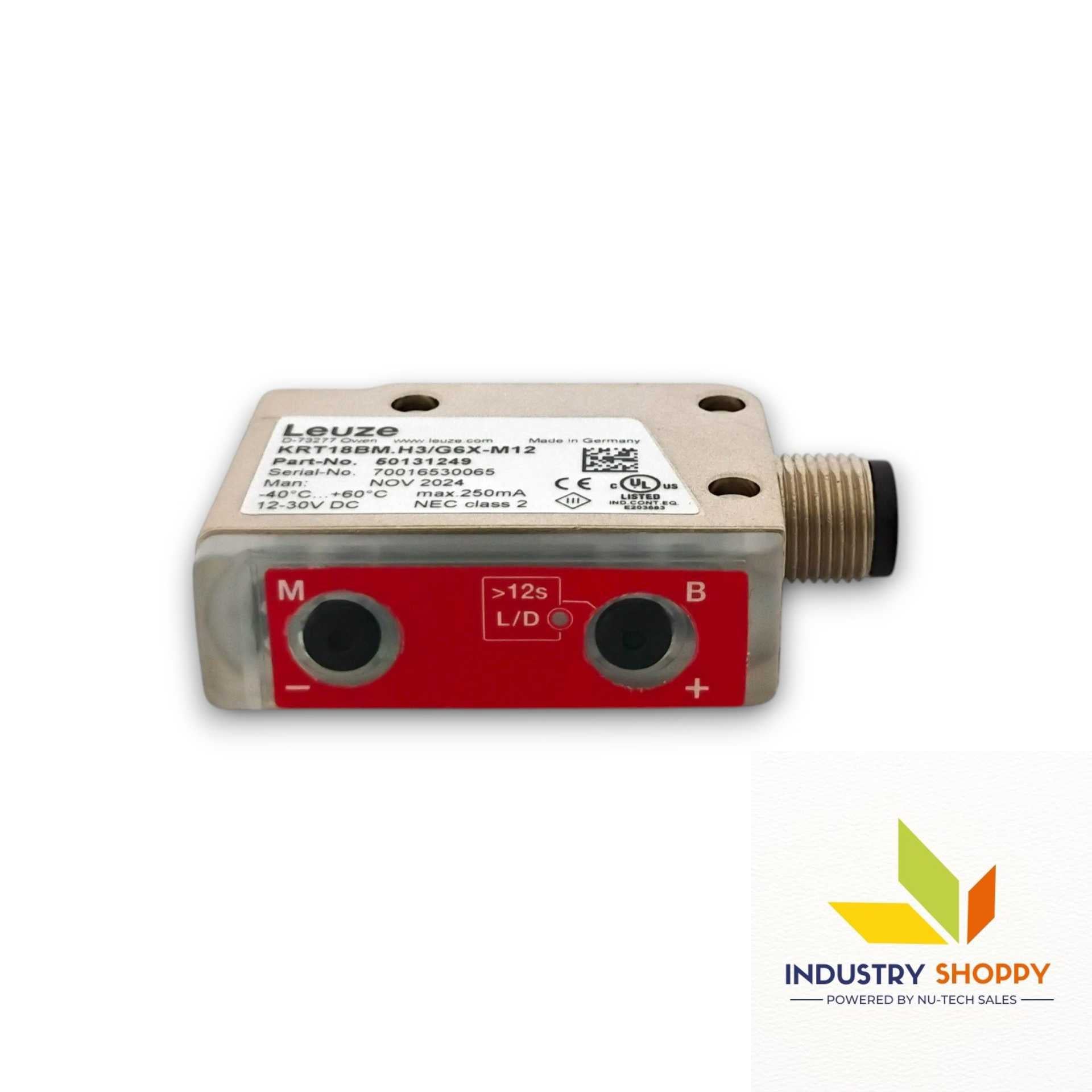

Operational controls	Teach button
Function of the operational control	Dynamic teach on background and mark, Light/dark switching, Sensitivity adjustment, Static teach on background and mark
Ambient temperature, operation	-40 ... 60 °C
Ambient temperature, storage	-40 ... 70 °C
Degree of protection	IP 67, IP 69K
Protection class	III
Country of origin	Germany
