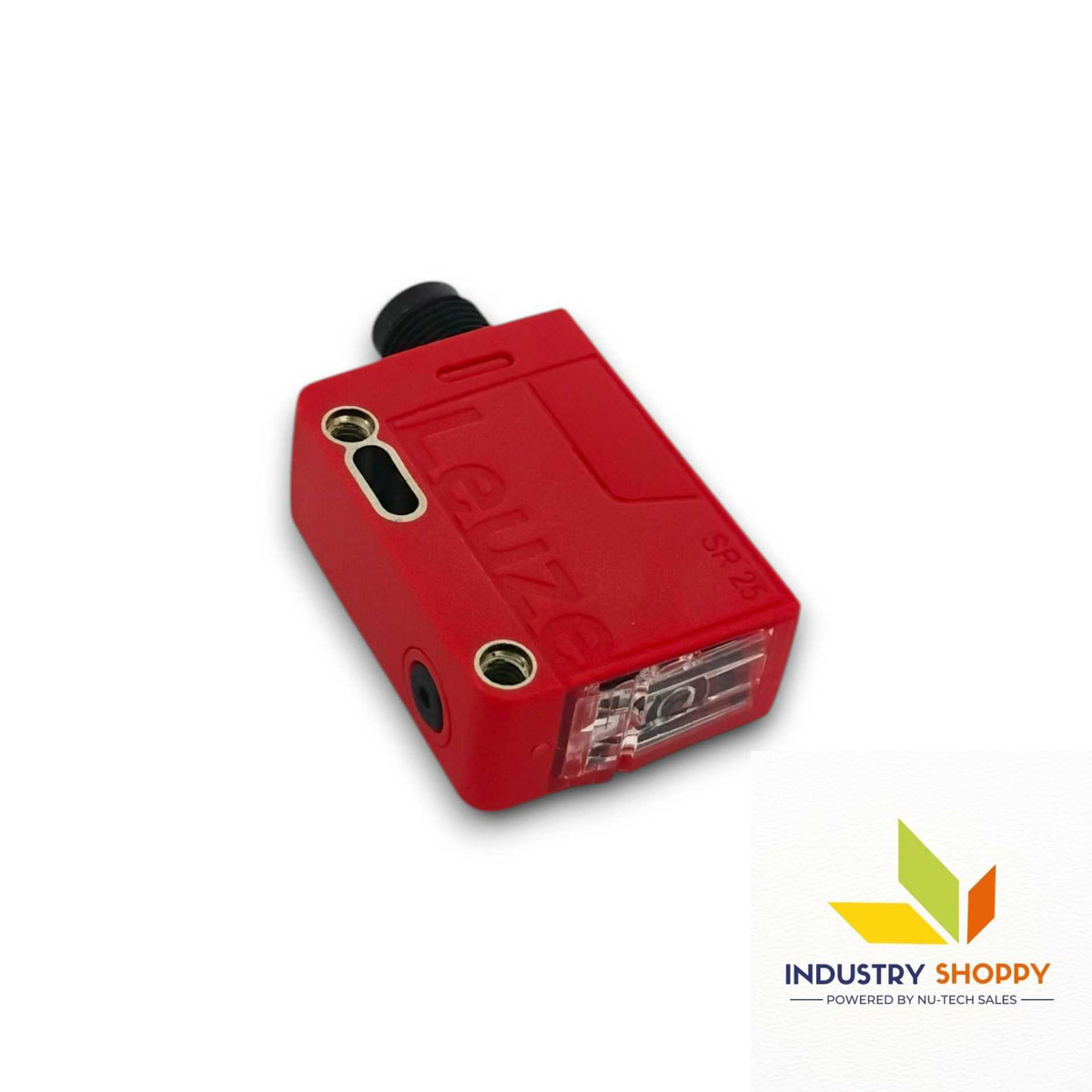

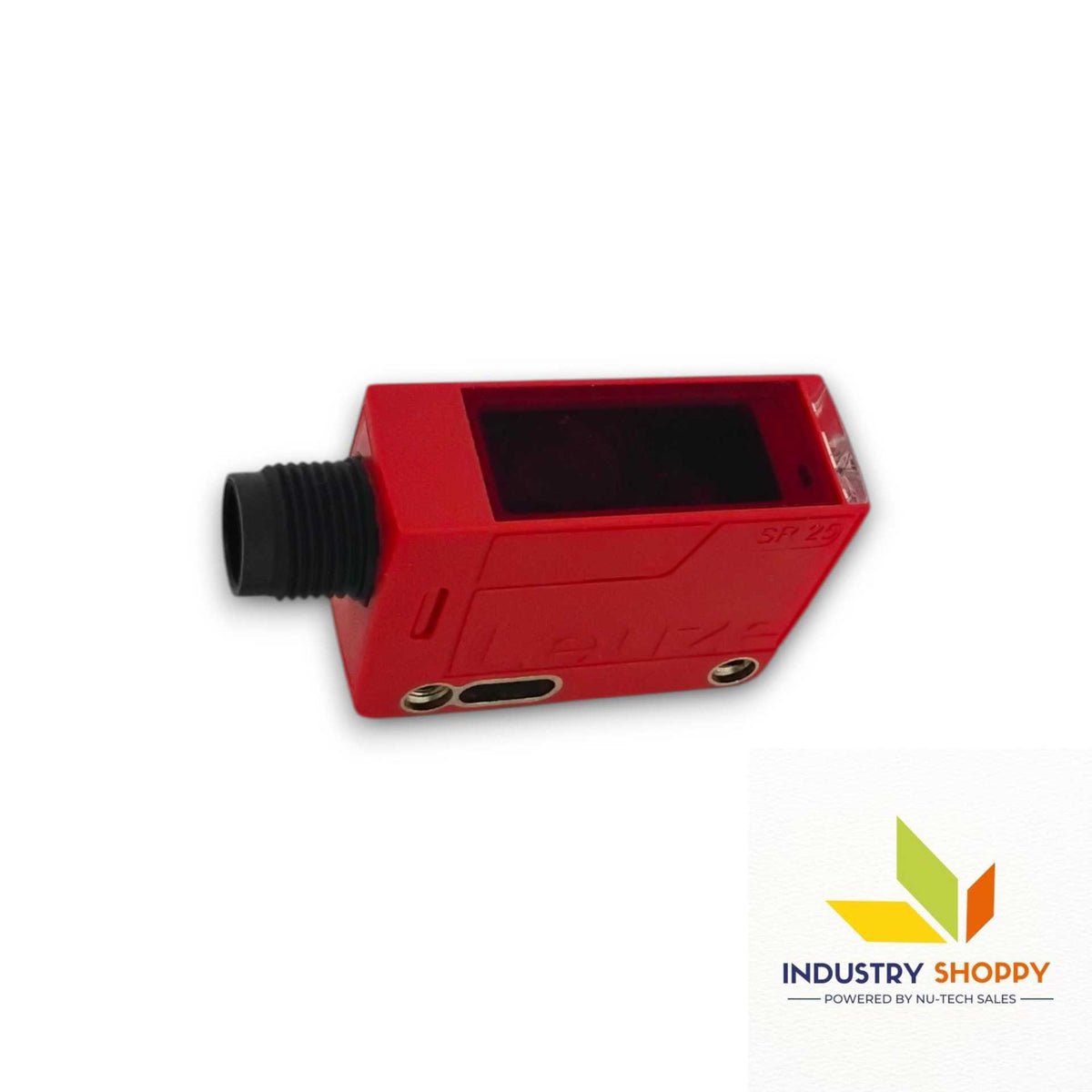

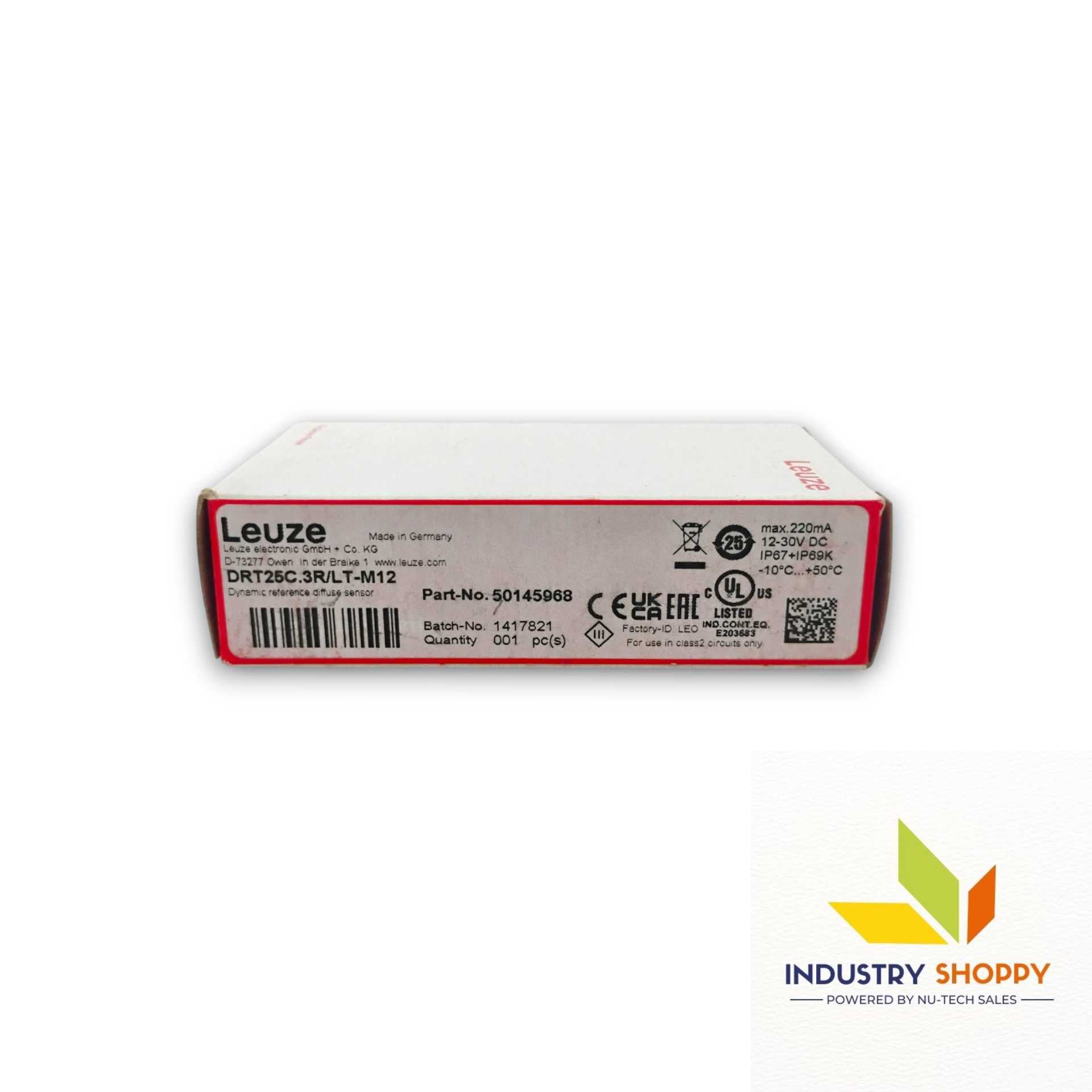

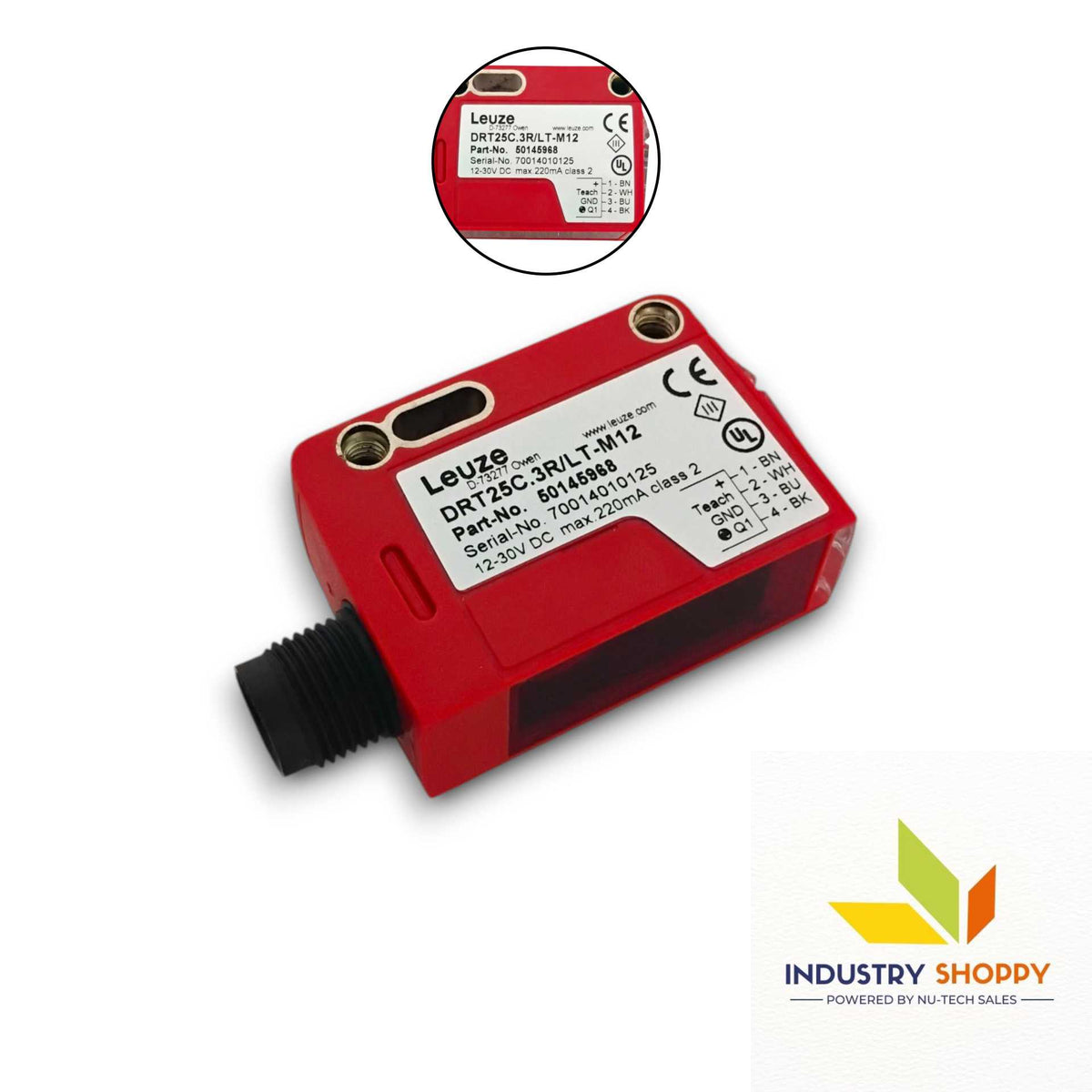

Leuze DRT25C.3R/LT-M12 Diffuse Sensor

Product SKU: NTSSEN00845

Available:

Only 10 items in stock

10 items in stock

In stock

Pre-order

Out of stock

Brand: Leuze
Part No.: 50145968
Operating Principle: Reference teach on reference surface
Supply Voltage (UB): 12 ... 30 V, DC, Incl. residual ripple
Switching Element: Transistor, Push-pull
Connection Type: Connector

Note: All tax and custom duty should be pay by buyer only.

For Indian Buyers: IndustryShoppy.in

$275.00

~~$400.00~~

Want it delivered by

Description
Specifications
Declaration
Reviews

Leuze DRT25C.3R/LT-M12 Diffuse Sensor

The Leuze DRT25C.3R/LT-M12 Diffuse Sensor (50145968) is an advanced optical detection solution designed for precise identification of bottles and can containers on conveyors. Utilizing a reference teach principle, it ensures accurate detection even on plastic roller chains or link conveyors.

Equipped with a red LED light source (645 nm) and IO-Link communication, it offers flexible integration and real-time diagnostics in modern automation systems. The sensor supports push-pull transistor output with both PNP and NPN switching, enhancing compatibility.

With an operating range of up to 0.4 m and fast 1.66 ms response time, it delivers reliable performance in high-speed applications. Its IP67 and IP69K protection ratings make it suitable for harsh and washdown environments. The compact design with M12 connectivity and teach-in functionality ensures easy installation and operation.

Applications

• Bottle and can detection on conveyor systems

• Packaging and bottling industries

• Plastic chain or link conveyor systems

• High-speed industrial automation lines

Technical Precautions

• Ensure correct teach-in setup for accurate detection

• Maintain proper distance within 0.08 to 0.4 m range

• Tighten mounting screws with recommended torque

• Use within specified temperature and voltage limits

While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Facebook, YouTube,

Brand	LEUZE
Product Number	DRT25C.3R/LT-M12
Part Number	50145968
Series	25C
Operating principle	Reference teach on reference surface (plastic roller chain or plastic link conveyor)
Application	Detection of bottle and can containers
Special version	Teach input
Operating range	0.08 ... 0.4 m, Max. distance to reference surface
Operating range limit, white 90%	0.05 ... 0.45 m
Minimum object height	80 mm
Light source	LED, Red
Wavelength	645 nm
Transmitted-signal shape	Pulsed
LED group	Exempt group (in acc. with EN 62471)
Supply voltage UB	12 ... 30 V, DC, Incl. residual ripple
Residual ripple	0 ... 15 %, From UB
Open-circuit current	0 ... 40 mA
Number of teach inputs	1 Piece(s)
Type	Teach input
Function	Keyboard lockout, Setting the teach levels
Number of digital switching outputs	1 Piece(s)
Type	Digital switching output
Switching element	Transistor, Push-pull
Switching principle	IO-Link / light switching (PNP)/dark switching (NPN)
Switching frequency	300 Hz
Response time	1.66 ms
Readiness delay	300 ms
Type	IO-Link
COM mode	COM3
Min. cycle time	COM3 = 0.4 ms
Frame type	2.5
Specification	V1.1
Device ID	2139
SIO-mode support	Yes
Process data IN	8 bit
Process data OUT	8 bit
Dual Channel	Yes
Number of connections	1 Piece(s)
Function	Signal IN, Signal OUT,
Type of connection	Connector
Thread size	M12
Type	Male
Material	PUR
No. of pins	4 -pin
Encoding	A-coded
Dimension (W x H x L)	15 mm x 42.7 mm x 30 mm
Housing material	Plastic
Plastic housing	ABS
Lens cover material	Plastic
Housing color	Red
Type of fastening	Through-hole mounting with M4 thread, Via optional mounting device
Recommended tightening torque for M3 fastening	0.9 N·m
Recommended tightening torque for M4 fastening	1.4 N·m
Compatibility of materials	ECOLAB
Type of display	LED
Number of LEDs	2 Piece(s)
Operational controls	Teach button
Function of the operational control	Teach-in on reference surface
Ambient temperature, operation	-10 ... 50 °C, Temperature compensation ±15°C
Ambient temperature, storage	-40 ... 70 °C
Degree of protection	IP 67, IP 69K
Country of origin	Germany
