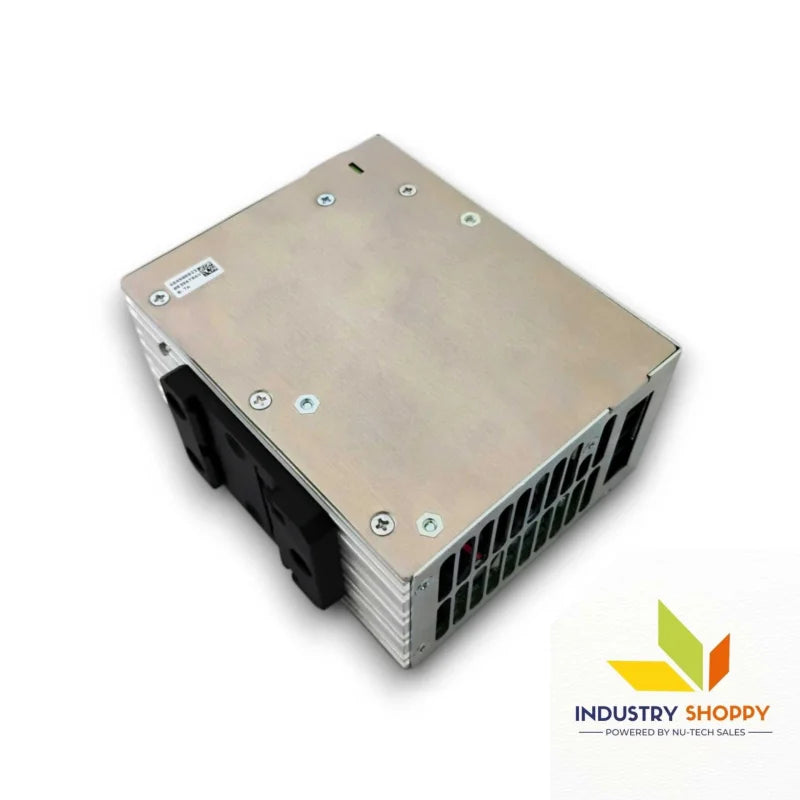

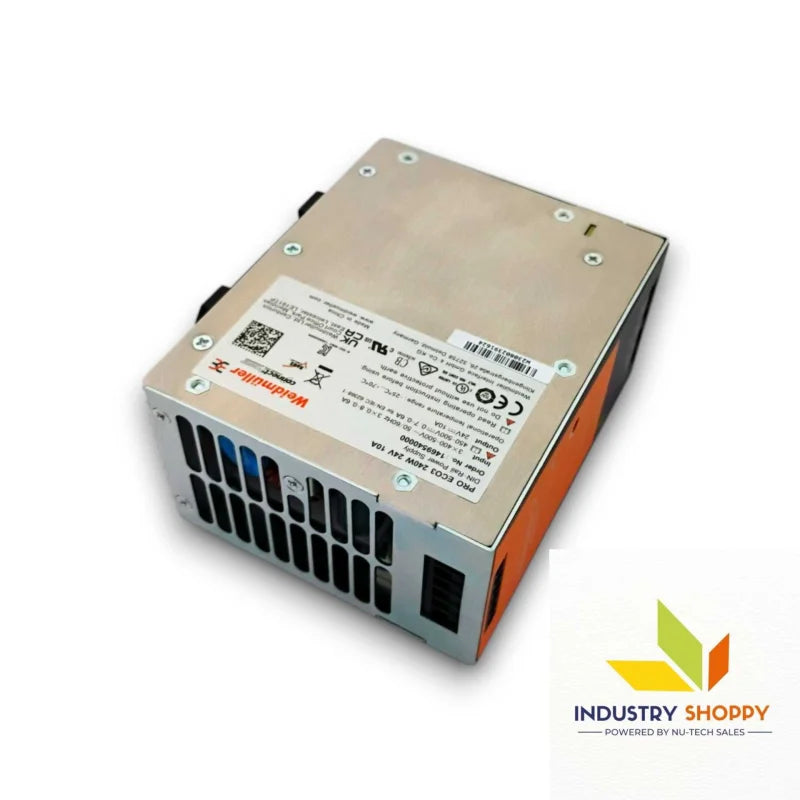

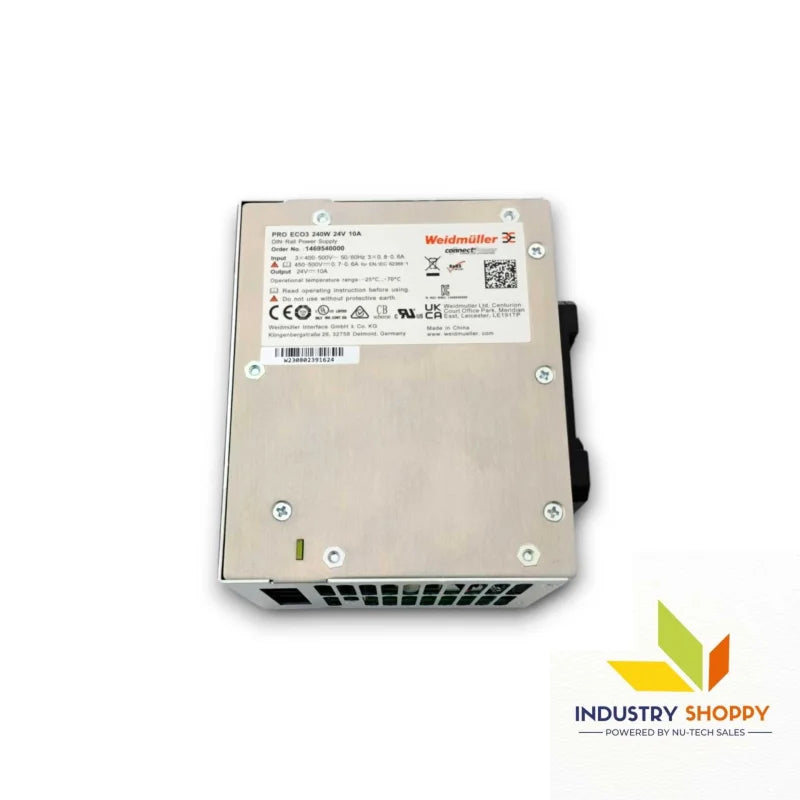

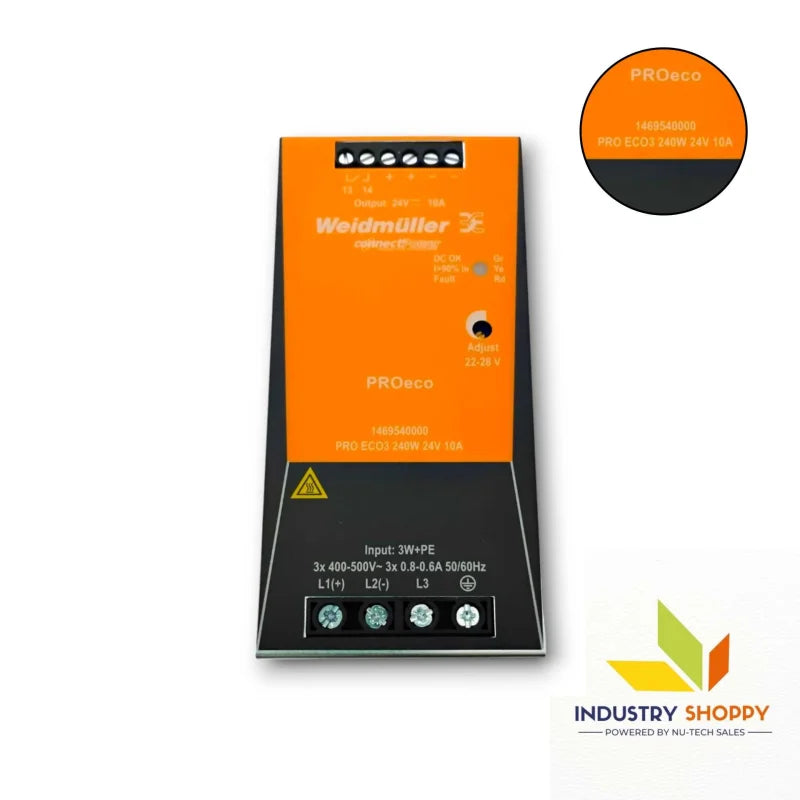

Weidmuller PRO ECO3 240W 24V 10A Power Supply

Weidmuller

Weidmuller PRO ECO3 240W 24V 10A Power Supply

Product SKU: NTSSMPS00029

Available:

Only 3 items in stock

3 items in stock

In stock

Pre-order

Out of stock

Brand	: Weidmuller
Condition	: New
Part Number	: 3025630000
Input Voltage Range	: 400…500 V
Output Power	: 240 W
Power Loss, Nominal Load	: 30 W

Note : All tax and custom duty should be pay by buyer only.

$148.00

~~$210.00~~

Want it delivered by

Description
Specifications
Declaration
Reviews

Weidmüller PRO ECO3 240W 24V 10A Power Supply

The Weidmüller PRO ECO3 240W 24V 10A Power Supply (3025630000) is a high-performance industrial power solution designed for reliable 24 VDC output in automation and control applications. Engineered with wide input voltage support (3 × 320–575 V AC or 450–800 V DC), this unit ensures stable operation across demanding electrical environments.

It delivers 240 W output power with up to 10 A current, making it suitable for powering PLC systems, sensors, and industrial electronics. The device features high efficiency up to 89.6%, low ripple output, and adjustable voltage from 22 V to 28 V, ensuring consistent performance for sensitive equipment.

Built with a corrosion-resistant metal housing and IP20 protection, the power supply offers durability and safe operation. Integrated protections including overload, short-circuit, overheating, and reverse voltage protection enhance reliability for continuous industrial use.

Applications

• Industrial automation and PLC control systems

• Machine building and production equipment

• Process control and instrumentation panels

• Factory automation and electrical control cabinets

Technical Precautions

• Confirm correct three-phase input voltage before installation

• Mount on TS-35 DIN rail with proper ventilation clearance

• Avoid exceeding rated output current (10 A)

• Ensure operating temperature remains within −25 °C to +70 °C

While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Facebook, YouTube,

Product Name	PRO ECO3 240W 24V 10A
Brand	Weidmuller
Order No.	3025630000
Version	Power supply, switch-mode power supply unit, 24 V
Depth	125 mm
Height	130 mm
Width	48 mm
Net Weight	770 g
Storage Temperature	-40°C … +85°C
Operating Temperature	-25°C … +70°C
Start-up Temperature	≥ -40°C
Humidity (Operating)	5…95% RH, no condensation
RoHS Compliance Status	Compliant with exemption
RoHS Exemption	6c, 7a, 7cI
REACH SVHC	Lead 7439-92-1, Lead monoxide 1317-36-8
Certificate No. (cURus)	E255651
AC Input Voltage Range	3 × 320…575 V AC / 2 × 360…575 V AC
DC Input Voltage Range	450…800 V DC
Frequency Range (AC)	45…65 Hz
Input Fuse (Internal)	Yes
Inrush Current (Typ.)	35 A
Line Regulation (Typ.)	1%
Load Regulation (Typ.)	2%
Nominal Power Consumption	269.7 VA
Rated Input Voltage	3 × 400…500 V AC (wide-range input)
Recommended Back-up Fuse	2 A / DI, safety fuse
Circuit Breaker (Char. B)	4 A, unrestricted
Circuit Breaker (Char. C)	2…3 A, Varistor
Start-up Time (Max.)	1 s
Surge Protection	Varistor
Wire Connection Method	Screw connection
Capacitive Load	Unrestricted
Continuous Output Current @ UNominal	6.25 A @ 70°C
Nominal Output Current for Unom	10 A @ 55°C
Output Power	240 W
Output Voltage (Rated)	24 V DC ±1%
Output Voltage (Range)	22 V (min.) … 28 V (max.)
Output Voltage (Adjustment)	Adjustable via potentiometer
Max. Residual Ripple	<50 mVPP / 20 MHz bandwidth
Overload Protection	Yes
Parallel Connection Option	Yes, max. 3
Protection Against Inverse Voltage	Yes
Ramp-up Time	≤ 100 ms
Degree of Efficiency (Typ.)	89.6% @ 400 V AC / 89% @ 480 V AC
Earth Leakage Current (Max.)	3.5 mA
Housing Version	Metal, corrosion resistant
Mounting Position	On terminal rail TS 35
Power Factor (Typ.)	0.58 @ 400 V, 25°C
Power Loss (Idling)	5.5 W
Power Loss (Nominal Load)	30 W
Protection Against Overheating	Yes
Protection Against Reverse Voltage (Load)	30…35 V DC
Protection Degree	IP20
Short-circuit Protection	Yes
Surge Voltage Category	II
Country of Origin	China
