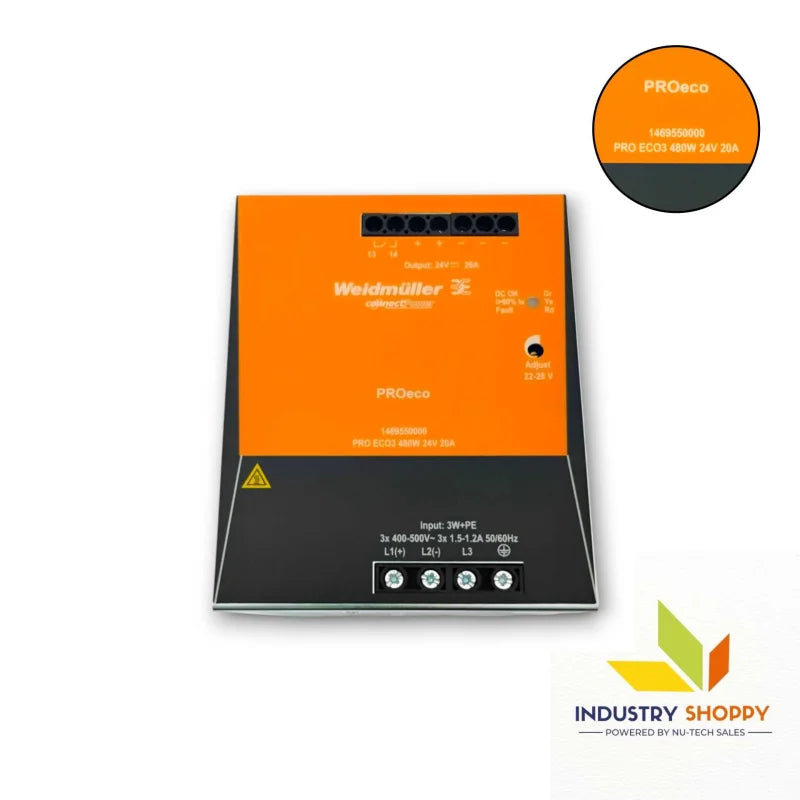

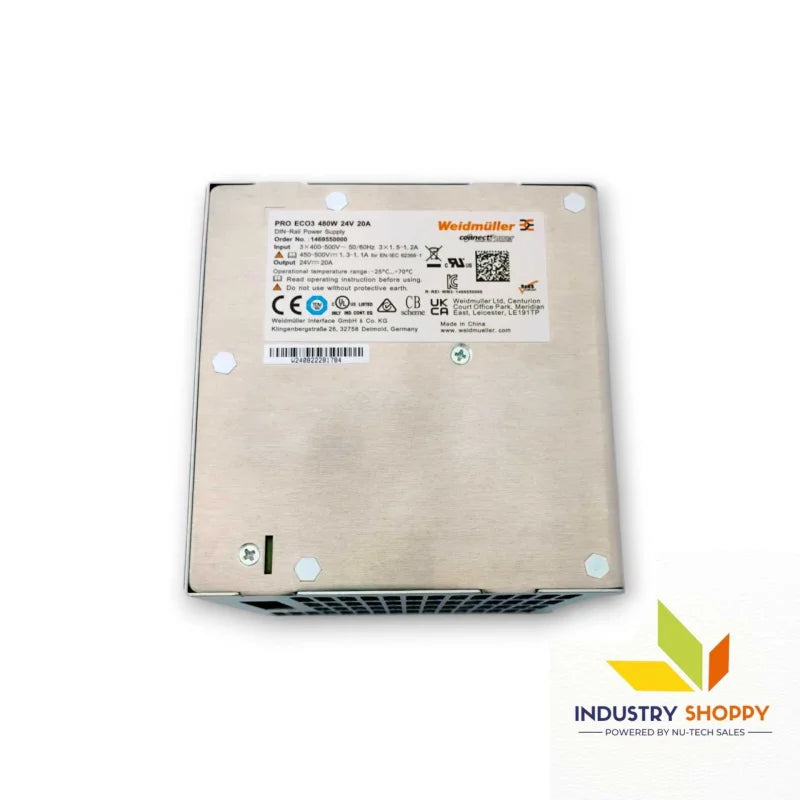

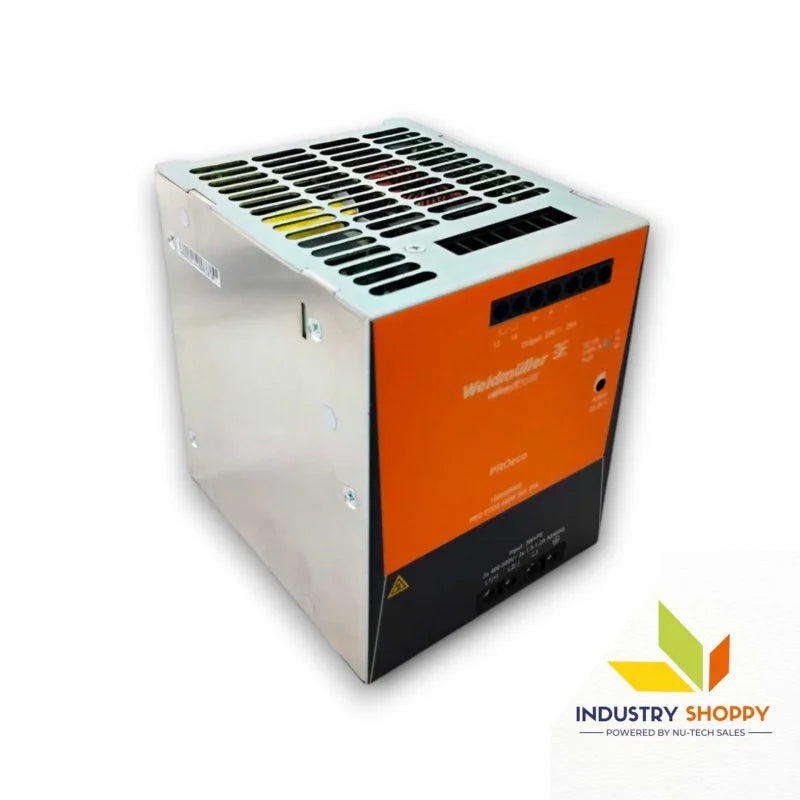

Weidmuller PRO ECO3 480W 24V 20A Power Supply

Weidmuller

Weidmuller PRO ECO3 480W 24V 20A Power Supply

Product SKU: NTSSMPS00030

Available:

Only 3 items in stock

3 items in stock

In stock

Pre-order

Out of stock

Brand	: Weidmuller
Condition	: New
Part Number	: 3025640000
Input Voltage Range	: 400..500 V
Output Power	: 480 W
Power Loss, Nominal Load	: 40 W

Note : All tax and custom duty should be pay by buyer only.

$265.00

~~$400.00~~

Want it delivered by

Description
Specifications
Declaration
Reviews

Weidmüller PRO ECO3 480W 24V 20A Power Supply

The Weidmüller PRO ECO3 480W 24V 20A Power Supply (3025640000) is a reliable and efficient solution for demanding industrial automation systems. Designed for three-phase input applications (320–575 V AC), this unit provides a stable 24 VDC output with a powerful 20 A current capacity, making it ideal for powering PLCs, control panels, sensors, and industrial electronics.

The device offers high efficiency up to 92.6%, ensuring reduced energy consumption and heat generation. It features adjustable output voltage (22–28 V), low ripple output, and robust protection mechanisms, including overload, short-circuit, and overheating protection.

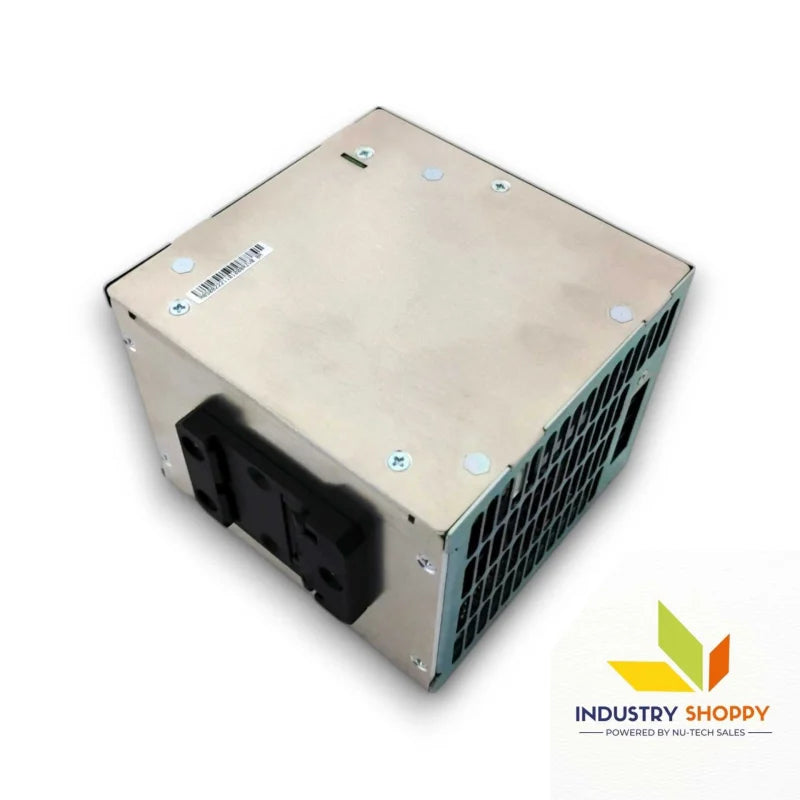

Built with a durable corrosion-resistant metal housing and IP20 protection, the power supply is suitable for continuous industrial operation. Its DIN rail (TS-35) mounting design enables quick installation in control cabinets and automation panels.

Applications

• Industrial automation and PLC systems

• Machine control panels and production equipment

• Process control and instrumentation systems

• Factory automation and electrical distribution cabinets

Technical Precautions

• Ensure correct three-phase input voltage before connection

• Install on TS-35 DIN rail with proper airflow and ventilation

• Do not exceed the rated 20 A output current

• Maintain operating temperature between −25 °C and +70 °C

While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Facebook, YouTube,

Product Name	PRO ECO3 480W 24V 20A
Brand	Weidmuller
Order No.	3025640000
Version	Power supply, switch-mode power supply unit, 24 V
Depth	125 mm
Height	130 mm
Width	60 mm
Storage Temperature	-40°C … +85°C
Operating Temperature	-25°C … +70°C
Start-up Temperature	≥ -40 °C
Humidity (Operating)	5…95% RH, no condensation
RoHS Compliance Status	Compliant with exemption
RoHS Exemption	6c, 7a, 7cI
REACH SVHC	Lead 7439-92-1, Lead monoxide 1317-36-8
Certificate No. (cURus)	E255651
AC Input Voltage Range	3 × 320…575 V AC / 2 × 360…575 V AC
DC Input Voltage Range	450…800 V DC
Frequency Range (AC)	45…65 Hz
Input Fuse (Internal)	internal
Inrush Current (Typ.)	7:00 AM
Line Regulation (Typ.)	1%
Load Regulation (Typ.)	2%
Nominal Power Consumption	516.1 VA
Rated Input Voltage	3 × 400…500 V AC (wide-range input)
Recommended Back-up Fuse	4 A / DI, safety fuse
Circuit Breaker (Char. B)	4 A, unrestricted
Start-up Time (Max.)	1 s
Surge Protection	Varistor
Wire Connection Method	Screw connection
Capacitive Load	Unrestricted
Continuous Output Current @ UNominal	12.5 A @ 70°C
Nominal Output Current for Unom	20 A @ 55°C
Output Power	480 W
Output Voltage (Rated)	24 V DC ±1%
Output Voltage (Range)	22 V (min.) … 28 V (max.)
Output Voltage (Adjustment)	Adjustable via potentiometer
Max. Residual Ripple	<50 mVPP / 20 MHz bandwidth
Overload Protection	Yes
Parallel Connection Option	Yes, max. 3
Protection Against Inverse Voltage	Yes
Ramp-up Time	≤ 100 ms
Degree of Efficiency (Typ.)	Typ.: 92,6% @ 400 V AC Typ.: 92,2% @ 480 V AC
Earth Leakage Current (Max.)	3.5 mA
Housing Version	Metal, corrosion resistant
Mounting Position	On terminal rail TS 35
Power Factor (Typ.)	5…95 % rel. humidity, no condensation
Power Loss (Idling)	4 W
Power Loss (Nominal Load)	40 W
Protection Against Overheating	Yes
Protection Against Reverse Voltage (Load)	30…35 V DC
Protection Degree	IP20
Short-circuit Protection	Yes
Surge Voltage Category	II
Country of Origin	China
