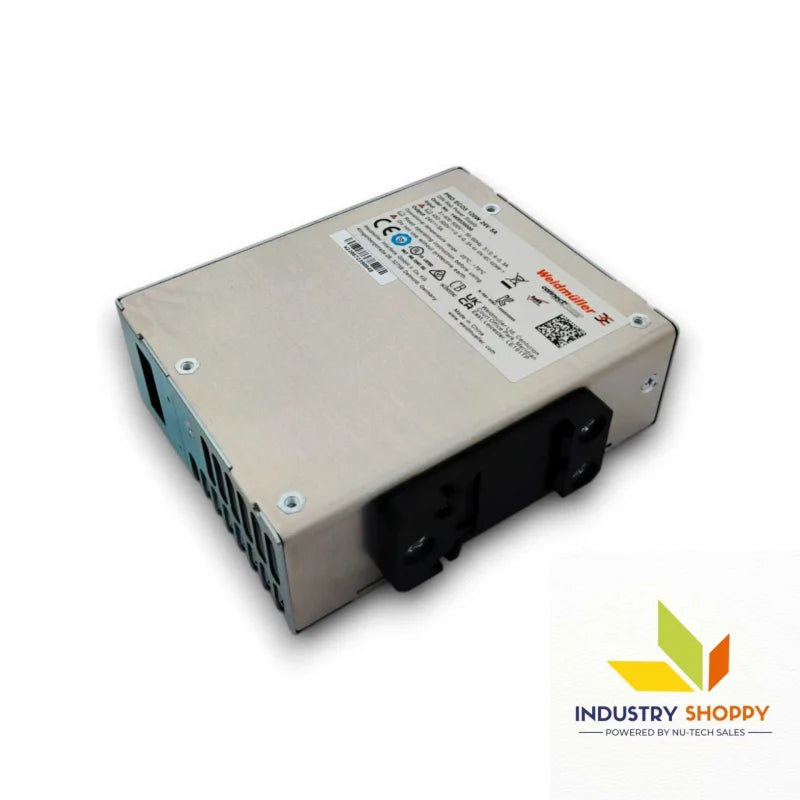

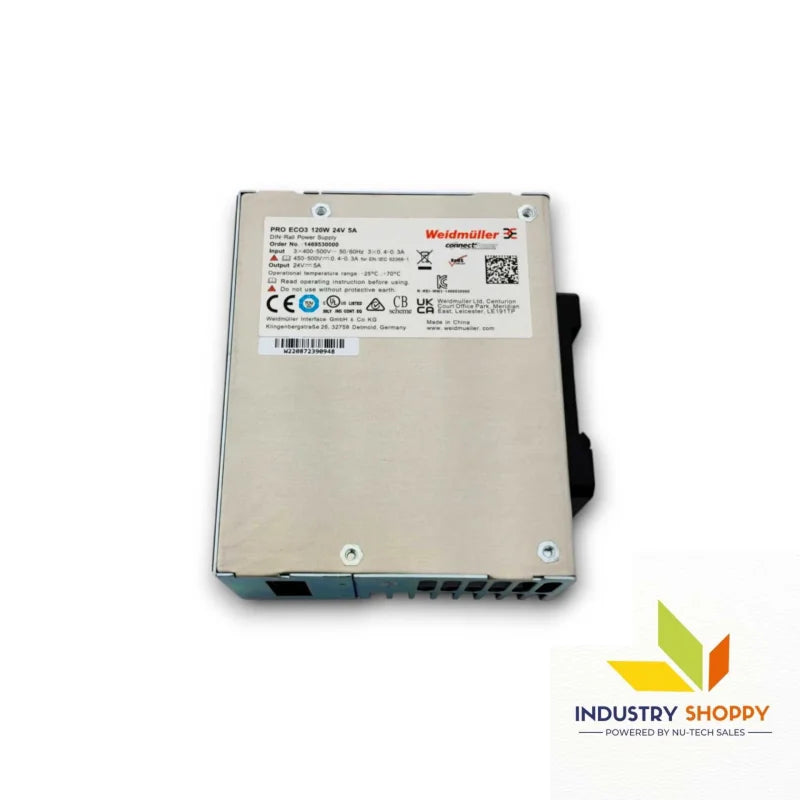

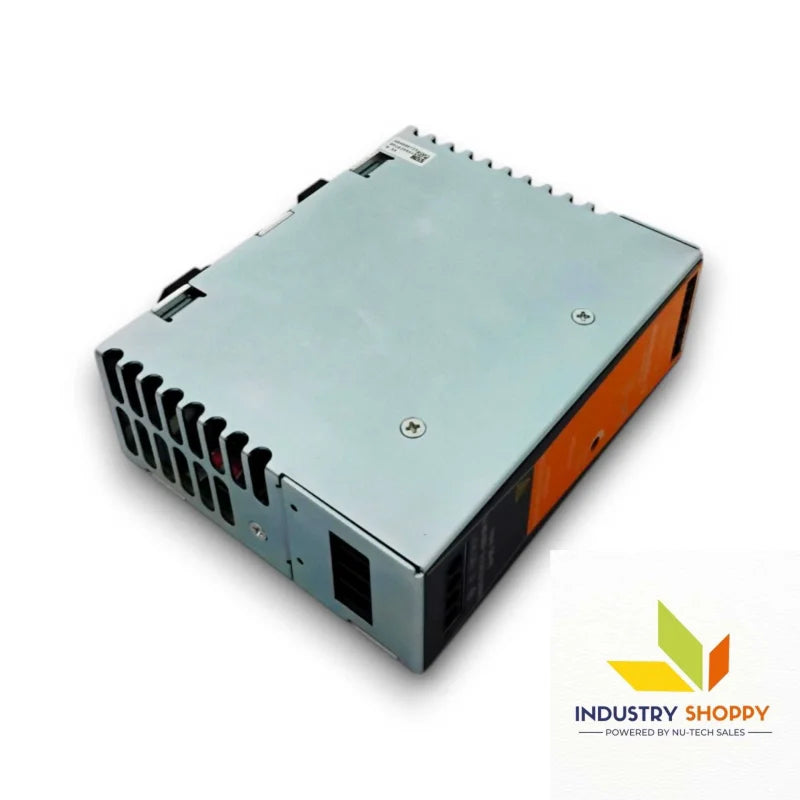

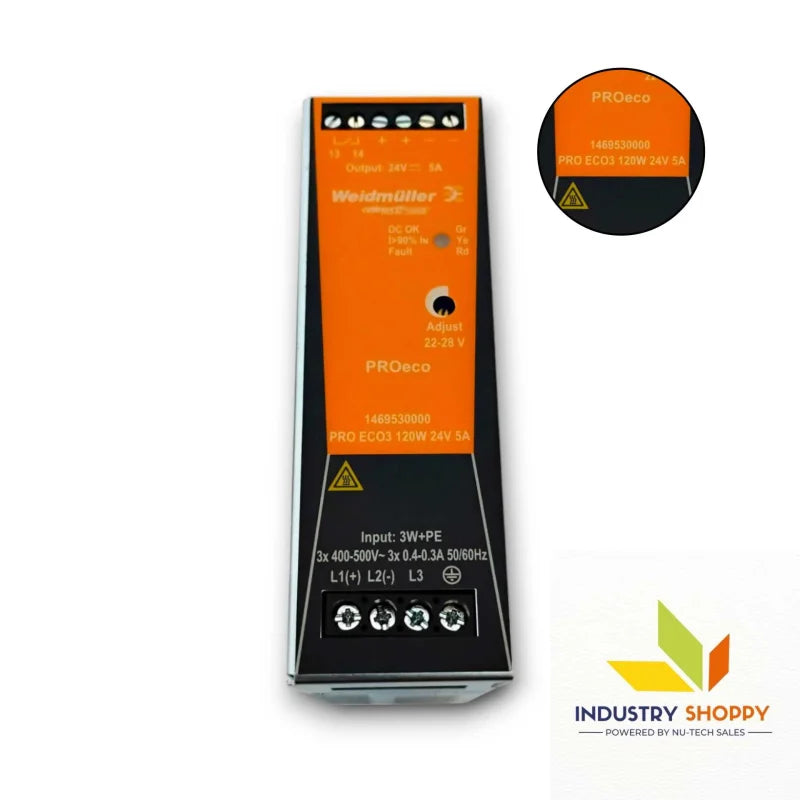

Weidmuller PRO ECO3 120W 24V 5A Power Supply

Weidmuller

Weidmuller PRO ECO3 120W 24V 5A Power Supply

Product SKU: NTSSMPS00028

Available:

Only 1 item in stock

1 item in stock

In stock

Pre-order

Out of stock

Brand	: Weidmuller
Condition	: New
Part Number	: 1469490000
DC Input Voltage Range	: 80 ~ 370 V DC (Derating @ 120 V DC)
Output Power	: 240 W
Power Loss, Nominal Load	: 24 W

Note : All tax and custom duty should be pay by buyer only.

$110.00

~~$175.00~~

Want it delivered by

Description
Specifications
Declaration
Reviews

Weidmüller PRO ECO3 120W 24V 5A Power Supply

The Weidmüller PRO ECO3 120W 24V 5A Power Supply (1469490000) is a compact and reliable solution designed for industrial automation, control panels, and electronic systems. This unit provides a stable 24 VDC output with efficient power delivery, ensuring smooth operation of sensitive industrial equipment.

With a wide input voltage range of 85–264 V AC and 80–370 V DC, it offers excellent flexibility for different electrical environments. Built with a durable corrosion-resistant metal housing and IP20 protection, the power supply ensures long service life in demanding industrial conditions.

The device features 90% efficiency, adjustable output voltage from 22 V to 28 V, and built-in overload, short-circuit, and overheating protection for safe and reliable operation. LED indicators allow quick monitoring of operating status, making it suitable for continuous industrial power distribution applications.

Applications

• Industrial automation and control panels

• PLC systems and instrumentation devices

• Machine building and factory automation

• Process control and electronic equipment

Technical Precautions

• Verify input voltage range (85–264 V AC) before installation

• Install on TS-35 DIN rail with sufficient ventilation space

• Avoid exceeding rated output current and load capacity

• Maintain operating temperature between −25 °C and +70 °C

While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Facebook, YouTube,

Product Name	PRO ECO3 120W 24V 5A
Brand	Weidmuller
Order No.	1469490000
Version	Power supply, switch-mode power supply unit, 24 V
Depth	100 mm
Height	125 mm
Width	60 mm
Net Weight	1,002 g
Storage Temperature	-40 °C ~ 85 °C
Operating Temperature	-25 °C ~ 70 °C
RoHS Compliance Status	Compliant with exemption
RoHS Exemption	7a, 7cI
REACH SVHC	Lead 7439-92-1
SCIP	6d8cdf22-8230-4af8-86c8-3558c716666d
AC Current Consumption	1.23 A @ 230 V AC / 2.47 A @ 110 V AC
AC Input Voltage Range	85 ~ 264 V AC (derating at 100 V AC)
Connection System	Screw connection
DC Current Consumption	1.18 A @ 370 V DC / 2.4 A @ 120 V DC
DC Input Voltage Range	80 ~ 370 V DC (Derating @ 120 V DC)
Frequency Range AC	47 ~ 63 Hz
Input Fuse (Internal)	Yes
Inrush Current	max. 15 A
Nominal Power Consumption	266.7 VA
Rated Input Voltage	100 ~ 240 V AC
Recommended Back-up Fuse	4 A / DI, safety fuse; 10 A, Char. B, circuit breaker; 3–4 A, Char. C, circuit breaker
Surge Protection	Varistor
Capacitive Load	unrestricted
Continuous Output Current @ UNominal	10 A @ 55 °C; 2.5 A @ 70 °C
Nominal Output Current for UNom	10 A @ 55 °C
Output Power	240 W
Output Voltage, Max.	28 V
Output Voltage, Min.	22 V
Output Voltage, Note	Adjustable via potentiometer
Overload Protection	Yes
Parallel Connection Option	Yes, max. 5
Protection Against Inverse Voltage	Yes
Ramp-up Time	≤ 100 ms
Rated Output Voltage	24 V DC ± 1 %
Residual Ripple, Breaking Spikes	<50 mVPP @ 24 V DC, IN
AC Failure Bridging Time @ Inom	> 20 ms @ 230 V AC / > 20 ms @ 115 V AC
Degree of Efficiency	90%
Earth Leakage Current, Max.	3.5 mA
Housing Version	Metal, corrosion resistant
Indication	Green LED (Uoutput > 21.6 V DC); Yellow LED (Ioutput > 90 % IRated typ.); Red LED (overload, overtemperature, short-circuit, Uoutput <20.4 V DC)
Max. Permissible Air Humidity	5 % ~ 95 % RH
Mounting Position	On terminal rail TS 35
Power Factor (Approx.)	> 0.94 @ 230 V AC / > 0.99 @ 115 V AC
Power Loss, Idling	2 W
Power Loss, Nominal Load	24 W
Protection Against Over-heating	Yes
Protection Against Reverse Voltages from Load	30 ~ 35 V DC
Protection Degree	IP20
Short-circuit Protection	Yes
Surge Voltage Category	II
Country of Origin	China
