Weidmuller BLF 3.50/06/180 SN BK BX Connector
Weidmuller BLF 3.50/06/180 SN BK BX Connector
Weidmuller BLF 3.50/06/180 SN BK BX Connector
Weidmuller BLF 3.50/06/180 SN BK BX Connector
Weidmuller BLF 3.50/06/180 SN BK BX Connector
Weidmuller BLF 3.50/06/180 SN BK BX Connector
Weidmuller BLF 3.50/06/180 SN BK BX Connector
Weidmuller BLF 3.50/06/180 SN BK BX Connector
Weidmuller

Weidmuller BLF 3.50/06/180 SN BK BX Connector

Product SKU: WDMCNT0006
Available:
Only 84 items in stock
84 items in stock
In stock
Pre-order
Out of stock
  • Brand: Weidmuller
  • Type:  PCB Plug-In Connector
  • Pitch in mm (P): 3.5 mm
  • Operating Temperature: -50°C to 120°C
$15.00
$26.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Declaration

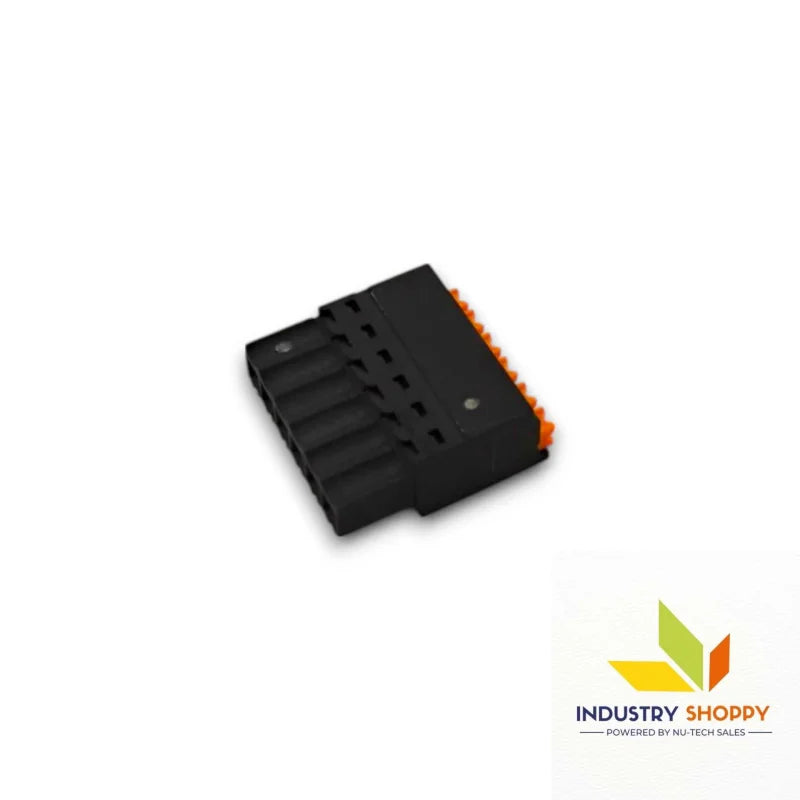

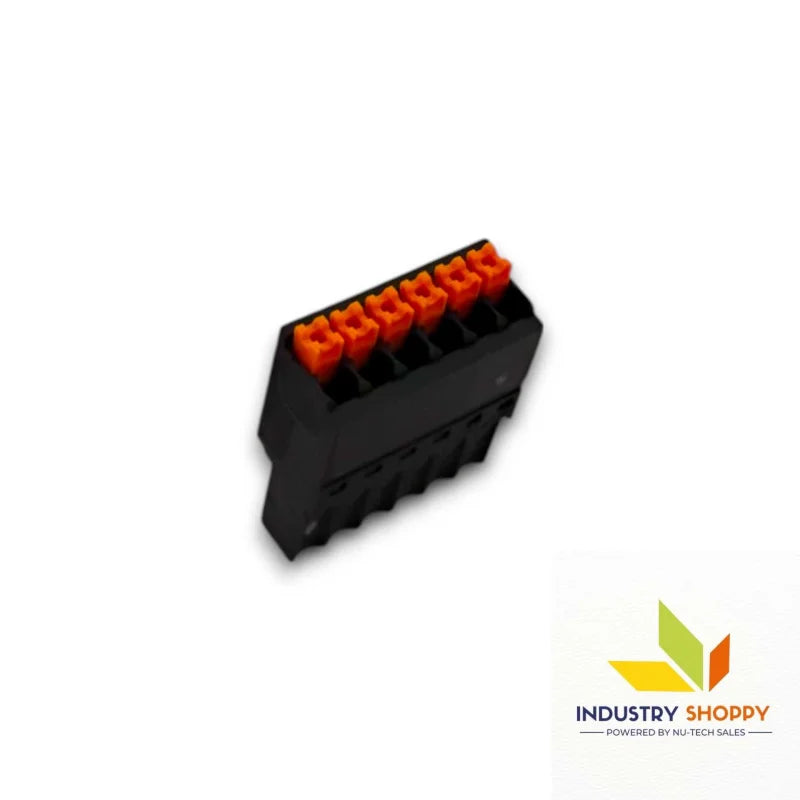

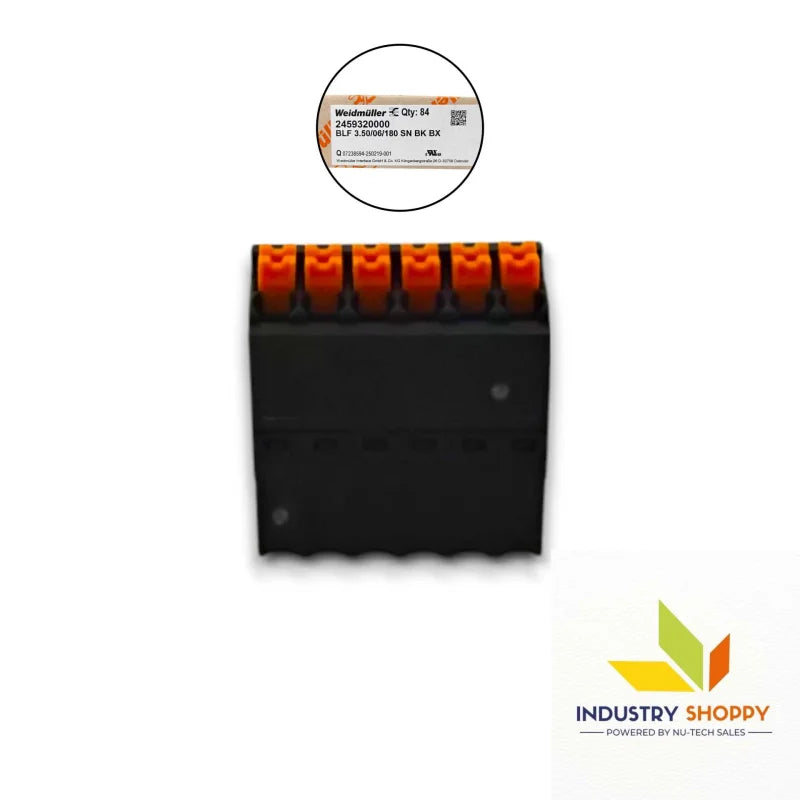

Weidmuller BLF 3.50/06/180 SN BK BX Connector

The Weidmuller BLF 3.50/06/180 SN BK BX Connector (2459320000)

is a premium 6-pole PCB plug-in connector designed for reliable and efficient signal transmission in modern electronic and industrial applications. With a compact 3.50 mm pitch and 180° conductor outlet, it ensures space-saving installation without compromising performance. Its PUSH IN connection technology allows fast, secure, and tool-free wiring, reducing assembly time and improving operational efficiency.

Constructed from high-quality PA GF housing (UL 94 V-0) and equipped with tinned Cu-alloy contacts, this connector delivers excellent conductivity, flame resistance, and long-term durability. The touch-safe IP20 protection and robust mechanical design support up to 25 plugging cycles, guaranteeing dependable performance in demanding environments.

With an operating temperature range of -50°C to +120°C, this connector is suitable for energy systems, automation controls, and compact PCB designs, making it an ideal choice for professional industrial applications.


While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.


Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.


Facebook, YouTube,



BrandWeidmuller
Model NumberBLF 3.50/06/180 SN BK BX
Part No.2459320000
TypePCB plug-in connector
Product FamilyOMNIMATE Signal - series BL/SL 3.50
Type of ConnectionField connection
Wire Connection MethodPUSH IN with actuator
Pitch (mm)3.5 mm
Pitch (inches)0.138"
Conductor Outlet Direction180°
Number of Poles6
Pin Series Quantity1
Number of Rows0.689" (seems incorrect)
Rated Cross-Section1.5 mm²
Depth22.7 mm / 0.894 inch
Height9 mm / 0.354 inch
Width21 mm / 0.827 inch
L1 Length17.5 mm / 2.067"
Touch-safe Protection (DIN VDE 57 106)Safe from finger touch
Touch-safe Protection (DIN VDE 0470)IP20 plugged / IP10 unplugged
Protection DegreeIP20 when fully mounted
Volume Resistance≤ 5 mΩ
Can be CodedYes
Stripping Length8 mm
Stripping Length ToleranceMin 0 mm, Max 1 mm
Screwdriver Blade0.4 x 2.5
Screwdriver Blade StandardDIN 5264-A
Plugging Cycles25
Plugging Force per Pole (max)6 N
Pulling Force per Pole (max)6 N
Insulating MaterialPA GF
ColourBlack
Colour Chart (similar)RAL 9011
Insulating Material GroupII
Comparative Tracking Index (CTI)≥ 400 … ≤ 600
UL 94 Flammability RatingV-0
Contact MaterialCu-alloy
Contact SurfaceTinned
Storage Temperature-40°C to 70°C
Operating Temperature-50°C to 120°C
Installation Temperature Range-30°C to 100°C
Country of OriginRomania

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
