Sick YG2A14-050VB3XLEAX Sensor Cables
Sick YG2A14-050VB3XLEAX Sensor Cables
Sick YG2A14-050VB3XLEAX Sensor Cables
Sick YG2A14-050VB3XLEAX Sensor Cables
Sick

Sick YG2A14-050VB3XLEAX Sensor Cables

Product SKU: NTSCBL00039
Available:
Only 25 items in stock
25 items in stock
In stock
Pre-order
Out of stock

  • Model: YF2A14-050VB3XLEAX

  • Part No.: 2095897

  • Cable Length: 5 m, 4 Wire, PVC

  • Connector material: TPU

  • Nominal voltage, cable: 300 V AC

Note : All tax and custom duty should be pay by buyer only.


For Indian Buyers: IndustryShoppy.in

$32.00
$50.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Declaration

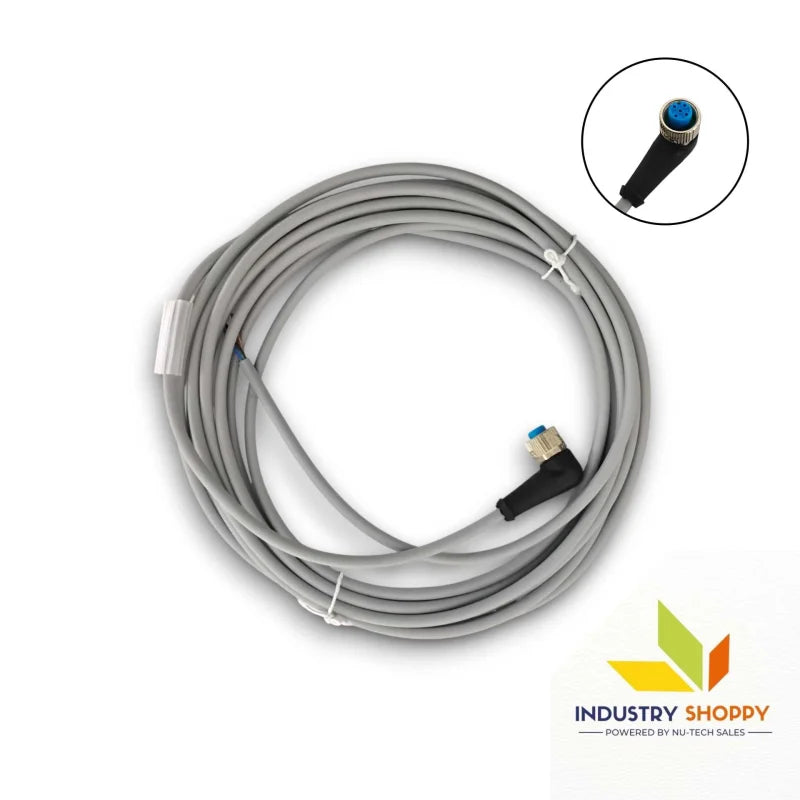

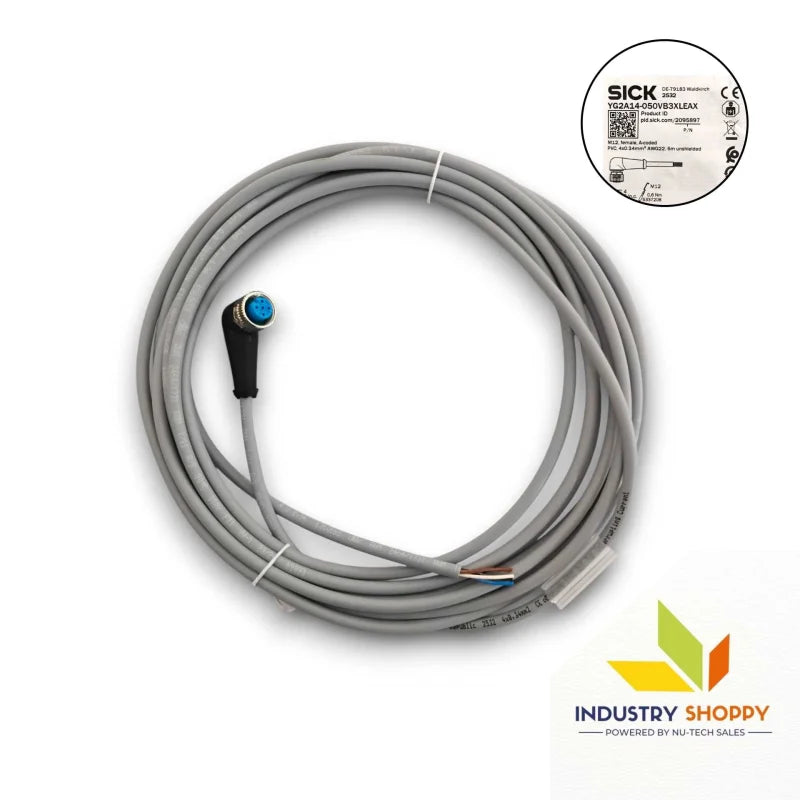

Sick YG2A14-050VB3XLEAX Sensor Cables

The Sick YG2A14-050VB3XLEAX Sensor Cables (Part No. 2095897) /actuator cable is

a high-performance M12, 4-pin angled A-coded female connector cable designed for reliable sensor and actuator connectivity.

Featuring a 5-meter PVC cable with 0.34 mm² conductors, it ensures stable signal transmission in industrial environments. The durable TPU connector body with FKM sealing provides strong resistance against chemicals and harsh conditions. With a tightening torque of 0.6 Nm and zinc die-cast nickel-plated locking nut, it guarantees secure installation.

Rated for 300 V AC nominal voltage, 2.5 kV impulse voltage, and up to 4 A current loading, it supports dependable power and signal performance. The cable meets IP65 / IP66K / IP67 protection ratings and operates within –5 °C to +80 °C (flexible), making it suitable for demanding automation applications.


Applications

• Sensor and actuator connections in automation systems

• Packaging, assembly, and material handling machinery

• Control panels and field-level device wiring

• Installations in chemical or washdown environments


Technical Precautions

• Tighten connector to 0.6 Nm torque to prevent seal damage or loosening

• Maintain minimum bend radius (>10× cable diameter) during flexible installation

• Do not exceed 4 A current loading to avoid overheating

• Operate within 300 V AC nominal voltage limits for safe performance


While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.


Facebook, YouTube,

Product NumberYG2A14-050VB3XLEAX
Part Number2095897
Connection Type Head AFemale connector, M12, 4-pin, angled, A-coded
Connection Type Head BFlying leads
Locking Plug ConnectorScrew connection
Connector MaterialTPU
Connector ColorBlack
Locking Nut MaterialZinc die-cast, nickel-plated
Seal MaterialFKM
Tightening Torque0.6 Nm
Width Across Flats13 mm
Cable Length5 m
Cable Wires4-wire, PVC
Jacket MaterialPVC
Jacket ColorGray
Cable Diameter5 mm
Conductor Cross Section0.34 mm²
ShieldingUnshielded
Flexible Use Min. Bend Radius> 10 × cable diameter
Stationary Position Min. Bend Radius> 5 × cable diameter
Nominal Voltage, Cable300 V AC
Test Voltage, Cable2,000 V AC
Reference Voltage250 V AC / 250 V DC
Rated Impulse Voltage2.5 kV
Current Loading4:00 AM
Signal TypeSensor/actuator cable
ApplicationZones with chemicals, Uncontaminated zones
AuthorizationsCE, UL
UL File No.E335179
Enclosure RatingIP65 / IP66K / IP67
Flexible Use Temp.–5 °C … +80 °C
Stationary Position Temp.–30 °C … +80 °C
Head Temp.–25 °C … +85 °C
Contamination Rating3
Insulation Resistance100 MΩ
Overvoltage CategoryIII
Specific Insulation Resistance30 mΩ
Thermal Resistance, PipingFlame retardant according to UL 1581 VW1 / CSA FT1
Country of originCzech Republic

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
