TDK-Lambda

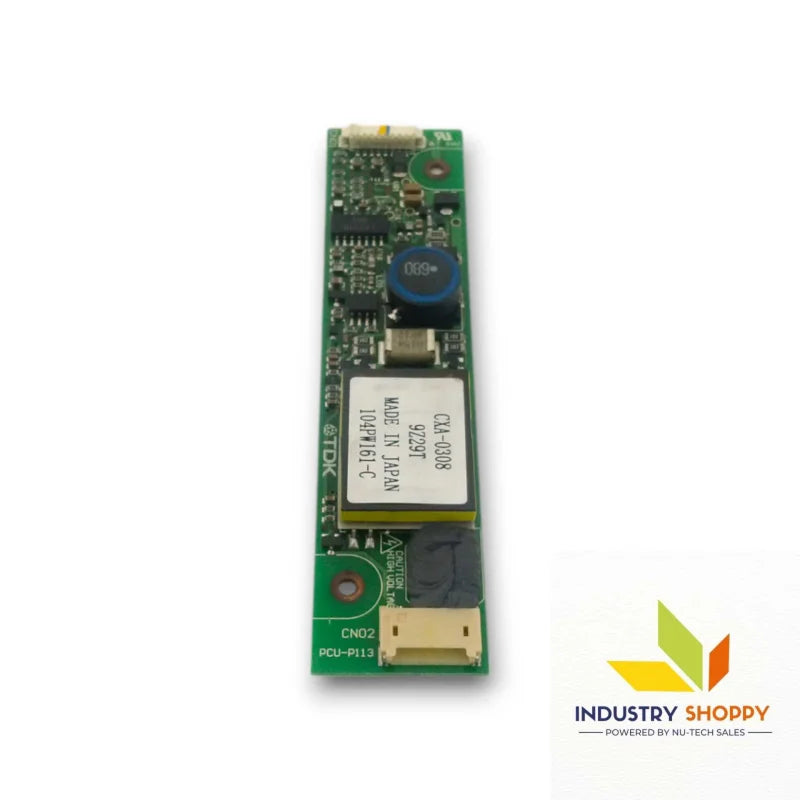

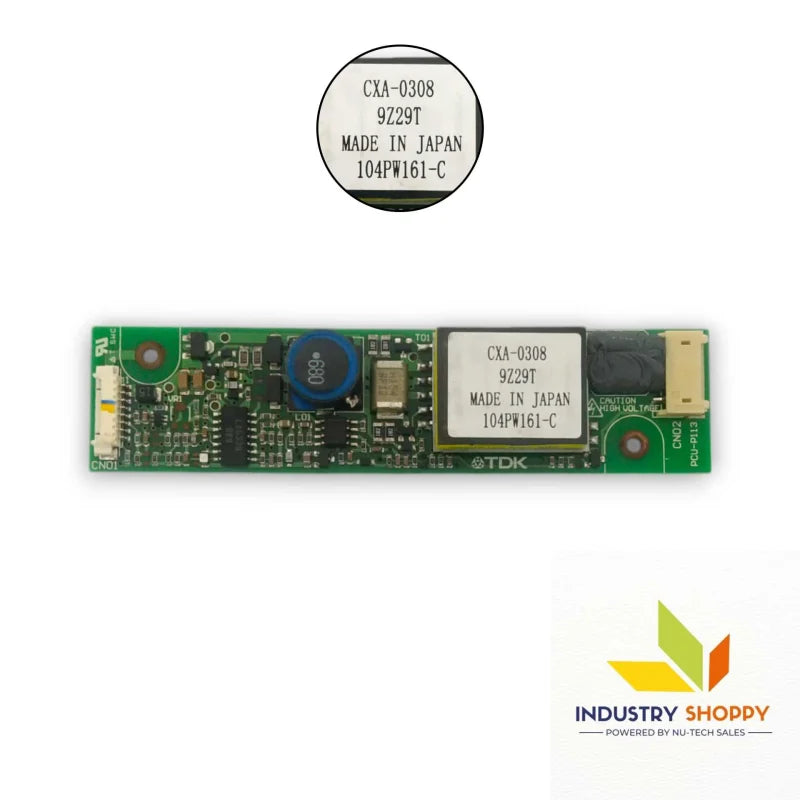

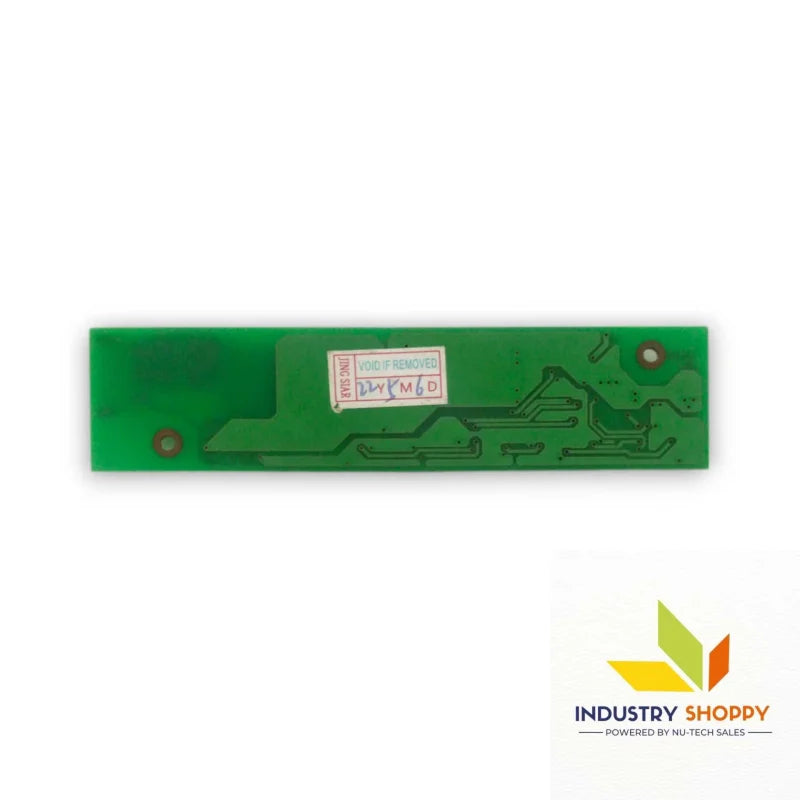

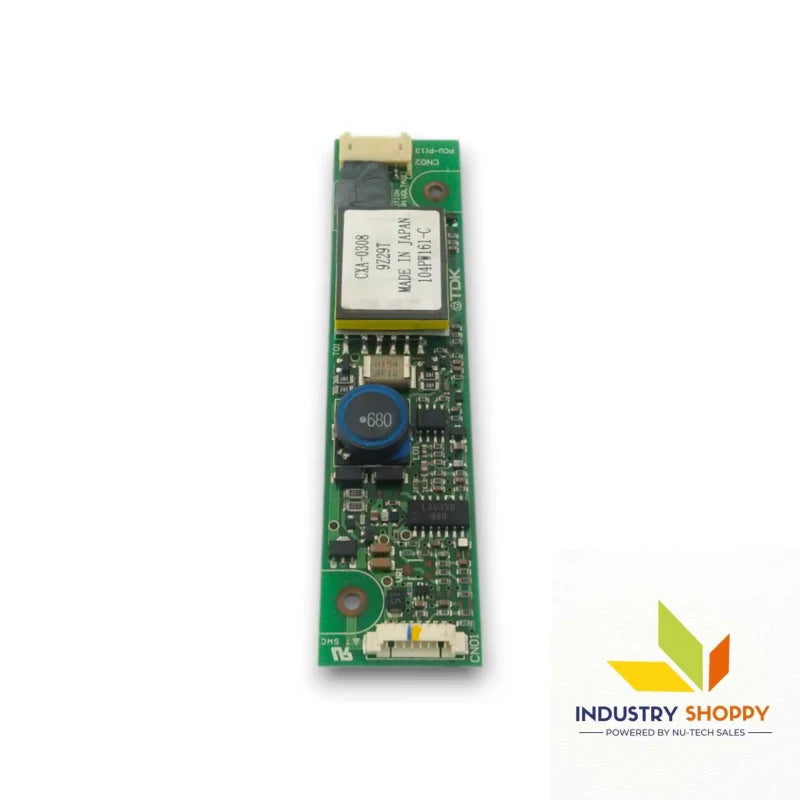

TDK CXA-0308 CCFL Inverter

Product SKU: NTSINVT0010

Available:

Only 2 items in stock

2 items in stock

In stock

Pre-order

Out of stock

Manufacturer: TDK Lambda
Category: CCFL Inverters & Accessories
Input Voltage (Vin): 10.8 – 13.2 V DC (typically 12 V)
Input Current: Typ ~0.55 A; Max ~0.75 A

$60.00

~~$85.00~~

Want it delivered by

Description
Specifications
Declaration
Reviews

TDK CXA-0308 CCFL Inverter

The TDK CXA-0308 CCFL Inverter (9Z29T) is a high-reliability dual-lamp CCFL backlight inverter engineered for industrial and commercial LCD applications. Operating on a 10.8–13.2 V DC input, typically 12 V, it delivers stable output for two lamps with a consistent ~5 mArms lamp current per channel.

The inverter provides a normal ~600 Vrms output voltage, with a strong 1200–1250 Vrms start-up voltage for dependable lamp ignition, even in cold conditions. Designed with PWM dimming, analog brightness control (0–2.5 V / potentiometer), and alarm output (Vst), it supports intelligent system monitoring and adjustable illumination.

Its silicon-coated high-voltage section enhances safety and insulation durability. Built for harsh environments, it operates from –10°C to +70°C and stores safely at –30°C to +85°C. The compact 105 × 25 × 8.5 mm size makes it ideal for space-restricted LCD modules.

While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Facebook, YouTube,

Brand	TDK
Model Number	CXA-0308 (9Z29T)
Series	CXA
Application	LCD backlight inverter (dual-lamp CCFL / EL lamps)
Input Voltage (Vin)	10.8 – 13.2 V DC (Typically 12 V)
Input Current	Typical: ~0.55 A; Max: ~0.75 A
Output Voltage (Lamp)	~600 Vrms (normal), ~1200–1250 Vrms (start/open circuit)
Lamp Current	~5 mArms per lamp (dual output)
Features	PWM dimming, alarm output, current feedback, silicon-coated high-voltage area
Brightness Control	0–2.5 V analog or 0–50 kΩ potentiometer (dimming input)
Alarm Signal (Vst)	Outputs +5 V on lamp failure or open circuit
Operating Temperature Range	–10°C to +70°C
Storage Temperature Range	–30°C to +85°C
Dimensions (W × D × H)	Approx. 105 × 25 × 8.5 mm

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
