Sharp LQ064X3LW02 LCD Module

Sharp LQ064X3LW02 LCD Display -  6.4" XGA TFT

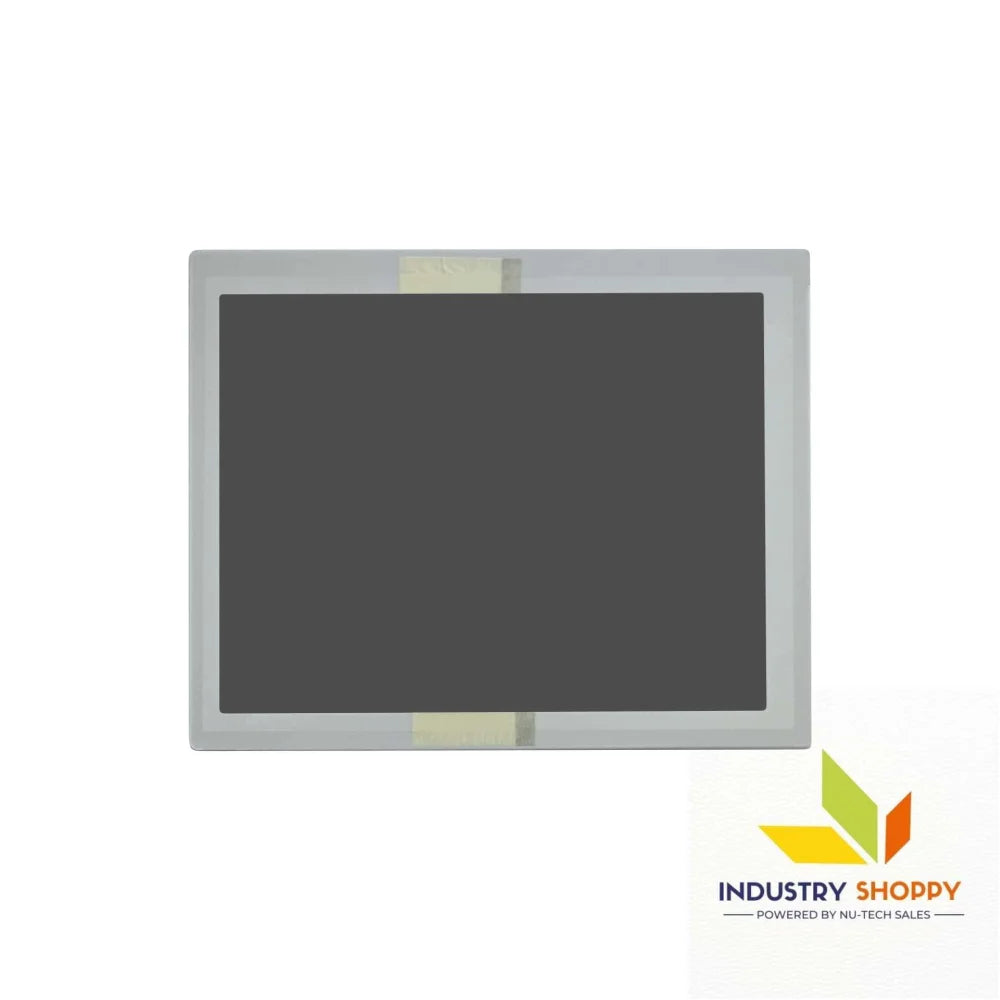

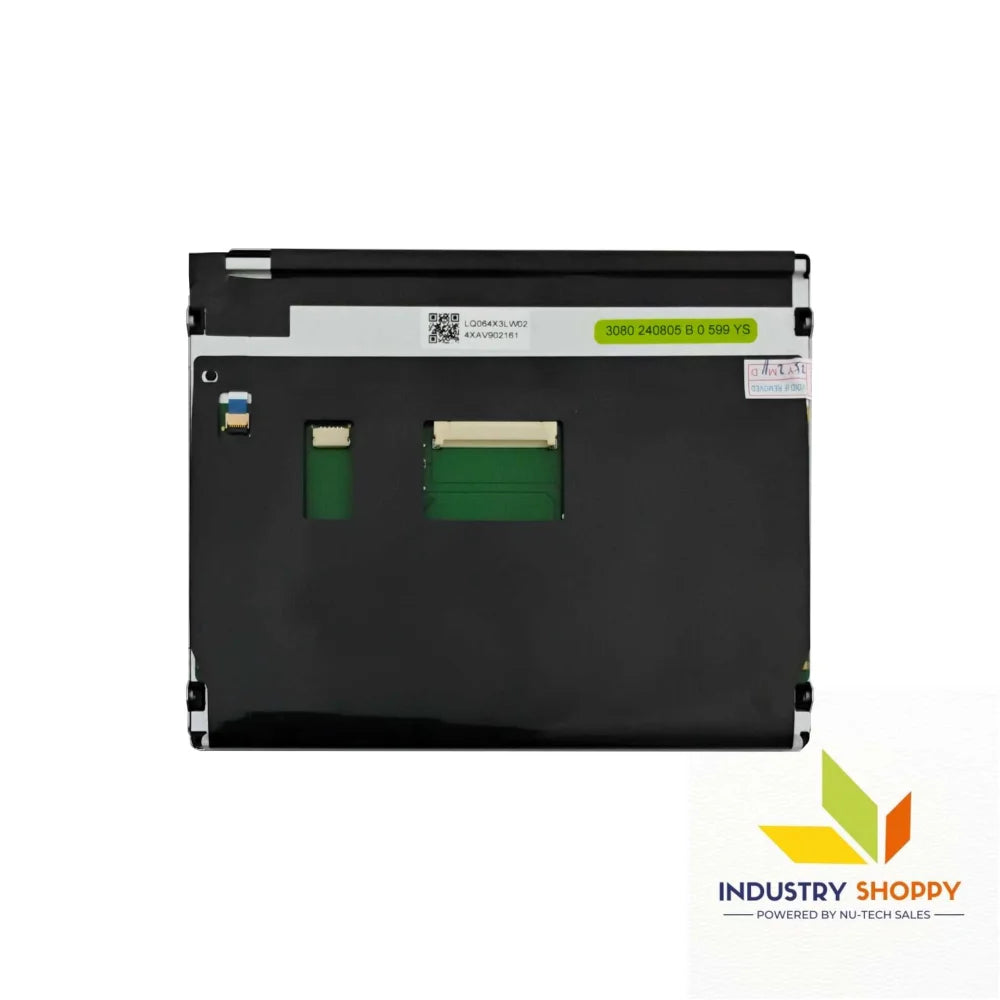

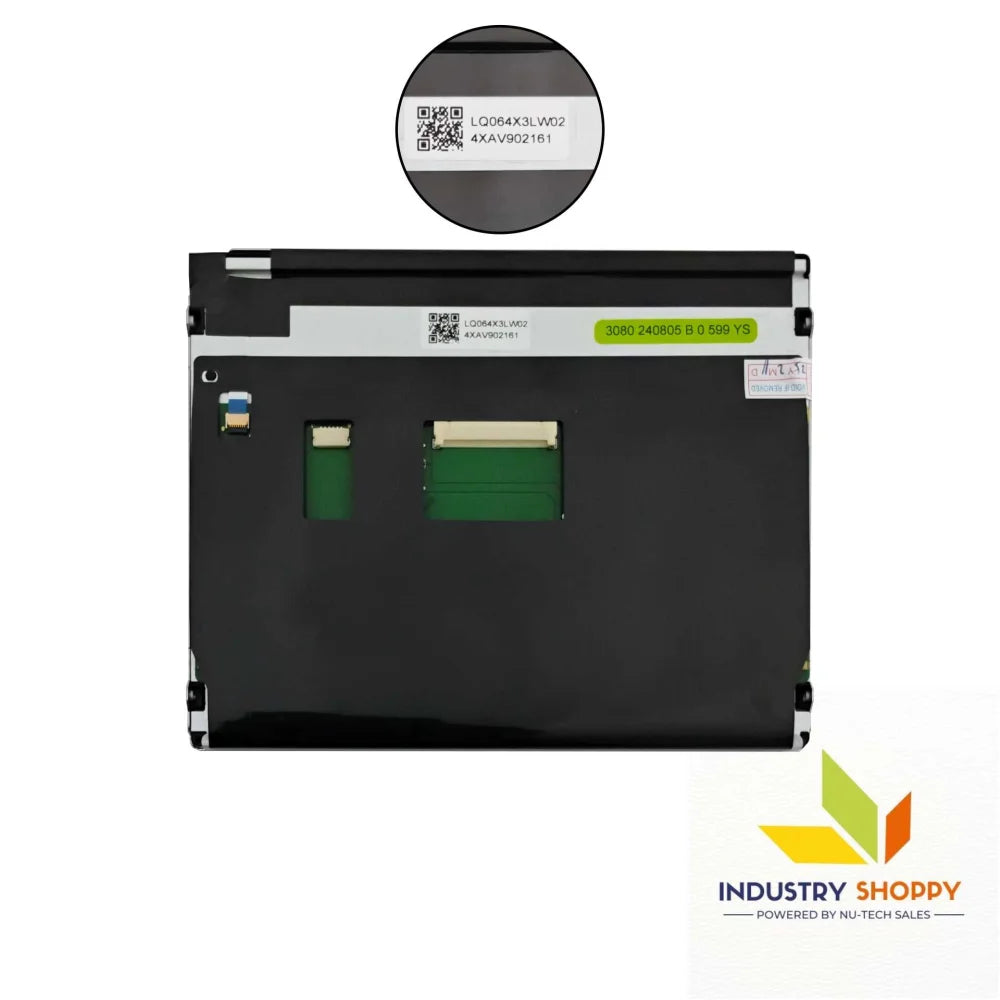

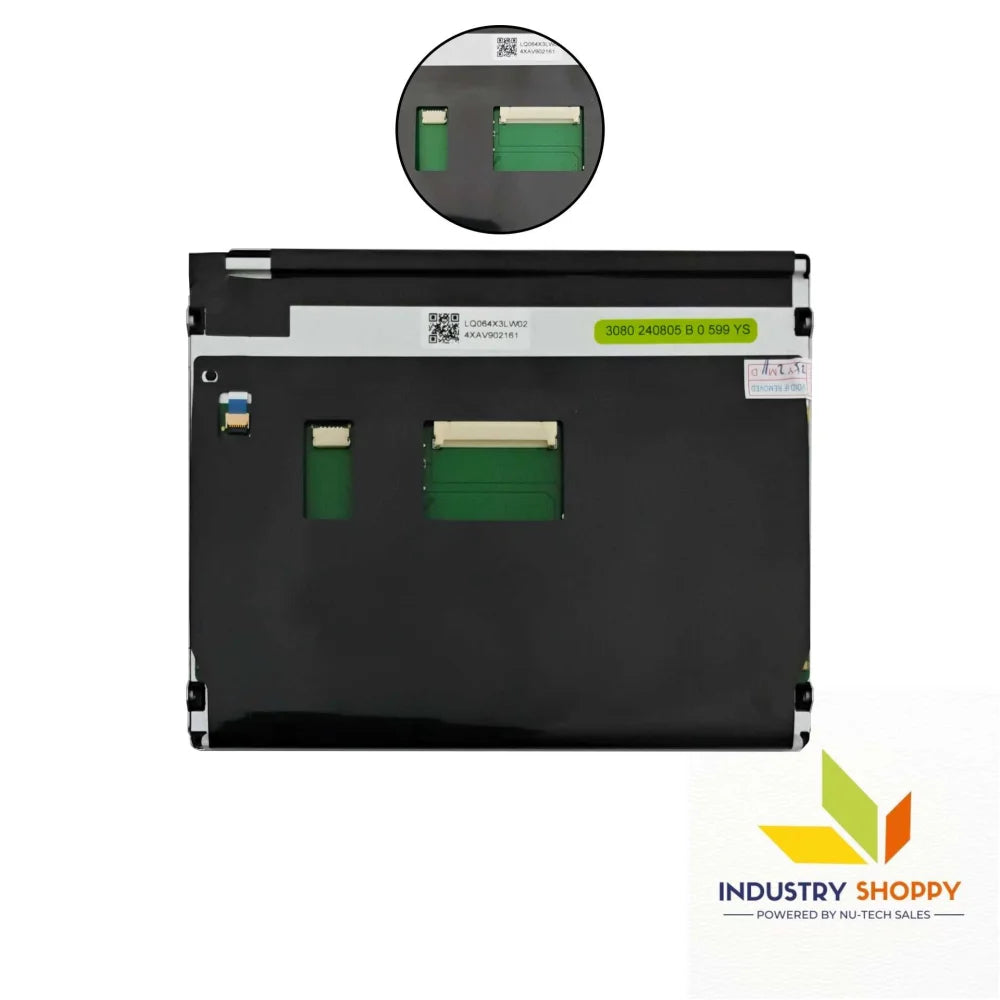

The Sharp LQ064X3LW02 LCD Module is a high-performance 6.4-inch industrial-grade TFT LCD module designed for precision visual applications. With a resolution of 1024×768 (XGA) and a pixel density of 200 PPI, it offers exceptional image clarity and vibrant color reproduction (16.7M colors). Featuring a luminance of 390 cd/m² and a contrast ratio of 800:1, this display ensures excellent readability even in bright environments. The panel utilizes advanced Super View (ASV) technology with a normally black, transmissive operating mode to provide wide viewing angles (80° in all directions) and deep contrast.

Designed with a durable antiglare hard coating (3H), this LCD is built for demanding conditions. It supports LVDS (1 channel, 8-bit) signal interface with a 20-pin connector, operates at 3.3V, and integrates a long-life WLED backlight (70,000 hours) with an onboard LED driver. Its compact structure and robust construction make it ideal for industrial environments.

Key Features :-

Applications

• Industrial control systems

• Medical equipment displays

• Test and measurement instruments

• Portable terminals and HMI panels

• Embedded systems and kiosks

Precautions

• Avoid exposure to direct sunlight for extended periods.

• Ensure proper grounding to prevent ESD damage.

• Operate within specified temperature range (-25°C to 70°C).

• Handle with care to prevent flex or stress on the display edges.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.
