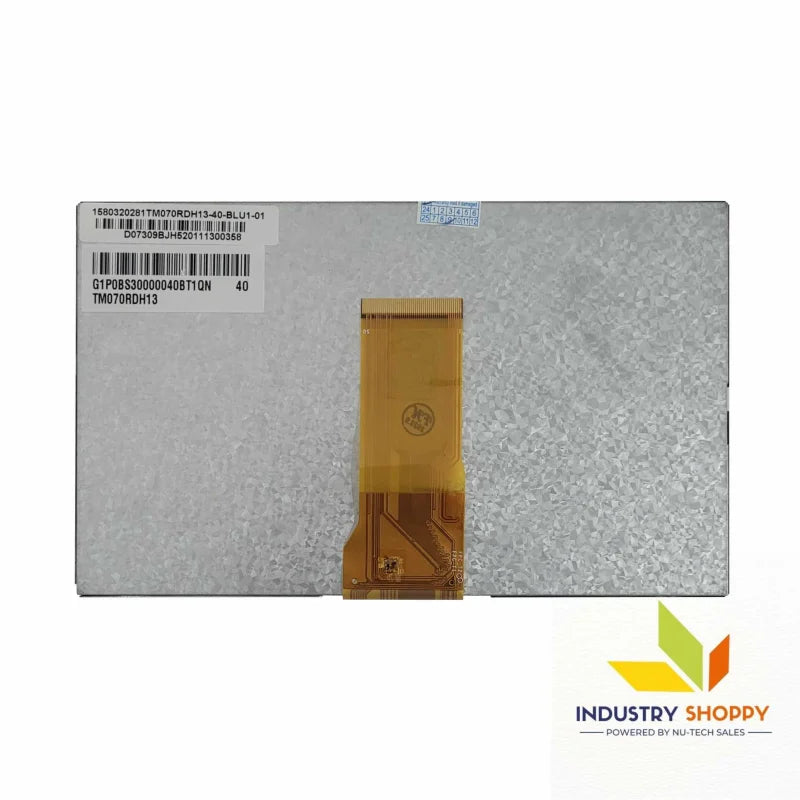

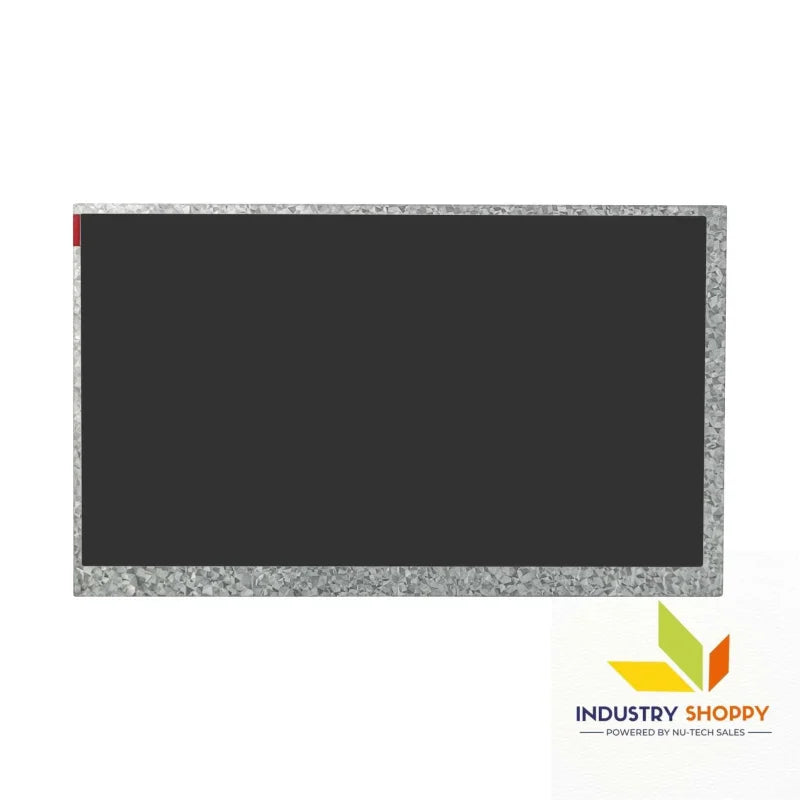

Tianma TM070RDH13 LCD Module

Tianma TM070RDH13 LCD Module

The Tianma TM070RDH13 is a 7.0-inch a-Si TFT-LCD module designed to offer high-quality visual performance in a compact size, making it ideal for space-constrained applications. This display features a resolution of 800x480 (WVGA) and a pixel density of 133 PPI, ensuring clear, sharp visuals with excellent color reproduction. The RGB Vertical Stripe pixel arrangement guarantees vibrant and accurate color reproduction, which is essential for applications requiring precise visual output.

With a brightness of 450 cd/m² and a contrast ratio of 500:1, this module performs well in environments where high visibility is needed, even under bright lighting conditions. The wide viewing angles of 70°/70°/60°/70° (L/R/U/D) ensure clear image quality from various positions, enhancing its versatility for different application needs.

The module also features an LED backlight with a 50,000-hour lifespan, ensuring long-term durability. Additionally, the antiglare surface treatment reduces reflections, making the display suitable for environments with ambient light, improving readability and user experience.

Key Features:

• Brand: Tianma

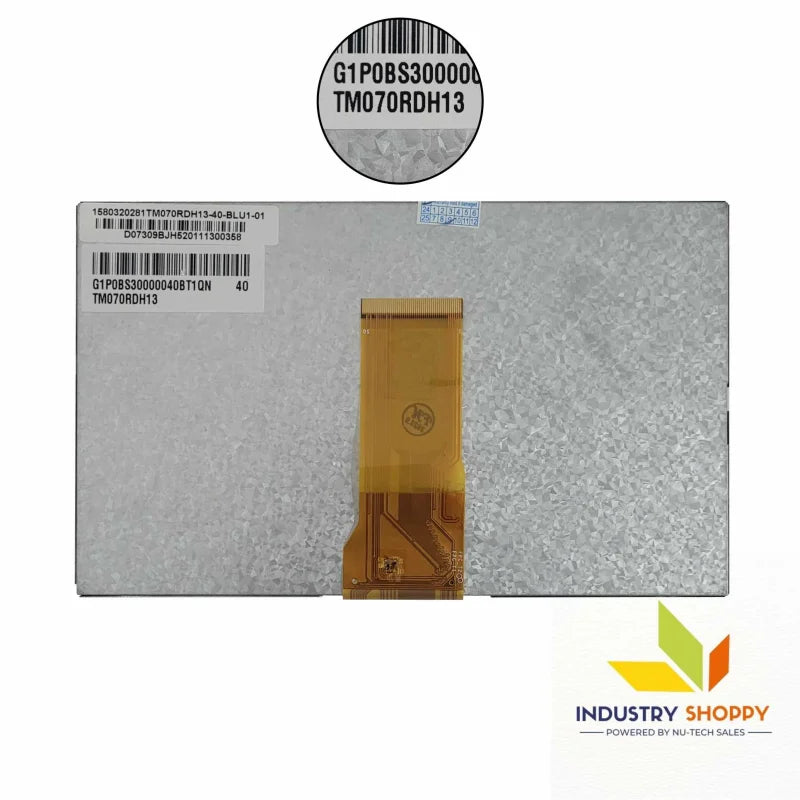

• Model: TM070RDH13
• Diagonal Size: 7.0 inches
• Resolution: 800×480 (WVGA), 133 PPI
• Pixel Format: RGB Vertical Stripe for accurate and vibrant color reproduction
• Active Area: 154.08(W) × 85.92(H) mm
• Bezel Opening: 157.08(W) × 89.92(H) mm
• Outline Dimensions: 166.0(W) × 104.0(H) × 10.0(D) mm
• Surface Treatment: Antiglare for enhanced readability in bright environments
• Brightness: 450 cd/m² (Typical), ideal for use in bright settings
• Contrast Ratio: 500:1 (Typical), ensuring high-quality visuals with sharp differentiation
• Viewing Angle: 70°/70°/60°/70° (L/R/U/D), offering clear viewing from various angles
• Backlight Type: LED with a 50,000-hour lifespan for long-term use
• Display Mode: TN, Normally White, Transmissive
• Response Time: 20 ms (Typical, Tr/Td) for smooth and responsive visuals

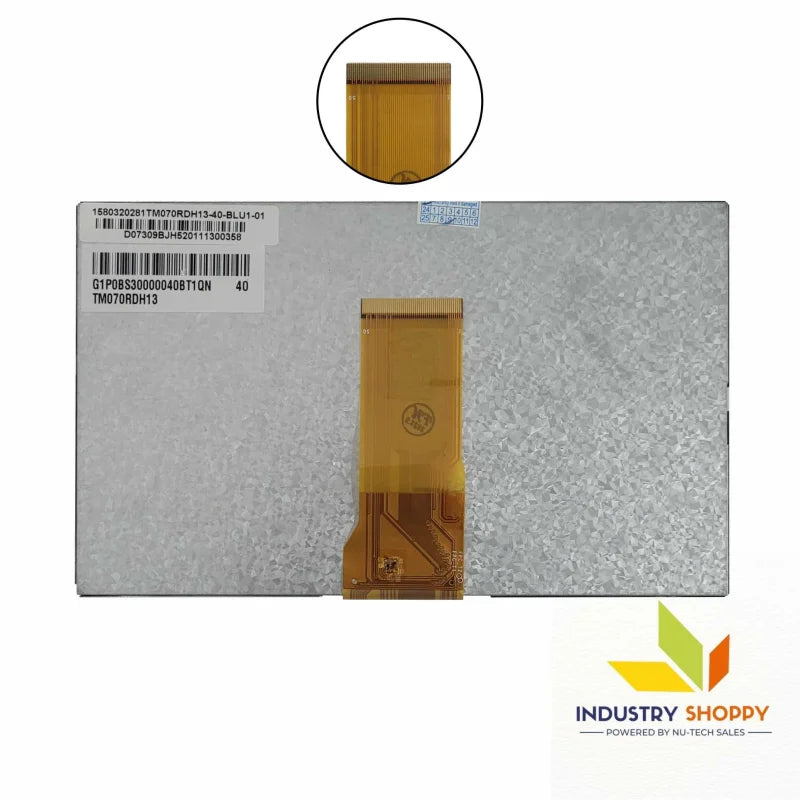

• Signal Interface: RGB (24-bit) with 50-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, designed to operate in a variety of environments
• Storage Temperature: -30°C to 80°C, suitable for flexible storage in various conditions

Applications:

• Industrial Control Panels: Perfect for industrial systems requiring compact, high-performance displays
• Point-of-Sale (POS) Displays: Suitable for retail systems that demand high clarity and compact displays
• Medical Devices: Ideal for small medical equipment and diagnostic tools where visual accuracy and clarity are crucial
• Embedded Systems: Suitable for embedded applications that require a reliable display with vibrant color output

Technical Precautions:

• Handling: Handle carefully to avoid damage to the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation to protect the module
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal performance
• Installation Guidelines: Avoid excessive pressure on connectors during installation to maintain reliability
• Backlight Maintenance: Regularly inspect the backlight, which has a 50,000-hour lifespan, to ensure continued performance
