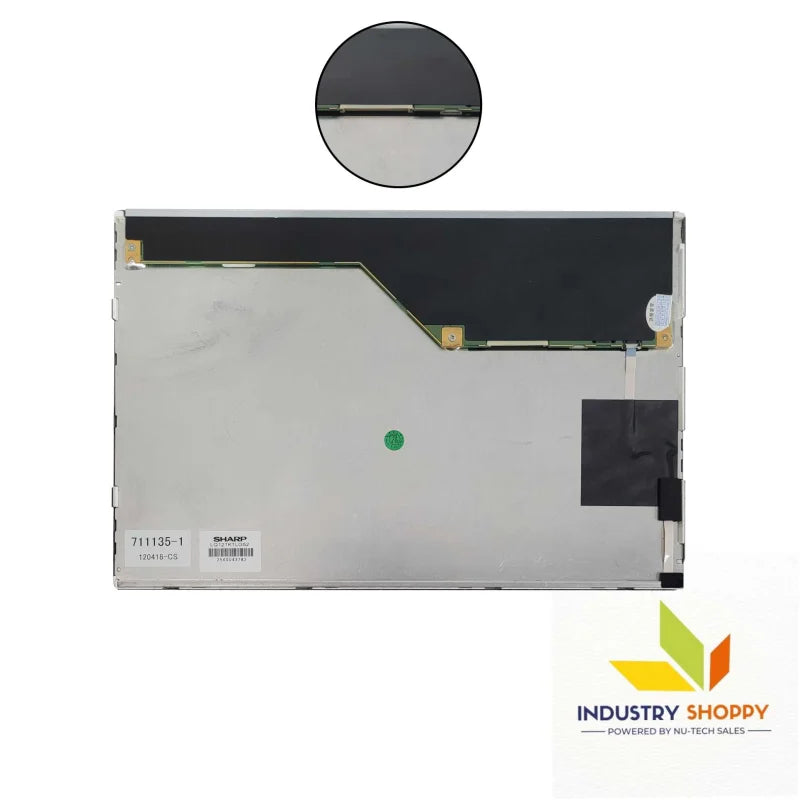

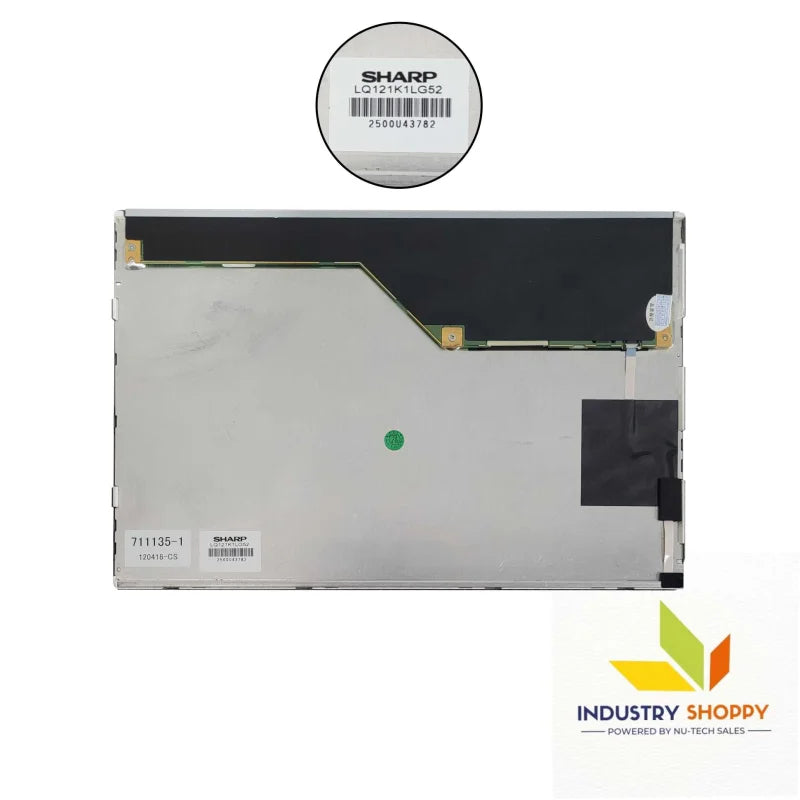

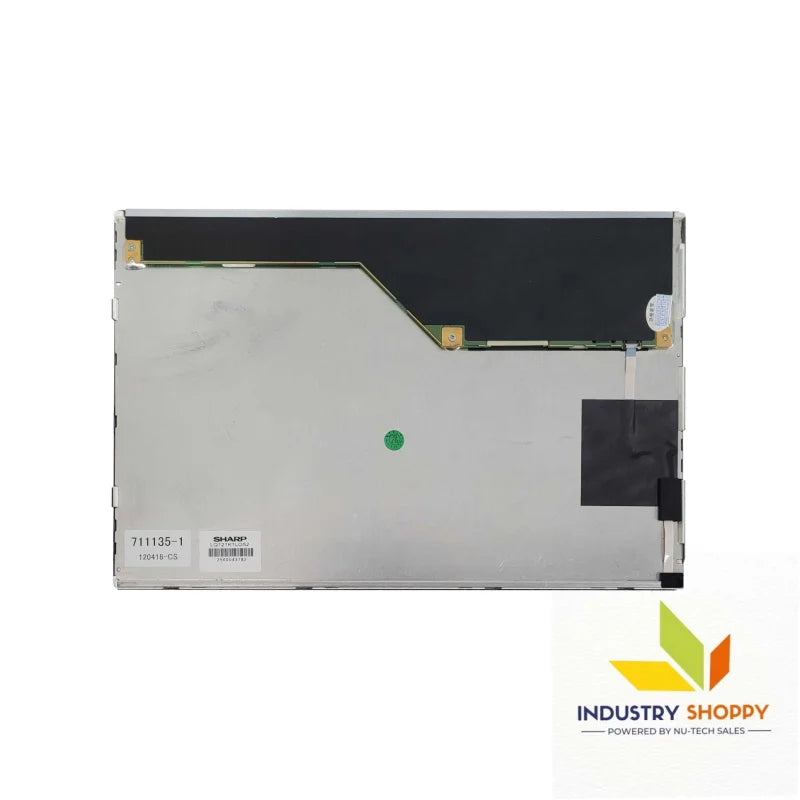

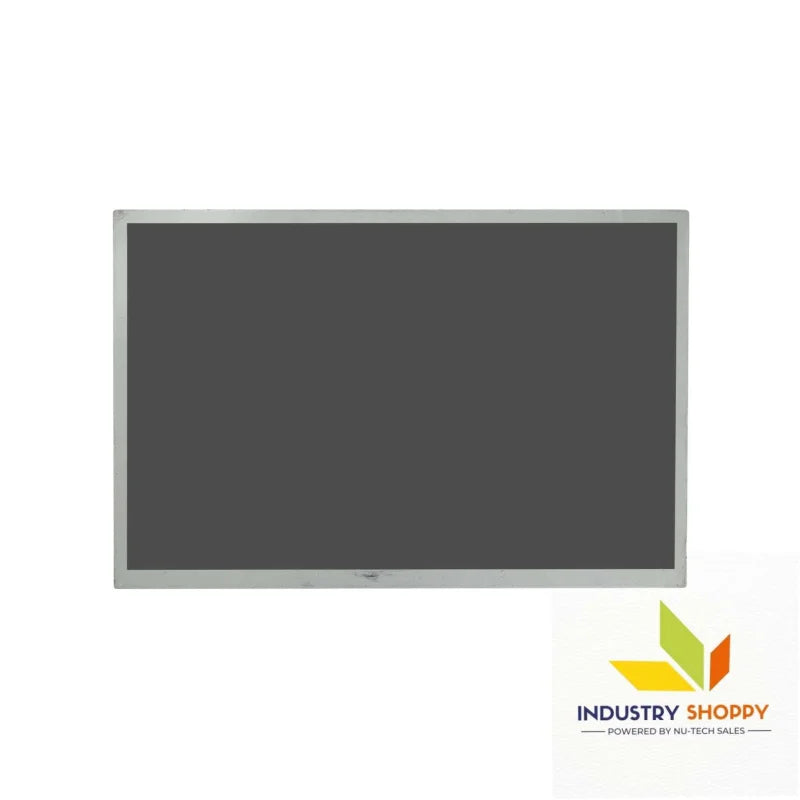

Sharp LQ121K1LG52 LCD Module

Sharp LQ121K1LG52 LCD Module

The Sharp LQ121K1LG52 is a 12.1-inch a-Si TFT-LCD module designed for applications that require high-resolution displays in a medium-sized form factor. With a resolution of 800x600 (SVGA) and a pixel density of 100 PPI, this display provides sharp and clear visuals with accurate color reproduction, making it suitable for a wide range of professional applications.

This module features a brightness of 350 cd/m² and a contrast ratio of 500:1, providing good visibility in moderate to bright environments. The wide viewing angles of 80°/80°/80°/80° (L/R/U/D) ensure consistent image quality from different positions, making it versatile and ideal for various settings.

Equipped with an LED backlight, the module has a long lifespan, contributing to long-term durability and energy efficiency. The antiglare surface treatment minimizes reflections, enhancing readability in environments with ambient light, which is particularly useful for industrial and medical applications.

Key Features:

• Brand: Sharp
• Model: LQ121K1LG52
• Diagonal Size: 12.1 inches
• Resolution: 800×600 (SVGA), 100 PPI
• Pixel Format: RGB Vertical Stripe for accurate color reproduction
• Active Area: 246.0(W) × 184.5(H) mm
• Bezel Opening: 249.0(W) × 187.5(H) mm
• Outline Dimensions: 270.5(W) × 208.5(H) × 11.6(D) mm
• Surface Treatment: Antiglare for enhanced readability in bright environments
• Brightness: 350 cd/m² (Typical), ideal for moderate lighting conditions
• Contrast Ratio: 500:1 (Typical), ensuring high-quality visuals with clear differentiation
• Viewing Angle: 80°/80°/80°/80° (L/R/U/D), offering consistent image clarity from multiple positions
• Backlight Type: LED with extended lifespan for reliable use
• Display Mode: TN, Normally White, Transmissive
• Response Time: 20 ms (Typical, Tr/Td) for smooth and responsive visuals
• Signal Interface: LVDS (1 channel, 6/8-bit), 30-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: 0°C to 50°C, suitable for a wide range of environments
• Storage Temperature: -20°C to 60°C, providing flexibility in varying storage conditions

Applications:

• Industrial Control Panels: Perfect for use in industrial settings that require reliable, high-quality displays
• Medical Devices: Ideal for medical equipment that demands clarity, precision, and consistent performance
• Point-of-Sale (POS) Displays: Suitable for retail environments where display clarity and durability are essential
• Information Kiosks: Ideal for public-facing information displays that need to maintain readability in various lighting conditions

Technical Precautions:

• Handling: Handle with care to avoid damage to the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation to protect the module
• Temperature Limits: Ensure the module operates within the recommended temperature range (0°C to 50°C) for optimal performance
• Installation Guidelines: Avoid excessive pressure on connectors during installation to ensure long-term reliability
• Backlight Maintenance: Regularly inspect the backlight to ensure consistent performance over time.
