Hitachi SP14Q005 LCD Module

Hitachi SP14Q005 LCD Module

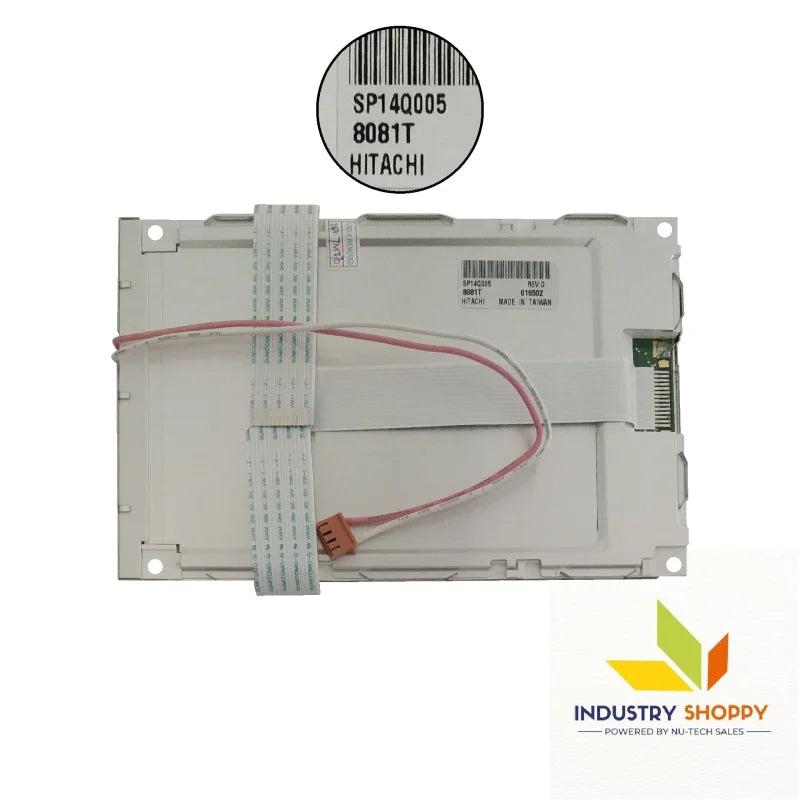

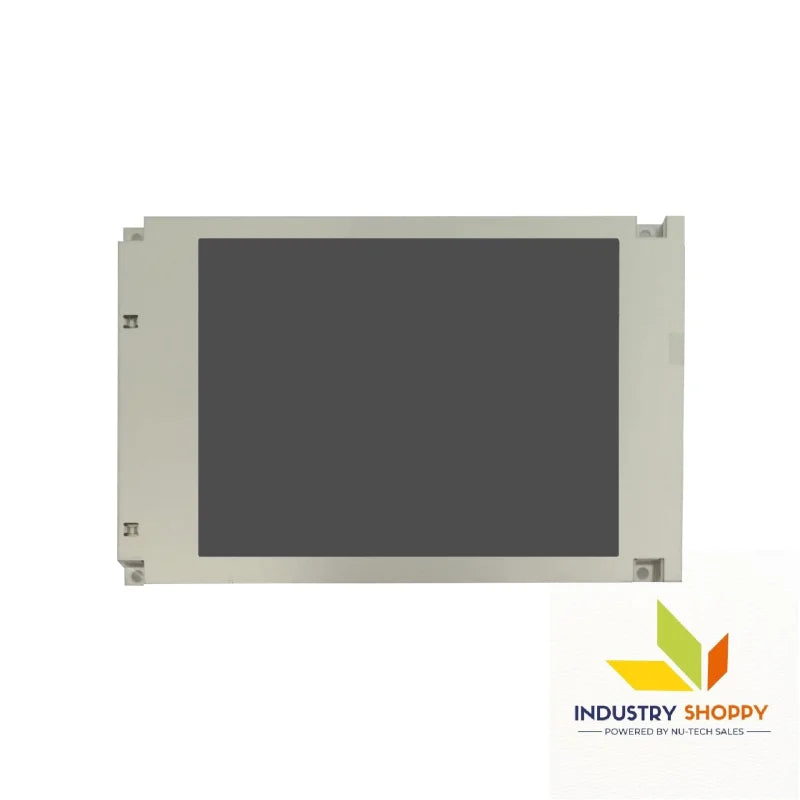

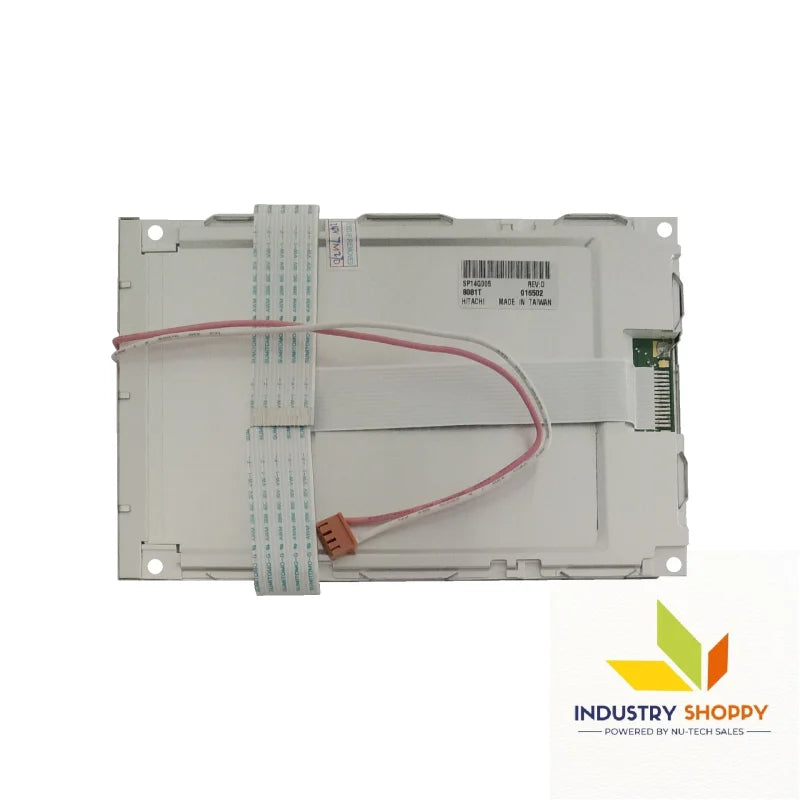

The Hitachi SP14Q005 LCD Module is an industry-proven 5.7-inch FSTN-LCD panel designed to deliver crisp monochrome graphics in industrial and embedded systems. With a 320×240 QVGA resolution and 70 PPI density, this module ensures sharp and reliable display output across various operating conditions.

Its active area of 115.185×86.385 mm fits perfectly within its compact 167×109×10 mm outer dimensions, making the Hitachi SP14Q005 LCD Module suitable for space-constrained environments. The display offers a typical luminance of 220 cd/m² and a contrast ratio of 25:1, balancing clarity and power efficiency.

Equipped with STN, Black/White mode, Transmissive technology, this module maintains wide viewing angles of 40/40/30/50 for optimal readability. The 14-pin FPC parallel data interface ensures easy integration into both legacy and modern systems.

Engineered for durability, the Hitachi SP14Q005 LCD Module supports operating temperatures from -30°C to 80°C and is backed by a 50,000-hour CCFL backlight life, offering long-term reliability.

Key Features:

• Brand: Hitachi
• Diagonal Size: 5.7 inches
• Resolution: 320×240 (QVGA), 70 PPI
• Active Area: 115.185(W) × 86.385(H) mm
• Outline Dimension: 167 × 109 × 10 mm
• Luminance: 220 cd/m² (Typical)
• Contrast Ratio: 25:1 (Typical) (TM)
• Viewing Angle: 40/40/30/50 (Typical) (CR≥2)
• Response Time: 330/150 ms (Typical) (Tr/Td)
• Panel Type: FSTN-LCD, LCM
• Treatment: Rectangle
• Operating Mode: STN, Black/White, Transmissive
• Support Color: Monochrome

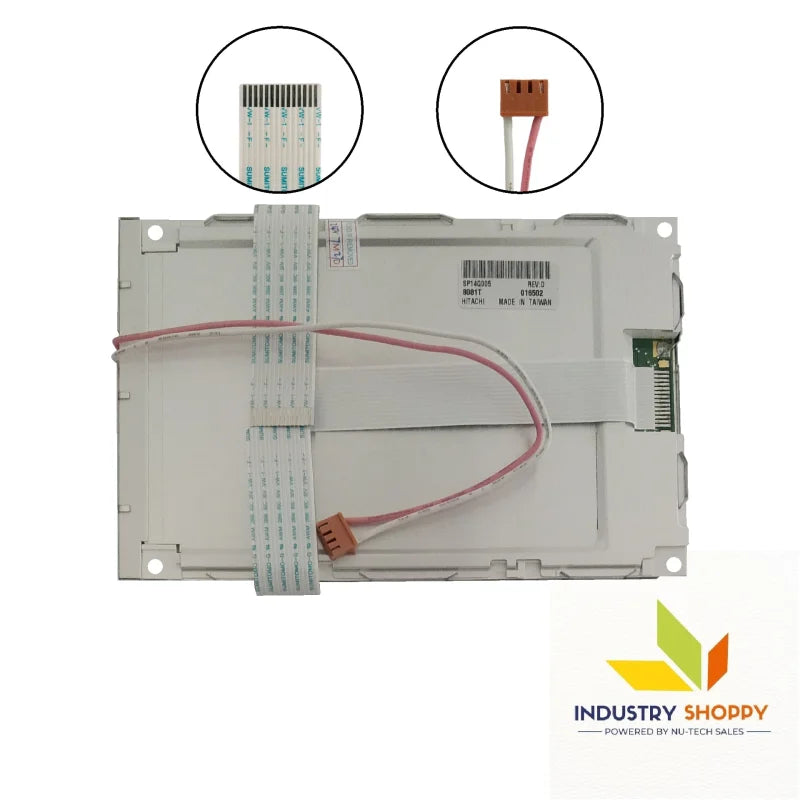

• Signal Interface: Parallel Data (1ch, 4-bit), 14 pins FPC
• Frame Rate: 75Hz
• Power Supply: 3.3V / 5.0V (Typical)
• Backlight: 1 pcs CCFL, 50K hours (No driver)
• Operating Temperature: -30°C to 80°C
• Storage Temperature: -20°C to 70°C


Applications:

• Industrial Control Panels: Ideal for use in industrial systems requiring large, clear displays
• Point-of-Sale (POS) Displays: Suitable for retail environments where visibility and color accuracy are crucial
• Medical Equipment: Great for medical devices requiring clear, vibrant, and high-contrast displays
• Consumer Electronics: Perfect for consumer devices where display quality and size are key

Technical Precautions:

• Handling: Handle carefully to prevent damage to the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal performance
• Installation Guidelines: Avoid applying excessive pressure on connectors to ensure long-term reliability
• Backlight Maintenance: Regularly inspect the backlight to ensure it continues to perform at optimal levels
