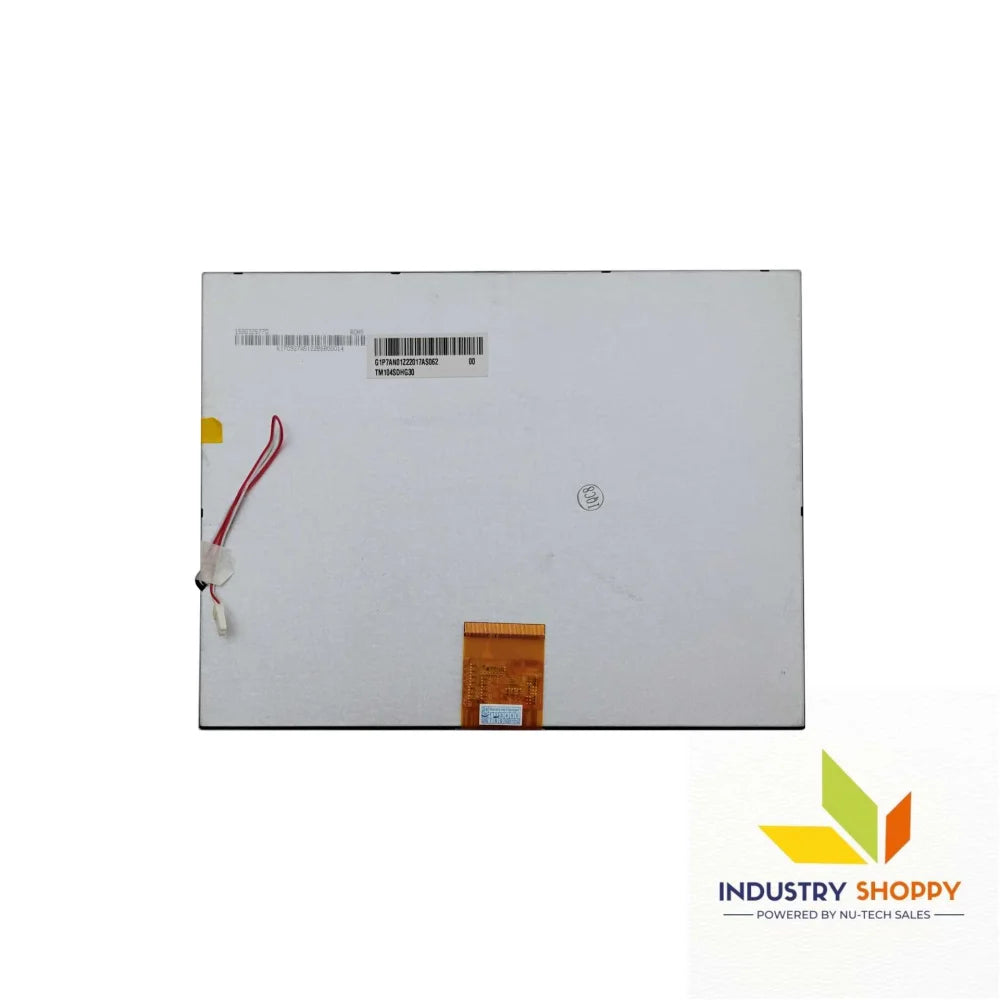

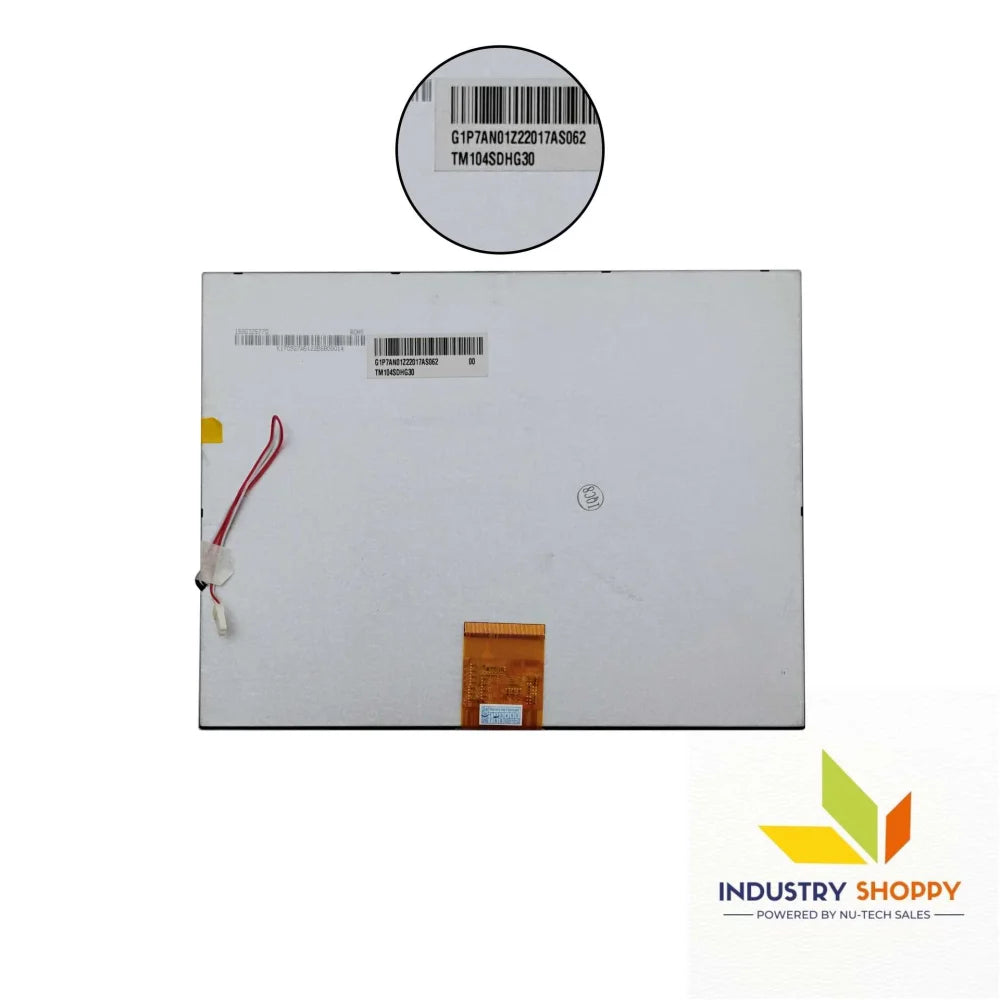

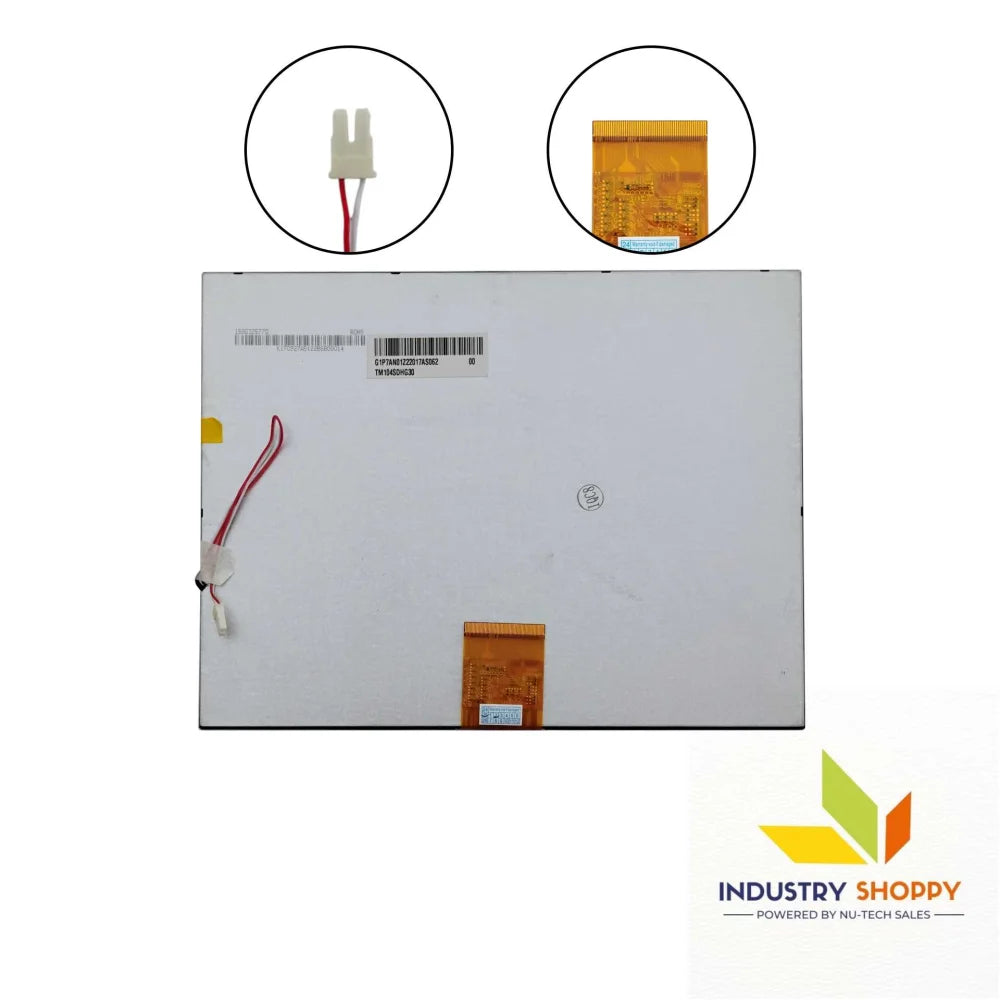

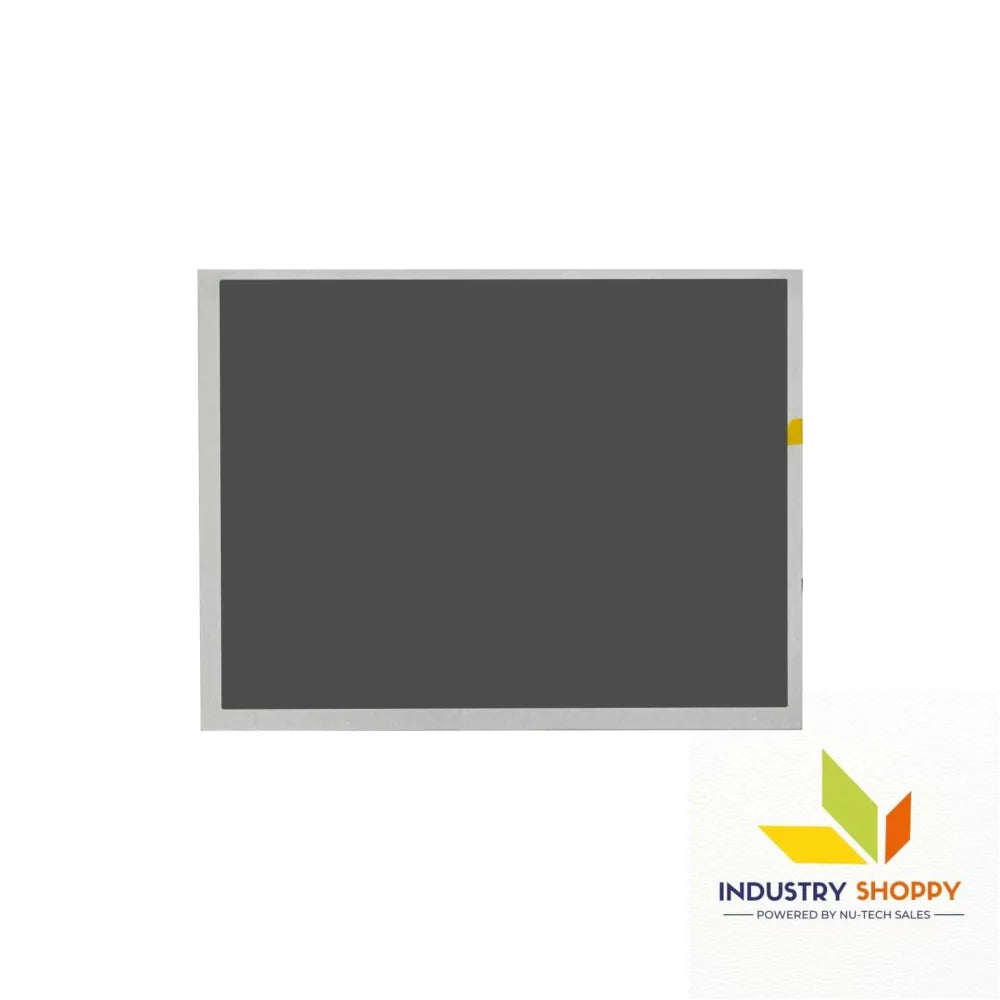

Tianma TM104SDHG30 LCD Module

Tianma TM104SDHG30 LCD Module

The Tianma TM104SDHG30 LCD Module is a robust and versatile 10.4-inch display designed for industrial, medical, and commercial equipment. With its 800×600 SVGA resolution and 350 cd/m² luminance, it delivers crisp visuals and clear readability, even in demanding lighting conditions.

Built around a-Si TFT-LCD technology with a TN, normally white, transmissive operating mode, the module offers consistent, vibrant color rendering with support for 262K or 16.7 million colors. Its antiglare hard-coated surface (3H) enhances visibility while protecting against scratches and wear.

The display ensures reliable performance across a wide temperature range (-20°C to 70°C), making it ideal for rugged industrial environments. Its long-life 3S12P WLED backlight provides up to 30,000 hours of continuous use, while the 70/70/60/70 viewing angles ensure flexible readability from multiple positions.

With an efficient TTL signal interface (60-pin FPC), compact dimensions, and precise response time of 10/15 ms (Tr/Td), the TM104SDHG30 is built for stability, clarity, and durability in mission-critical systems.

Key features :-

• Brand: Tianma
• Diagonal Size: 10.4"
• Resolution: 800(RGB) × 600 (SVGA), 96 PPI
• Active Area: 211.2(W) × 158.4(H) mm
• Outline Dimension: 228.4(W) × 175.4(H) × 6.5(D) mm
• Luminance: 350 cd/m² (Typ.)
• Contrast Ratio: 500:1 (Typ.) (TM)
• Viewing Angle: 70°/70°/60°/70° (Typ.) (CR ≥ 10)
• Response Time: 10/15 ms (Typ.) (Tr/Td)
• Panel Type: a-Si TFT-LCD, LCM
• Surface Treatment: Antiglare, Hard coating (3H)
• Operating Mode: TN, Normally White, Transmissive
• Supported Colors: 262K / 16.7M, 50% NTSC
• Signal Interface: TTL (1 ch, 6/8-bit), 60 pins FPC
• Frame Rate: 60Hz
• Power Supply: 3.3V / 11.0V / 25.0V / -7.0V (Typ.)
• Backlight: 3S12P WLED, 30K hours lifespan, No driver
• Weight: 360g
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -10°C to 60°C

Applications :-

• Industrial Control Panels: Ideal for machine interfaces requiring sharp SVGA graphics.
• Medical Equipment Displays: Reliable performance for precise image clarity.
• Test & Measurement Systems: Accurate visual feedback for professional equipment.
• Commercial Terminals: Long-life display for kiosks and point-of-sale systems.
• Embedded Systems: Stable operation in temperature-sensitive applications.

Technical Precautions:

• Handling Care: Handle carefully to protect the hard-coated surface from damage
• Connection Instructions: Always power off the display before connecting
• Temperature Limits: Maintain operating temperatures between -10°C to 50°C for optimal performance
• Mounting Guidelines: Use appropriate fittings for secure installation, especially in industrial settings
• Backlight Maintenance: Ensure regular inspections as the backlight has a lifespan of 20,000 hours
