AUO A070VW05-V2 LCD Module

AUO A070VW05-V2 LCD Module

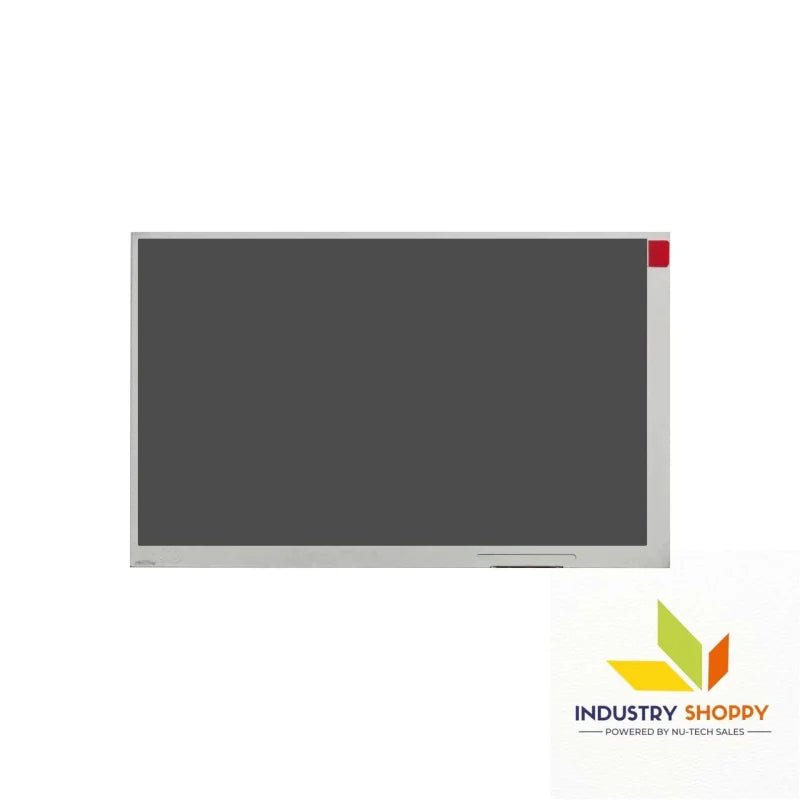

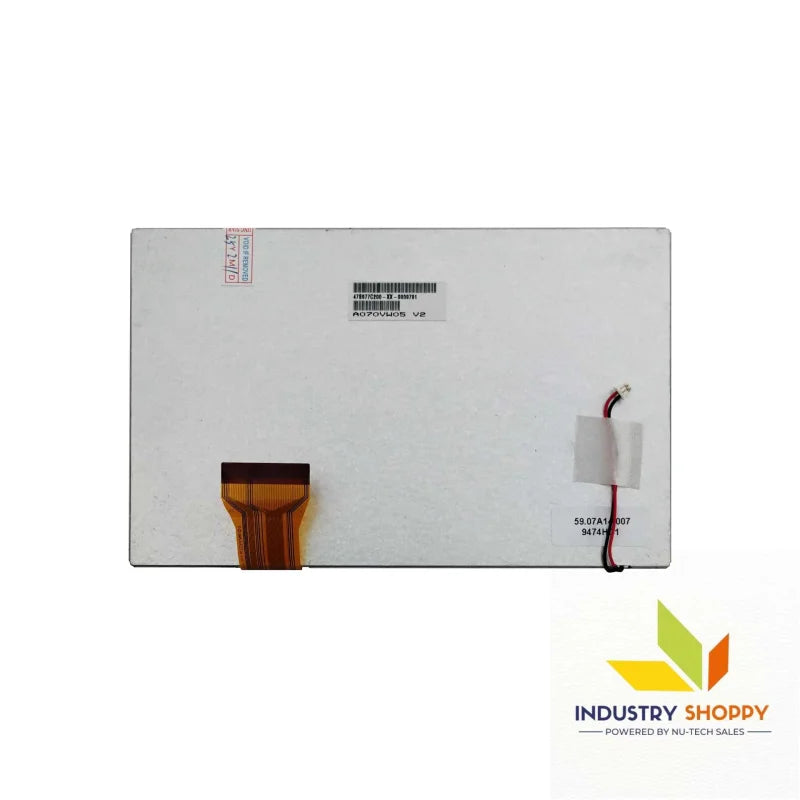

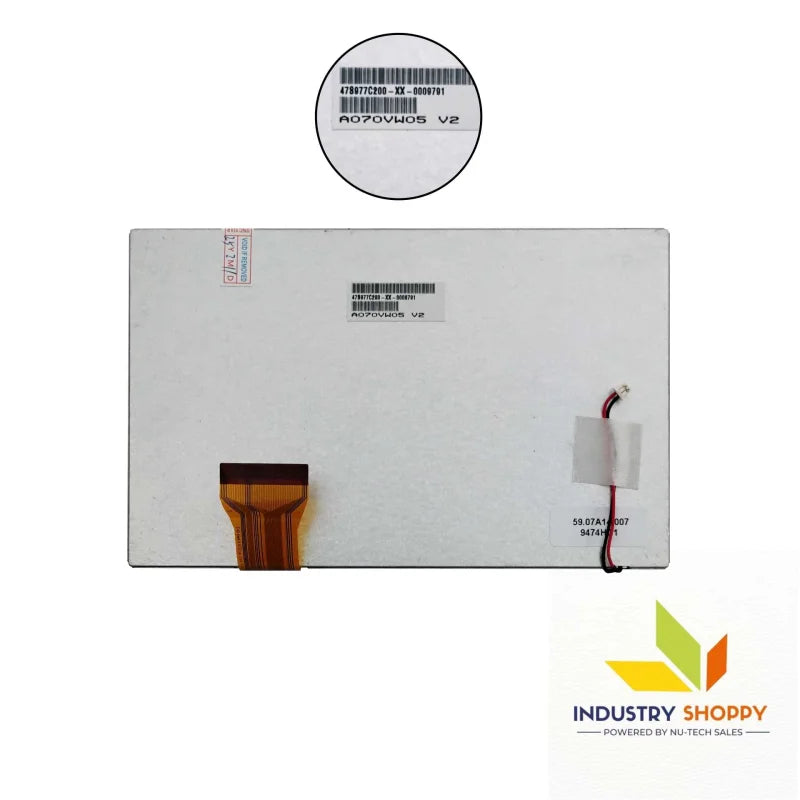

The AUO A070VW05-V2 is a 7.0-inch TFT-LCD module designed for industrial and embedded systems requiring reliable visual performance. Featuring a WVGA resolution of 800×480 pixels, it delivers clear and detailed images suitable for various applications.

With a brightness of 375 cd/m² and a contrast ratio of 500:1, this display ensures good visibility under different lighting conditions. Its compact design and robust construction make it ideal for integration into space-constrained environments.

The module is tested for quality assurance, ensuring consistent performance and durability. Whether used in control panels, medical devices, or portable equipment, the AUO A070VW05 V2 offers dependable display capabilities.

Key features :-

• Brand: AUO
• Model: A070VW05-V2
• Panel Type: a-Si TFT-LCD
• Display Size: 7.0 inches
• Resolution: 800 × 480 pixels (WVGA)
• Pixel Format: RGB Vertical Stripe
• Display Area: 152.4 × 91.44 mm
• Outline Dimensions: 165 × 104 × 5.4 mm
• Surface Treatment: Matte, Hard coating (3H)
• Display Mode: TN, Normally White, Transmissive
• Brightness: 375 cd/m² (Typ.)
• Contrast Ratio: 500:1 (Typ.)
• Viewing Angles (CR ≥ 10): 65°/65°/45°/65° (L/R/U/D)
• Response Time: 12 ms (Tr), 18 ms (Td)
• Display Colors: 16.7M (8-bit)
• Color Gamut: 50% NTSC
• Backlight: WLED, 3S9P configuration, 10,000 hours lifespan, without driver

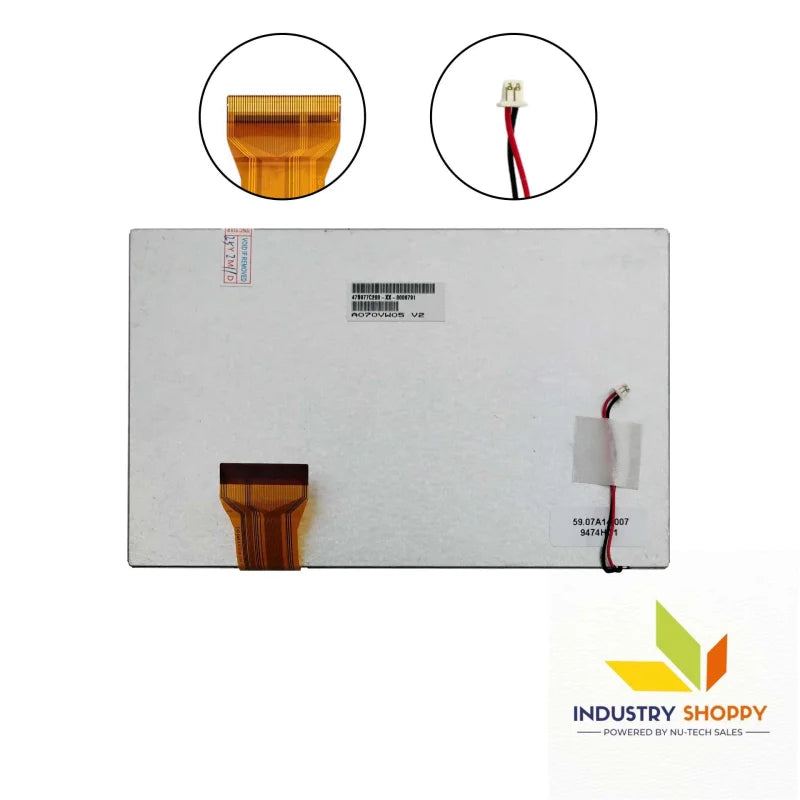

• Signal Interface: Parallel RGB (1 channel, 8-bit), 50-pin FPC
• Input Voltage: 3.3V (VDDIO), 3.3V (GVDDIO), 11V (AVDD), 18V (VGH), -8V (VGL)
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -30°C to 80°C

Applications :-

• Industrial Control Panels: Reliable display for machinery interfaces.
• Medical Devices: Clear visuals for diagnostic and monitoring equipment.
• Portable Instruments: Compact solution for handheld devices.
• Automotive Displays: Durable screen for vehicle control systems.
• Embedded Systems: Stable performance in various applications.

Technical Precautions:

• Handling Care: Handle carefully to protect the hard-coated surface from damage
• Connection Instructions: Always power off the display before connecting
• Temperature Limits: Maintain operating temperatures between -10°C to 50°C for optimal performance
• Mounting Guidelines: Use appropriate fittings for secure installation, especially in industrial settings
• Backlight Maintenance: Ensure regular inspections as the backlight has a lifespan of 20,000 hours
