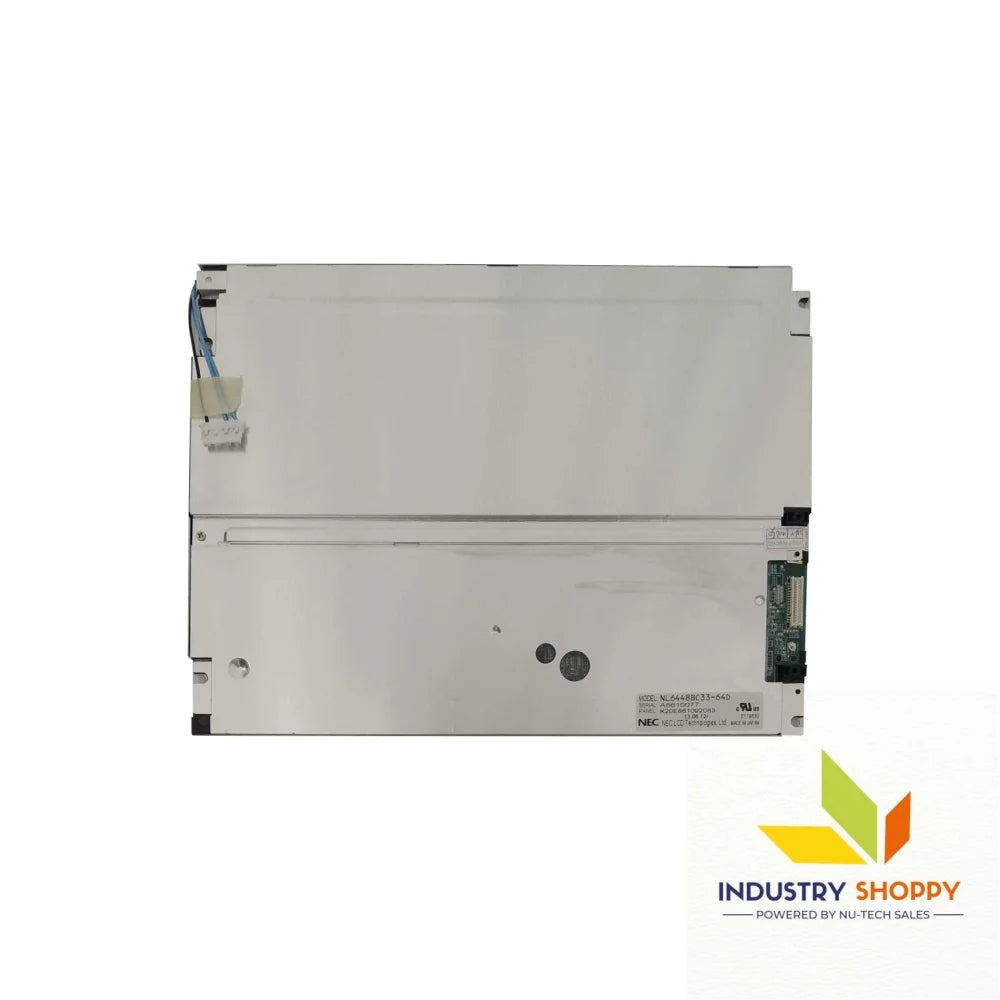

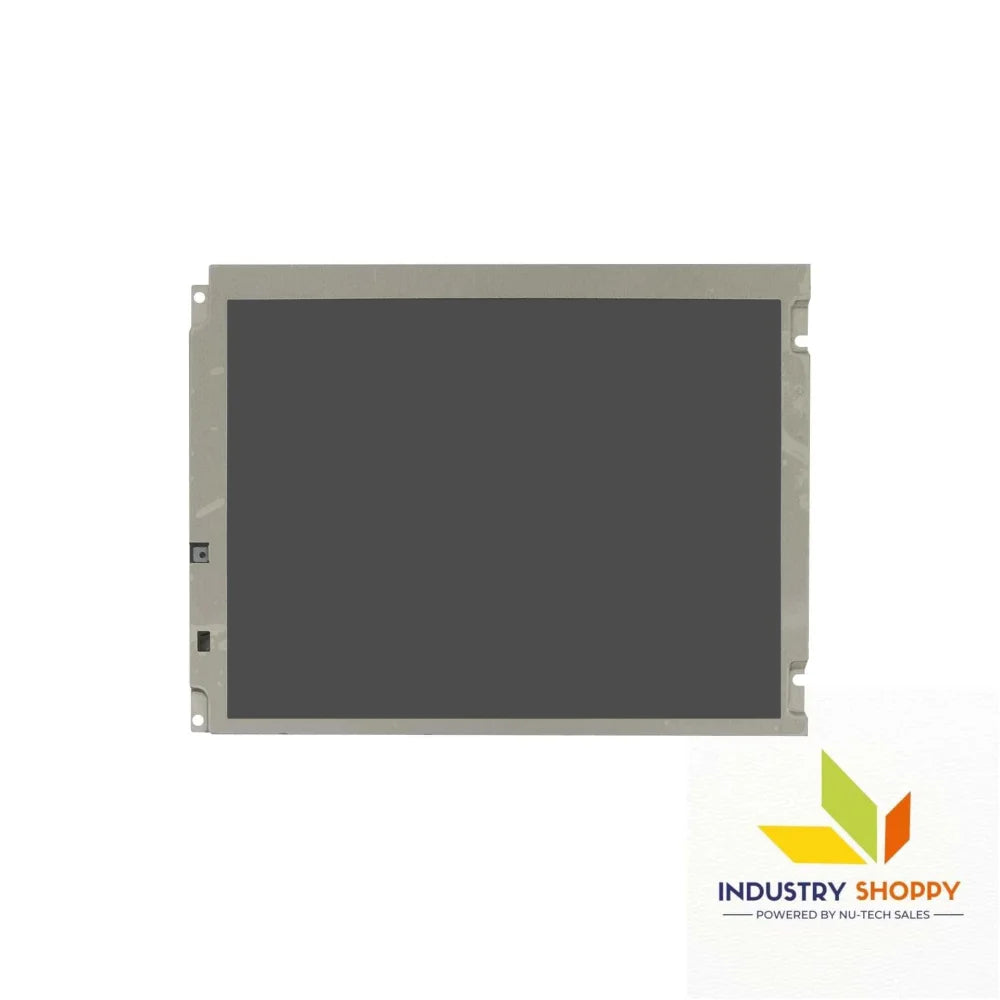

NEC NL6448BC33-64D LCD Module

NEC NL6448BC33-64D LCD Module

The NEC NL6448BC33-64D LCD Module is built to deliver dependable performance in industrial and commercial environments. This 10.4-inch VGA display offers a resolution of 640(RGB)×480 at 76PPI, ensuring sharp and vibrant visuals for a variety of use cases.

With 450 cd/m² luminance and a 600:1 contrast ratio, it excels in providing clear, bright images even under challenging lighting conditions. Its 80/80/80/55° viewing angles enable wide-range visibility, enhancing usability from different perspectives. A response time of 6/25 ms ensures smooth transitions for real-time data and interactive systems.

Crafted with a-Si TFT-LCD technology and featuring an antiglare, hard coating (3H) surface, the module is designed for both clarity and durability. The CMOS signal interface (31-pin) allows easy integration, while support for 262K colors (40% NTSC) enhances image depth.

Powered by 3.3V or 5.0V, and equipped with a 2-piece CCFL backlight (50K hour life), this module offers both efficiency and longevity. The wide operating temperature range (-30°C to 80°C) ensures stable performance in extreme environments.

Key features :-

• Brand: NEC

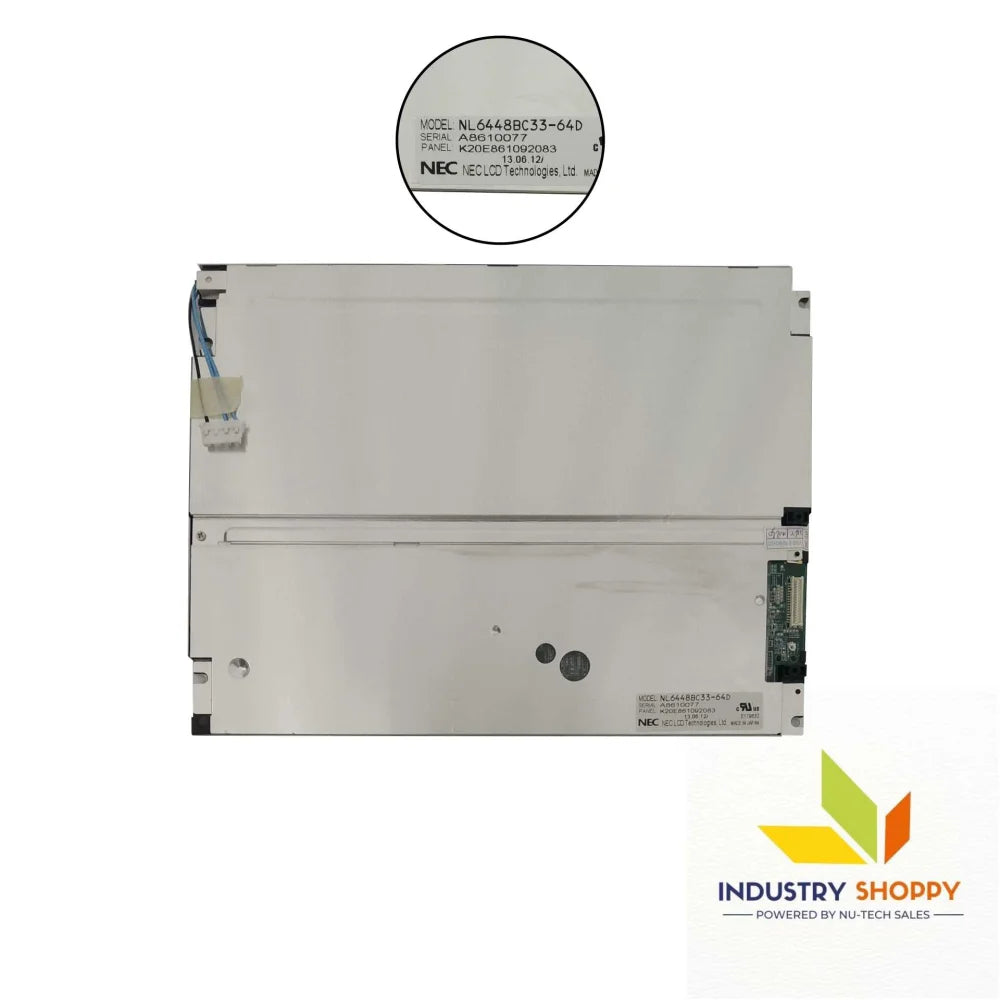

• Model: NL6448BC33-64D
• Diagonal Size: 10.4"
• Resolution: 640(RGB)×480, VGA (76PPI)
• Active Area: 211.2(W)×158.4(H) mm
• Outline Dimension: 243(W)×185.1(H)×11(D) mm
• Luminance: 450 cd/m² (Typ.)
• Contrast Ratio: 600:1 (Typ.)
• Viewing Angle: 80/80/80/55 (CR≥10)
• Response Time: 6/25 ms (Tr/Td)
• Panel Type: a-Si TFT-LCD, LCM
• Treatment: Antiglare, Hard Coating (3H)
• Operating Mode: TN, Normally White, Transmissive
• Support Color: 262K (40% NTSC)

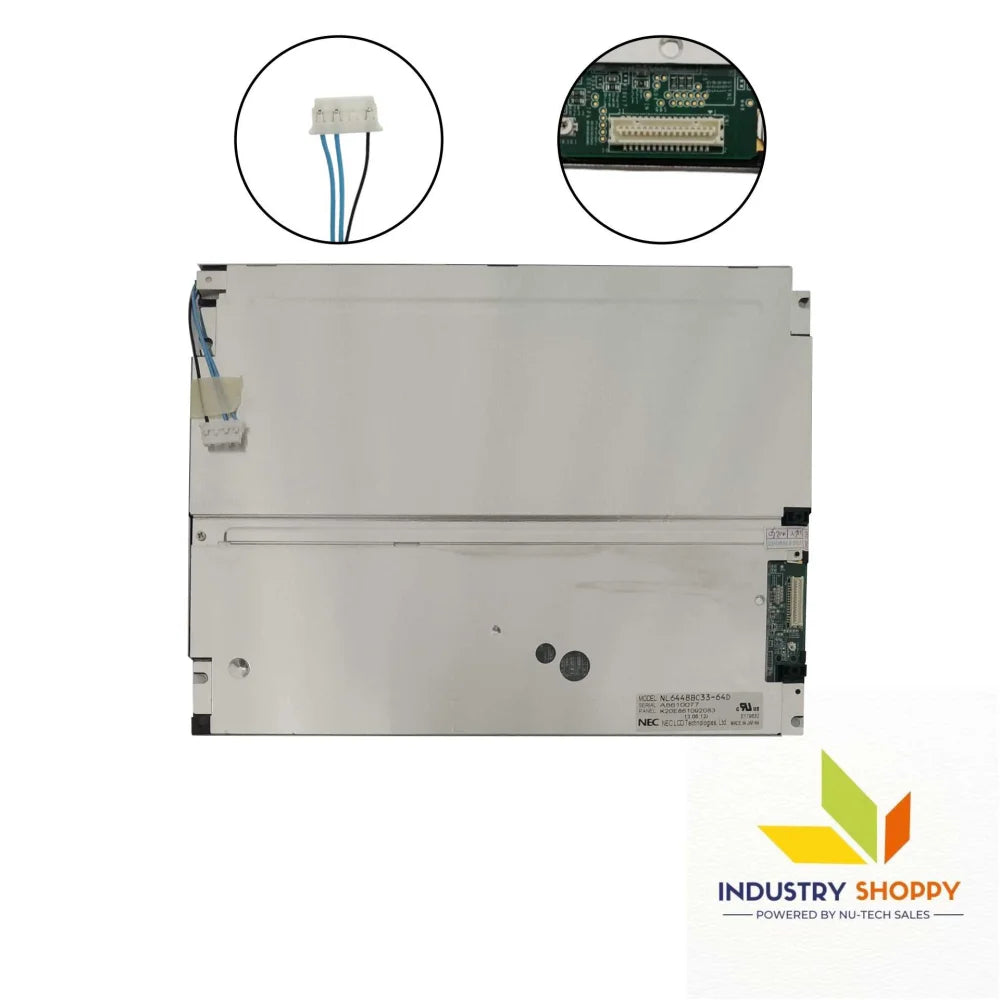

• Signal Interface: CMOS (1 ch, 6-bit), 31-pin Connector
• Frame Rate: 60Hz
• Power Supply: 3.3V / 5.0V (Typ.)
• Backlight: 2 pcs CCFL, 50K hours (No Driver)
• Weight: 475g (Typ.) / 500g (Max.)
• Operating Temperature: -30 ~ 80°C
• Storage Temperature: -20 ~ 70°C
• Vibration Level: 2.0G (19.6 m/s²)

Technical Precautions:

• Handling Care: Handle carefully to protect the hard-coated surface from damage
• Connection Instructions: Always power off the display before connecting
• Temperature Limits: Maintain operating temperatures between -10°C to 50°C for optimal performance
• Mounting Guidelines: Use appropriate fittings for secure installation, especially in industrial settings
• Backlight Maintenance: Ensure regular inspections as the backlight has a lifespan of 20,000 hours
