NTS DMF6104NF-FW LCD Module

NTS DMF6104NF-FW LCD Module

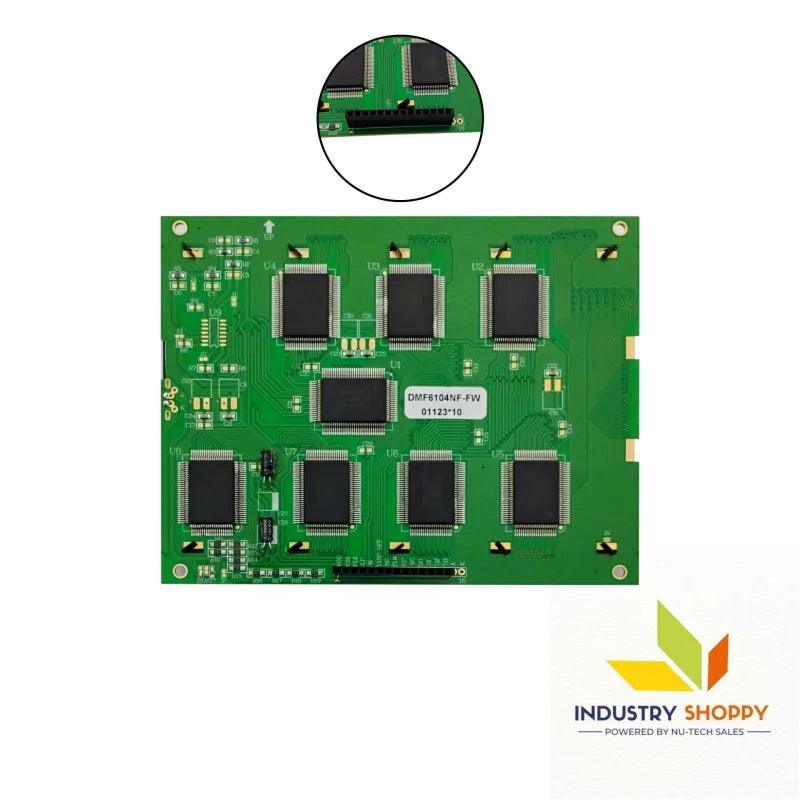

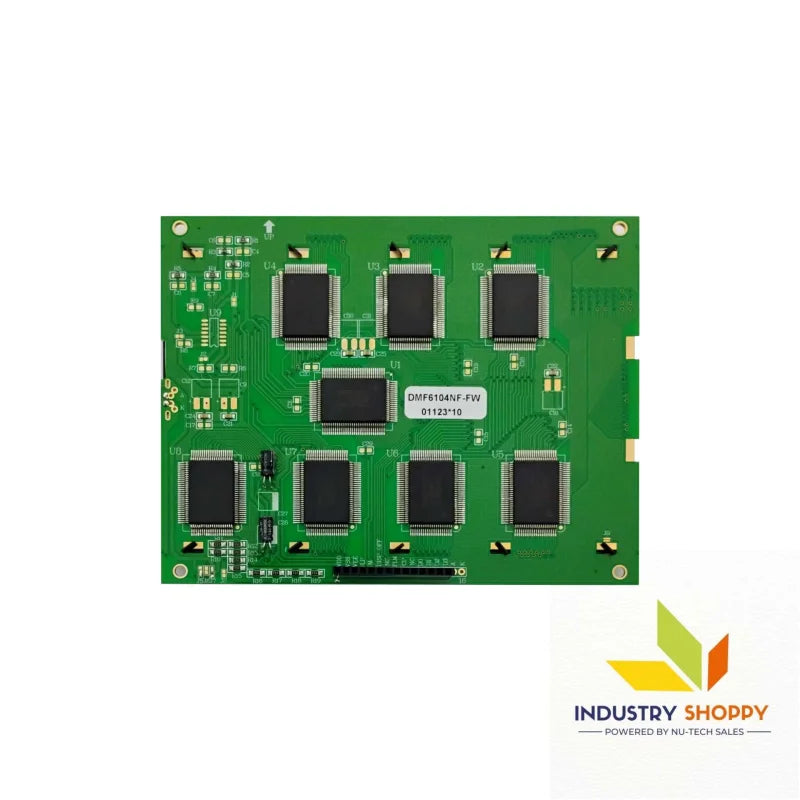

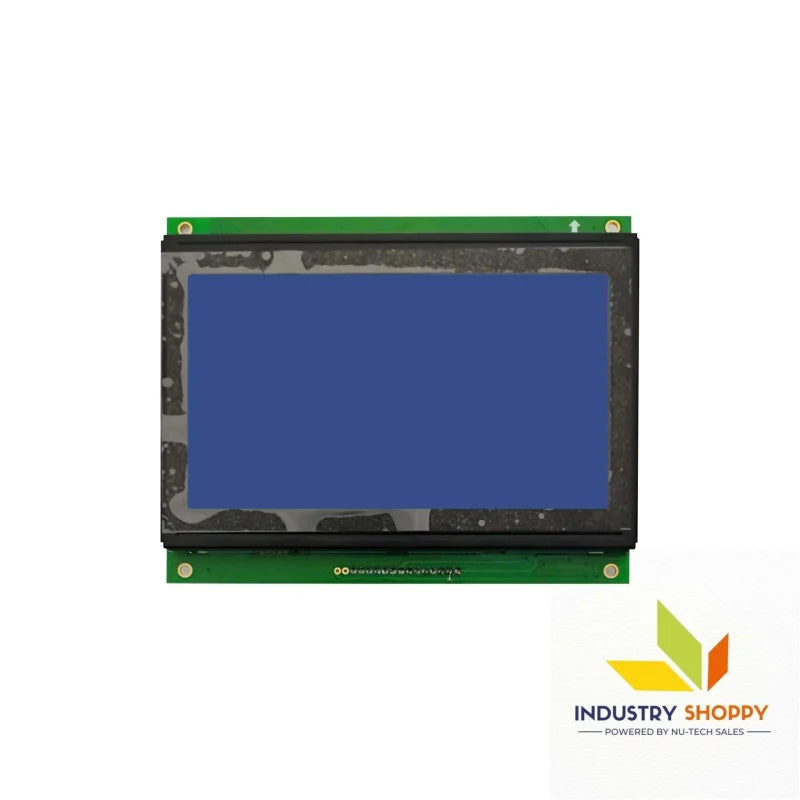

The NTS DMF6104NF-FW 5.3" LCD Module is a reliable choice for monochrome applications requiring crisp text and stable performance. This 256×128 resolution display provides clear, sharp rendering for icons, data, and system feedback at a 54PPI density.

Its FSTN-LCD panel utilizes STN, Black/White (Negative), Transmissive mode, offering high-contrast black characters on a bright background, ideal for industrial controllers, embedded systems, and instrumentation. With a response time of 110/160ms, it’s well-suited for static and semi-dynamic content.

The module is built for straightforward system integration via a Parallel Data (1ch, 4-bit) interface and requires only 5.0V for stable operation. A single CCFL backlight provides uniform lighting, with a typical life span of 20,000 hours, ensuring longevity in demanding environments.

Its operating range of -10°C to 40°C makes it suitable for indoor and controlled settings. Compact yet sturdy, this panel is a dependable solution for monochrome industrial displays, terminals, and legacy system replacements.

Key features :-

• Brand: NTS
• Diagonal Size: 5.3"
• Resolution: 256×128, 54PPI
• Active Area: 120.32(W)×60.16(H) mm
• Outline Dimension: 167(W)×116(H)×24.5(D) mm
• Luminance: 50 cd/m² (Min.)
• Contrast Ratio: 15:1 (Typ.) (TM)
• Viewing Angle: -
• Response Time: 110/160 (Typ.)(Tr/Td)
• Panel Type: FSTN-LCD, LCM
• Treatment: -
• Operating Mode: STN, Black/White (Negative), Transmissive
• Support Color: Monochrome
• Signal Interface Type: Parallel Data (1ch, 4-bit), 16 pins
• Frame Rate: 70Hz
• Power Supply: 5.0V (Typ.)
• Backlight: 1 pcs CCFL, 20K hours, Without Driver
• Operating Temp.: -10 ~ 40 °C
• Storage Temp.: -20 ~ 60 °C

Applications :-

• Measurement Devices: Clear monochrome data readouts.
• Industrial Controllers: Reliable for machine status and settings.
• Medical Equipment: Simplified, easy-to-read interfaces.
• Embedded Systems: Ideal for fixed text or graphics.
• Retrofit Projects: Perfect replacement for older systems.

Technical Precautions :-

• Handling Care: Handle carefully to protect the hard-coated surface from damage
• Connection Instructions: Always power off the display before connecting
• Temperature Limits: Maintain operating temperatures between -10°C to 50°C for optimal performance
• Mounting Guidelines: Use appropriate fittings for secure installation, especially in industrial settings
• Backlight Maintenance: Ensure regular inspections as the backlight has a lifespan of 20,000 hours

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.
