Tianma TM084SDHG01 LCD Module

Tianma TM084SDHG01 LCD Module

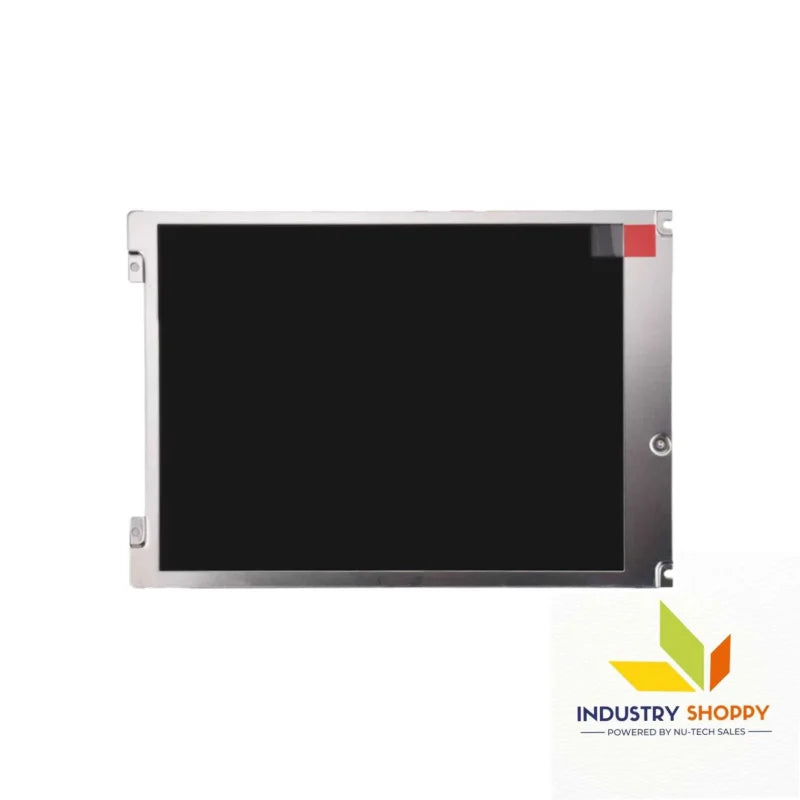

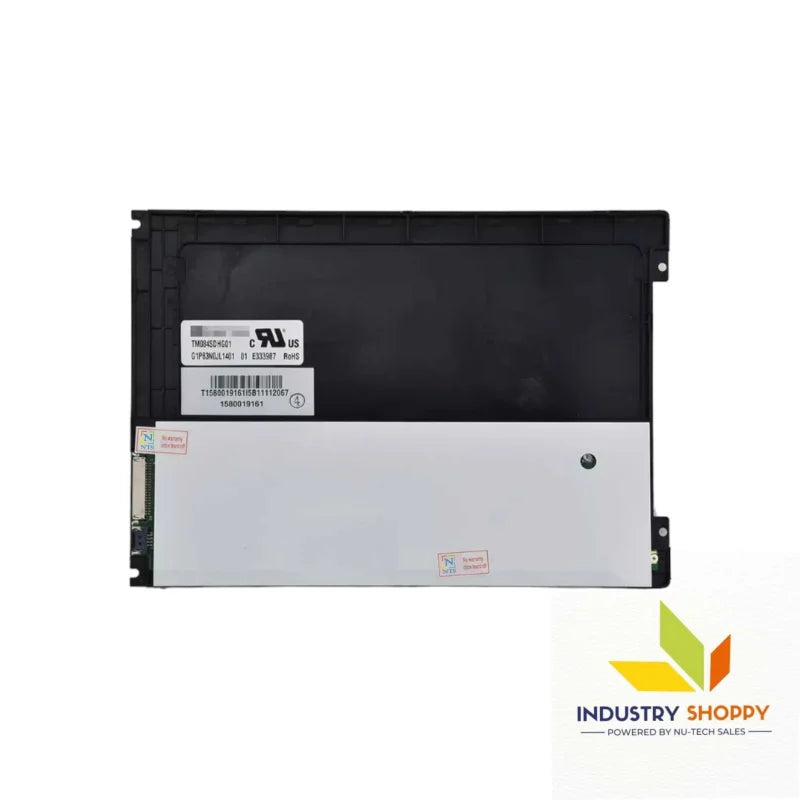

The Tianma TM084SDHG01 is an 8.4-inch a-Si TFT-LCD module designed for applications that demand a high-quality display with a compact form factor. This display offers a resolution of 800x600 (SVGA) and a pixel density of 100 PPI, delivering sharp, clear visuals with excellent color accuracy. Its RGB Vertical Stripe pixel arrangement ensures vibrant and consistent color reproduction, making it ideal for devices that require precise and reliable visual output.

With a brightness of 600 cd/m² and a contrast ratio of 700:1, this module performs well in bright environments, ensuring good visibility even in challenging lighting conditions. The wide viewing angles of 85°/85°/85°/85° (L/R/U/D) allow for clear image visibility from multiple directions, making it suitable for diverse applications requiring flexibility in viewing positions.

The module is equipped with an LED backlight that offers a 50,000-hour lifespan, ensuring long-term reliability and performance. Additionally, its antiglare surface treatment enhances readability and minimizes reflections, making it suitable for use in environments with ambient light.

Key Features:

• Brand: Tianma
• Model: TM084SDHG01
• Diagonal Size: 8.4 inches
• Resolution: 800×600 (SVGA), 100 PPI
• Pixel Format: RGB Vertical Stripe for vibrant, accurate color reproduction
• Active Area: 170.4(W) × 127.8(H) mm
• Bezel Opening: 173.4(W) × 130.8(H) mm
• Outline Dimensions: 205.0(W) × 154.0(H) × 12.0(D) mm
• Surface Treatment: Antiglare for enhanced readability in bright environments
• Brightness: 600 cd/m² (Typical), ideal for use in bright settings
• Contrast Ratio: 700:1 (Typical), ensuring high-quality visuals with sharp differentiation
• Viewing Angle: 85°/85°/85°/85° (L/R/U/D), providing clear visibility from various angles
• Backlight Type: LED with a 50,000-hour lifespan for long-term use
• Display Mode: TN, Normally White, Transmissive
• Response Time: 20 ms (Typical, Tr/Td) for responsive and smooth visuals
• Signal Interface: LVDS (1 channel, 6/8-bit), 40-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, designed to operate in various environments
• Storage Temperature: -30°C to 80°C, suitable for flexible storage in different conditions

Applications:

• Industrial Control Panels: Ideal for use in industrial systems where space is limited but high-quality displays are required
• Point-of-Sale (POS) Displays: Suitable for retail systems that demand high visual performance and reliable display in compact form factors
• Medical Devices: Perfect for small medical equipment and diagnostic tools where clear visuals and color accuracy are essential
• Embedded Systems: Ideal for embedded applications that need a robust, reliable display for data visualization

Technical Precautions:

• Handling: Handle with care to prevent damage to the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation to protect the module
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal longevity
• Installation Guidelines: Avoid excessive pressure on connectors during installation to ensure reliability
• Backlight Maintenance: Regularly inspect the backlight, which has a 50,000-hour lifespan, to ensure continued performance
